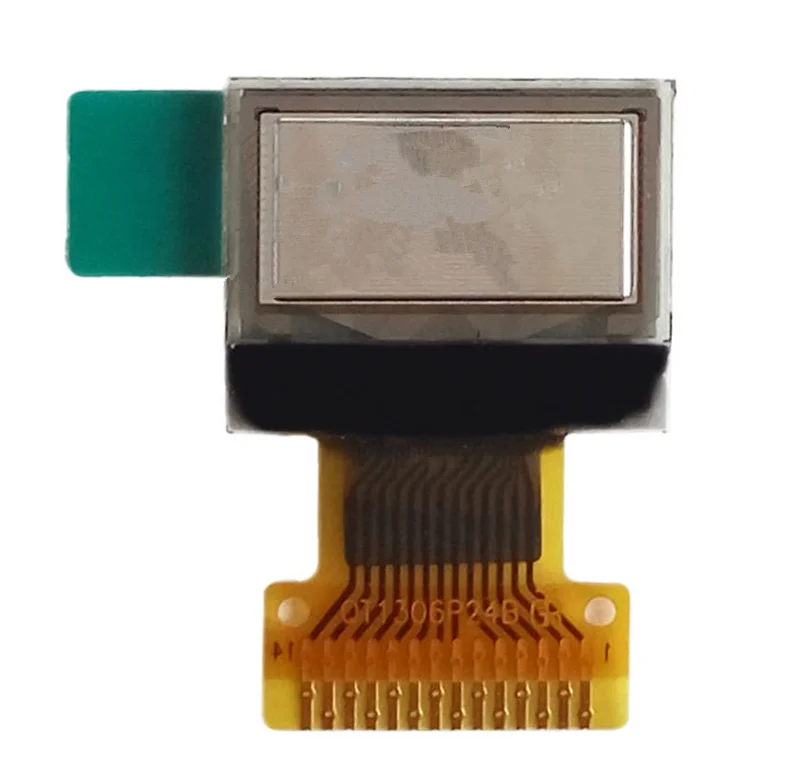

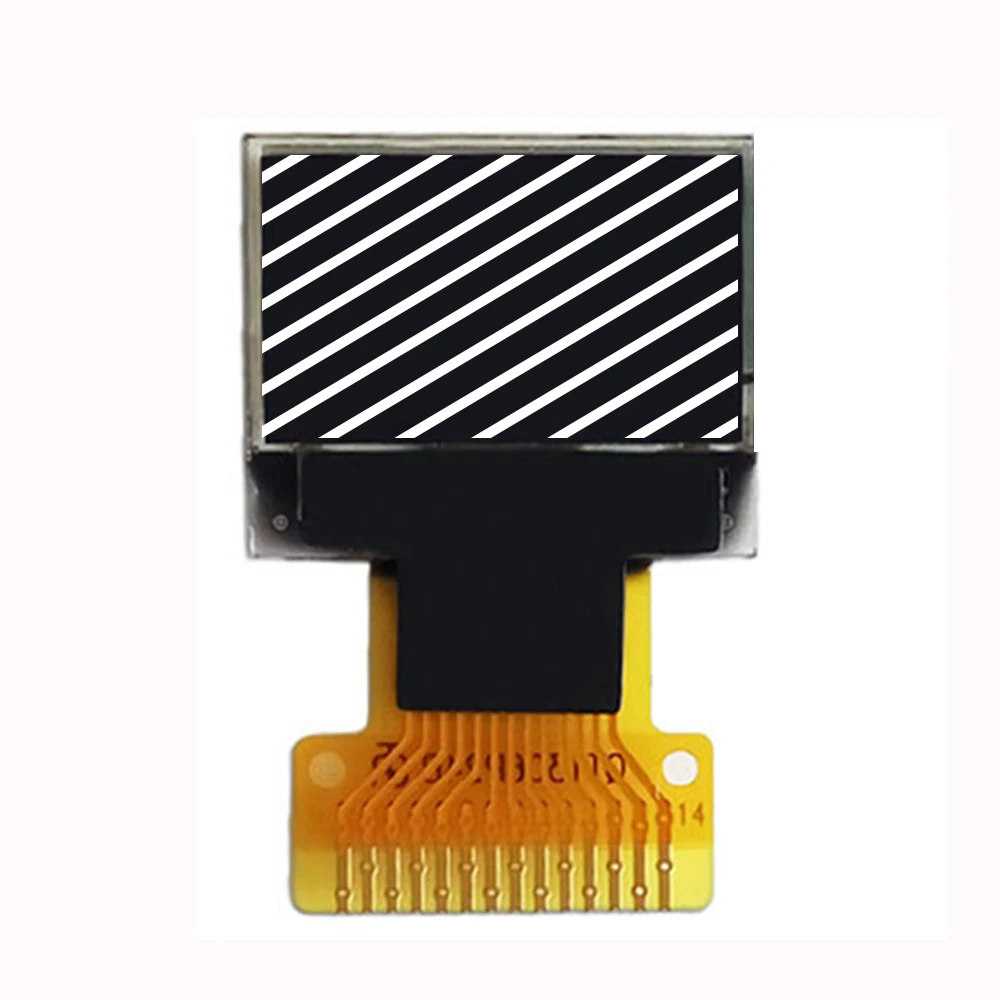

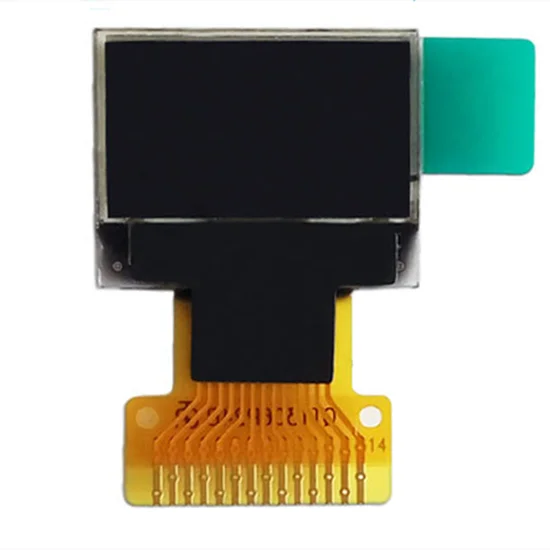

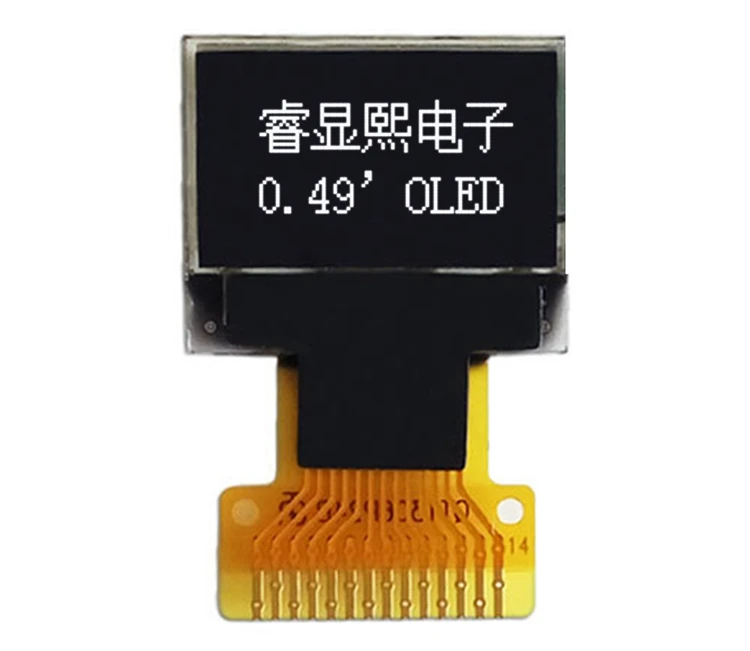

0,49 дюймовый разрешение 64*32 маленький размер oled гибкий модуль дисплея
- Category: OLED\/E-Paper Module >>>
- Supplier: Shenzhen Enrich Electronics Co. Ltd.
Share on (62236603459):
Product Overview
Description
Product Description

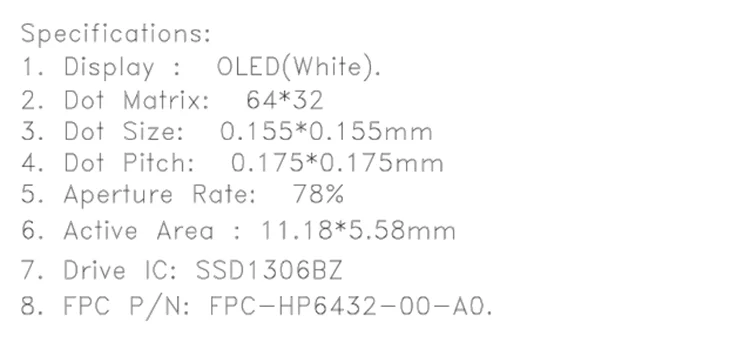

| 1.Display mode: | OLED |
| 2.Number of dots: | 64*32 |
| 3.Dot Size: | 0.155*0.155mm |
| 4.Dot Pitch: | 0.175*0.175mm |

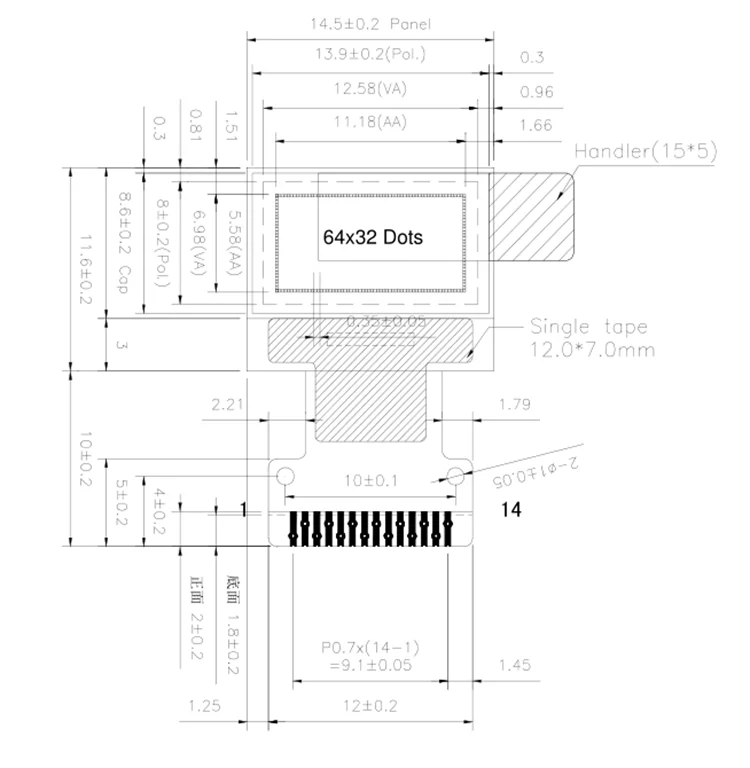

| 5.Module size: | 14.5(W)x11.6(H)x1.277(D) Mm |
| 6.Connect: | FPC+COG |
| 7.View area: | 12.58*6.98mm |
| 8.Active area: | 11.18*5.58mm |
| 9.Drive IC: | SSD1306BZ |
CUSTOM PROCESS:
(PRICE OF CUSTOM LCDS WILL BE DEPENDS ON THE REQUIREMENT)
1.Firstly,discuss and confirm all of the details.
2.Payment for tooling process.
3.Formal drawing will be sent within 5 days and confirmed by your side.
4.15-20 days for tooling process.
5.Samples(5-20 pcs)will be sent to you to test and confirmed.
6.Place order for mass production after samples are confirmed.
contact us
0.49 inch 64*32 Resolution small size oled flexible display module
0.49 inch 64*32 Resolution small size oled flexible display module
0.49 inch 64*32 Resolution small size oled flexible display module
