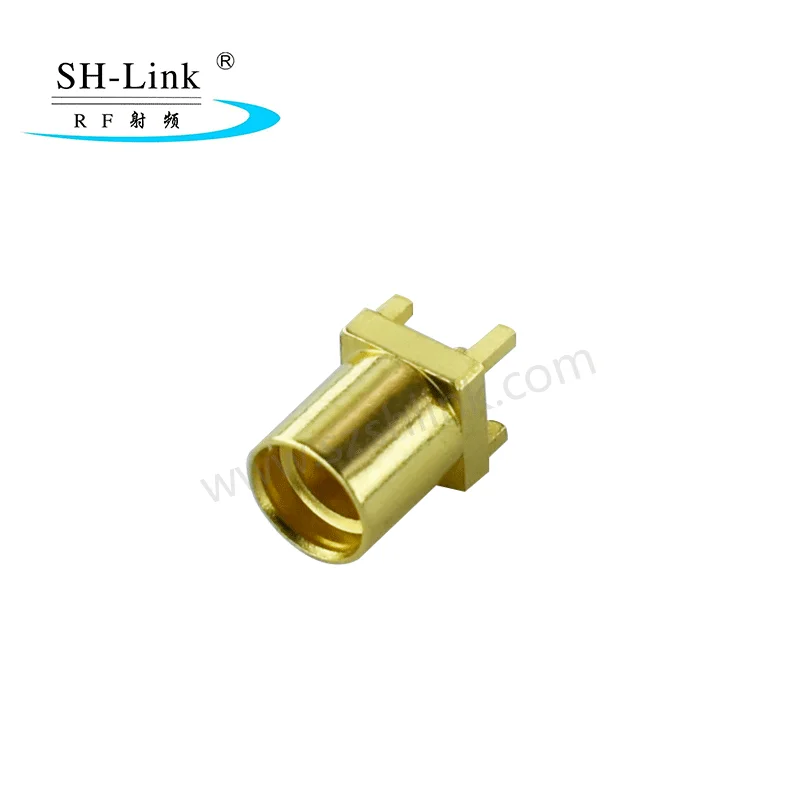

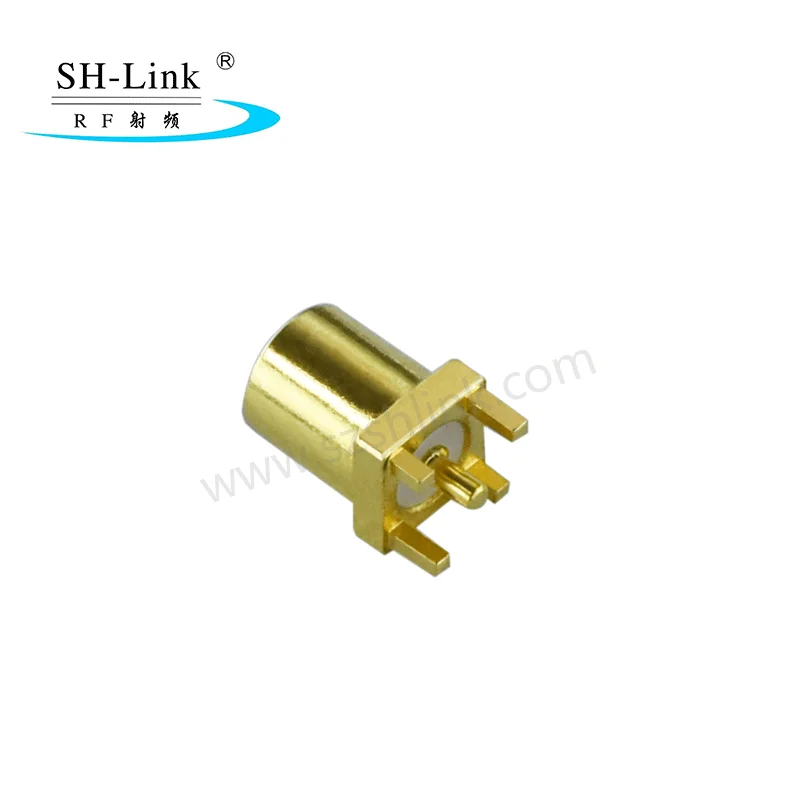

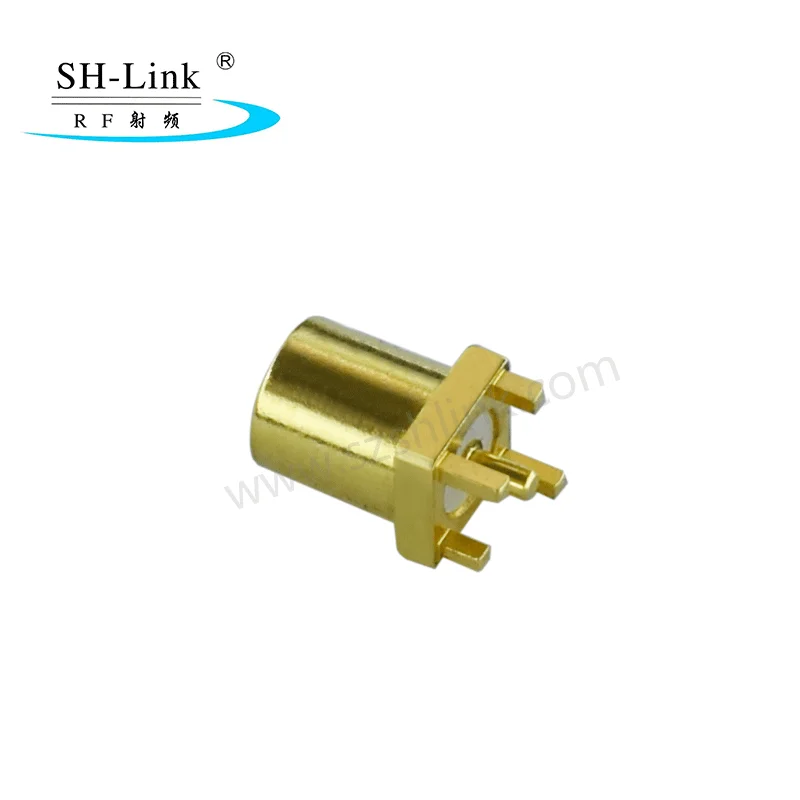

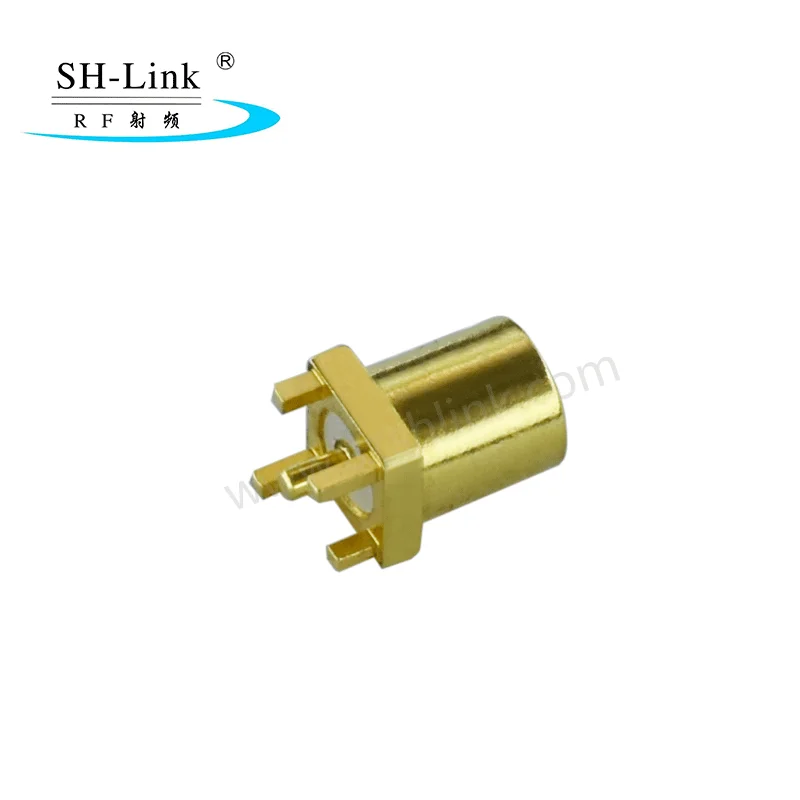

Gold 6GHz MMCX Connector for MMC female RF Coaxial Connector for PCB
- Category: >>>
- Supplier: Shenzhen Sihanming Technology Co. Ltd.
Share on (62236743056):
Product Overview
Description
Gold 6GHz MMCX Connector for MMC female RF Coaxial Connector for PCB
Description:
TYPE MMCX RF Coaxial Connector is a Kind of Microminiature Product Smaller than type MCX.Characteristic impedance is 50Ω.The characteristic of connectors is in Small Volume,Light weight,Convenient Connection and reliable.They are widely used in Connect with the RF Coaxial Cables, Transmission of RF signal,equipments or small-sized communications Network that are demanding on systematic volume and weight.by using surface mounting technology,It is suitable for mass instrument equipment production and producing on the assembly line.
Major characteristics:
| Temperature range | -55—+155℃(PE Cable -40—+85℃) |
| Impedance | 50Ω |
| Frequency range | DC-6GHz |
| Working voltage | 170V r.m.s at sea level |
| Withstanding voltage | 500V r.m.s at sea level |
| Contact resistance | |
| Center contact | ≤5mΩ |
| Outer contact | ≤2.5mΩ |
| Insulation resistance | ≥1000MΩ |
| Center conductor retention force | ≥0.28N |
| Insertion loss | 0.18dB/1GHz |
| Engagement force | ≤15N |
| Disengagement force | ≥6N |
| Voltage Standing Wave Ratio | |
| Straight | ≤1.25/3GHz |
| Right angle | ≤1.43/3GHz |
| Durability(mating) | ≥500(Cycles) |
