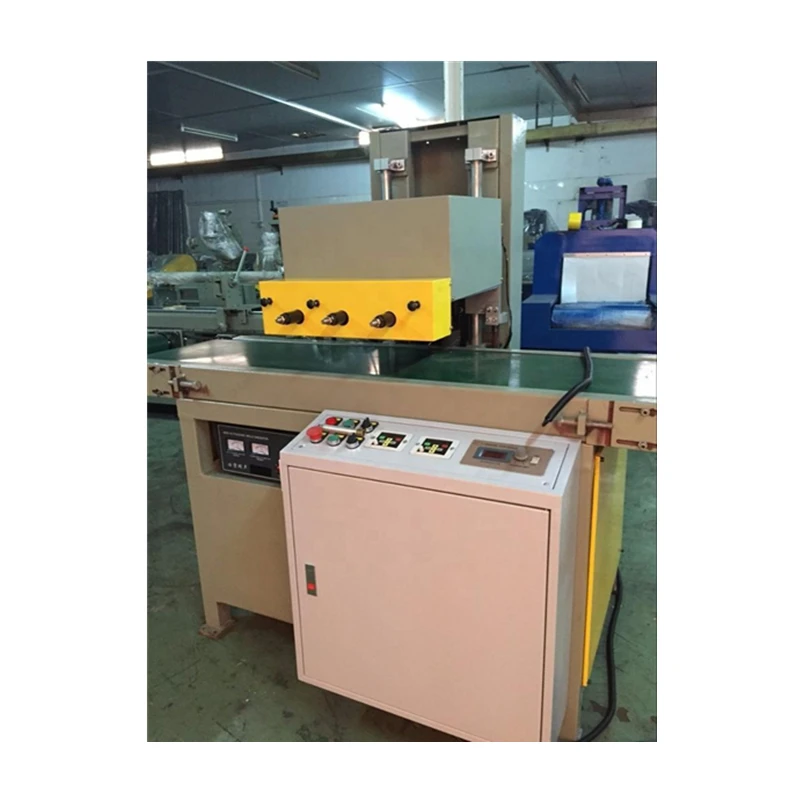

Weld Aluminum Vacuum Plastic Film Ultrasonic Welding Machine

Product Overview

Description

Ultrasonic wood grain film welding machine

--- PRODUCT DESCRIPTION ---

Ultrosonic welding machine is specially designed for welding transfer film before transfer printing process.

It automatically wrap metal profiles with a plastic film.

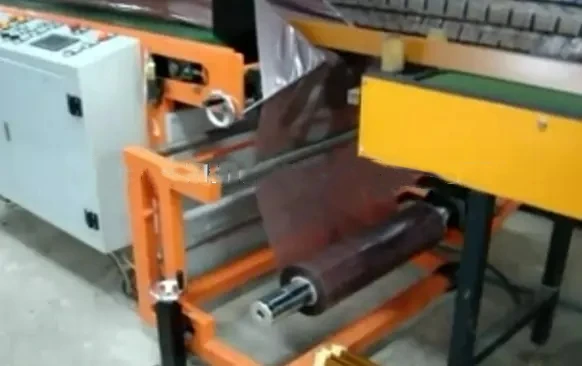

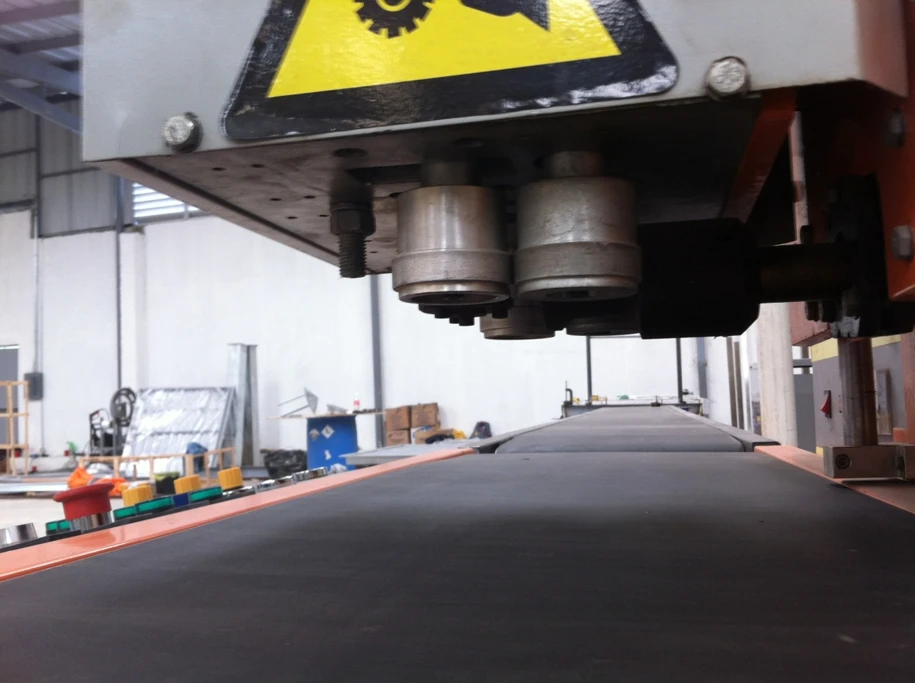

The ultrasound system welds the wrapped film on its longitudinal edges. The plastic film rolls are inserted on a motorized self-centering shaft equipped with a braking system. The film replacement is made in a few seconds and the rolls can have variable sizes: from from 16cm to 70cm inches. In such a way, it is possible to reduce the material wastage when different profile dimensions are used. At the end, the film is automatically cut by a blade in the cutting station located at the beginning of the outlet belt. Upon request, the wood grain powder coating machine can be equipped with a loading and/or unloading conveyor belt, to facilitate moving profiles inside and/or outside the bagging machine.

 --- Technical Data ---

1- Adjustable welding speed ≤ 42m/min.
2- Inlet 6~7m belt conveyor .
3- Outlet 6~7m belt conveyor.
4- Automatic loading system with robotic arm (optional).
5- Automatic unloading system with pneumatic pusher and storing belts (optional).
6- Automatic film cutting device (optional).
7- Smart film material saving control system (no profiles no film consumption) (optional).
8- Standard version installed power about 3.4kW.

9- Maximum profile size: length 7m, width 250mm, height 250mm.(height 200mm with cutting device).
10- Layout dimensions: length 17m X width 1.3m X height 1.7m.

 ---The Most  Advantages ---

High speed( Max speed 42m/min)

Automatic film cutting device(very convenient and high efficiency)

Our film welding machine can give you best quality of welding and highest efficency.
 --- Process ---

1. cutting wood film ,required size which is suitable for profiles;

2.wled the film like bagging then cover the aluminum profiles.

3.transfer the coved profile to the wood grain transfer machine for vacuum and heat transfer printing

---principle of ultrosonic welding ---

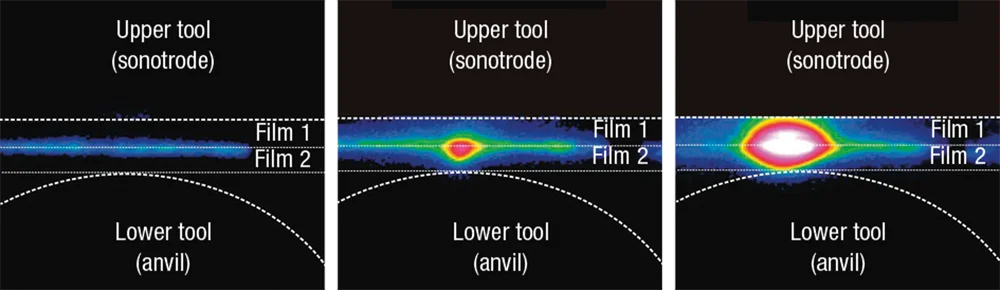

Generation of heat at the inside of the seal during ultrasonic sealing

---Packing & Shipping---

Our cargo can be transport by freight,train,plane,courier.

--- Committed to R&D for 30 years ---

--- International team professional service ---

                     Pre-Sales Service                                   After-Sales Service

                  * Inquiry and consulting support.             * Training how to use the machine.

                  * Sample testing support.                         * Engineers available to service                        * Factory layout design for customer.                machinery overseas.

--- Our factory ---

--- YING GROUP in international exhibition in 20 years  ---

YING GROUP have customers in over 50 countries (including Saudi Arab, UAE, Egypt, Libya, Sudan, Nigeria, Jordan, Iran, Israel, India, Vietnam, Philippines, Malaysia, Thailand, America, Australia, New Zealand, Russia, Ukraine, Mauritius, Mexico, Brazil, Indonesia, Pakistan,Columbia...) in aluminum and steel industry, serve hundreds of customers in aluminum extrusion, steel door, window and furniture, job coating......
