Greenpedel D30 48V 1000w Price in Bangladesh DC Brushless Wheel Motor Electric Bike Kit with Rack 18650 Lithium Battery
- Category: >>>
- Supplier: Changzhou Green Pedel Co. Ltd.
Share on (62237047609):
Product Overview
Description
Product Description

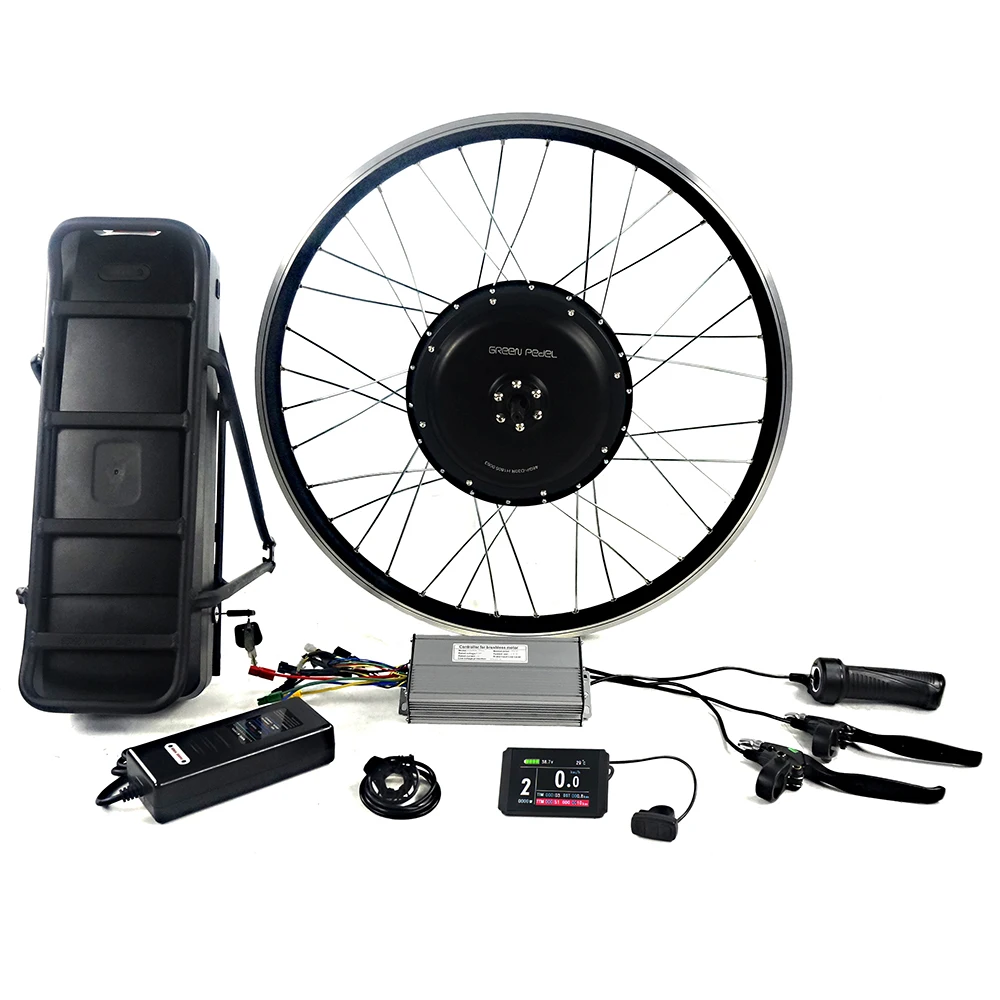

Greenpedel D30 48V 1000w Price in Bangladesh DC Brushless Wheel Motor Electric Bike Kit with Rack 18650 Lithium Battery, including 48v 1000w motor, 48V 30A controller, display , throttle,PAS, Ebrake, Rack battery and charger.

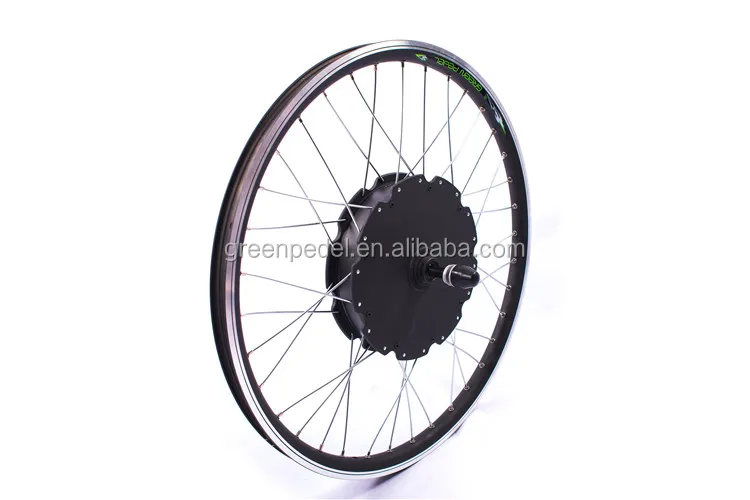

Greenpedel motor has front、rear and cassette three versions, can be rimed from 20"-28".
According to your requirements, we can provide with different powers, from 250w to 3000w.
Here is the 750w-1000w. If you want the bigger power or lower one, you can also leave a message.
According to your requirements, we can provide with different powers, from 250w to 3000w.
Here is the 750w-1000w. If you want the bigger power or lower one, you can also leave a message.
We have our Hub Motor with waterproof connector in the end, single or multi speed as you want.
We use bended magnets,which is better than most of the ones that existed in the market.
R&U bearings,0.35mm silicon steel sheet, which means higher efficiency than the 0.5mm ones. Axle with rust-proof treatment.
R&U bearings,0.35mm silicon steel sheet, which means higher efficiency than the 0.5mm ones. Axle with rust-proof treatment.
SPECIFIC ITEM | Greenpedel D30 48V 1000w Price in Bangladesh Electric Bike Wheel Motor Kit for Bicycle with Rack Battery | |

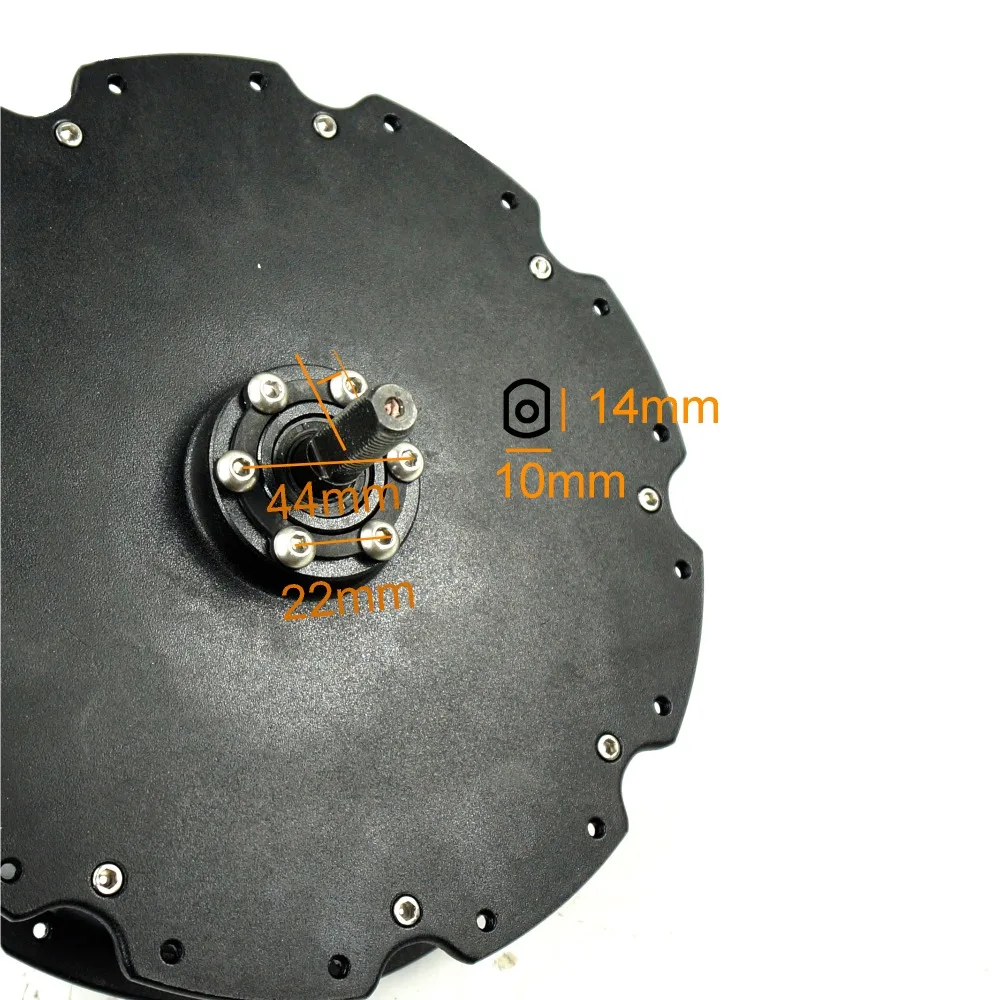

MOTOR | 48V 1000W gearless DC brushless hub motor with 8 pin waterproof cable | |
RIM | Aluminium double wall rim 1.75-2.125 | |
SPOKES | 12G | |
CONTROLLER | standarded square wave controller | |

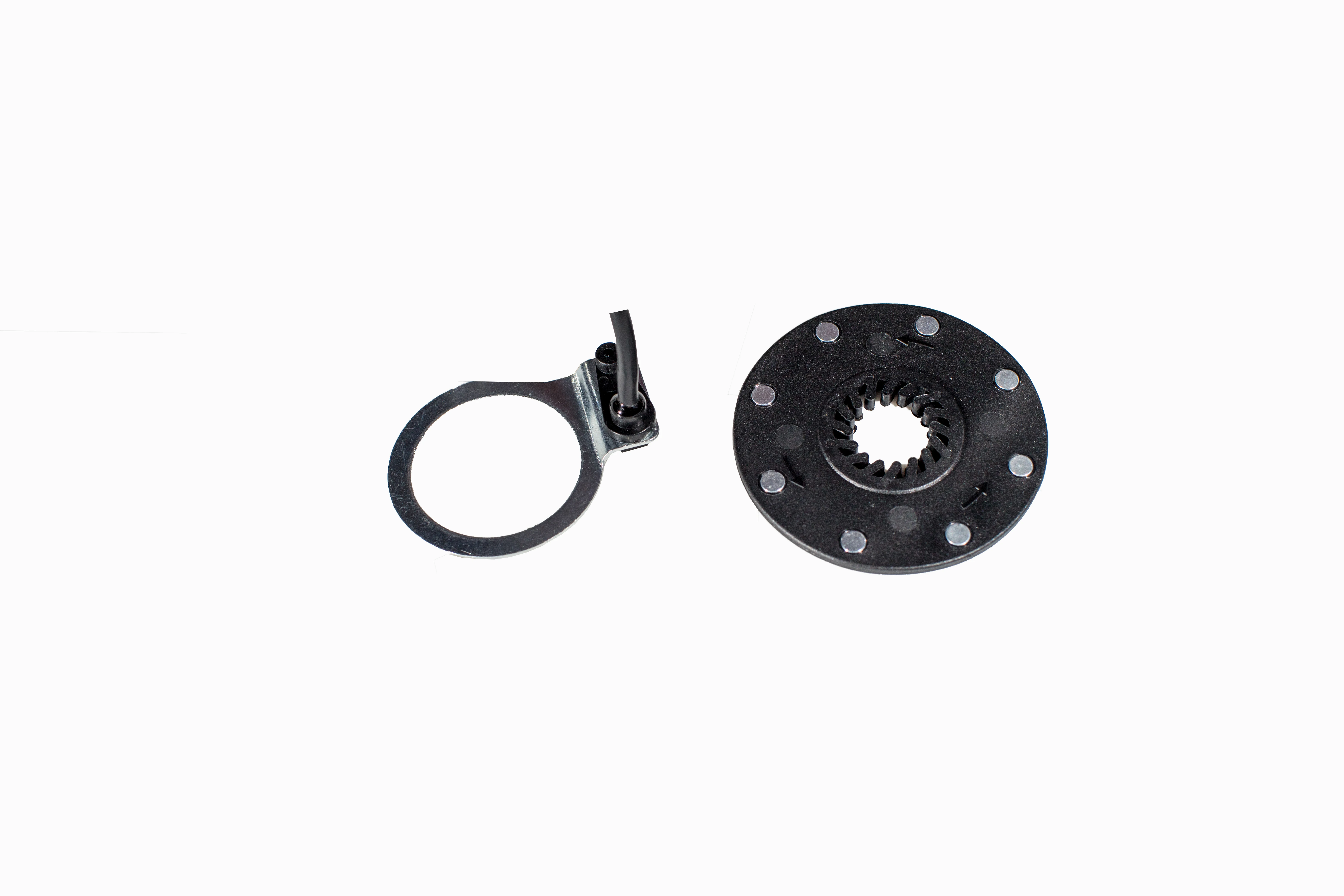

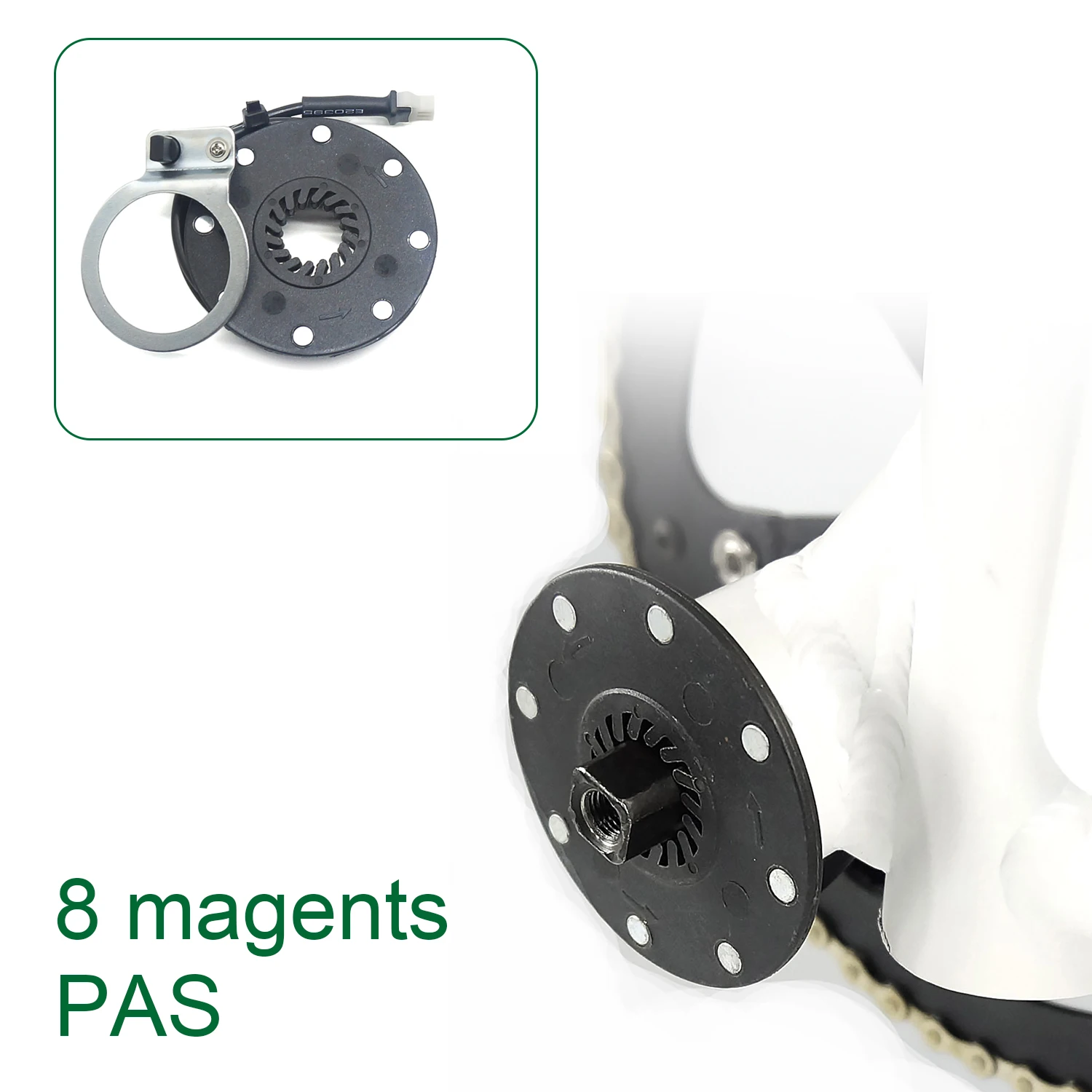

PAS | BZ(4) 1:1 8 magnets PAS | |

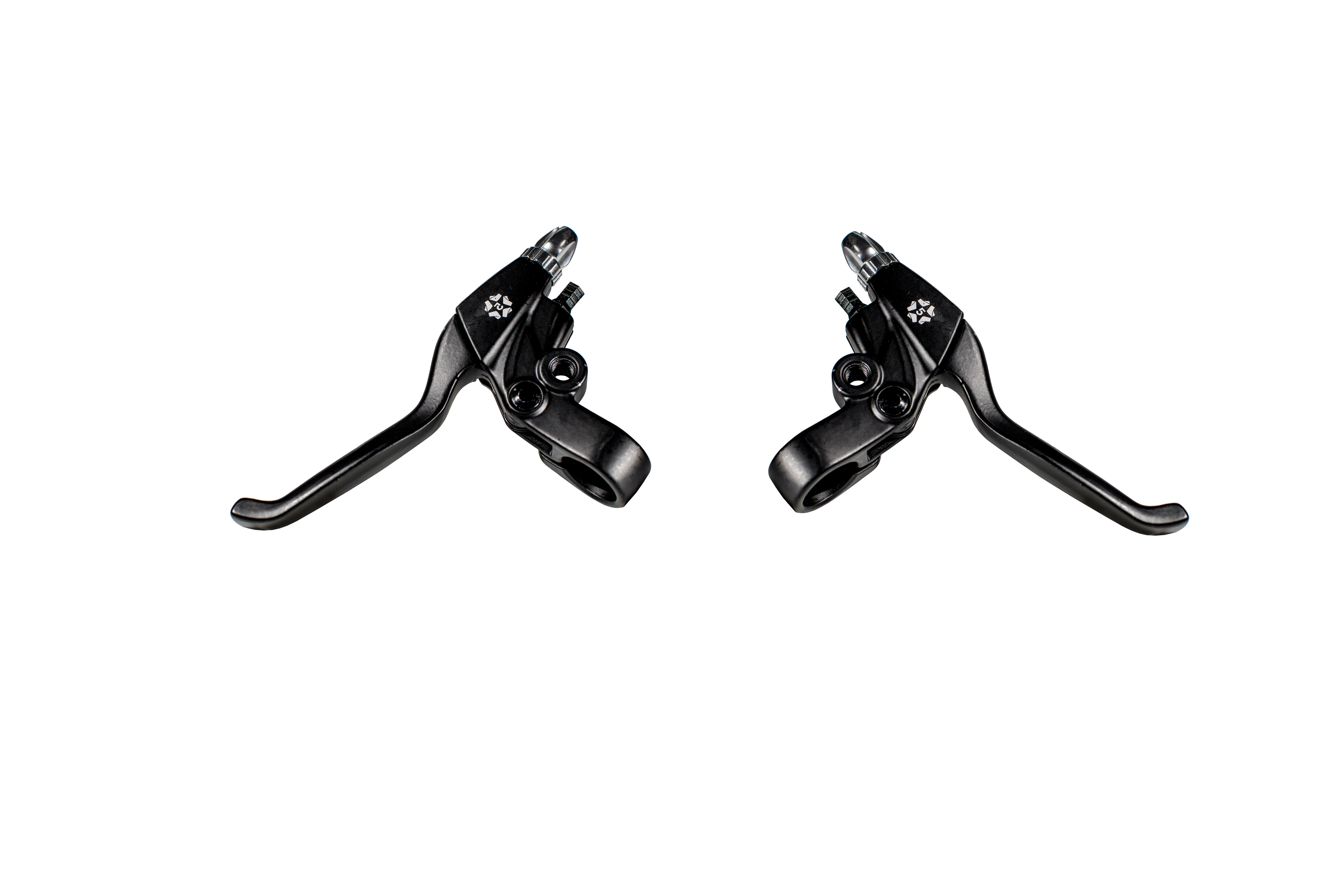

EBRAKE | Wuxing high quality electric brake | |
THROTTLE | 20X Full twist throttle | |
DISPLAY | LCD8 | |
BATTEAY | 48V 17.5Ah Samsung 35E | |
CHARGER | 48V 3A charger | |
WIRING | Waterproof cable | |
Detailed Images
/Cassette | Rated Voltage (V) | 24/36/48 | Cable Location | Shaft center right |
Rated Power (W) | 750-1000 | Spoke Specification | 12g/13g | |
Wheel Size | 20--28 | Hall Sensor | Optional | |
Rated Speed (km/h) | 45 | Integrate speed sensor | Optional | |
Rated Efficiency (%) | >=80 | Surface | Black/Silver | |
Reduction Ratio | Brake Type | Disc brake/V brake | ||
Weight (Kg) | 6 | Salt fog test (h) | 24/96 | |
Open Size (mm) | 100 | Noise (db) | < 60db | |
Drive and Freewheel | 6-7s | Waterproof Grade | IP54 |
1) Installation Width: Front=100mm Rear=135-142mm.
2) The max speed of the motor will be 42KPH-55KPH.(To meet the standard of the EU and North America).
4) The size of the rim is 20",24",26" or 700C(28inch) .Please confirm the size in advance.

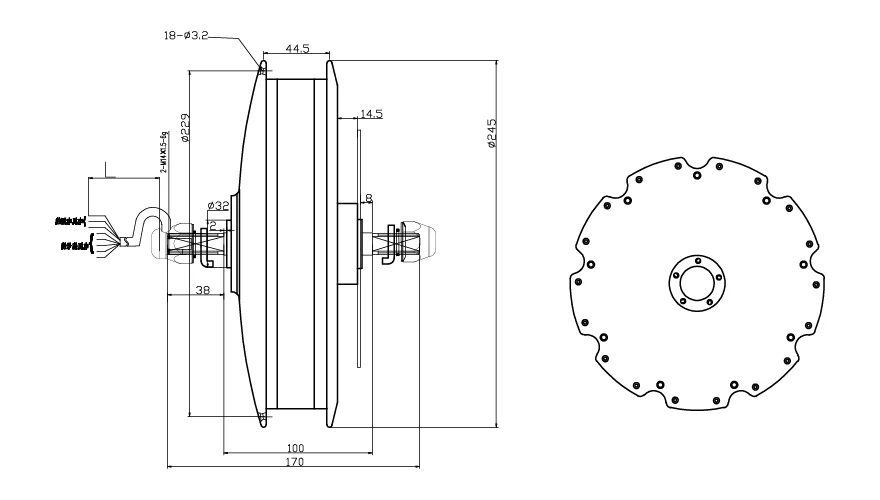

D30 Front Size Information
D30 Rear Size Information

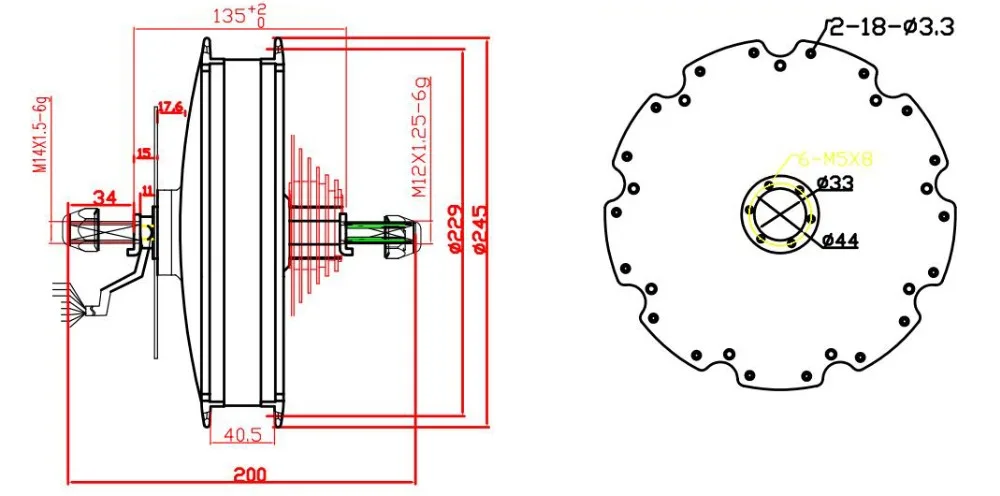

D30 Cassette Size Information

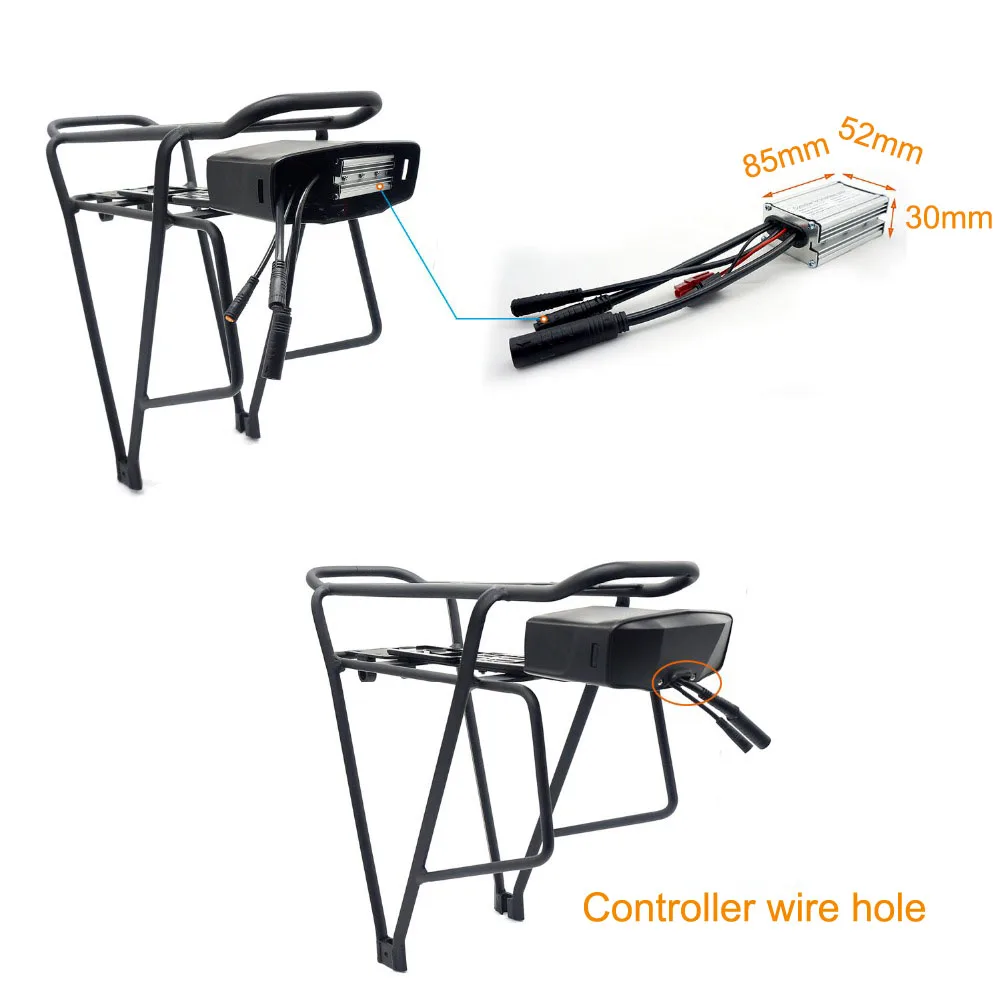

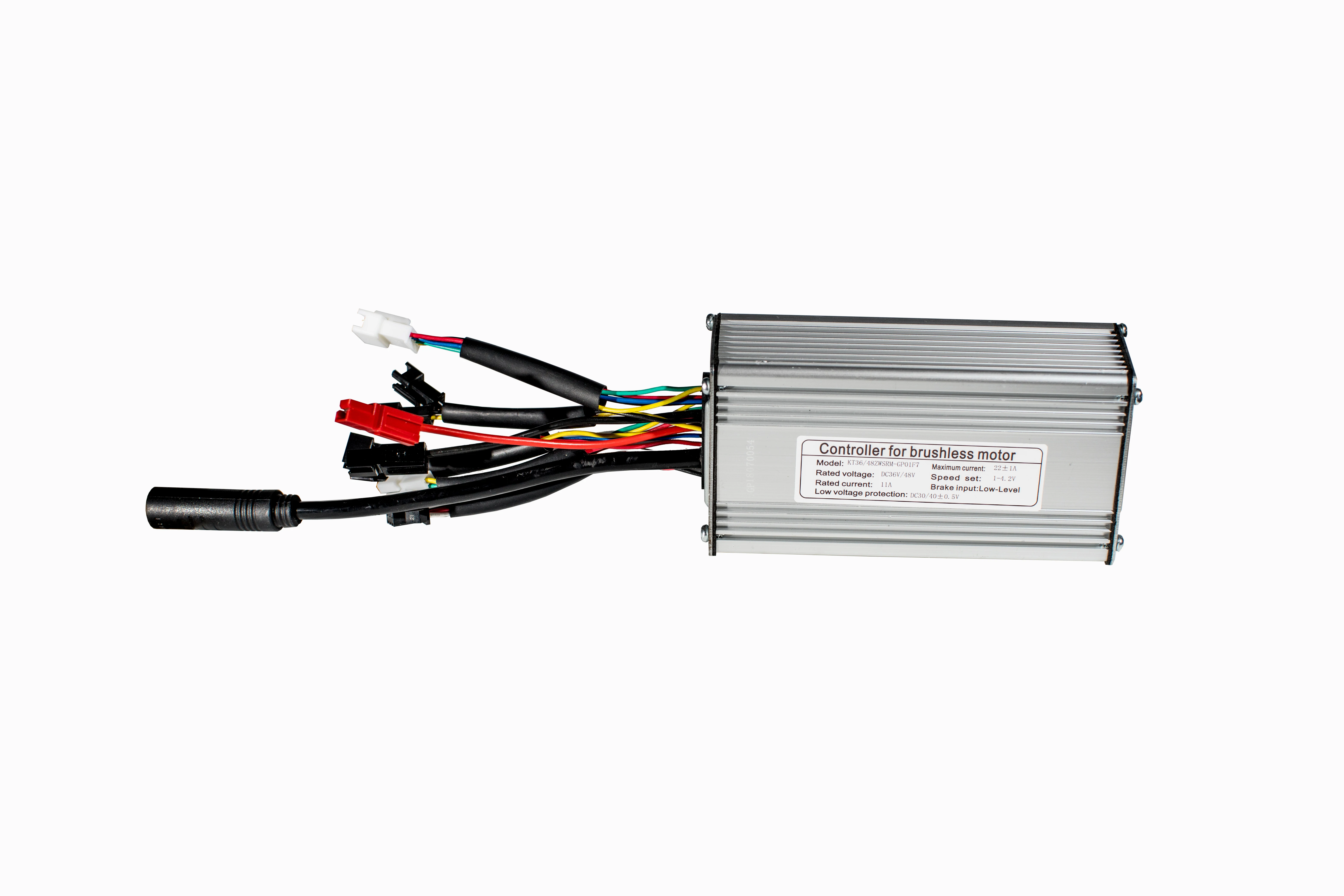

1) We have waterproof controller and standard controller for option
2) We have Blueth + App controller or standard controller for option
3) We have controller box and controller bagfor reservation

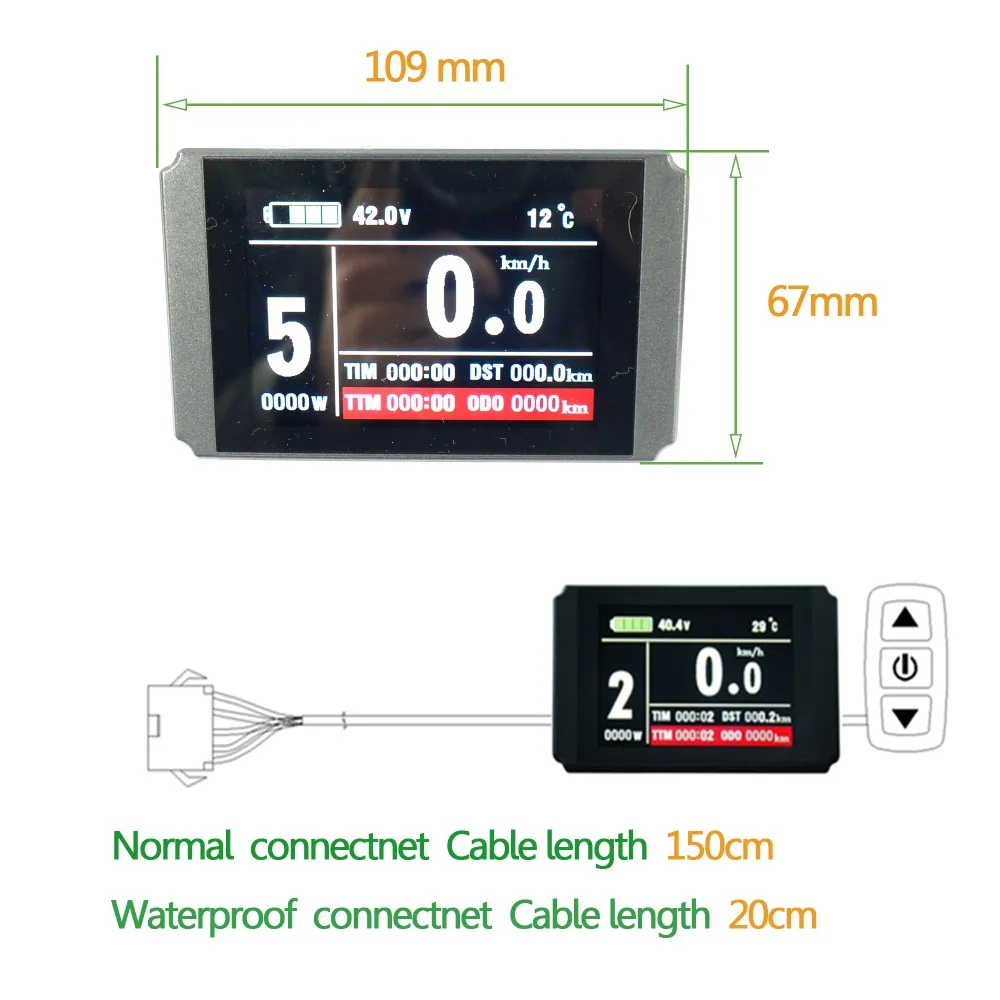

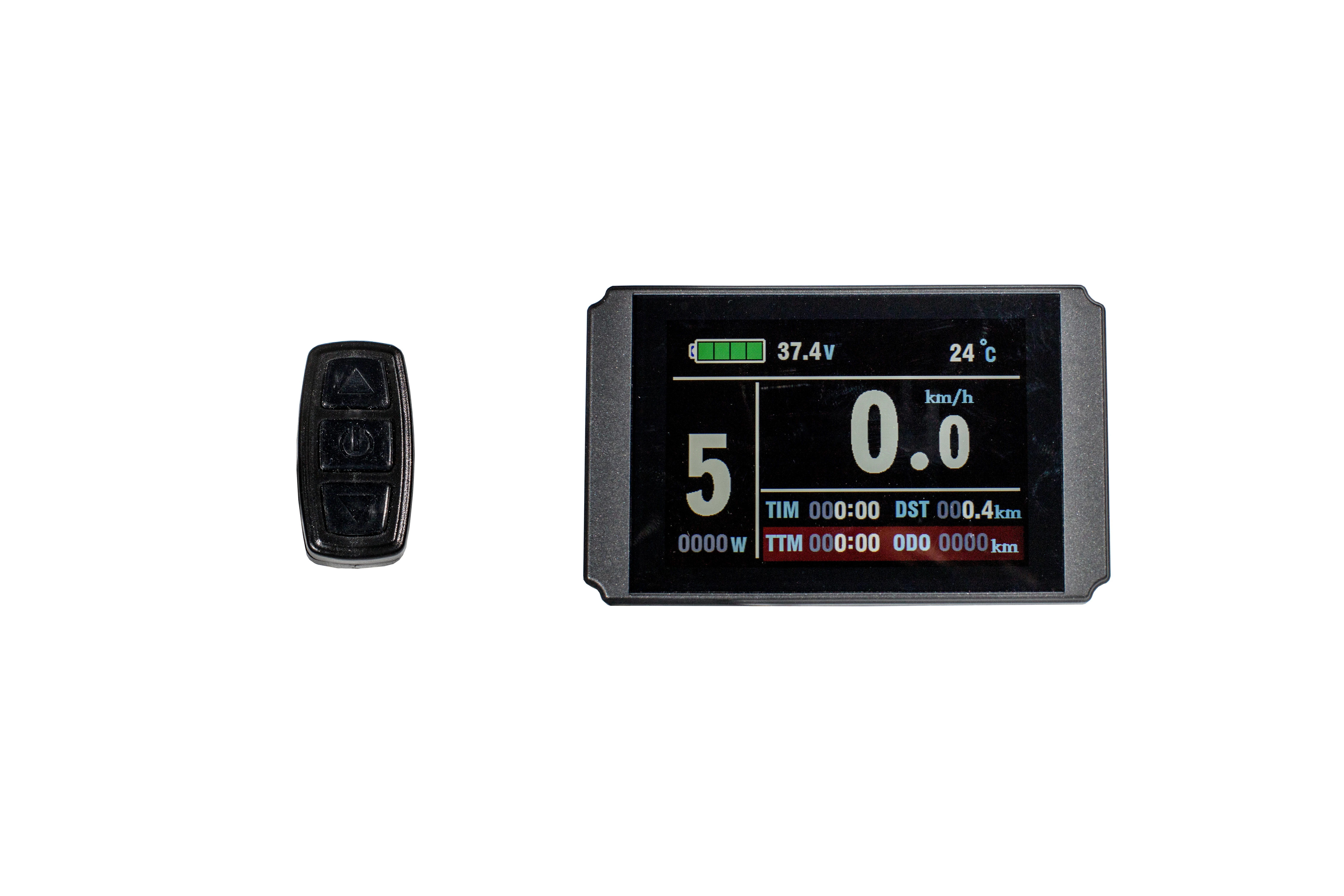

1. Single trip time(TM)+total trip time(TTM) Real time km/h or MPH display
2. Single Max speed(MXS)+single Average Speed(AVS)
3. Single trip distance(DST)+Total Trip distance(ODO)
4 .6km/h push funtion,Cruise function.head ligth,back lights,switching opitonal,brake status showing
5. torque sensor imulation speed sensor 0-5 level+ battery capcity showing
6.24V,36V,48V compatiable.
7. Controller can be reprogrammed by Parameter setting.
8. Data clear+parameter copy+Fault code Disply.
9.Motor working power(W) showing. And motor working Temperature showing.
10.LCD Alarm for motor over heat.
2. Single Max speed(MXS)+single Average Speed(AVS)
3. Single trip distance(DST)+Total Trip distance(ODO)
4 .6km/h push funtion,Cruise function.head ligth,back lights,switching opitonal,brake status showing
5. torque sensor imulation speed sensor 0-5 level+ battery capcity showing
6.24V,36V,48V compatiable.
7. Controller can be reprogrammed by Parameter setting.
8. Data clear+parameter copy+Fault code Disply.
9.Motor working power(W) showing. And motor working Temperature showing.
10.LCD Alarm for motor over heat.

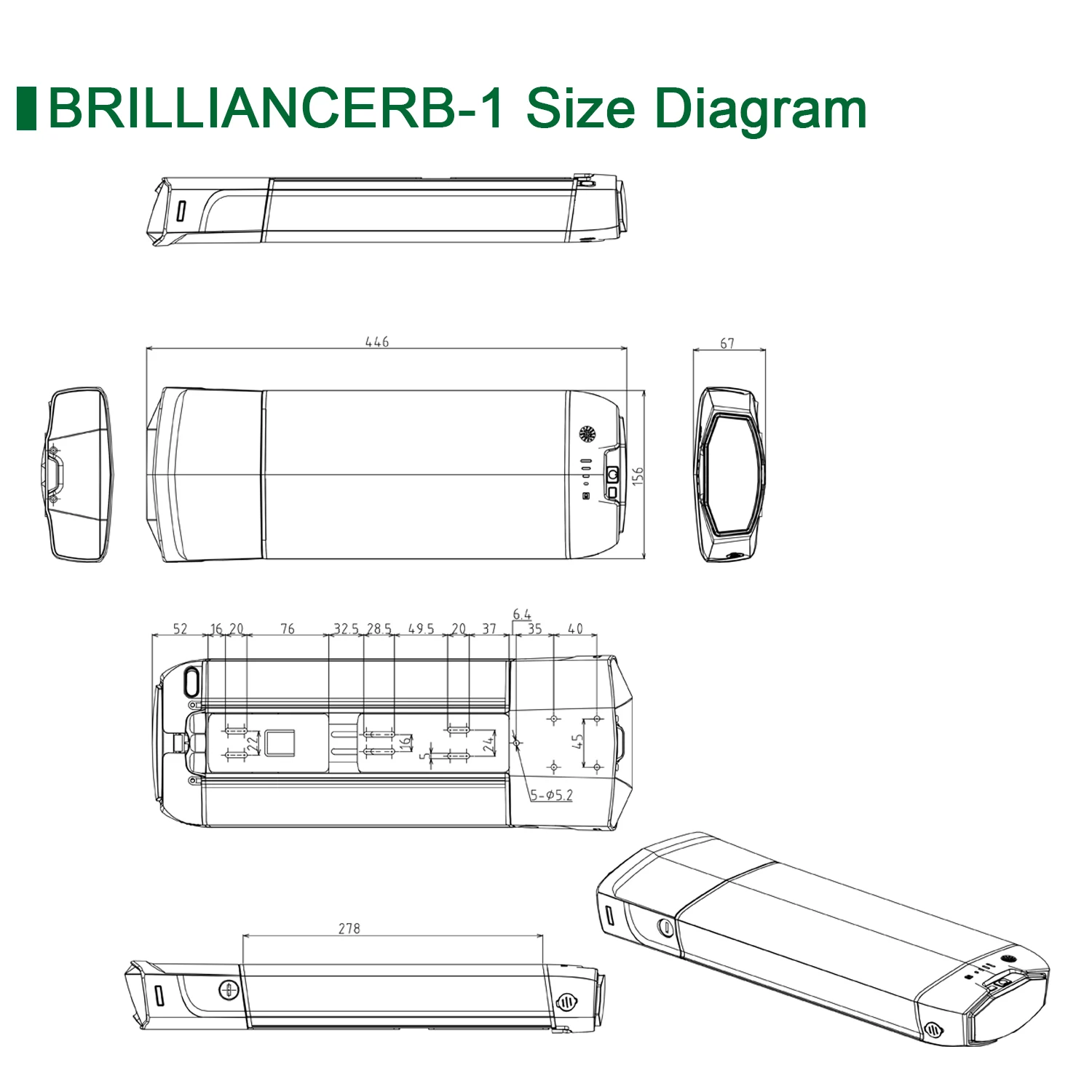

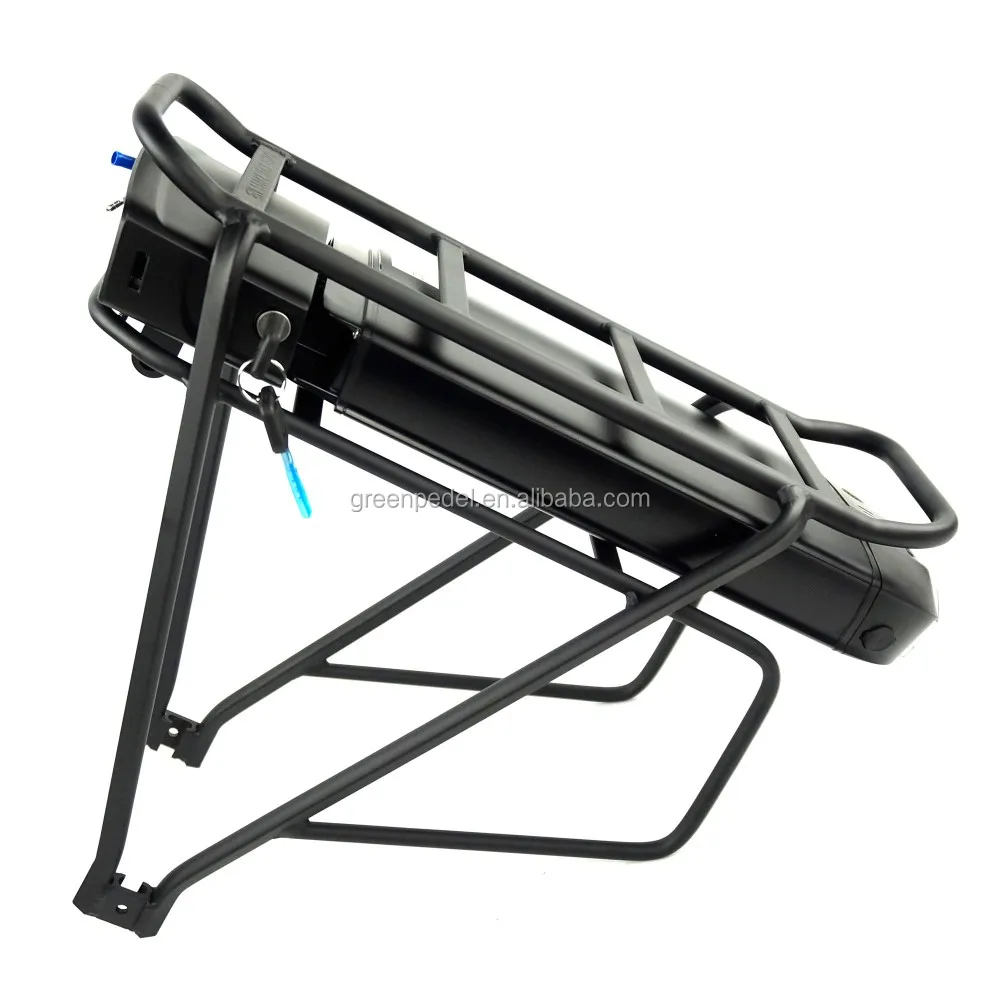

BATTERY
1) We have Tube battery, Frog battery, Lift battery, Frog battery, Tigershark battery, Hailong battery and Rack battery for option
2)Our lithium battery capacity is from 8.8AH to 19.2AH
3) We have Chinese cell, Samsung cell, Panasonic cell and LG cell for option
Related Products
1000w Fat Bike Kit
1000w Mountain Bike Kit
500w-750w Mountain Bike Kit
Factory & Packing
Our Service
1.Warranty :motor is 3years ,battery is 2 years,other ebike parts are 1 year.
2.OEM &ODM are available as customers demand.
3.We have professional team on ebike parts ,10years working experience engineers and sales. 4.Workers are well trained ,testing every single parts before packing.
5.Sales reply to you within 24hours .online time is long ,easy to contact.
6.After service is fast ,send replacement parts as soon as you send fault parts to check.
2.OEM &ODM are available as customers demand.
3.We have professional team on ebike parts ,10years working experience engineers and sales. 4.Workers are well trained ,testing every single parts before packing.
5.Sales reply to you within 24hours .online time is long ,easy to contact.
6.After service is fast ,send replacement parts as soon as you send fault parts to check.
Our Company
Changzhou Green pedel Co.,Ltd is a professional and scientific enterprise that specialises in researching, producing and selling electric bicycles,electric scooters, K-Shaped cars, Shilly-cars and conversion kits. We ensure the quality of the first-class production equipment and the international standard operating procedures, as well as the professional operating staff. We always uphold the priciples of "quality first , integrity first, and reputation first. " In the past 7 years, our customers vary from government to industrial organizations, from distributors to retailers.
