Sell well in South Korea Luffing Tower Cranes SF 180 price
- Category: >>>
- Supplier: Shandong Aizhou Tech Co. Ltd.
Share on (62237067179):
Product Overview
Description
Product Description
SF-180 Luffing crance | |||
Max.Radius (M) | 50 | ||
Independent Height (M) | 41.5 | ||
Max.Lifting Capacity(T) | 10 | ||
Max.Height(M) | 150 | ||
Standard Mast sction Dimension(M) | 135^2×12 Square steel rube | ||
Hoisting speed(m/min) | 0-80 | ||
Climbing speed(m/min) | 0-60 | ||
Motor total power(kw) | 89 | ||
Complete Machine total weight | Independent Structure Weight(kg) | 42600 | |
Counter Weight(t) | 17 | ||
※Main Features
1) advanced performance parameters, large lifting moment, high lifting height, large working range, small rotary radius, high efficiency.
2) the whole machine is beautiful in shape, light in steel structure, excellent in material selection and pre-treated by finishing shot peening and rust prevention;The standard section is welded and machined with birthtools, which has good interchangeability.Lifting arm adopts pin shaft and high-strength bolt connection, which is convenient for assembly and disassembly;No cab operation.
3) the machine has fixed, walking, adhering, climbing and other types of work, which can meet the needs of urban high-rise buildings, industrial plants and other building construction.
4) the lifting mechanism adopts frequency conversion stepless speed regulation, which can obtain ideal lifting speed and slow positioning of load.The rotary mechanism adopts frequency conversion stepless speed regulation technology, works stably and places accurately.The movable arm mechanism is driven by two-speed motor, and the clamp type brake is stable and reliable.
5) all kinds of safety devices are complete, with torque, weight, amplitude and height monitoring functions, as well as alarm and self-locking functions.
※Power supply requirements:
Motor power: nameplate power is 73.5 kw
Working power: 64 kw
Power supply capacity: 80KVA
supply voltage: 380 volts (tolerance ±10%)
Certifications

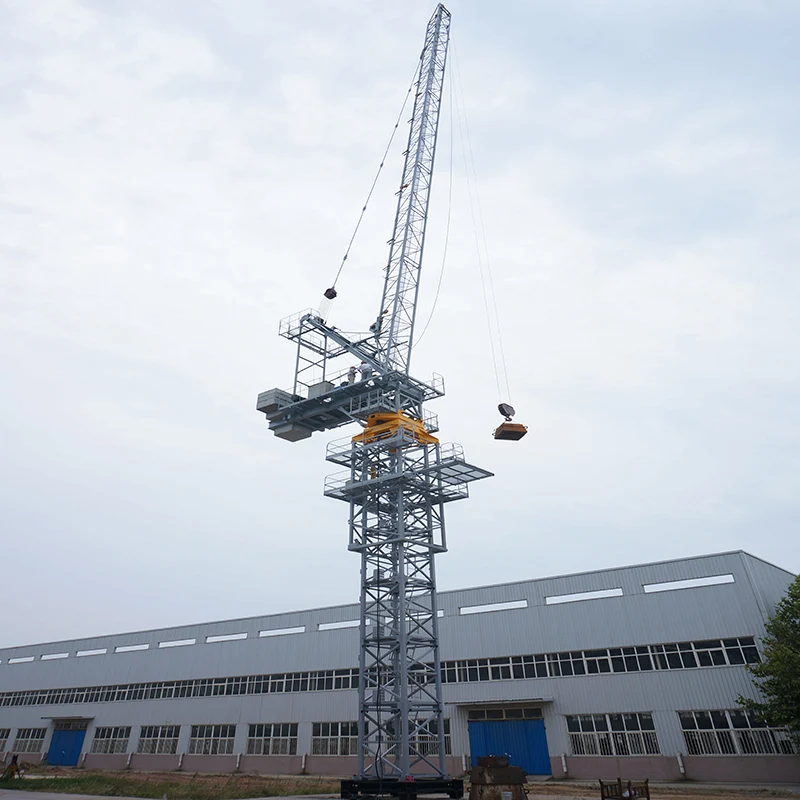

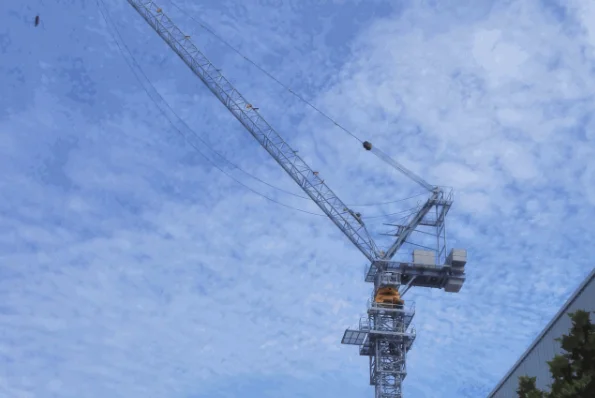

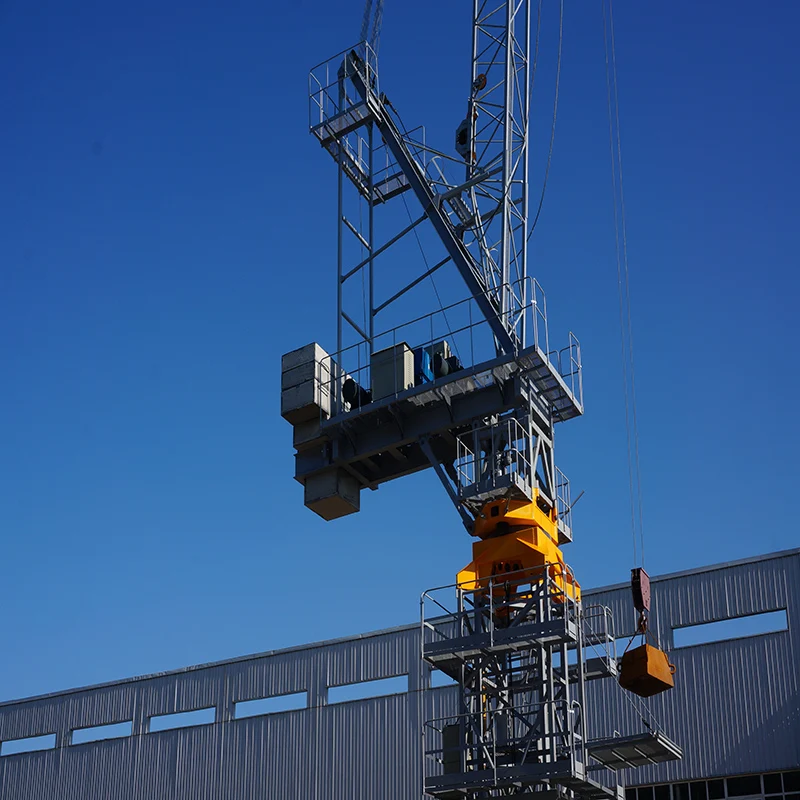

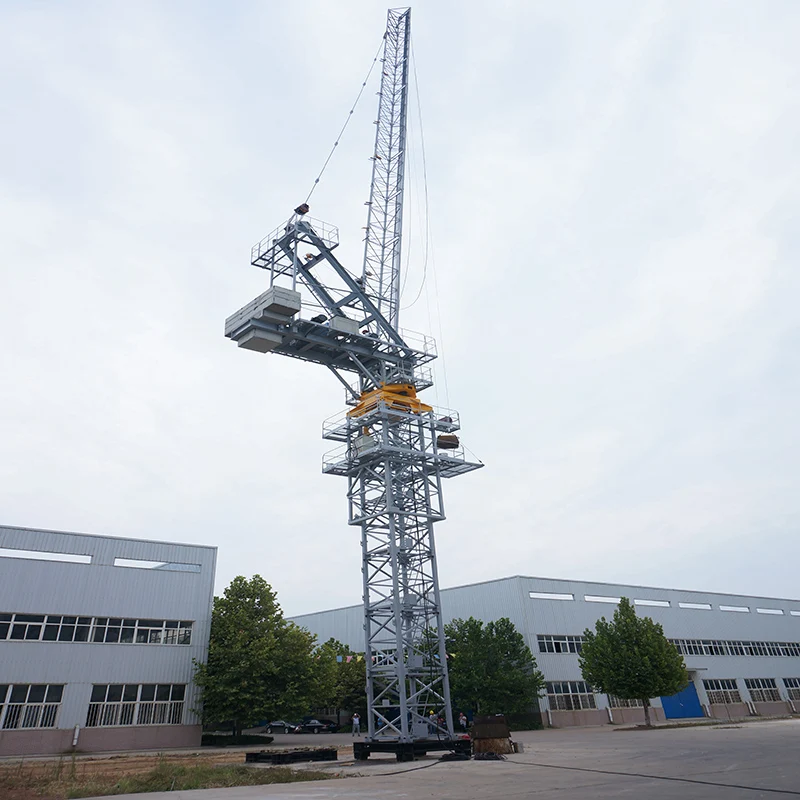

Detailed Images

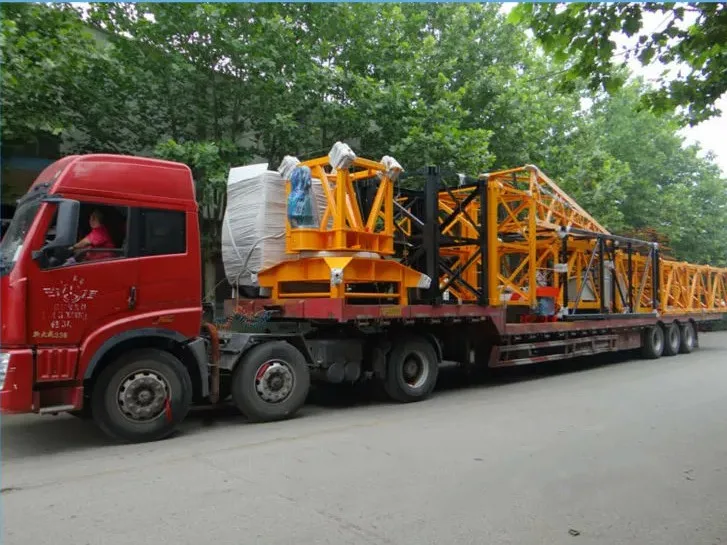

Packing & Delivery
Our Company
☆ CUSTOMER VISITING ☆
☆ EXHIBITION STYLE ☆
Our Service
●Pre-sale service●
1) Understand customer needs and help customers choose reasonable products.
2) Provide customers with technical services prior to equipment installation.
3) Provide customers with in-plant training for equipment operation, maintenance and maintenance personnel.
●Sale service●
1) Follow up, produce and ship the equipment according to the requirements of the contract, and ensure that the equipment arrives at the place designated by the customer safely and completely.
2) Provide various technical parameters required for equipment installation.
●After-sales service●
1) Provide on-site training according to customer requirements.
2) Receive and handle customers' complaints about product quality and service quality, and arrive at the site to solve the problems at the first time.
3) Set up equipment user files, and keep the installation, debugging and maintenance records of each equipment permanently provide technical support for each equipment maintenance.
4) Make customer return visit from time to time, collect customers' opinions and Suggestions on products and services and timely improve them.
2) Receive and handle customers' complaints about product quality and service quality, and arrive at the site to solve the problems at the first time.
3) Set up equipment user files, and keep the installation, debugging and maintenance records of each equipment permanently provide technical support for each equipment maintenance.
4) Make customer return visit from time to time, collect customers' opinions and Suggestions on products and services and timely improve them.
Related Products
Concrete mixing plant
Trailrer Concrete pumps
Concrete mixer truck
FAQ
Q:Why do you choose us?
A:we are the manufacturer,with 20 years experience.
Q:What is your Quality Control (QC)?
A:Third Control, ISO,CCC,CE Certificate ,European Certificate.
Q:How to visit your company?
A:Our factory is in YANTAI city, Shandong Province.
Q:which countries did we export?
A: India, Bangladesh, Vietnam, Vietnam, and the Middle East, etc.
Q:Can you customize your products?
A:Yes, we will do the customization by requirement without affecting the quality of the products
Q:How long is the warranty period ?
A:We offer 12 months warranty for the machine (main body) from the date of installation finished.
Q:What's the payment method ?
A:We accept L/C, T/T and D/P payment.
