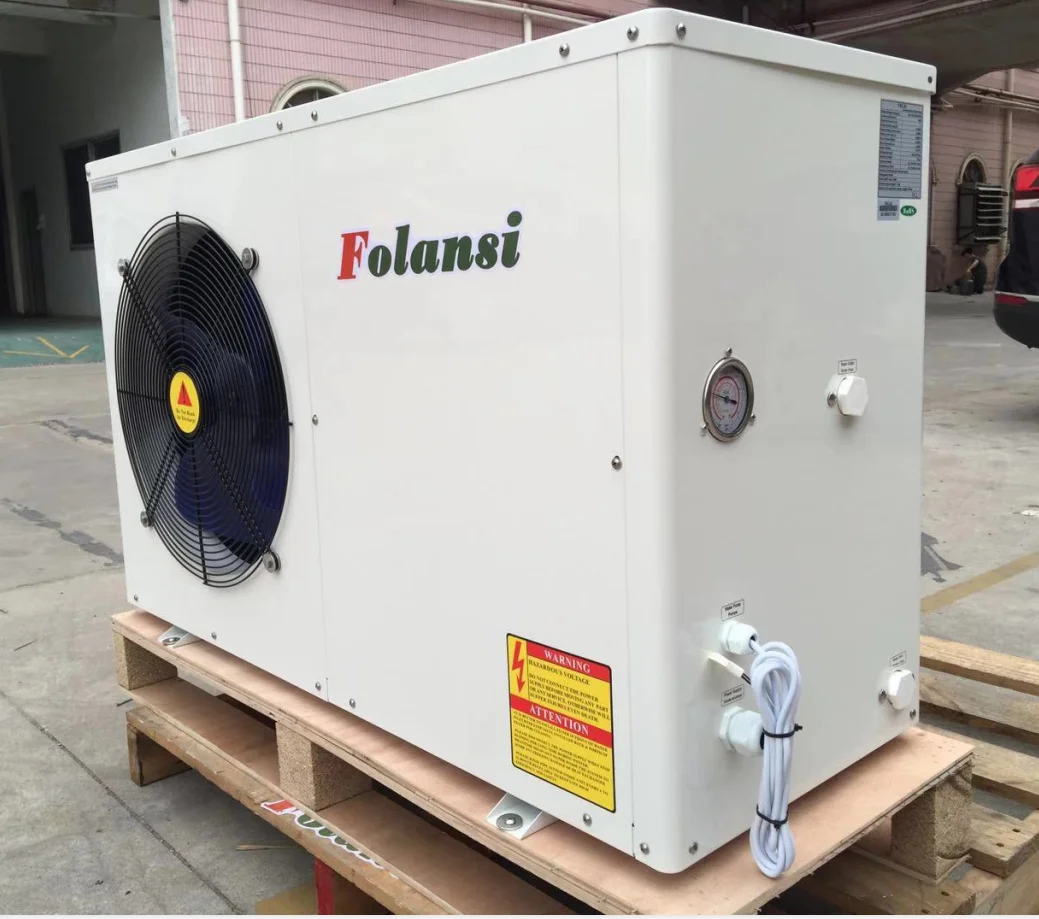

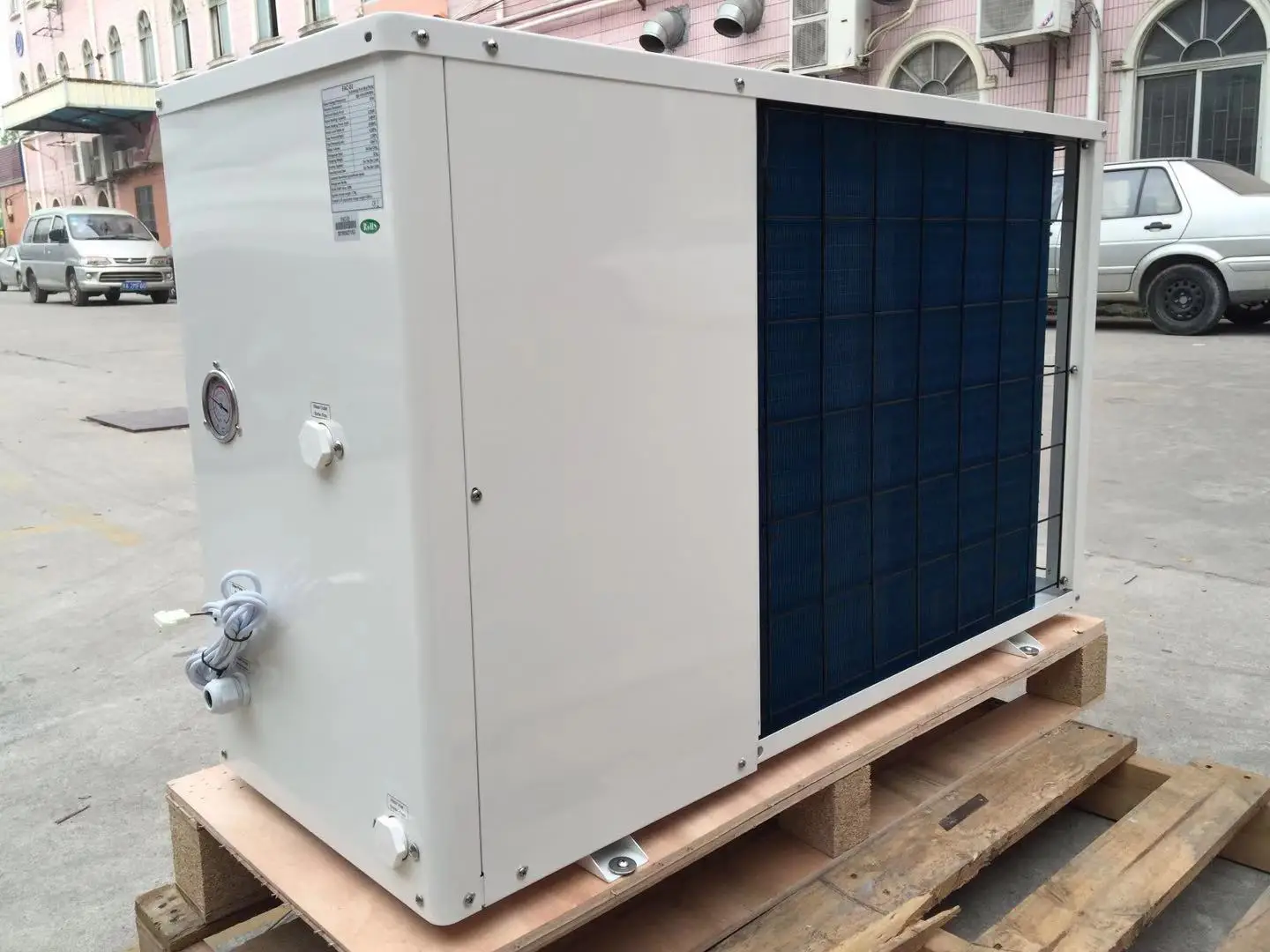

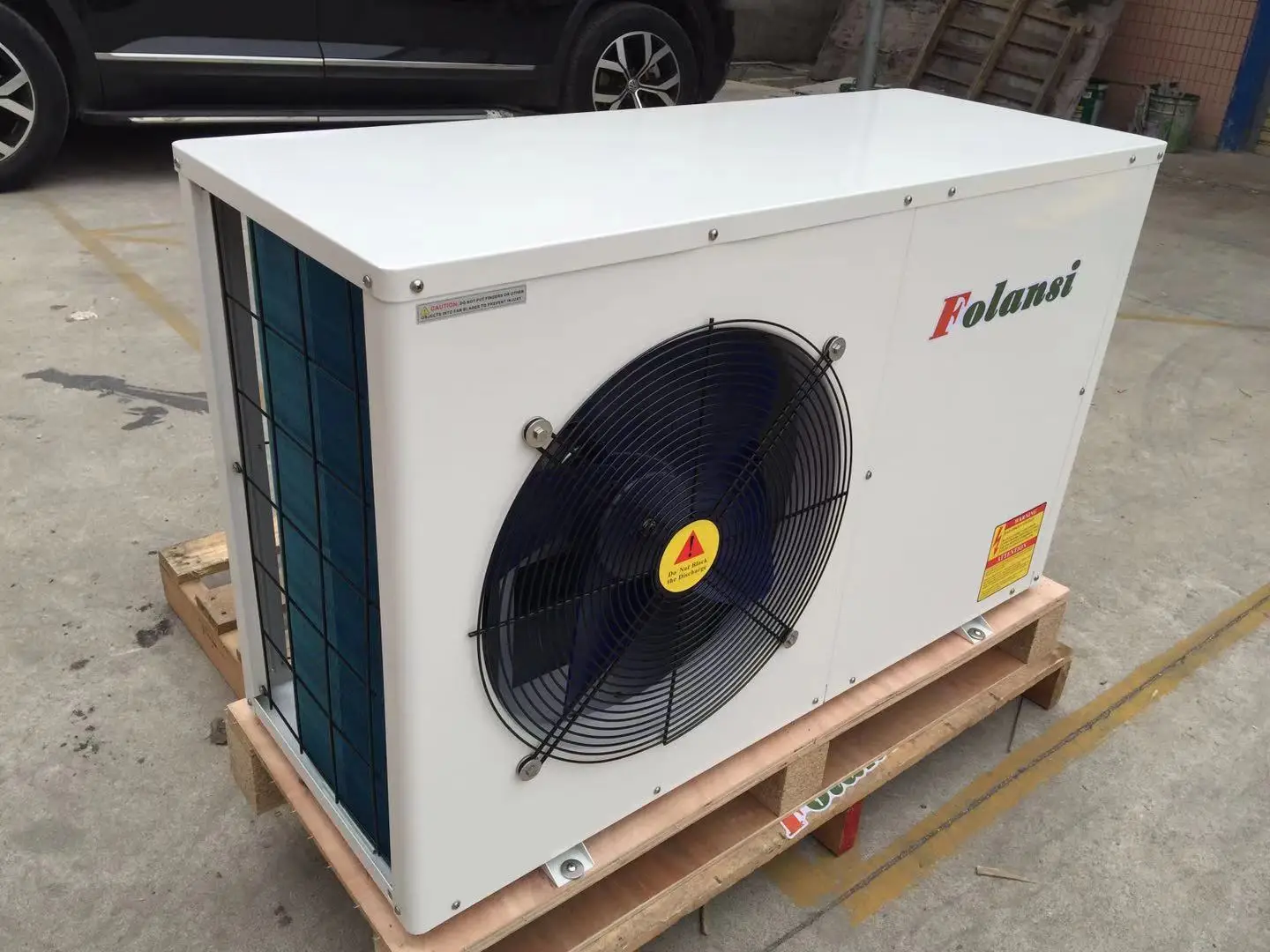

6.3kw Air source heat pump air cooled mini chiller heating and cooling
- Category: >>>
- Supplier: Guangdong Folansi Energy Saving Equipment Co. Ltd.
Share on (62237201391):
Product Overview
Description
Air to water heat pump/air cooled mini chiller (Heating and cooling) | |||||
Model | heatpump | FAC-02 | |||
Unit functions | Rated heating | Heating capacity | kW | 6.3 | |
Btu/h | 21502 | ||||
Rated power | kW | 1.65 | |||
Rated current | A | 3.58 | |||
Rated cooling | Cooling capacity | kW | 5.5 | ||
Btu/h | 18771 | ||||
Rated power | kW | 1.67 | |||
Rated current | A | 3.55 | |||
Max ruuning current | A | 10 | |||
Power | V/Ph/Hz | 220V~240/1N/50Hz/60hz | |||
Noise | dB(A) | 40 | |||
Size | L(A) | mm | 750 | ||
w(B) | mm | 300 | |||
H(C) | mm | 510 | |||
Weight | kg | 65 | |||
Operating control | Precision temp precision | ℃ | ±1℃ | ||
Operation range | ℃ | — 20℃~45℃ | |||

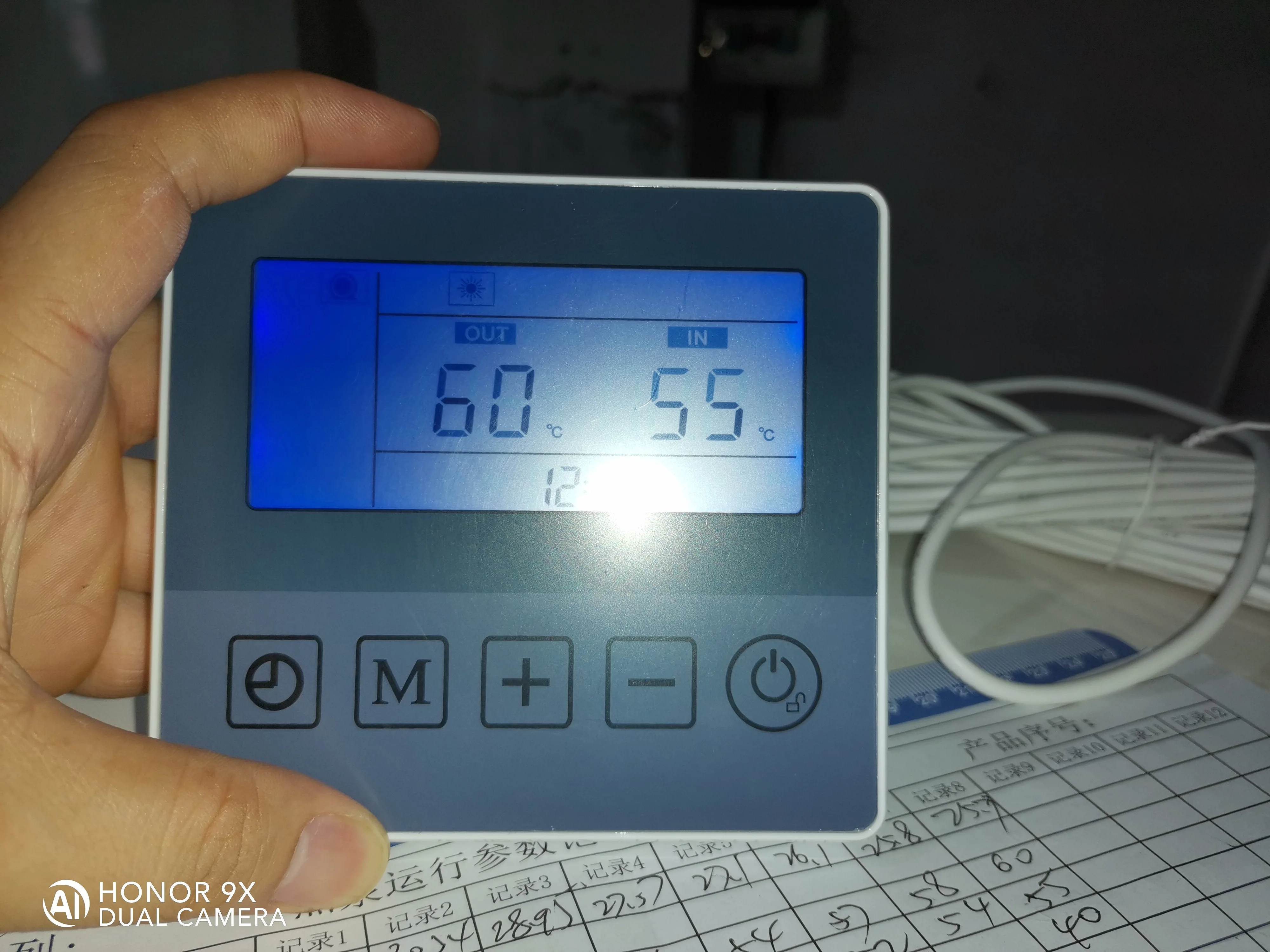

Operation panel | Type | LCD | |||
Main functions | Operating mode,temperature,operating condition, timing | ||||
Throttling | Electronic expansion valves | ||||
The outlet temp | ℃ | 60℃ | |||
Refrigerate | Type | R410A, R407C | |||
Compressor | Type | hitachi panasoni | |||

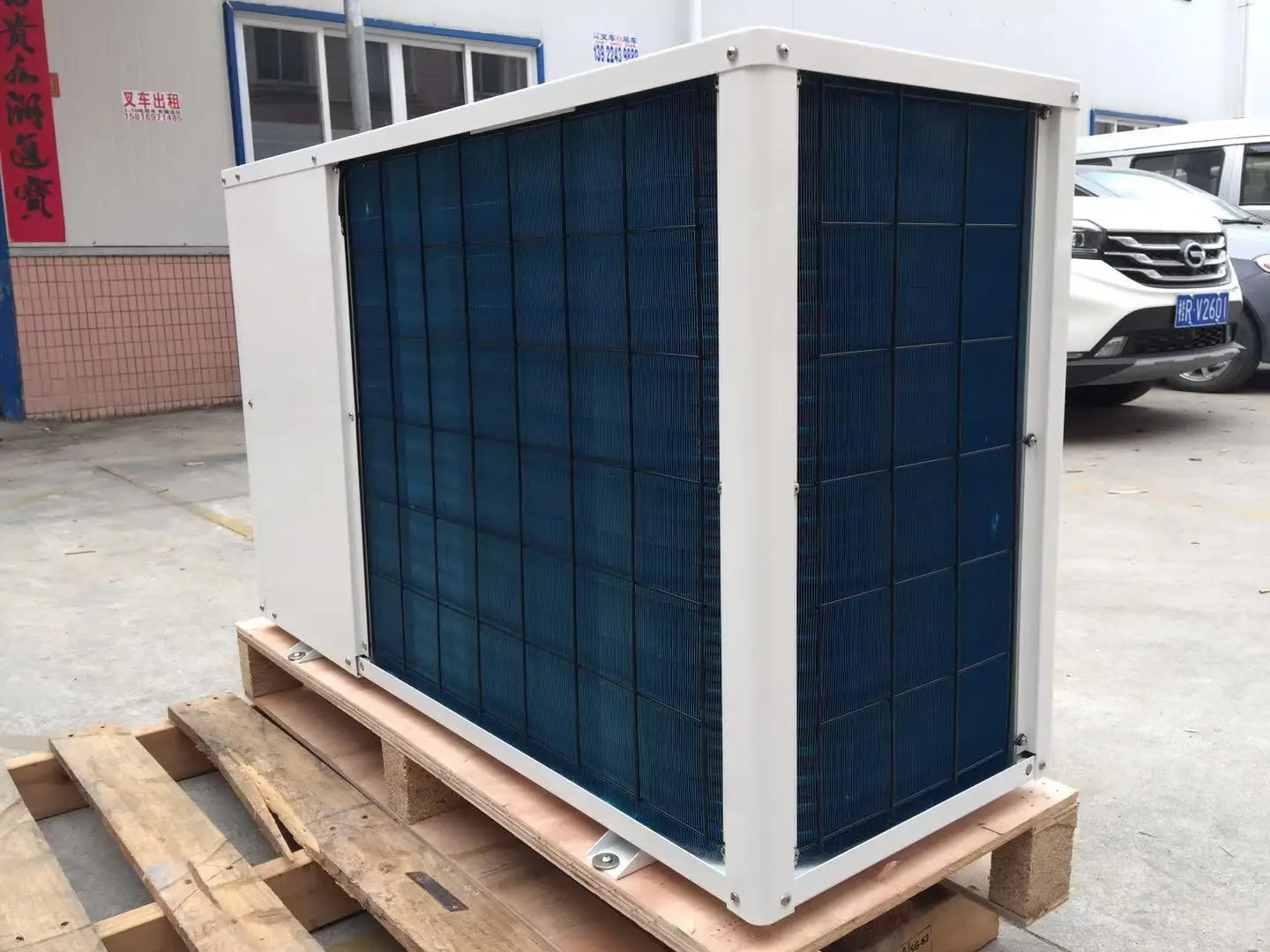

Air side heat exchange | Type | Finned heat exchange | |||
Qty | pc | 1 | |||
Fan type | Type | Axial big twist angle fan | |||
Motor power | w | 40 | |||
Water side heat exchange | Type | tube in shell heat exchanger | |||
Water flow(summer) | m3/h | 1 | |||
Water flow(winter) | m3/h | 1.25 | |||
Water pressure down | kpa | 20 | |||
Connection dimension | Inch | 0.75 | |||
Water side max working pressure | KPA | 1000 | |||
Rated cooling working conditions: air side return air temp 35℃, use side input water temp is 12℃, outlet water temp is 7℃
Rated heating working conditions: air side return air dry ball temp is 7℃, wet ball temp is 6℃, use side input water temp 40℃, outlet water temp is 45℃
