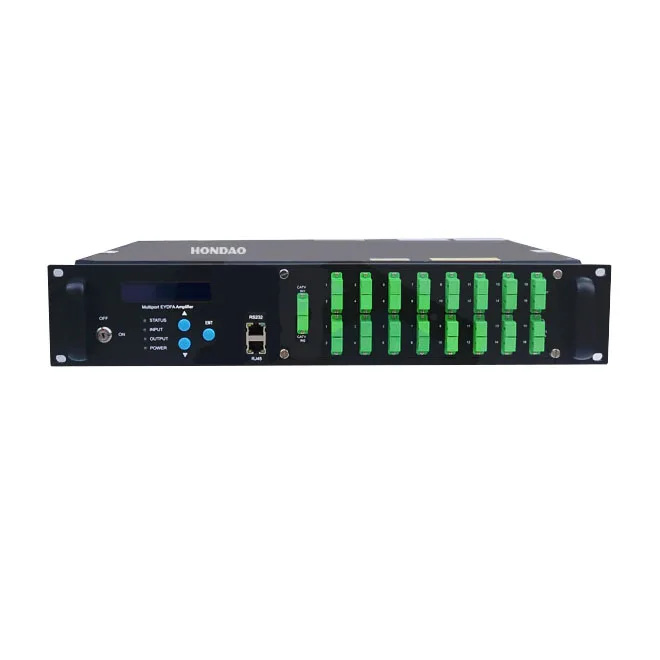

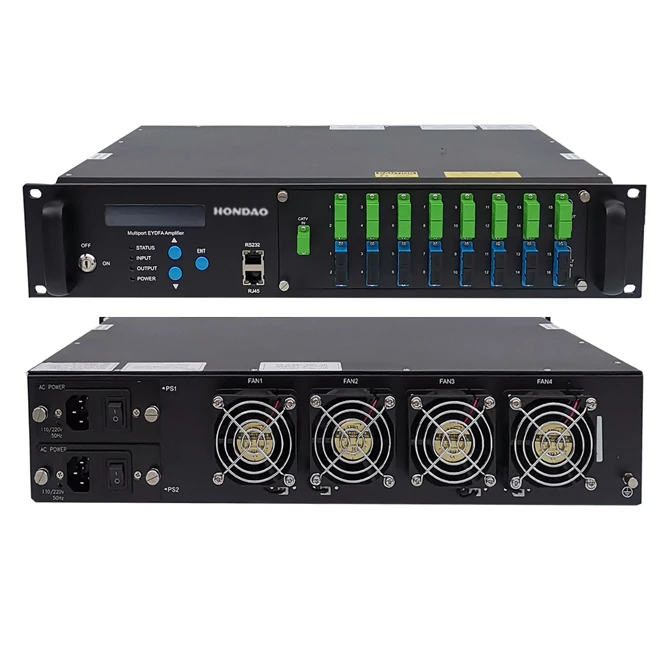

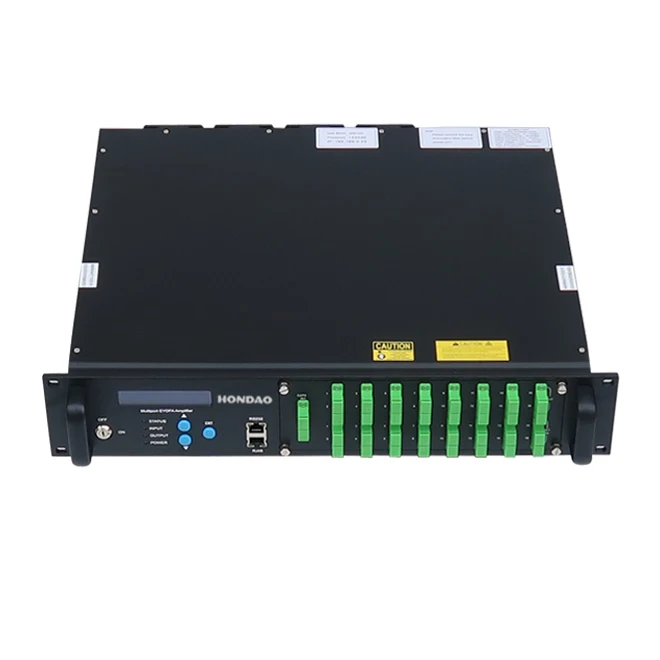

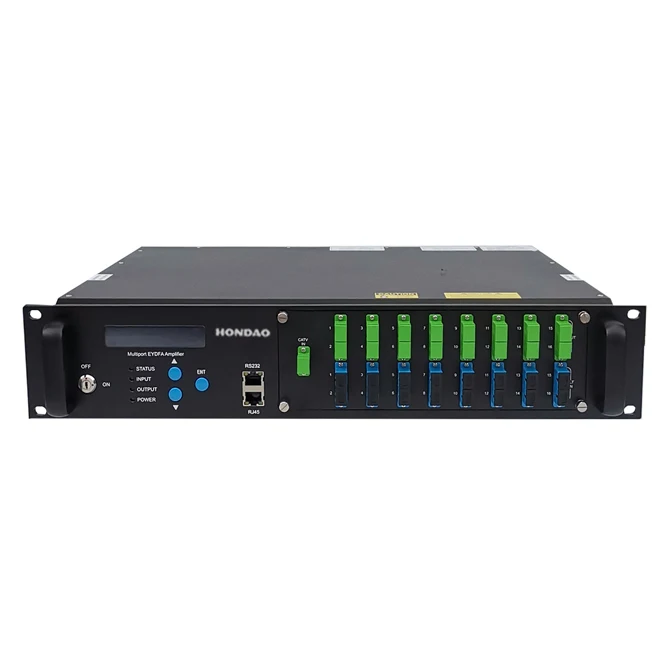

Hondao 16 портов встроенный WDM CATV оптический усилитель EDFA 1490/1310
- Category: Amplifiers and Comparators >>>
- Supplier: Hangzhou Hondao Optic Co. Ltd.
Share on (62237263294):
Product Overview
Description
Products Description
PON WDM is built in well-performed CWDM . Integrated 1490/1310 data stream from the OLT and ONU into single fiber transmission through EDFA . Adopt GPON/GEPON signal
Features
output(dbm） | 31~40 | ||||||
input(dbm) | -8~+10 | ||||||
Range of outputabjustment(dbm) | up0.5, down4.0 | ||||||
wavelength(nm) | 1530~1565 | ||||||
output stability(db) | <±0.3 | ||||||
optical return loss(dbm) | >=45 | ||||||
fiber connector | FC/APC,SC/APC | ||||||
web port | RJ45(SNMP) | ||||||
working temp | -0~55 | ||||||
size(mm) | 370(L)*486(W)*88(H) | ||||||
NW(kg) | 13.0 | ||||||
