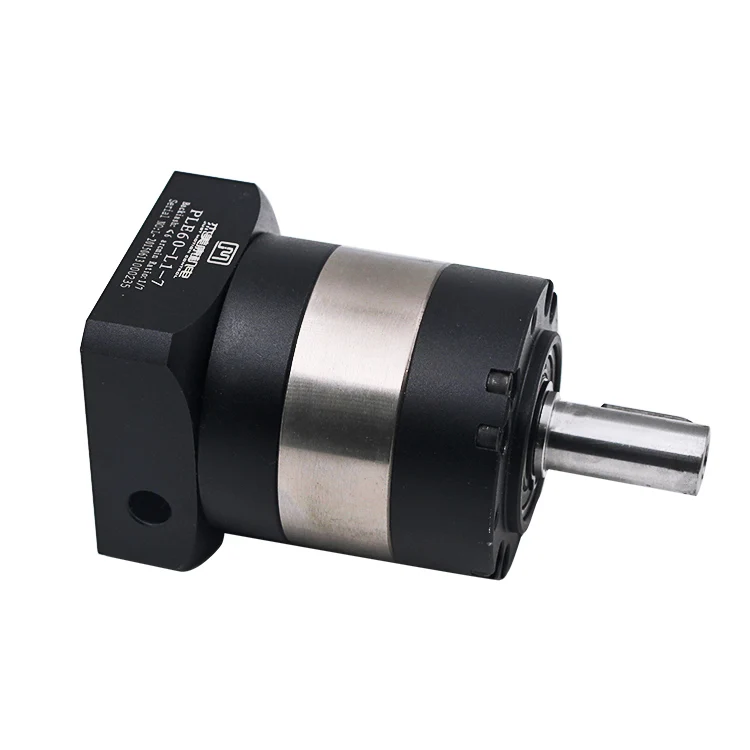

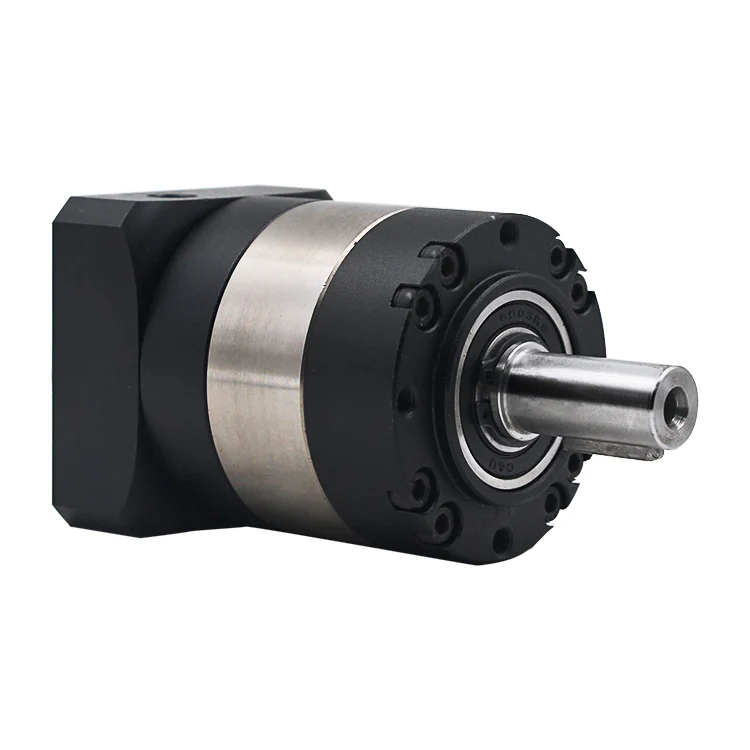

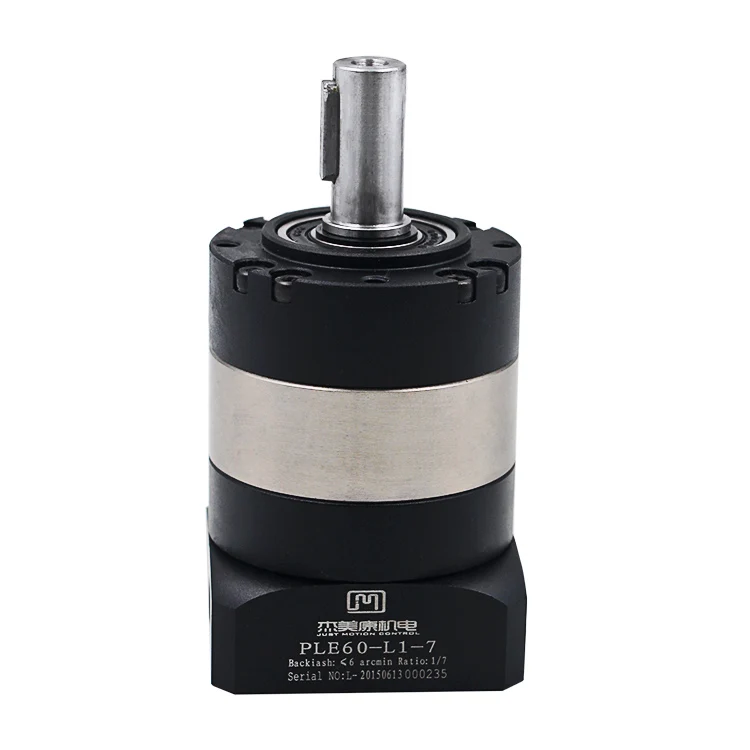

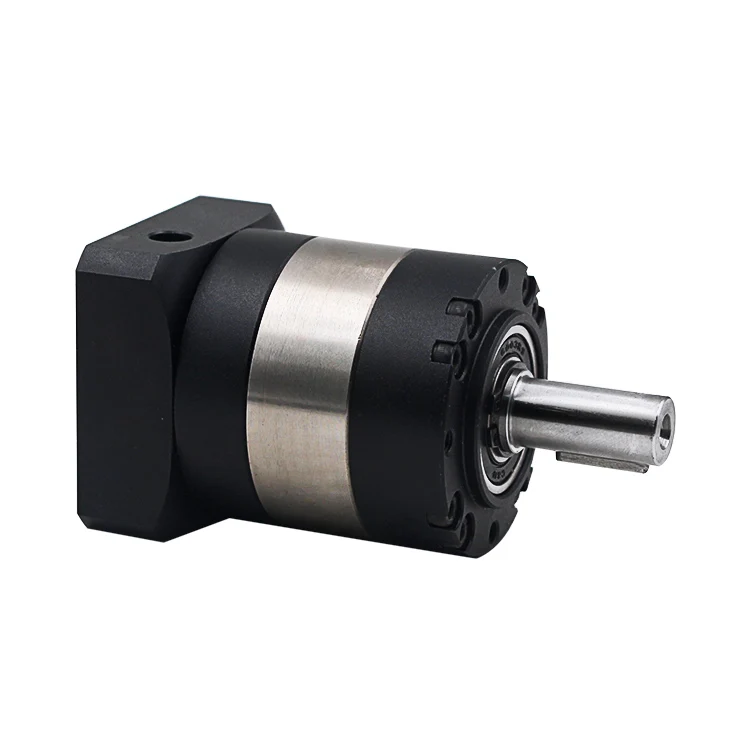

JMC High Torque 8000rpm Planetary Gearbox Reduction for DC Motor
- Category: >>>
- Supplier: Shenzhen Just Motion Control Electromechanics Co. ltd.
Share on (62237285257):
Product Overview
Description
JMC high torque 8000rpm Planetary Gearbox for dc motor
Product Description
Key Features
- Transmission smoothly, low noise, high rigidity, small space
- Gear ratio 3-100
- Precision 5-10 arcmin
- Economy, reliable
Specifications
Technical paramters 1
Maximum torque | 1.5 times the rated torque | ||
The maximum permissible radial force | 240N | ||
The maximum allowable axial force | 220N | ||
Torsional rigidity | 1.8Nm/arcmin | ||
Maximum input speed | 8000RPM | ||
Rated input speed | 4000rpm | ||
The noise | <58dB | ||
Full of efficiency | L1 >= 96% L2>=94% | ||
Return clearance | P0 | L1 <3 arcmin | L2< 5 arcmin |
P1 | L1 <6 arcmin | L2< 10 arcmin | |
The moment of inertia | L1 | 3,4,5 | 0.46 kg.cm² |
7.10 | 0.41kg.cm² | ||
L2 | 12,15,20,25,28,40 | 0.44kg.cm² | |
50,100 | 0.34kg.cm² | ||
Technical paramters 2
ated torque(N.m) | Series | Speed ration | PLE60 |
L1 | 3 | 27 | |
4 | 40 | ||
5 | 40 | ||
7 | 34 | ||
10 | 16 | ||
L2 | 9 | 27 | |
12 | 27 | ||
15 | 27 | ||
16 | 40 | ||
20 | 40 | ||
25 | 40 | ||
28 | 40 | ||
30 | 27 | ||
35 | 40 | ||
40 | 40 | ||
50 | 40 | ||
70 | 34 | ||
100 | 16 |

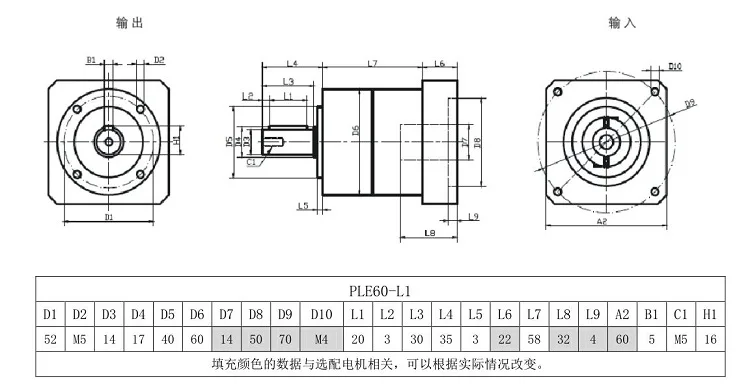

Dimensions

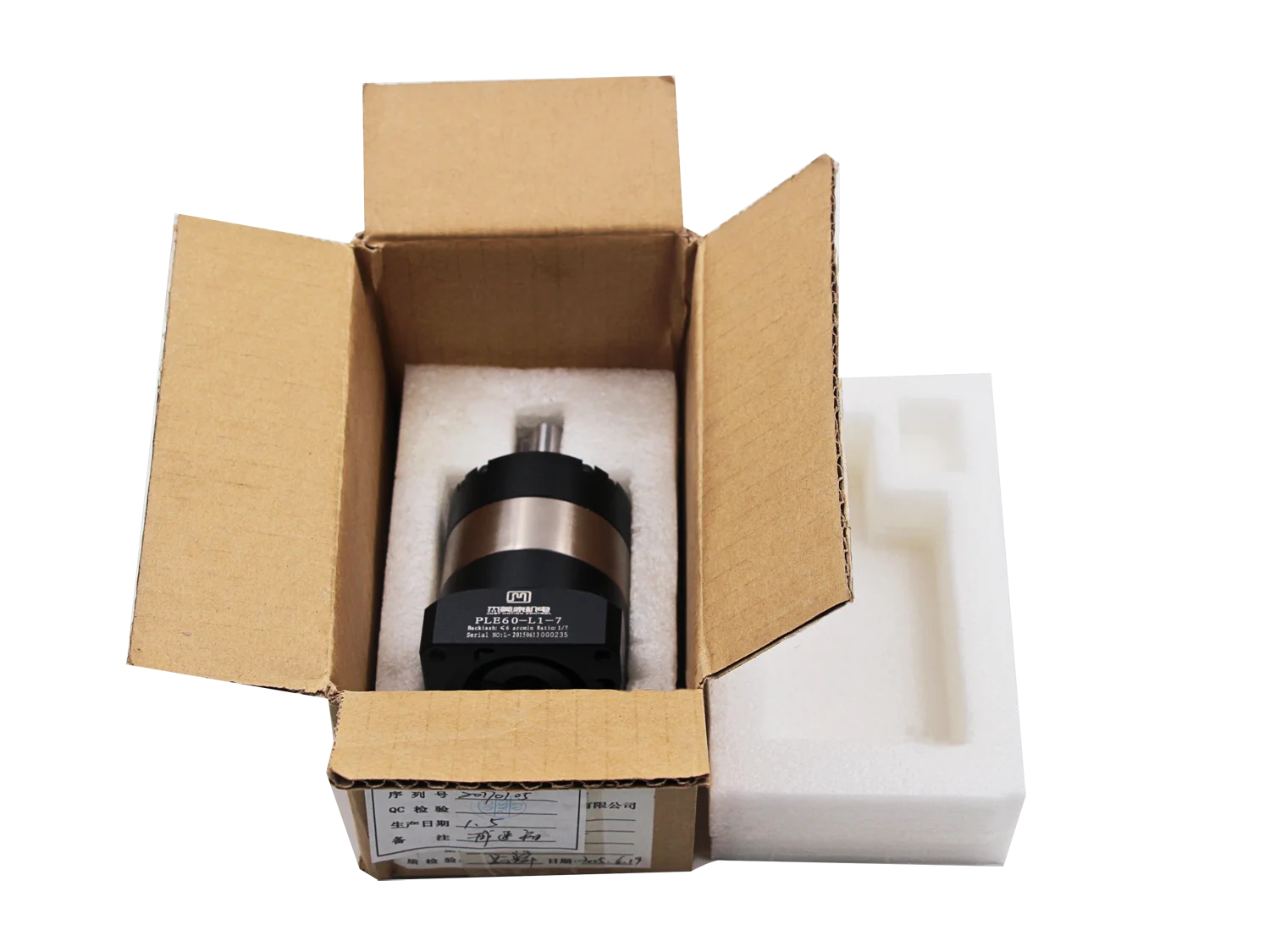

Packing
Certification
Our Exhibition
Every year, we will have booth in many international exhibitions to show our products and meet our customers.
Welcome to see you in next one !
About our company
Shenzhen Just Motion Control Electromechanics Co.,Ltd established in 2007, we have 10 years experiences in the motion cotrol area.
Our main products are stepper motor drives, stepper motors, AC servo motor systems, integrated stepper servo motors, integated stepper AC servo motors,DC brushes and brushless motors and drive systems.we also provide complimentary mechaical products.suchas motor couplings, gearboxes, and linear motions.
Our products are widely used and applied in the following industries: CNC kits, 3D printer, sewing machine, laser, semi-conductor, textile, packaging, woodworking, advertising, clothing, marble and ceramic, robotics and military.
Our customers come froms all around the world:European, America, Canada, Middle East,Asia and so on!
Sincerely hope we can have channce to cooperate!
FAQ
Q1. What are your products can be use to ?
A: Our products can be use in CNC routers, CNC milling machine, 3D Printer, laser machine, engraving machine, sewing machine, packaging machine,filling machine, cutting machine, carving machine, labeling machine and so on.
Q2. What kind of Payment methods do you accept ?
A: We can accept Paypal ,Western Union ,TT
Q3: What kind of shipping methods do you use ?
A:1) For samples or small batch , air shipping is recommended . (DHL,Fedex,TNT UPS ,EMS or Aramex) ,We will provide the tracking No. Once we get it after we ship out the products.
2)For mass production or big batch, ocean shipping/sea shipment is recommended .
Q4: What is the lead time of my products?
A: Lead time : For standard samples , 2-5 days will be OK .
For mass production , the lead time depend on the quantities you need .
Note:
Sometimes your local customs may charge tax from you. then you should pay it to get the package, sometimes not have.The exact delivery time is delayed on the post office and customs, we can't control it. If the product is delayed, pls pay more patience to wait and ask us to extend delivery dates for you.
Q5:What is your warranty time ?
A:Warranty time : 12 months. And we provide life-long technical service and after-sale service.
Q6:Can i get a free sample?
A:Sorry, we don’t provide the free sample.
