1 /4 /8 /16 порт 1U 1920*1080 крепление на стойке 15,6 дюймов светодиодный KVM выключатель ящиков
- Category: >>>
- Supplier: Shenzhen Pontron Technology Ltd.
Share on (62237386265):
Product Overview
Description
Product Description
Main features
« 15.6’’ LED KVM switch with touch pad+Mouse
« 104keys keyboard with integrated Digital&E-switch keys.
« Excellent video effects, the best resolution is up to 1920*1080@ 75HZ.
« Supports front USB for keyboard/mouse
« Support USB+PS2 local console
« Supports computer indicator when user switch to another computer.
« Support cascading connection, max up to 512 computer.
Introduction
« Withdrawing installation design, the length can be adjusted to fit the rack space.
« Humanized design, can be installed and removed by only one person , which improves the efficiency of the administrator.
« To switch the host computer though the hotkey or OSD menu, which can manage up to 512 computers.
« Password security protection, only authorized users can view and manage on-line computer.
« Support a variety of brand industrial computer and the sever, eg: EVOC / Lenovo / IBM / DELL / HP/ SUN, ect
« Support various operating system: Window XP, 7 /8 / 10 ,Microsoft, Linux, Unix,etc.
Specification

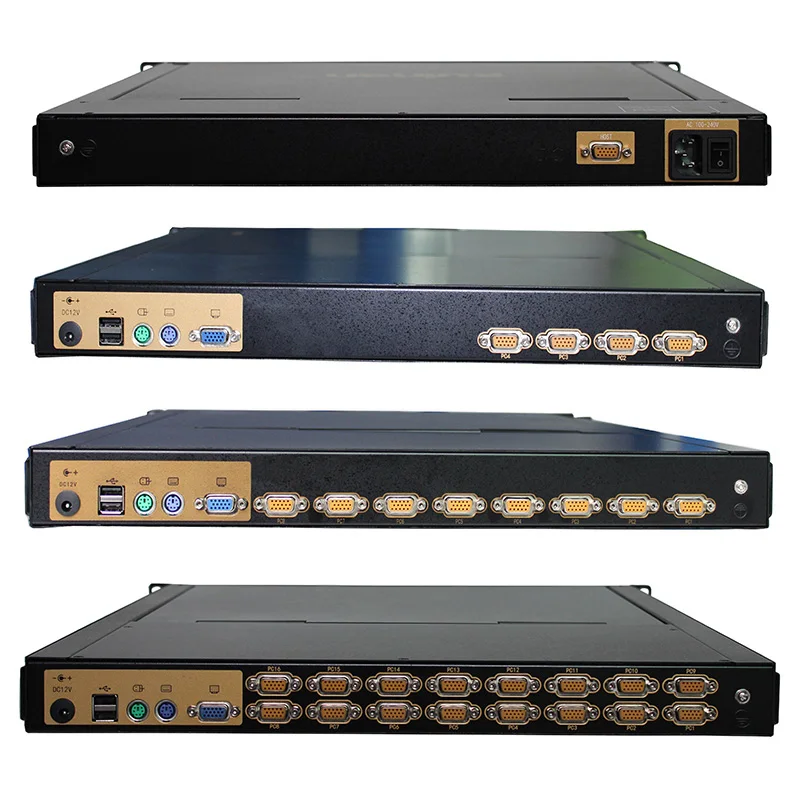

Model | KVM-1501HM | KVM-1504HM | KVM-1508HM | KVM-1516HM | |
Computer connect
| Direct 1 | Direct 4 | Direct 8 | Direct 16 | |
Max:1 | Max : 128 | Max : 256 | Max: 512 | ||
Keyboard | 104 Mechanical mute Keyboard | ||||
Mouse | Touchpad | ||||
Switch Mode | Hotkey , OSD Menu | ||||
Switch Scan Time | 1-255 second ( OSD adjustable ) | ||||
Cable Port | Local console | Keyboard / Mouse/ Display (2*USB +2*PS/2+1* HDB-15 female) | |||
Connector port | 1/ 4 / 8 /16 * HDB-15 female ( Yellow ) | ||||
Input IO | HDMI+DVI (optional) for 1 port | ||||
Panel
| Size | 15.6 ’’ TFT LED , 16:9 | |||
Resolution | 1920 * 1080 | ||||
Max Color | 262K | ||||
Brightness | 300nit | ||||
Contrast ratio | 400:1 | ||||
Pixel Pitch | 0.17925mm (H) x 0.17925 mm(V) | ||||
Power input | 12V DC input ( AC100-240V 47-63Hz, 35W )optional | ||||
Work environment | Operating Temp | -10℃~60℃ | |||
Storage Temp | -20℃~70℃ | ||||
Humidity | 0%-95%RH | ||||
Cabinet Material | high-strength and Anti-corrosive steel plate | ||||
Color | Insulated black (optional) | ||||
For Cabinet | 600-600mm / 800-1040mm | ||||
Net weight | 13KG-16KG | ||||
Gross Weight | 16KG~19KG | ||||
Dimension | 465mm*480.4mm*44mm (L x W x H) | ||||
Package | 708mm*608mm*195mm (L x W x H) | ||||
Ordering information
KVM - 1501HM | 1U Rack mount 15.6" TFT LCD KVM switch, W/ keyboard +touchpad , W/ 1 port VGA , W/ HDMI + DVI,W/ 12V power supply, W/ USB cable. |
KVM - 1504HM | 1U Rack mount 15.6" TFT LCD KVM switch, W/ keyboard +touchpad , W/ 4 port VGA , W/ 12V power supply, W/ USB cable. |
KVM - 1508HM | 1U Rack mount 15.6" TFT LCD KVM switch, W/ keyboard +touchpad , W/ 8 port VGA , W/ 12V power supply, W/ USB cable. |
KVM - 1516HM | 1U Rack mount 15.6" TFT LCD KVM switch, W/ keyboard +touchpad , W/ 16 port VGA , W/ 12V power supply, W/ USB cable. |

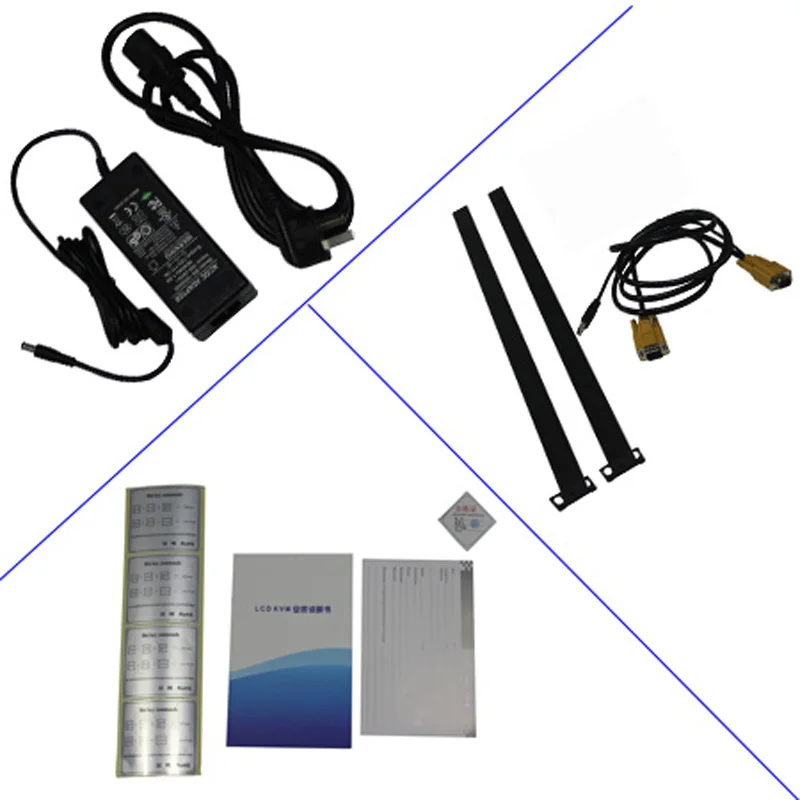

Asseccories
Our Promise:12Hours , up to 48 Hours for the UV Test
