Top Quality Automatic CNC Glass Tube Cutting Machine/Glass Bottle Cutting Machine

Product Overview

Description

Top Quality Automatic Glass Tube Cutting Machine/Glass Bottle Cutting Machine:

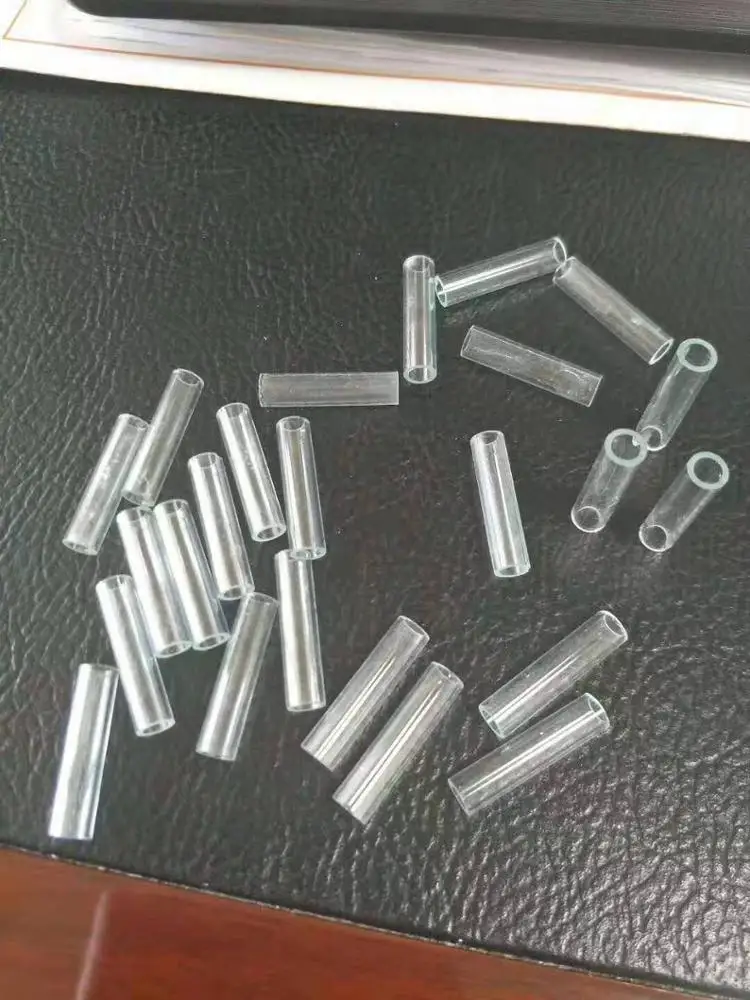

It is suitable for linear cutting of brittle hard non-metallic materials such as capillary

glass tube, glass rod, quartz tube, etc. The saw blade has adjustable running speed,

and has the characteristics of smooth cutting, small chipping and simple operation

Automatic feeding, product length can be set directly.

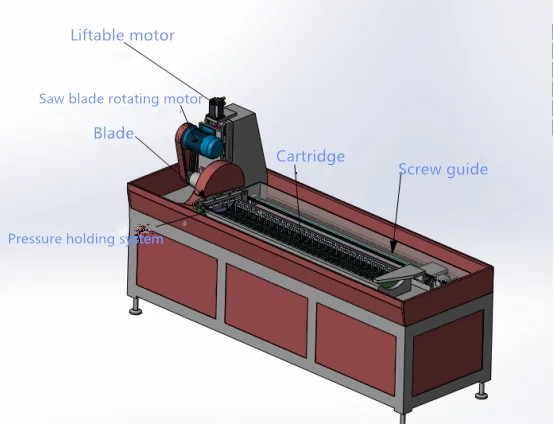

Basic configuration:

Frame:                    80*80 GB square tube

Guide rail:              Taiwan silver

Screw:                    Taiwan silver

Conveying motor:  Japan Yaskawa servo motor. 750W

Saw blade lifting motor:     Japan Yaskawa servo motor. 750W

Saw blade rotating motor:  1.5KW Dongguan

Water pump:                       380W Shanghai submersible pump

Cover:               1.5MM spray

Saw blade:       direct 300MM 200 mesh (optional)



Machine parameters:

1) The length of the cutting glass tube is 1500MM (can be customized);

2) The width of the swing: 150MM (can be customized)

3) Cutting length: 0-300mm adjustable (can be customized)

4) Cutting speed: 0-6000 rev / min, adjustable

5) Glass tube diameter range: 1.0mm---12mm (can be customized);

      Product length: 4—200mm adjustable (can be customized))

6)Efficiency: 8-12 seconds / knife.

7)Accuracy: plus or minus 0.15mm









Contact Person: Ms. Sailing He

Whatsapp/wechat: +86 13361033782





Guarantee & Aftersales service:

1)Guarantee the complete machine for 12 months, except the consumable parts.

2) 24-hours technical support by email or calling.

3) User-friendly English manual for machine using and maintaining.
