Automatic Food Powder Granular Multi Lane Vffs Packaging Machine Ketchup/tomato Paste Vertical Stick Bag Packing Machine
- Category: >>>
- Supplier: Shanghai Boevan Packaging Machinery Co. Ltd.
Share on (62237520527):
Product Overview
Description

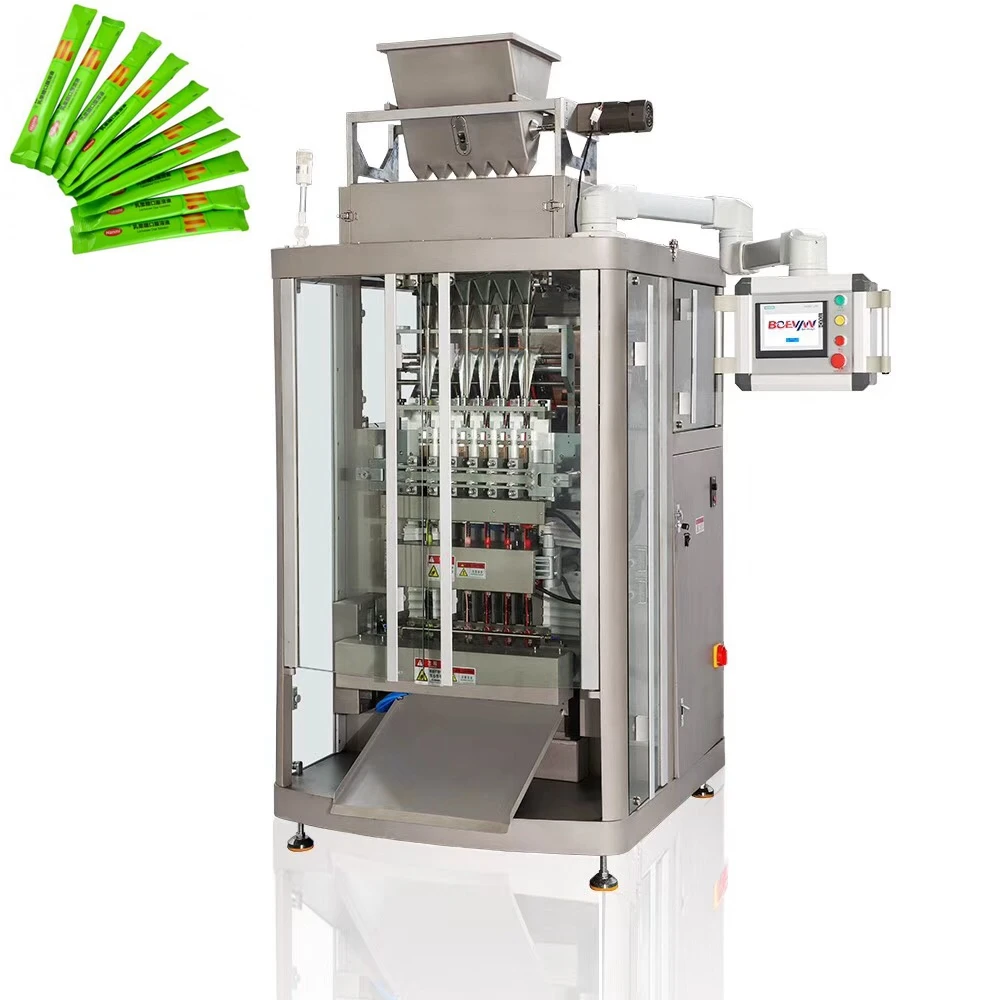

BVS6-480
Vertical FFS Packing Machine
General Description
This machine is designed for stick bag with 4-lane outlet function which can fulfill stick pack requirement in powder, granule and liquid. For convenient move but high speed guarantee the producing capability. It is a high Price-Quality Ratio machine.
Technical Parameter
| Model | BVS4-480 |
| Bag Length(mm) | 70-200 |
| Film Length(mm) | Max.480 |
| Lanes No. | 6 |
| Speed(bag/min) | 120-180 |
| Max.Volume | 50ml |
| Air Consumption | 0.7m3/min |
| Rated Voltage | AC 380V 3Phases |
| Weight | 1200kg |
| Dimension(mm) | L1450*W1650*H1850 |
Features&Advantages

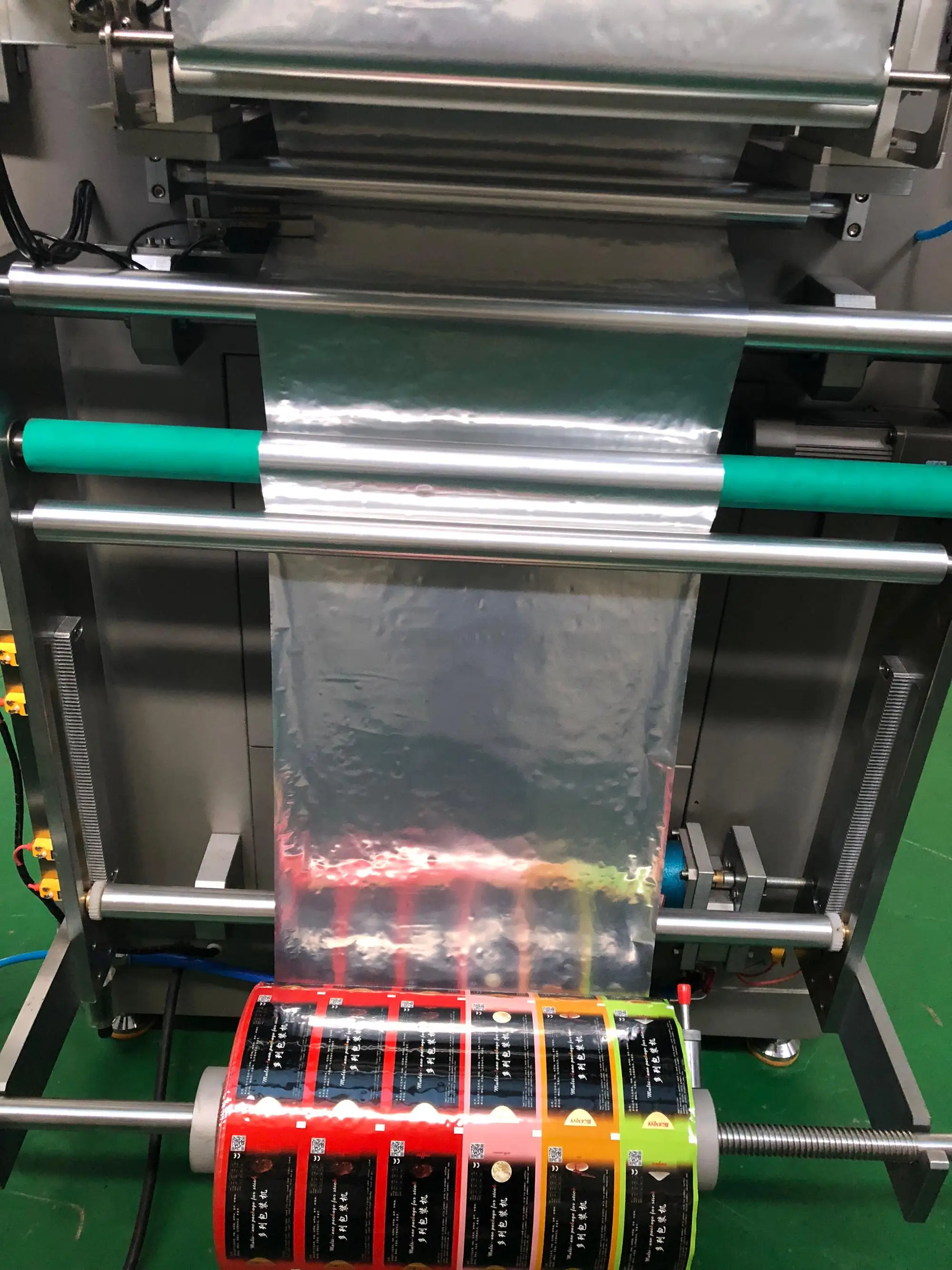

Auto Film-aligning System
Automatically align film position during machine operation, avoid the problem of pouch sealing misalignment.
Servo Pouch Pulling System
Easily computerized specification change over, stable pouch pulling with less deviation, large torquemoment qualified for full-load running.

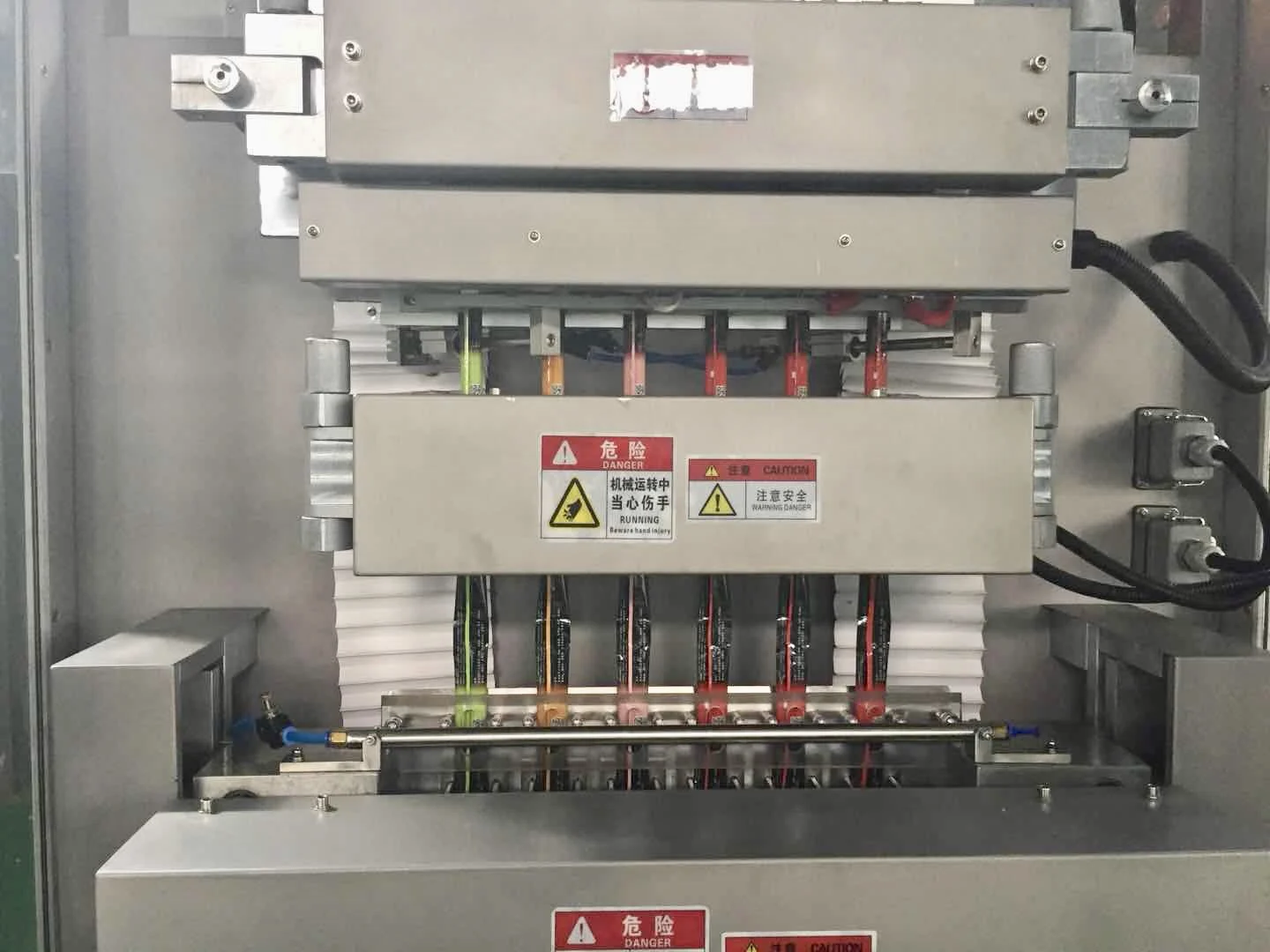

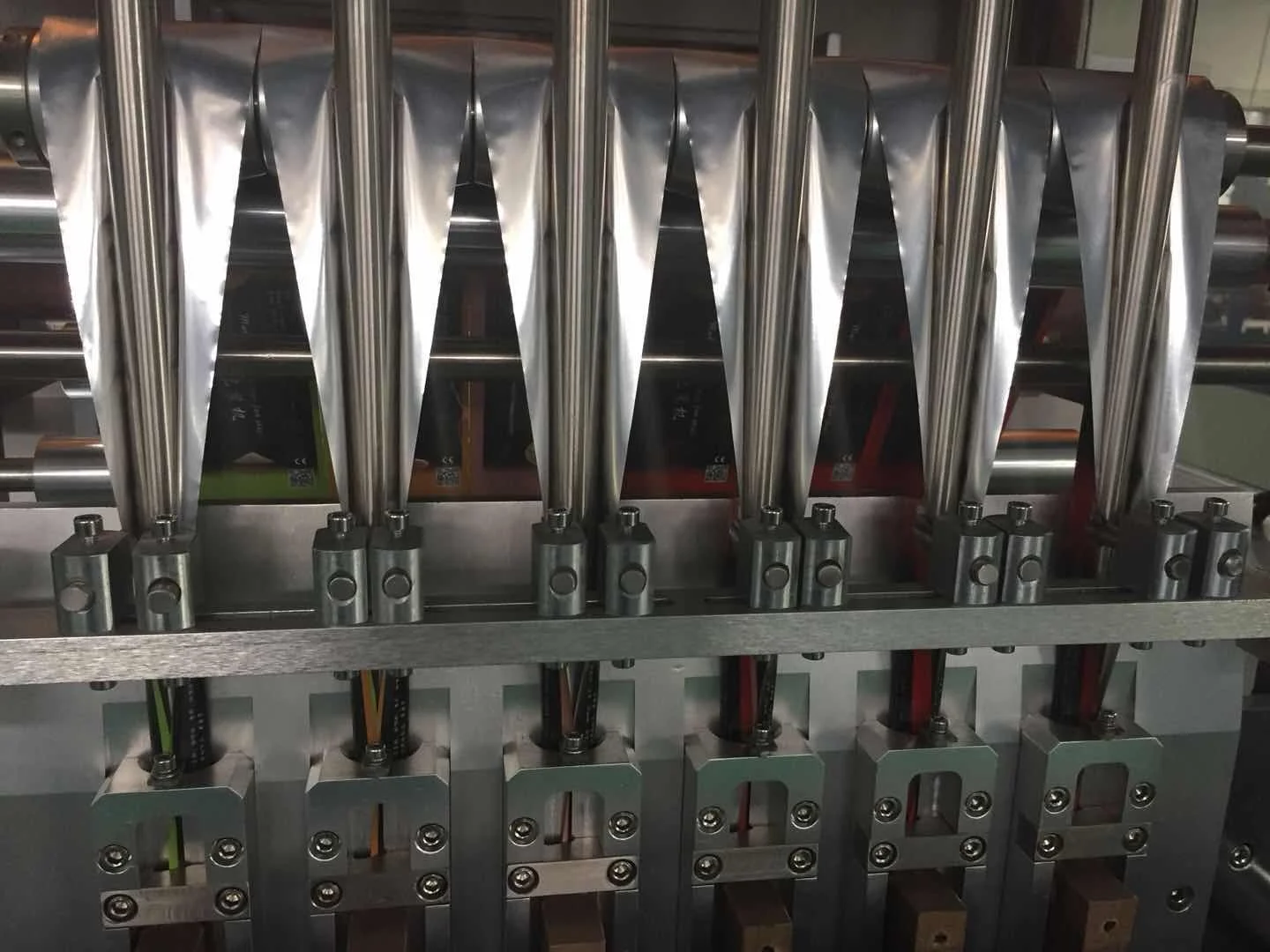

Multi-lane Filling
Multi-lane filling make huge improvement to packaging speed and capacity, accurate filling, less deviation.
Main Configuration:
| Main Components | Vendor |
| PLC | Siemens |
| Touch Screen | Siemens |
| Servo Motor | Siemens |
| Photocell | Autonics |
| Inverter | Mitsubishi |
| Mid Relay | Omron |
Selected Configuration
Date code printer
Straight Line Cut with easy tear
Hole punching device
Auger screw Filler(for powder)
Volumetric Cup Filler(for granule)
Electrical Gear Pump(for liquid)
Piston Pump(for liquid or cream)
Packing Application
1. Food Industry
Mayonnaise & Sauce, Tomato Ketchup, Candy & Chocolate, Snack, Milk Powder, Oil Product, Dairy Food, Spices & Seasoning, Pet Food, Honey and so on.
2. Beverage Industry
Coffee & Tea, Powder Drink, Water Product, Yoghurt & Liquid Milk, Fruit Juice, Beer & Liquor, Nutritional Beverages and so on.
3. Cosmetics & Personal Care
Skin Care, Hair Care, Sun Care, Baby Care, Oral Care, Bath & Shower, Cream, Toweletters, Perfumery and so on.
4. Household Industry
Dishwash Product, Detergent, Laundry Product, Fabric Softener, Floor Cleaner, Air Freshener and so on.
5. Industrial Chemicals
Agrichemical, adhesive, Lubricant, Paint and so on.
6. Pharmaceutical Industry
Powder Pharma, Granule Pharma, Tablet Pharma, Capsule Pharma, Liquid Pharma, Ampoule and so on.

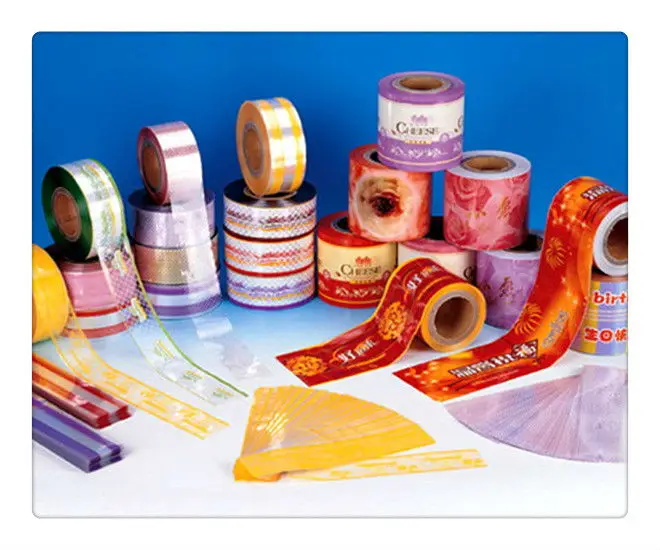

Packing Material
PET/LLDPE, PET/AL/LLDPE, PET/AL/NY/CPP, OPP/LLDPE, OPP/CPP, OPP/AL/LLDPE
![Food-Packaging-Film-F8002-[1].jpg](http://sc01.alicdn.com/kf/HTB1BYmkvASWBuNjSszdq6zeSpXa3/202229619/HTB1BYmkvASWBuNjSszdq6zeSpXa3.jpg)

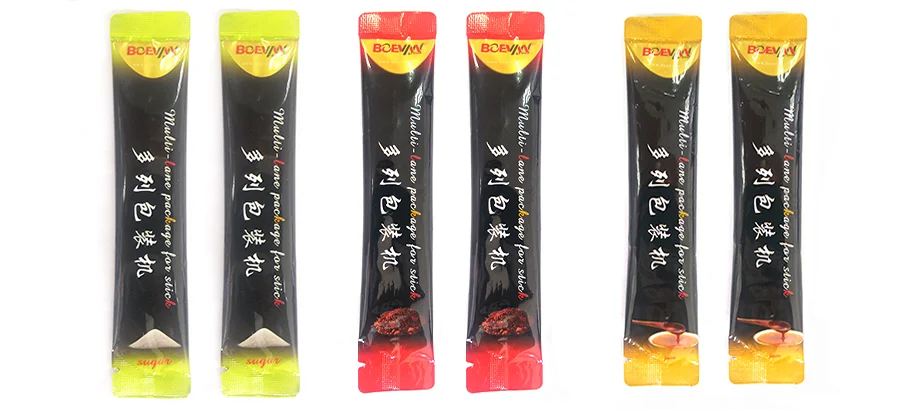

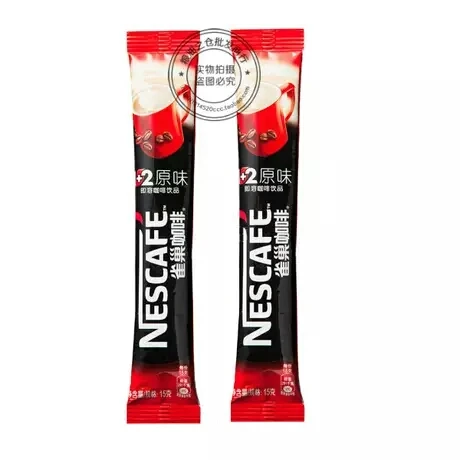

Pouch Photo
Nice Pre-made Pouch Packaging just by your right choice!

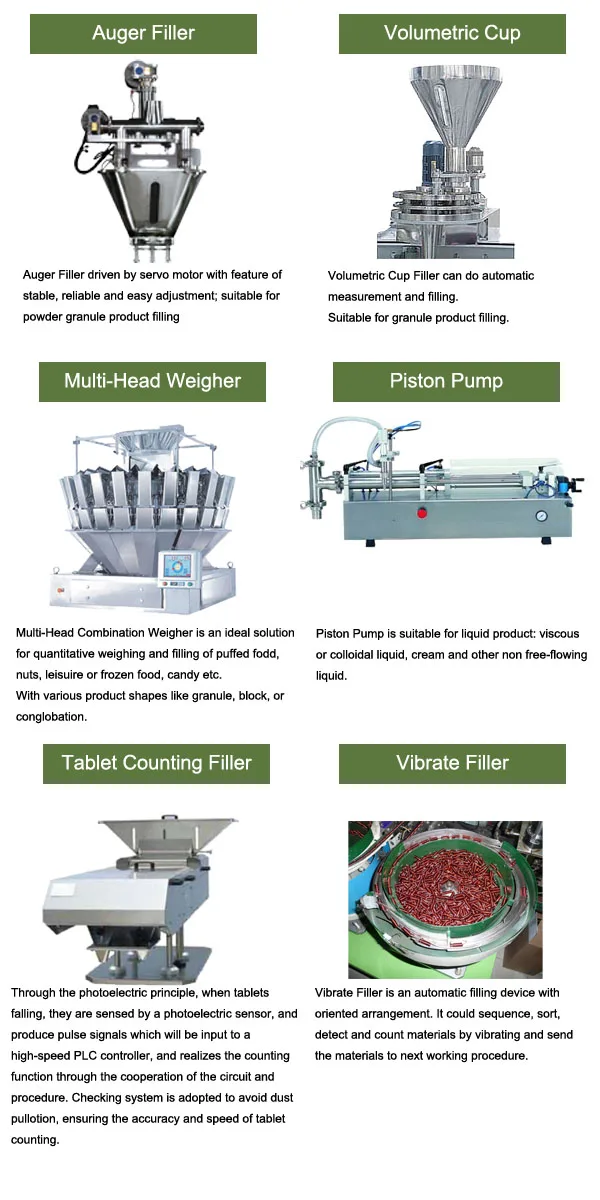

Optional Filling Device
Suitable filling device will be equipped.
Energetic Work Staff
Profesional packing solution offered here!
Strong Production Capacity
Efficient market activity home and abroad!
We provide optimized packing solutions.
Please feel free to contact us!
