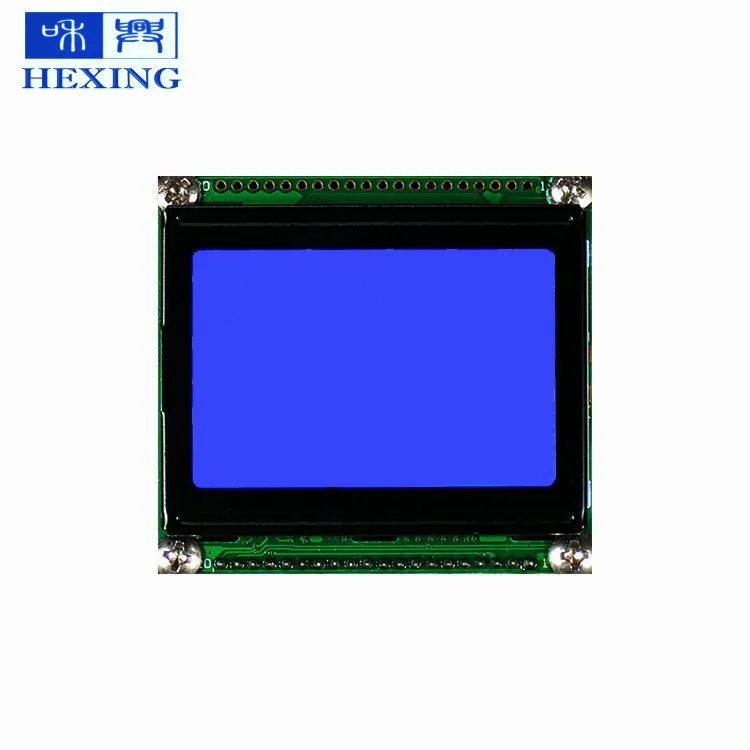

China factory 2.4 inch 128x64 graphic lcd display 20 pin 8 bit Parallel 5.0V Blue LCD12864
China factory 2.4 inch 128x64 graphic lcd display 20 pin 8 bit Parallel 5.0V Blue LCD12864
China factory 2.4 inch 128x64 graphic lcd display 20 pin 8 bit Parallel 5.0V Blue LCD12864
China factory 2.4 inch 128x64 graphic lcd display 20 pin 8 bit Parallel 5.0V Blue LCD12864
China factory 2.4 inch 128x64 graphic lcd display 20 pin 8 bit Parallel 5.0V Blue LCD12864
China factory 2.4 inch 128x64 graphic lcd display 20 pin 8 bit Parallel 5.0V Blue LCD12864
China factory 2.4 inch 128x64 graphic lcd display 20 pin 8 bit Parallel 5.0V Blue LCD12864

China factory 2.4 inch 128x64 graphic lcd display 20 pin 8 bit Parallel 5.0V Blue LCD12864

Share on (62237525504):


Price:$4.60 - $5.70

Quantity:


Product Overview

Description

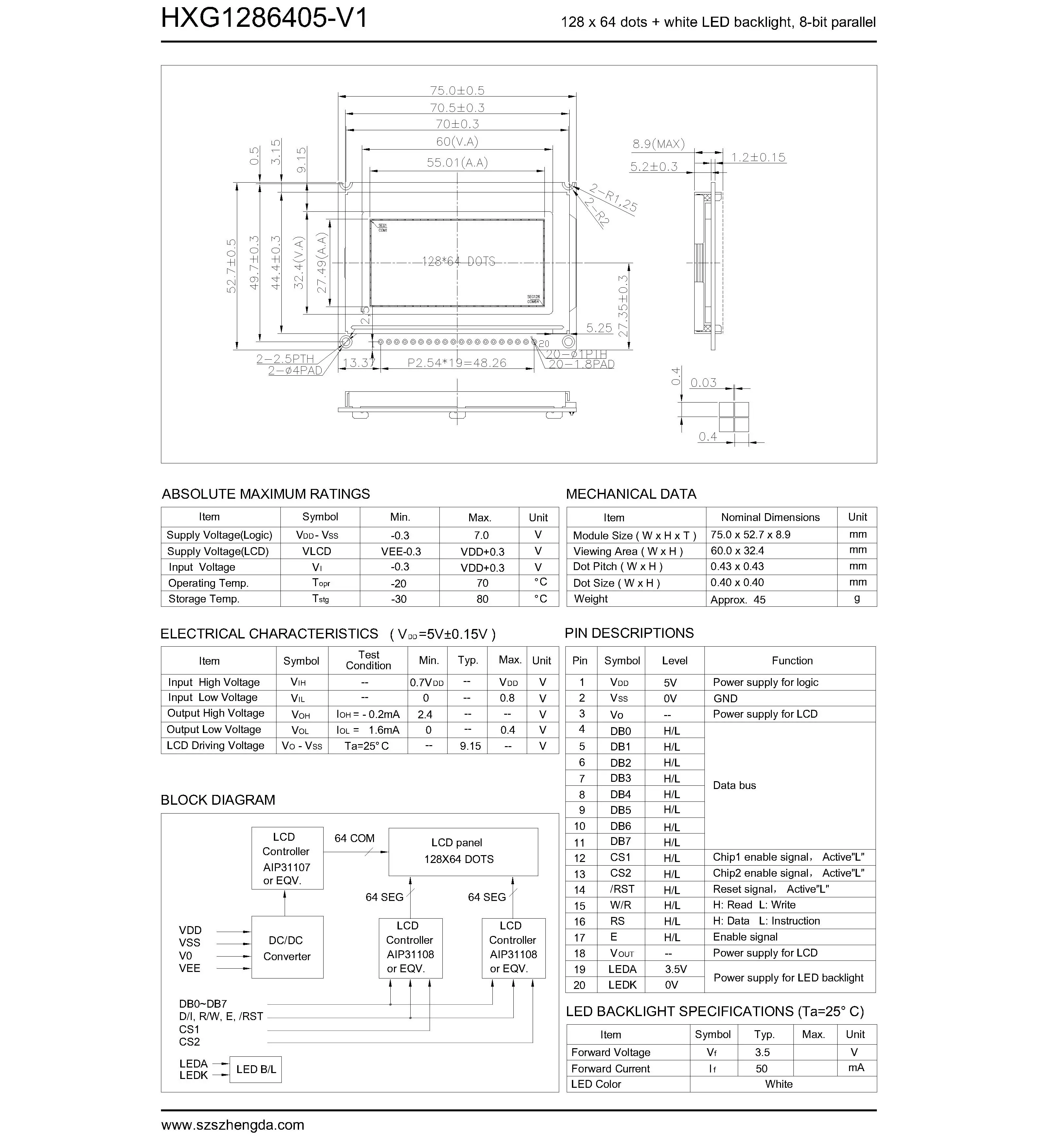

Product Description




Resolution
128X64 dots

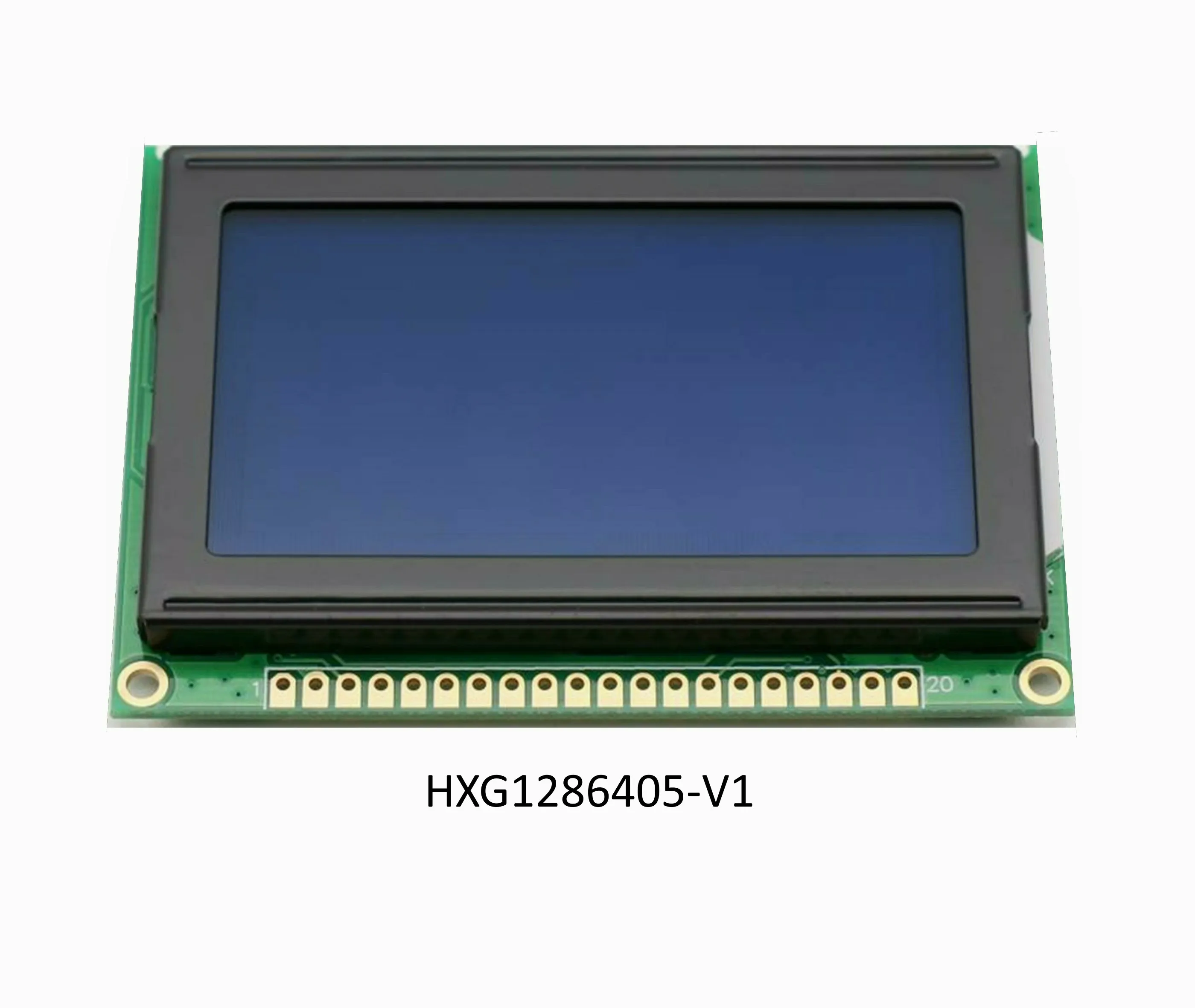

Model No.
HXG1286405-V1

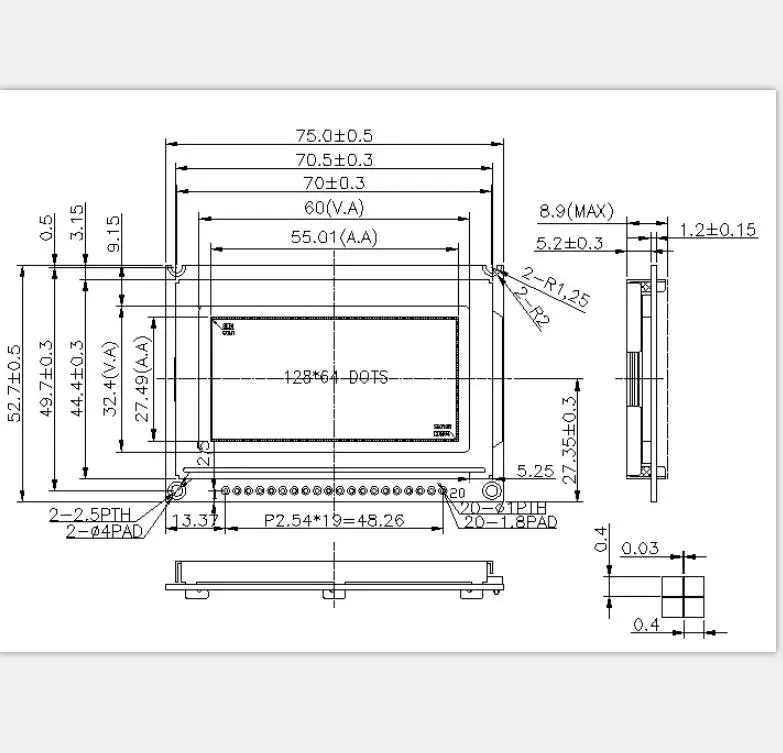

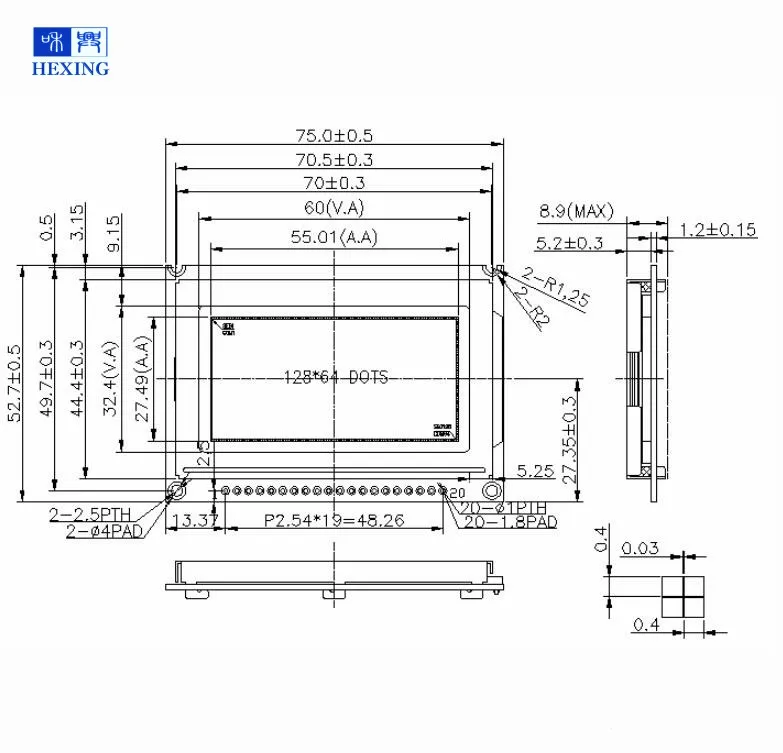

Outline Dimension
75.0X52.7X8.9mm
Viewing Area
60.0X32.4mm
Dot Size
0.40X0.40mm
Dot Pitch
0.43X0.43mm
Display Mode
STN Negative Blue, Yellow Green, FSTN Black and White
Driver IC
AIP31107 or EQV.
Interface Type
8 bit Parallel
Backlight
LED White or Yellow Green
Weight
45g

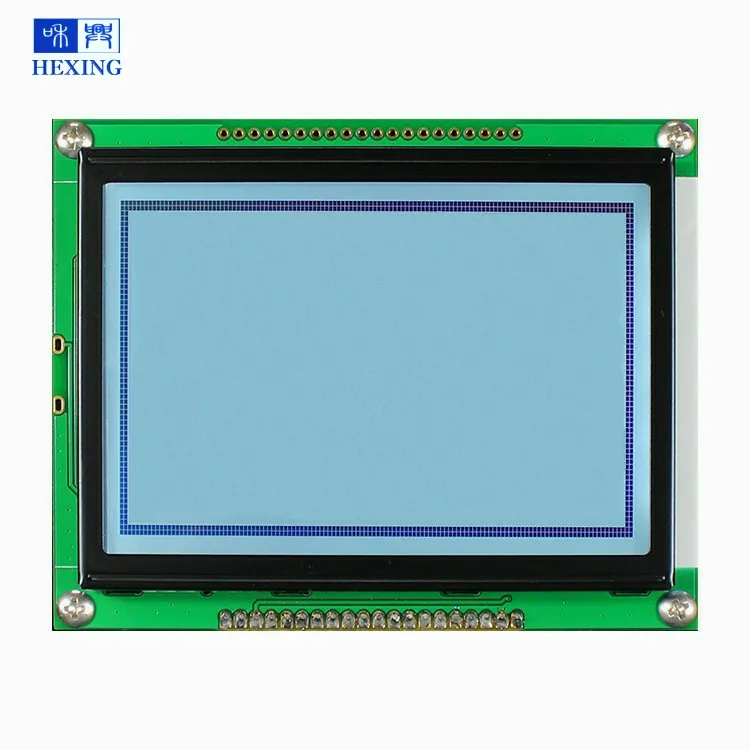

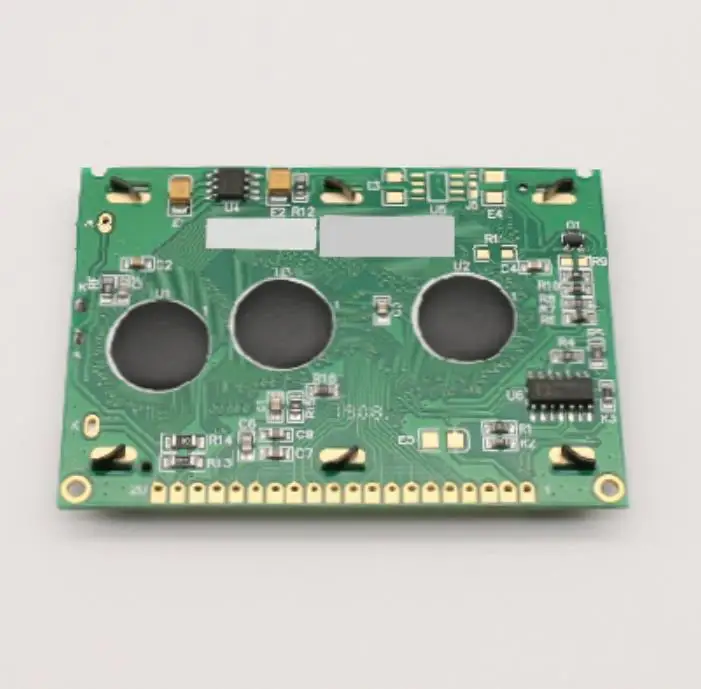

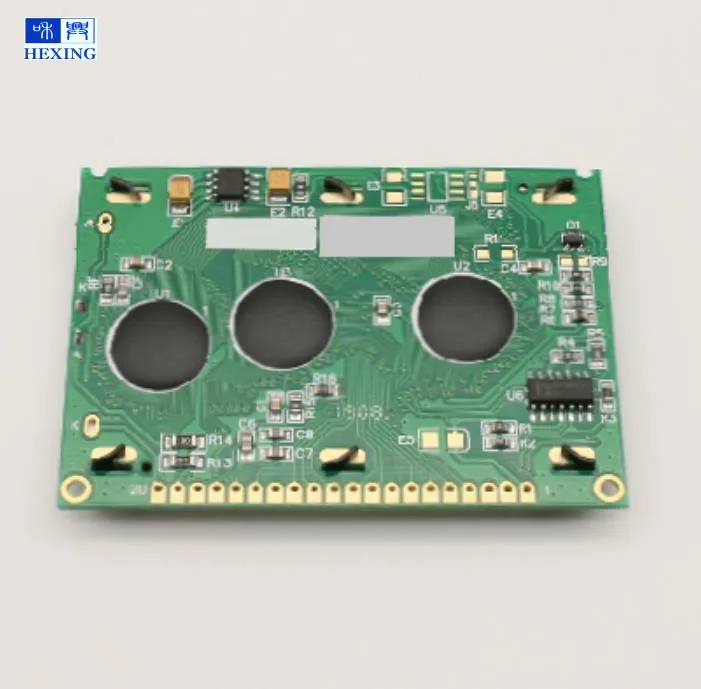

Details Images










Product packaging

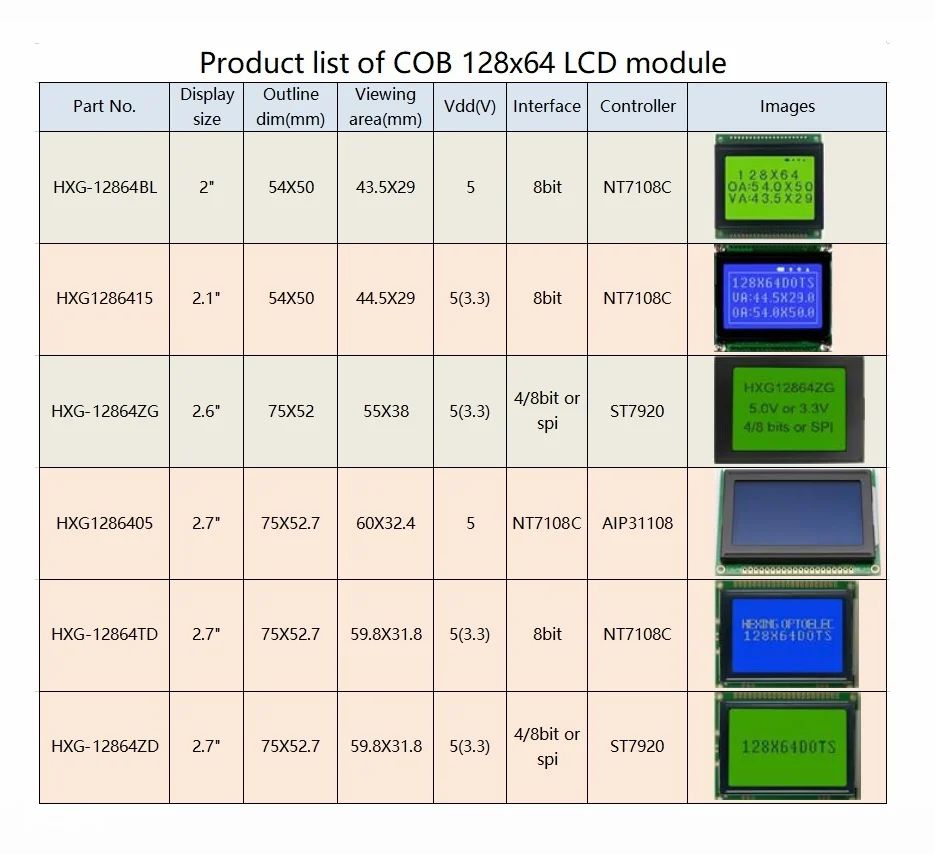

Related Products
