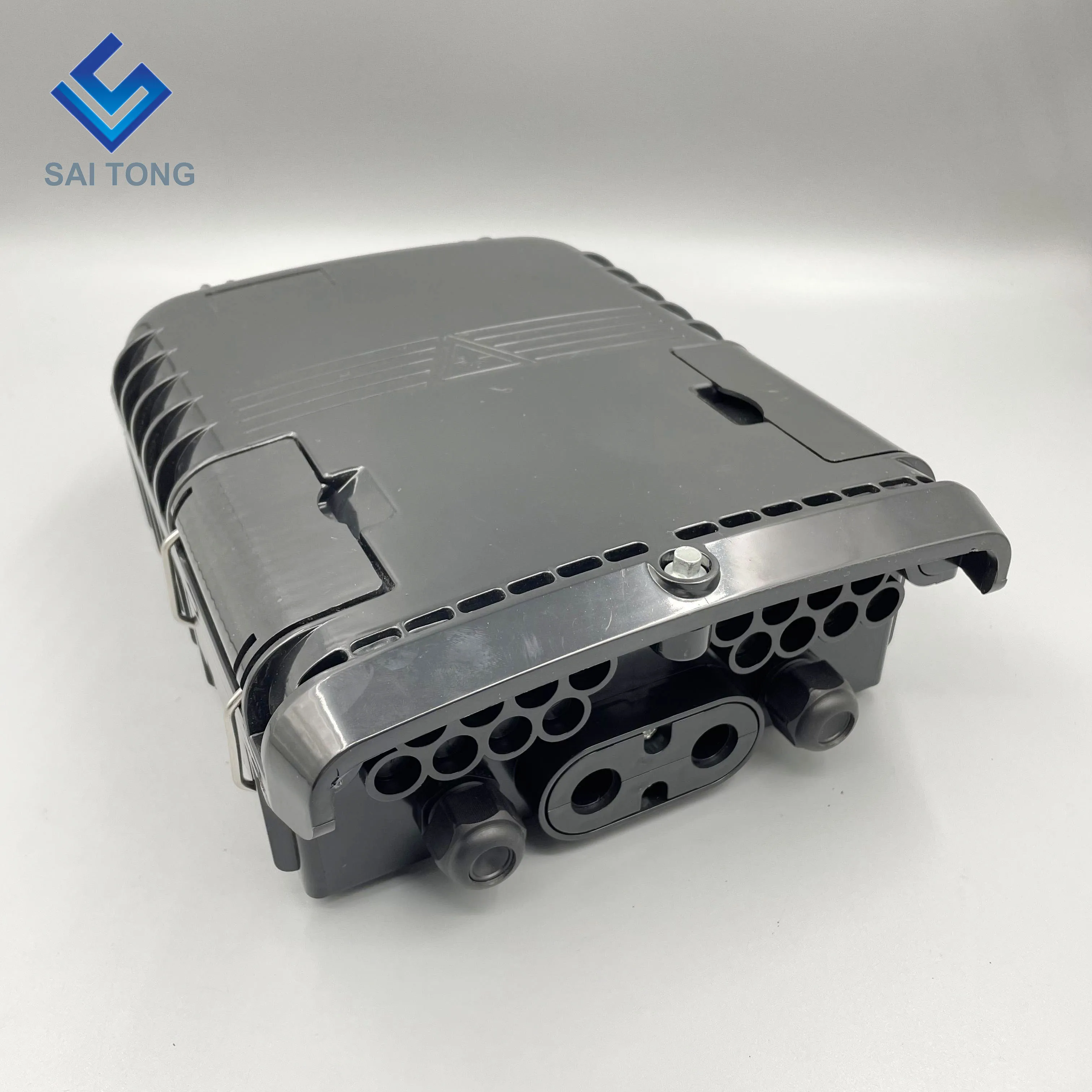

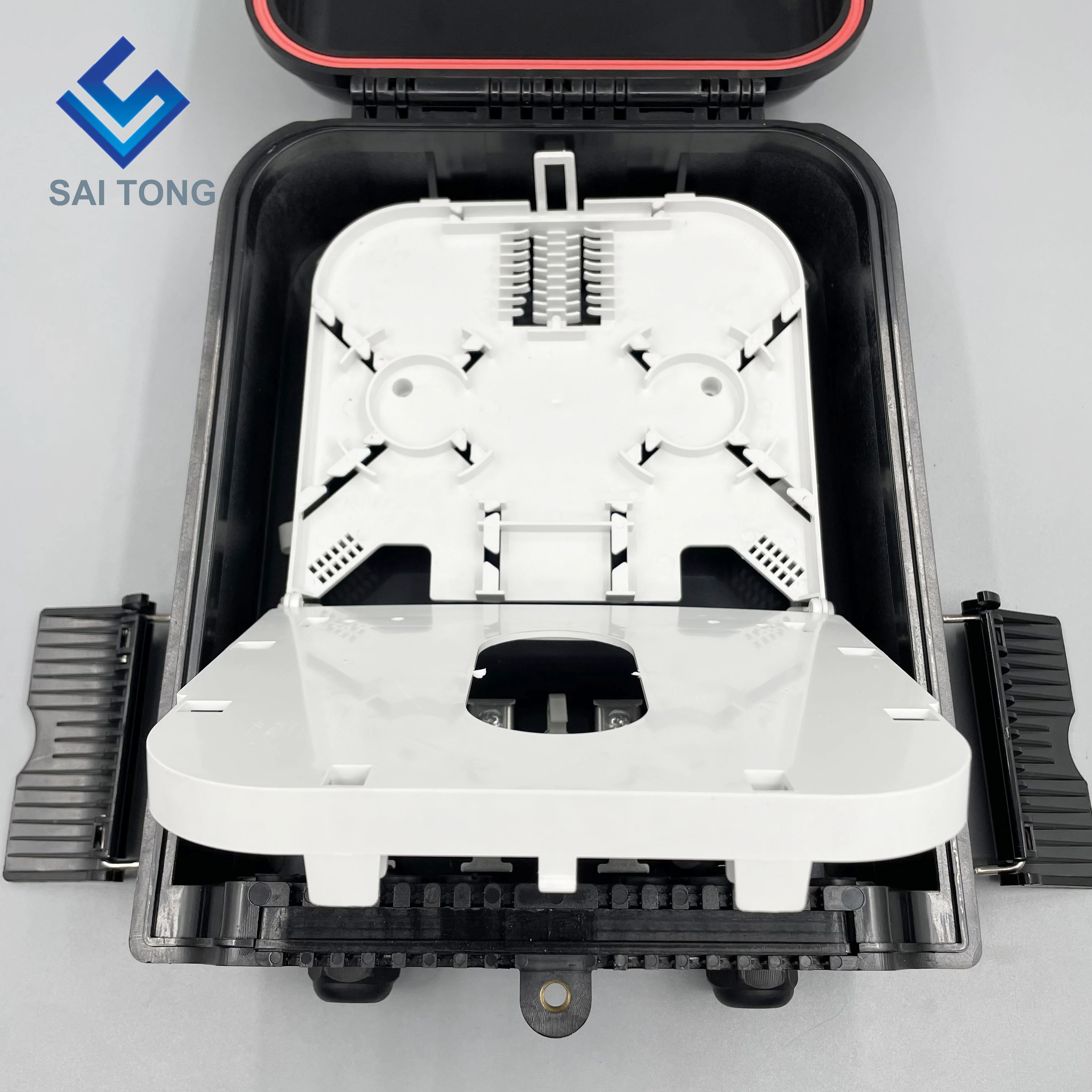

Factory High Quality 16 ports FTTH 16 Core Fiber Optic Splitter Box outdoor optic Fiber Terminal box of 4 in 16 out PLC type
- Category: >>>
- Supplier: Cixi Saitong Network Technology Co. Ltd.
Share on (62237556221):
Product Overview
Description
Description:

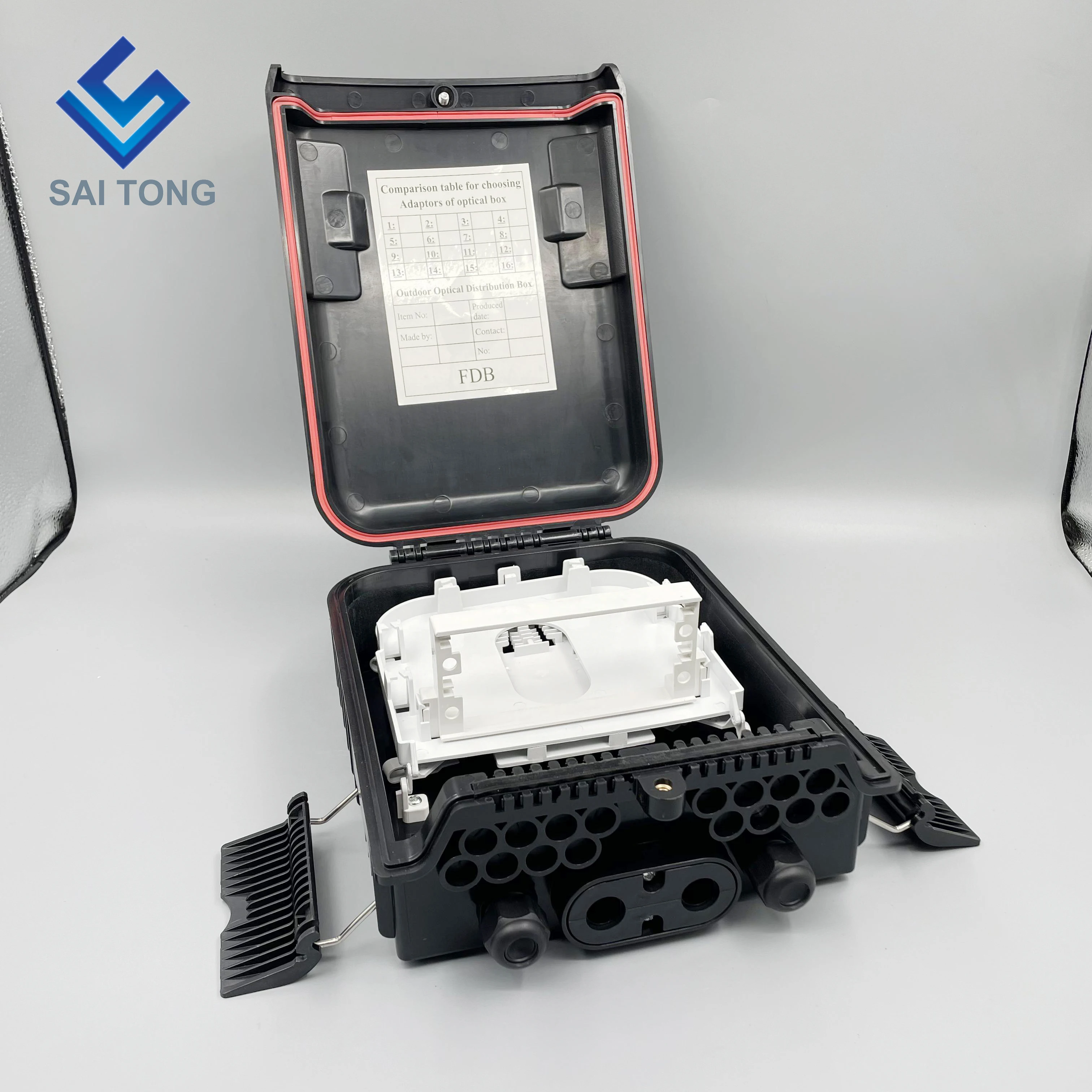

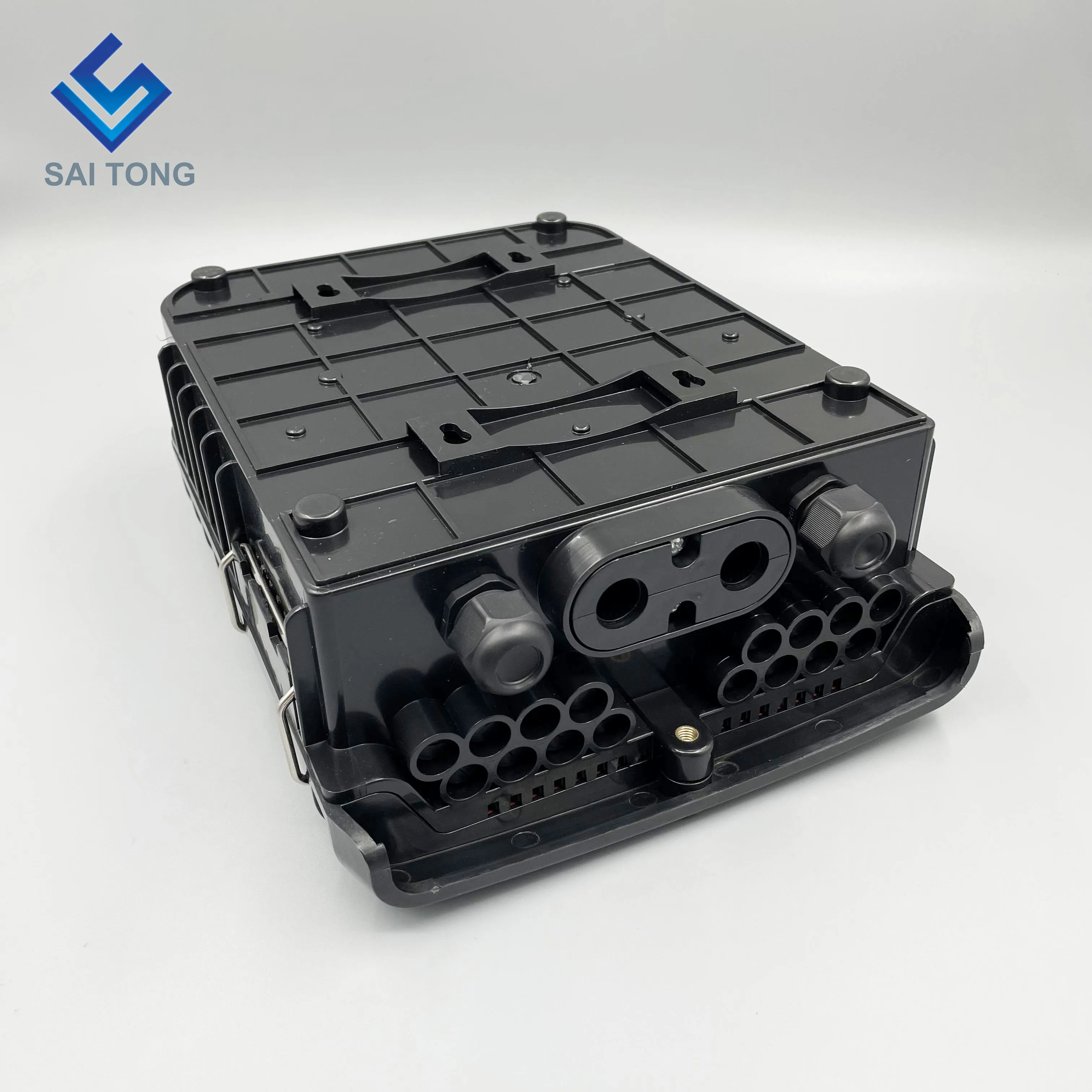

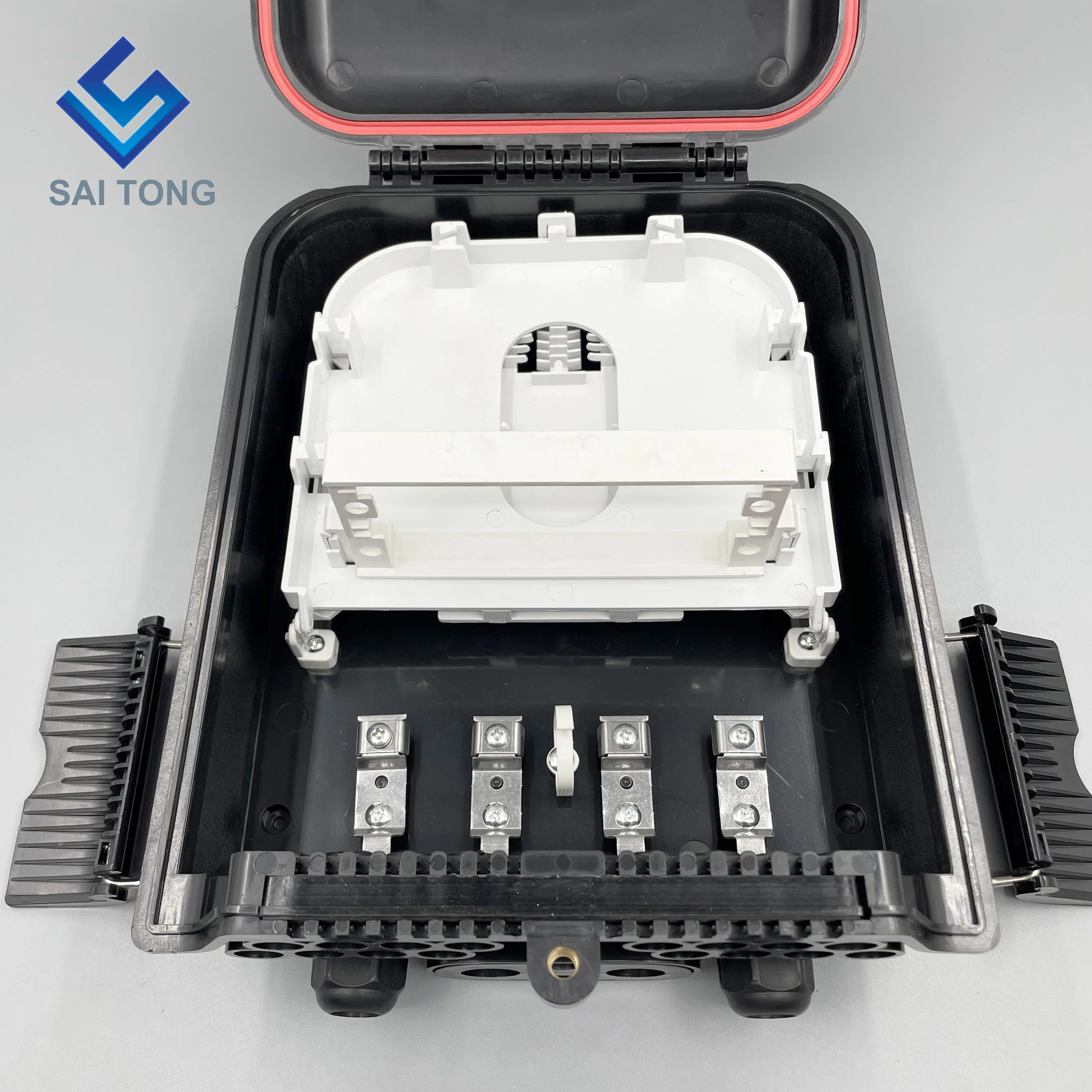

This box is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Features:
1、Total enclosed structure.
2、 Material: ABS, wet-proof、 water-proof、dust proof、anti-aging, rosh.
3、 Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution ... etc all in one.
4 、 Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter .installation, easy maintenance.
5、 Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
6 、 Box can be installed by the way of wall-mounted or poled mounted,suitable for both indoor and outdoor uses.
This box is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Features:
1、Total enclosed structure.
2、 Material: ABS, wet-proof、 water-proof、dust proof、anti-aging, rosh.
3、 Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution ... etc all in one.
4 、 Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter .installation, easy maintenance.
5、 Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
6 、 Box can be installed by the way of wall-mounted or poled mounted,suitable for both indoor and outdoor uses.
Product Name | 16 core fiber distribution box |
Material | ABS or PC+ABS |
imension (mm): | 300*210*90 mm |
Weight | 1.15KG |
Max Capacity | 16Core |
Maximum install tray Number | 4 |
Ports | 2 inlet 16 outlet |
Certification | Ip68/Ios9001 |
