YT H4E 0 001 mm electronic micrometer metal thickness meter
- Category: >>>
- Supplier: Hangzhou Yante Science And Technology Co. Ltd.
Share on (62237746161):
Product Overview
Description
Product Overview

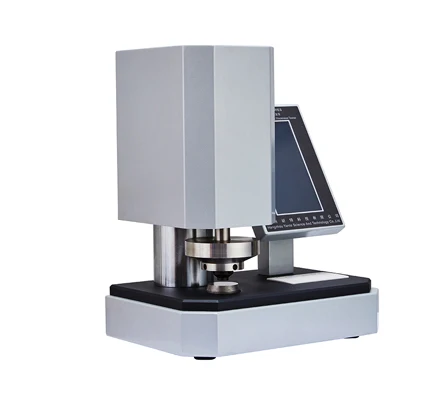

Electronic Thickness Tester is a special instrument for measuring the thickness of paper and paperboard. It is widely used for measuring the thickness of toilet paper and other sheet materials.It is an ideal testing equipment for papermaking, packaging, scientific research, product quality supervision and inspection industries and departments.
Features At A Glance
One-click test, easy to understand.
ARM processor improves the response speed of the instrument, and the calculation is accurate and fast.
The rising and falling speed of the probe can be adjusted.
Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
Automatic measurement, statistics, and printing of test results.
Communication with computer software (purchased separately)
ARM processor improves the response speed of the instrument, and the calculation is accurate and fast.
The rising and falling speed of the probe can be adjusted.
Sudden power failure data storage function, data before power failure after power-on is retained and testing can be continued.
Automatic measurement, statistics, and printing of test results.
Communication with computer software (purchased separately)
Details Images
Application Range
All kinds of paper
Execute Standard
GB/T 451.3，QB/T 1055，GB/T 24328.2，ISO 534
Sales And Service Network
Product Paramenters
No. | Parameter item | Technical index |
1 | Power Supply | AC(100～240)V，(50/60)Hz 50W |
2 | Working Environment | Temperature(10~35)℃, Humidity≤ 85％ |

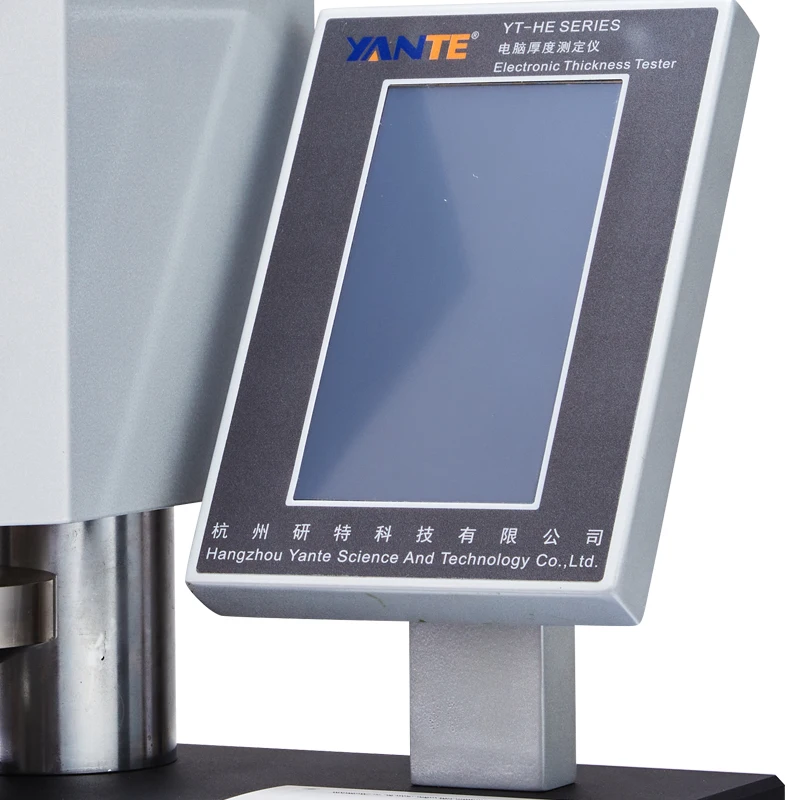

3 | Display | 7 inch color touch screen |
4 | Measuring range | (0～5)mm |
5 | Resolution | 0.001mm |
6 | Indication error | ±0.0025mm or ±0.5％ |
7 | Indication variability | ≤0.0025mm or ≤0.5％ |
8 | Parallelism between measuring surfaces | ≤0.002mm |
9 | Contact area | (200±5) mm² |
10 | Contact pressure | (100±10)kPa |
11 | Probe descending speed | （0.5～10）mm/s Adjustable |
12 | Print | Built-in thermal printer |

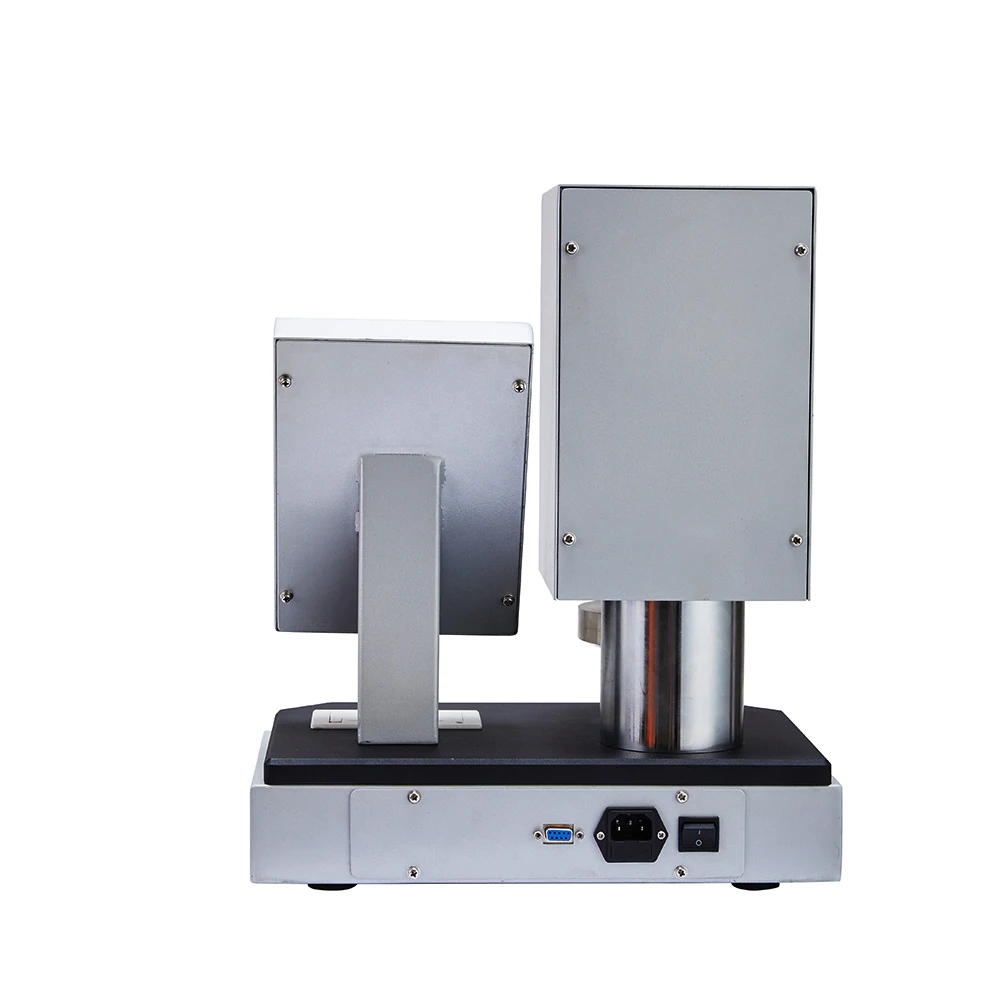

13 | Communication Interface | RS232(Default) (USB, WIFI optional) |
14 | Dimension | 360×245×430 mm |
15 | Net Weight | 27kg around |
