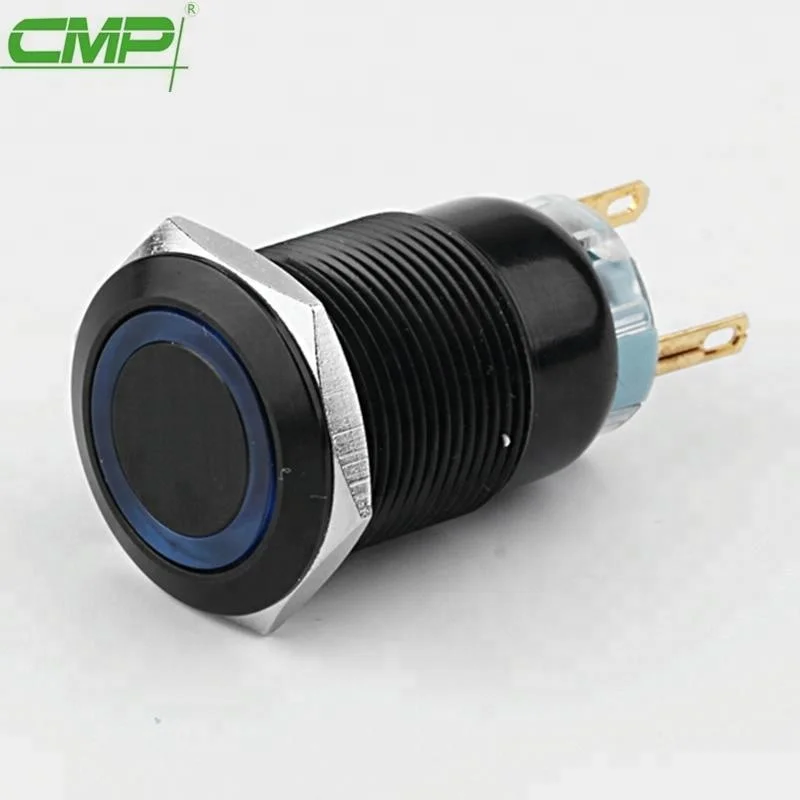

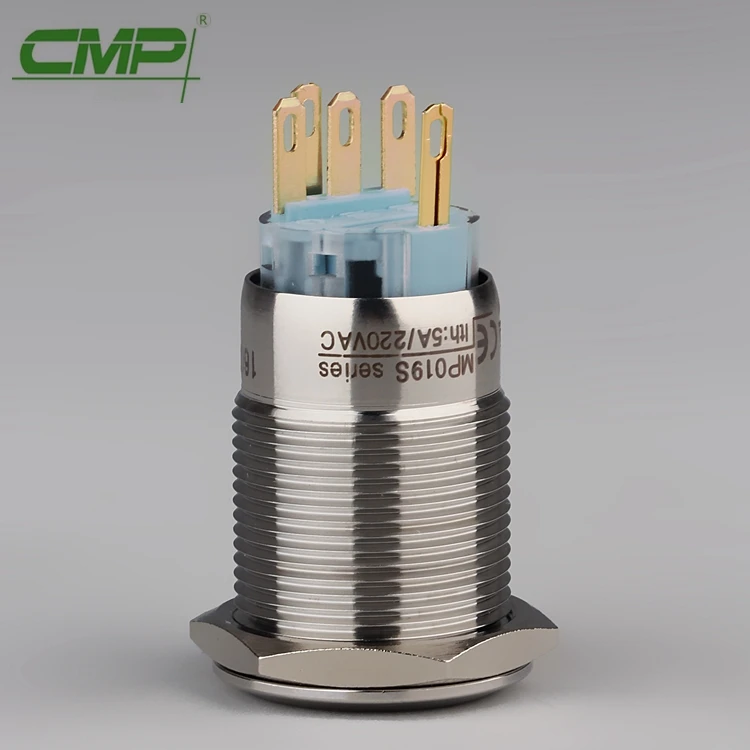

CMP metal waterproof spdt push button 12v led switch

Product Overview

Description



     CMP metal waterproof spdt push button 12v led switch

Product	Push button Switch with light
Item	MP019S/F11-E
Thread Diameter:	19mm
Operation type	Momentary MP019S/F11-E
	Latching MP019S/F11Z-E
Housing material	Stainless steel/Chromium plated/ Nickel plated/Aluminum

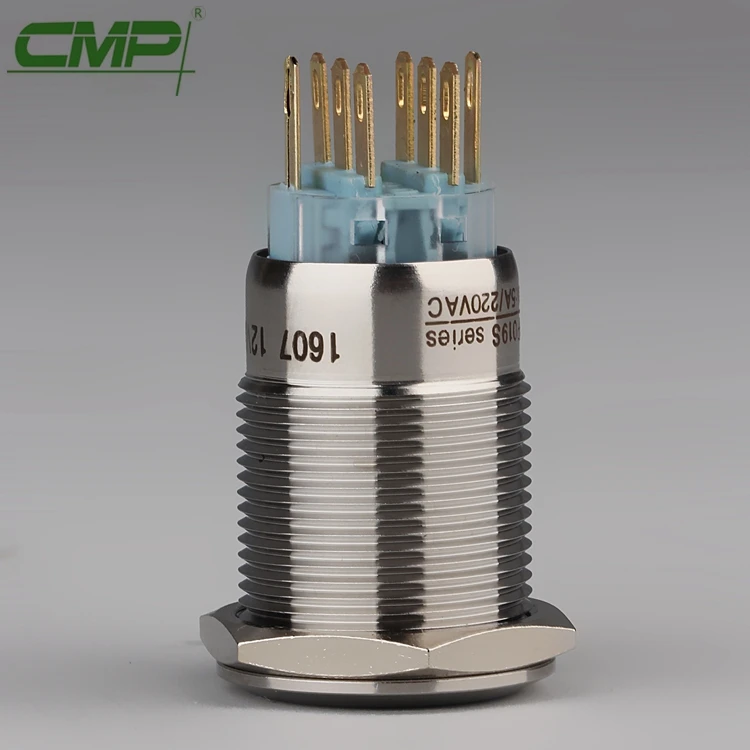

Contact configuration	1NO1NC (SPDT)  or   2NO2NC (DPDT switch)
Switch rating	5A/250V AC/DC
Terminal type	soldering pin
Contact terminal material	silver plated gold
Contact	silver plated/silver plated gold (made to order)
Button type	Flat button with ring light
LED color	red,green,white,blue,yellow,orange,bi-color
LED voltage	2V/6V/12V/24V/220V (made to order)
Contact Resistance	≤50mΩ
Insulation Resistance	≥1000MΩ
Dielectrical Intensity	2000VAC
Vibration Resistance	10~55HZ, amplitude 1.2mm p-p
Mechanical life:	≥500,000 cycles
Electrical Life:	≥200,000 cycles
Operating Temp	-20ºC~+55ºC
Torque	5-14Nm
Operation Pressure	3-5N
Operation Travel	About 3.1 mm
Protection Level	IP65/IP67 IK10
Soldering Temperature	20W/5 seconds or 260 °C/3 seconds
Certificate	CE,TUV,Rohs



 12v led switch

12v led switch

   12v led switch



Our company is specialized in the production of switch buttons made of stainless steel and brass. Our products are reliable and meet the standard of RoHS. We also offer OEM and ODM services.

Our products are exported to Europe, the US, the Middle East, Asia, etc.And have achieved TUV,CE and passed SGS test.

Our products are widely used in varies types of control desks, control boxes (cabinets), power distribution boxes (cabinets), meter boxes (cabinets), household appliances, security systems, etc.



12v led switch

    12v led switch





    12v led switch 12v led switch

Supply all products with factory price. If you order our products for the first time, we would like to recommend that you take some samples for testing, so that you will be secure and will find how the quality of our goods is.

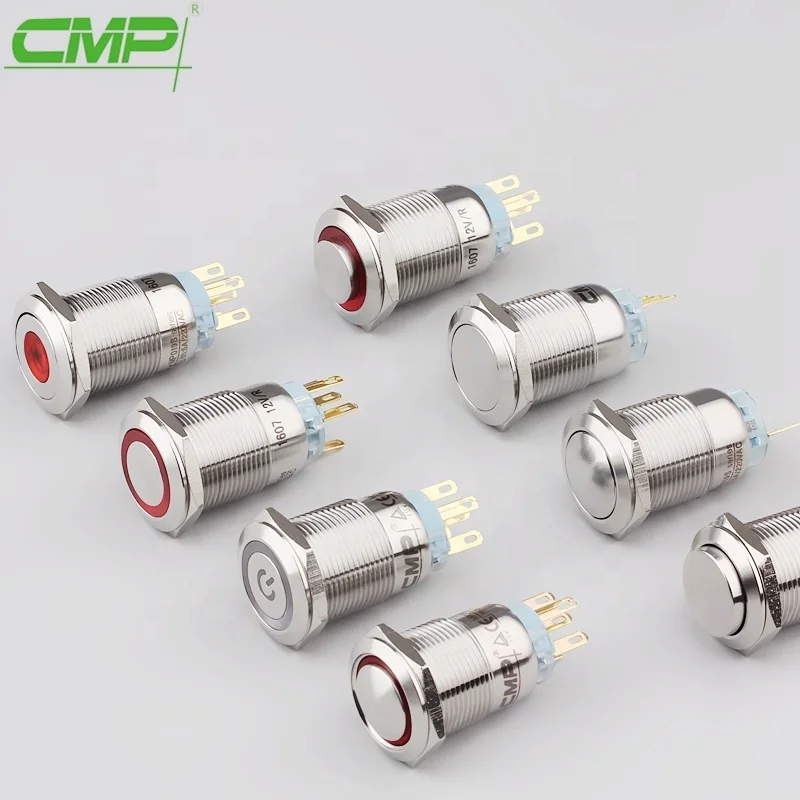

1. Installation diameter : There are 12mm series(plastic or metal), and 16mm 19mm 22mm 25mm 28mm 30mm series metal(stainless steel or copper plated chromium ) push button switch.



2. LED/Light series and colors: ring option and dot option. There are red, green, yellow, orange, blue, white. If need others colors, please contact me.



3. The current and voltage: Please let me know the voltage of LED if you order switch with LED light.



4. Samples and smaller order as follows:

(1).when you order some samples and smaller order, please contact me by email or Skype for confirming items details.

(2).payment: samples and smaller order payment by paypal or T/T or western Union.

(3).Shipping: DHL, EMS, TNT, Fedex, UPS and others international express. Estimated shipping time: 3-7 days.





5. Customer Service:

    We strive to provide excellent customer service. All emails will be answered within 24 hours.

    If you have any questions, please feel free to contact me.
