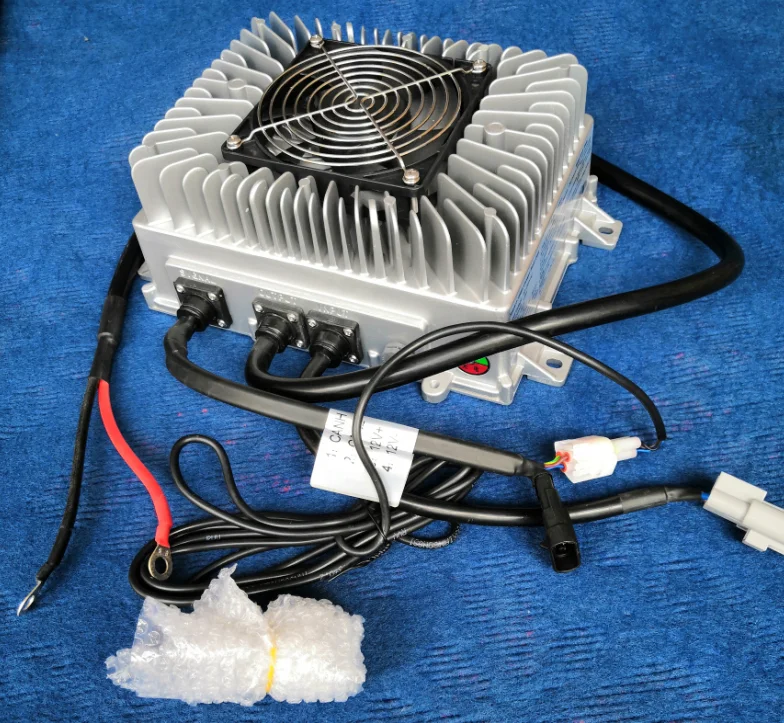

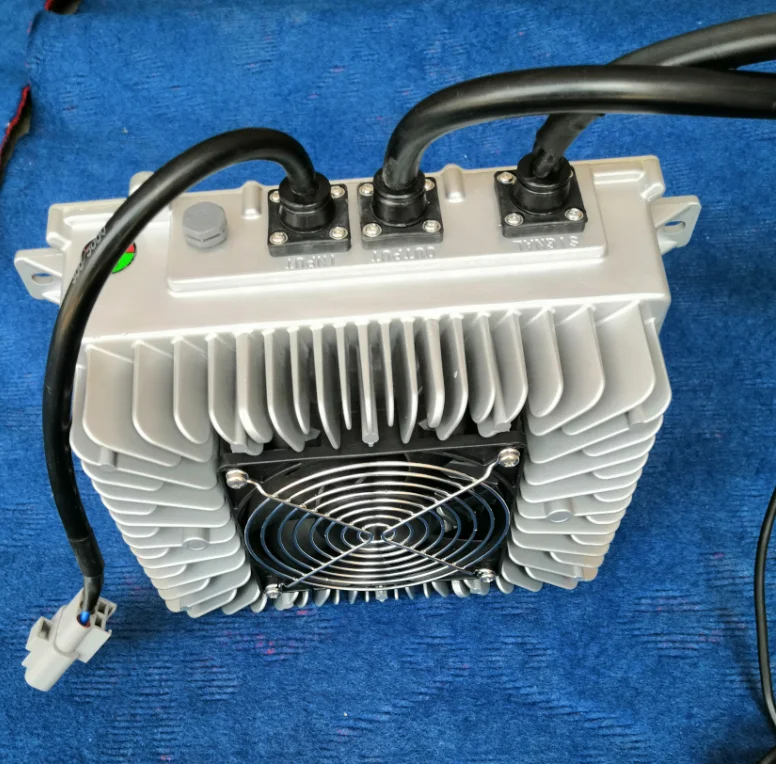

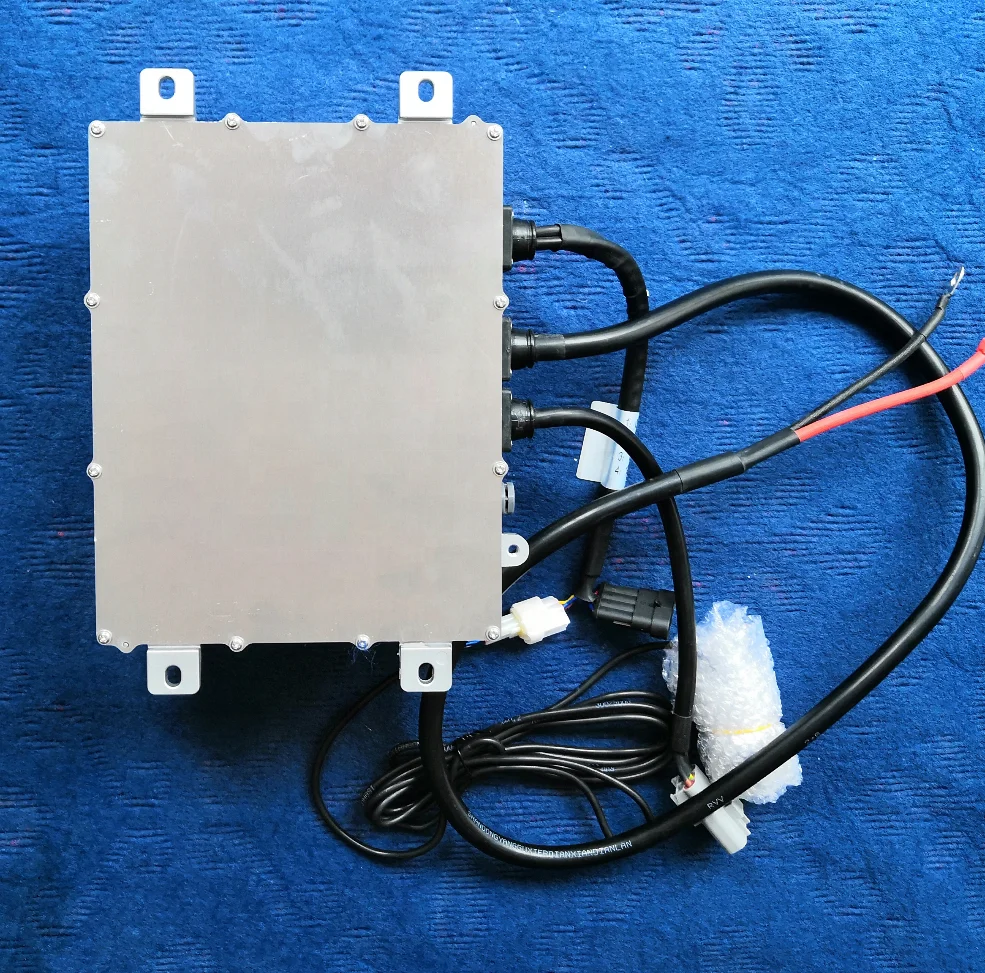

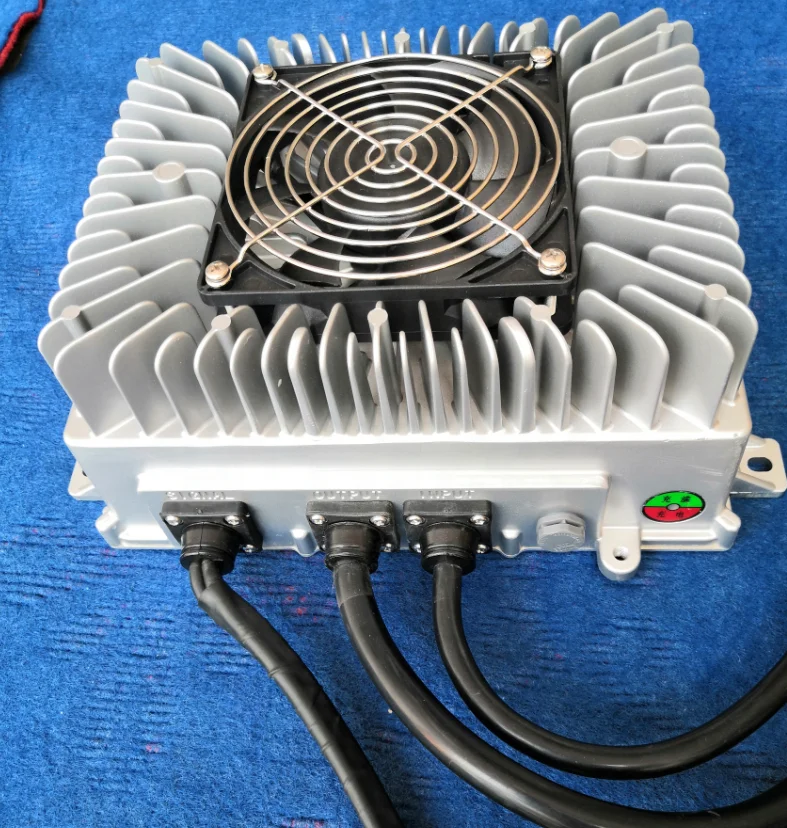

3.3kw 144v 23A High Frequency Intelligent battery charger

Product Overview

Description











I. Overview



SMHC3 Series 3.3KW Charger is designed by Dezhou Greatway Industrial Co., Ltd. to supplement electric energy for electric vehicle power battery according to the national standard of charger. This product not only has the advantages of high efficiency, small size, high stability and long service life, but also has the characteristics of IP67 protection grade, safe operation, high reliability and complete protection function under short-term immersion condition. It is an ideal power supply for charging electric vehicles. The charger has built-in thermal induction device, which can work reliably at - 35 -+85 (?C. It has the function of overheating protection and can work reliably at - 35 (?) -+85 (?) C, and can recover automatically. It ensures that it works in any complex environment without causing failure.

Input voltage range	Input current	Output rated voltage	Maximum output voltage	Output maximum current	Power factor	efficiency
AC 90~265V	16A	48V	66VDC	50A	≥0.99 Half load or more	≥93% The full load
		60V	82.5VDC	35A
		72V	99VDC	40A
		84V	116VDC	40A
		96V	132VDC	32A
		144V	198VDC	23A
		312V	440VDC	10A
