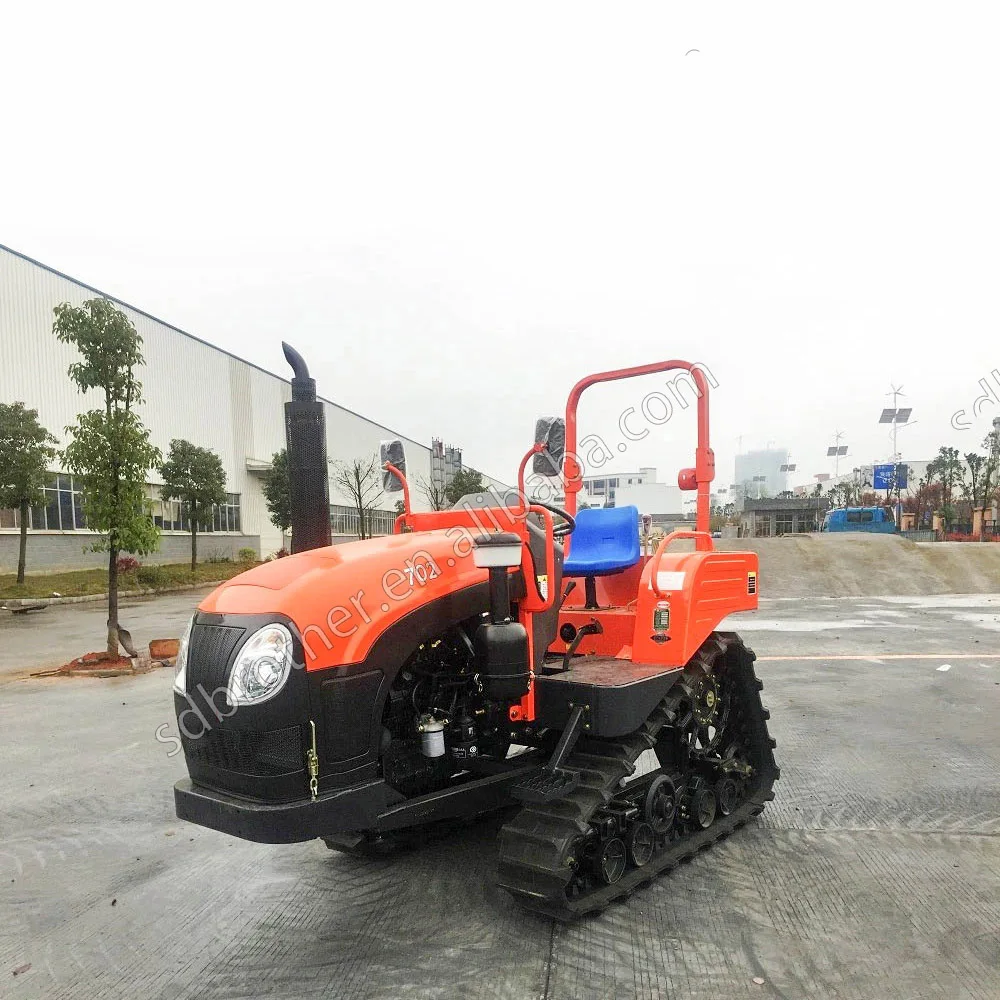

Сельскохозяйственная техника, гусеничный трактор с резиновым гусеничным покрытием

Model

SG-602

SG-702

SG-802

SG-902

Size

length×width×height(mm)

2900×1360×1500

3430×1590×2300

3690×1650×2560

Weight

(Kg)

1700

2200

2450

Minimum Ground Clearance

(mm)

260

410

420

Engine

Model

3G25TC

YD4CZ70C1

YD4EZ80C1

YD4EZ90C1

Form

Electronic injection. Vertical. Water-cooled. four-stroke

Rated power(kW)

44.1

51.5

58.8

66.2

Fuel

Diesel

Rated power(r/min)

2400

Starting method

Electric start

Electric start

Steering
Brake System

Steering system type

Planetary differential steering

Planetary differential steering

Brake system type

Wet friction steering

Wet friction steering

Drive
Train

Clutch type

Single-chip single-acting

Single-chip single-acting

Transmission type

2(mechanical file)+
2×2(hydraulic stepless speed change)

Eight forward speed+ reverse gear

Transmission shift model

Gear shift

Gear shift

Walking
System

Rack form

Rigid frame type

Rigid frame type

Track pitch
section × number × width

90×46×280

90×50×350

90×56×400

The theoretical speed of each file(km/h)

Forward: mechanical block:4.86; 8.65

Hydraulic block: 0-5.75; 0-10.24

Forward:1.22;1.80;2.92;

3.84;5.50;8.08;13.13;17.25

Backward:0-5.75;0-10.24

Backward:0.97;1.43;2.32;

3.04;4.36;6.41;10.42;13.68

Working
Device

Lifter type

Semi-split

Semi-split

Tillage depth control

Force adjustment

Force adjustment

PTO form

Type1, non-independent

Type1, non-independent

Power output
shaft speed(r/min)

624/960

720/1000
