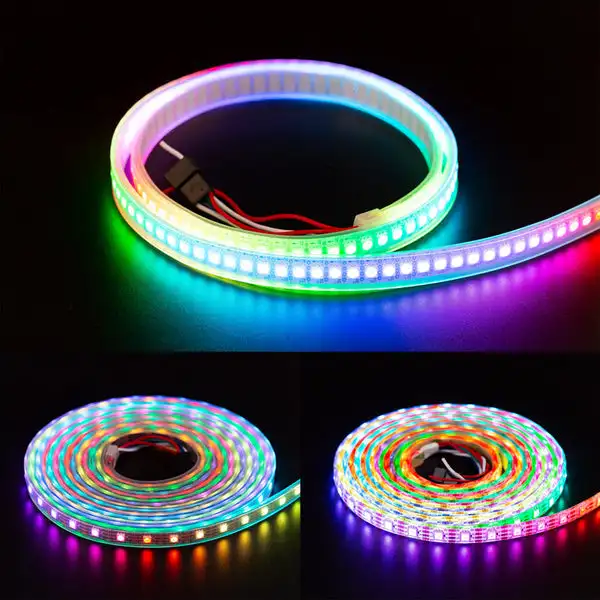

30 60 144 2813 Breakpoint Continous Strip Led Btf Lighting Ws2813 Ws2813 v4 Vision
- Category: >>>
- Supplier: Glite Electronics Co. Ltd.
Share on (62238070167):
Product Overview
Description
Product Introduction
ws2813 led strip,breakpoint continue,one led broken,no affect other the behind led work
One WS2813 IC control ONE LED Chip; Users can cut the ribbon tape every 1 LEDs
Each LED is individually addressable, with 8 bits of green, red and blue data shifted in for 24 bit color
Product Description
Led Density
WS2813 30 leds/meter 60 leds/meter 144leds/meter
Cutting Length
Tech Parameters
TYPE | 30LEDs/m | 60LEDs/m | 144LEDs/m |
IC | WS2813 | WS2813 | WS2813 |
PCB Width | 10mm | 10mm | 12mm |
Standard Length | 5 meter/roll | 5 meter/roll | 5 meter/roll |
PCB color | white/black | white/back | white/black |
Voltage | DC5V | DC5V | DC5V |
Watts | 9W/M | 18W/M | 43.2W/M |
Cutted | Per 1 LED | Per 1 LED | Per 1 LED |
Ending | 15cm JST connector | 15cm JST connector | 15cm JST connector |
Packages | 5m/reell | 5m/reell | 5m/reell |

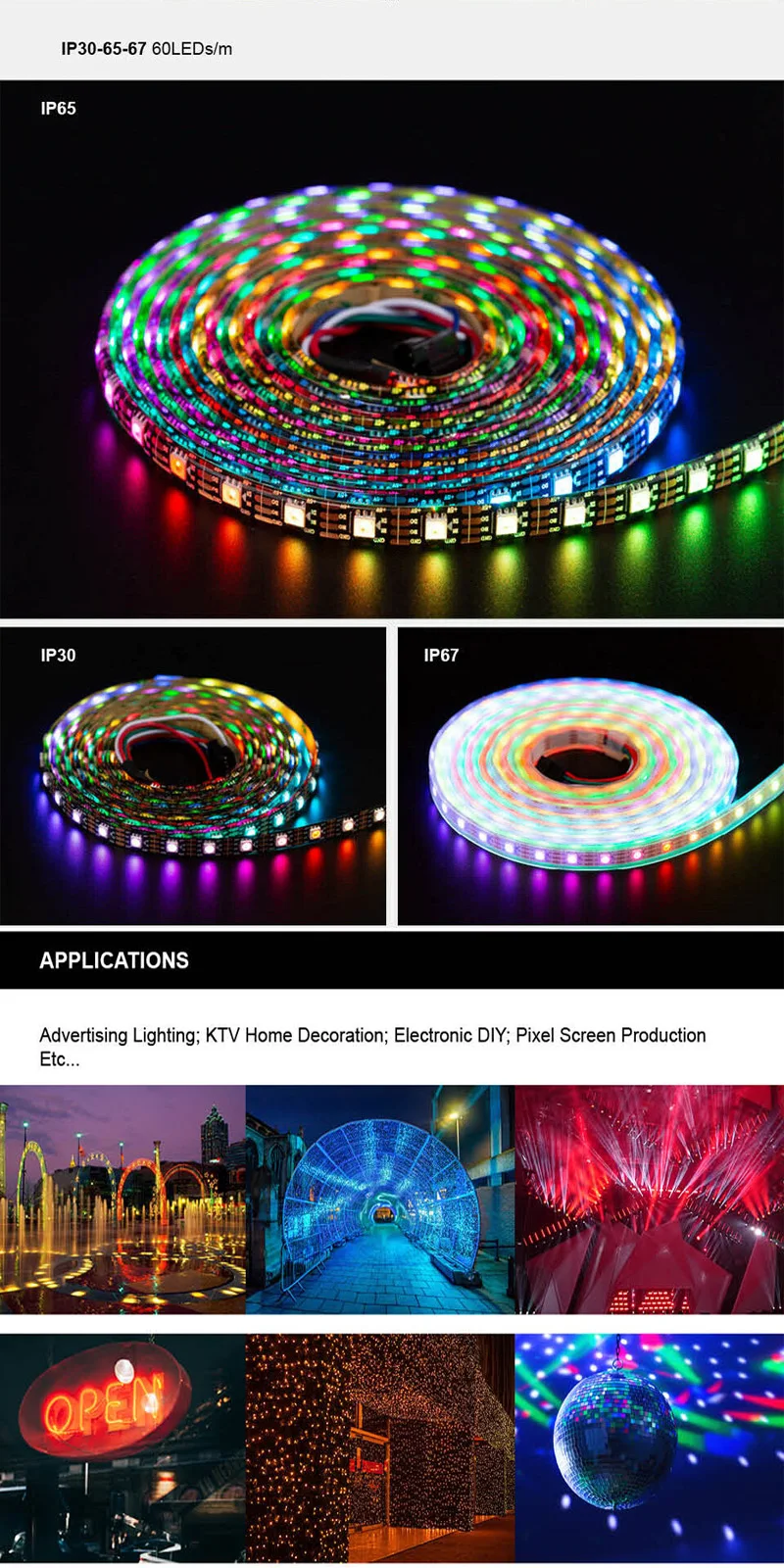

Weight (IP20) | 0.2kg/reel | 0.2kg/reel | 0.2kg/reel |
Weight (IP65) | 0.4kg/reel | 0.4kg/reel | 0.4kg/reel |
Weight (IP67) | 0.6kg/reel | 0.6kg/reel | 0.6kg/reel |
Work Temperature | -20 ~ +40°C | -20 ~ +40°C | -20 ~ +40°C |
Warranty | 3 years | 3 years | 3 years |
OEM Products | Yes | Yes | Yes |
OEM Packages | Yes | Yes | Yes |
Lead Time | Max 7 days | Max 7 days | Max 7 days |
Deliver Time | 3-5 days | 3-5 days | 3-5 days |
Control Component
Power Loading ↑
① Pick up the power supplier according to the led strips based on different voltage and wattage.
② Voltage of power supplier is decided by led strips. Wattage of power supply depend on the length of the led strip.
③ Each 5 meters offer a power supply connector to support multiple controlling on reels.
Controller Loading ↑
Multiple controllers are necessary for chain controlling when pixel quantities are more than 2048pcs. By coordinated controllers with certain method, hundreds reels of led strips can work together to perform.
Looking For A Simple Kit?
If you are looking for a simple working light and donnot want to make things complicated, we offer completed kits for you. Click the sales man on the right side for information please →
Extended Product
5V RGBW Pixel Strip
Color: RGBW 4 in 1
IC: SK6812
Voltage: DC5V
LED QTY: 30/60/72/144
12V RGB Pixel Strip
Color: RGB
IC: WS2815
Voltage: DC12V
LED QTY: 60
5V White Pixel Strip
Color: 2700K-6500K
IC: APA102
Voltage: DC5V
LED QTY: 60/144
12V RGB Pixel Strip
Color: RGB
IC: WS2811
Voltage: DC12V
LED QTY: 30/60
24V RGBW Pixel Strip
Color: RGBW 4 in 1
IC: DMX512
Voltage: DC24V
LED QTY: 30/60
24V RGBWW Pixel Strip
Color: RGBWW 5 in 1
IC: TM1914
Voltage: DC24V
LED QTY: 60
Support
Could We Help You?
GLITE ELECTRONIC has a proffesional sales team and experienced engineers who working on pixel design project for years. We helped hundreds of clients made the best solution and offered completed project drawings.
Please contact us with your purpose to get soonest reply.
