Foam compactor waste polystyrene recycling machine
- Category: Other Rubber Recycling Machines >>>
- Supplier: Zhangjiagang Qinfeng Machinery Co. Ltd.
Share on (62238360615):
Product Overview
Description
Product Description
Foam compactor waste polystyrene recycling machine
Foam compactor waste polystyrene recycling machine is a machine to reduce the size of expanded polystyrene foam and expanded polypropylene foam for easier transportation. It is also known as styrofoam densifier and EPS compactor. It is widely used in sea food processing plant, electronic factories, White goods and black goods stores, and the supermarkets. Waste polystyrene recycling machine for Styrofoam compression makes it profitable for municipalities and businesses To recycle EPS/EPP/EPE/XPS.
Foam compactor Features:
1. Compacting expanded polystyrene with a density of 200-250kg/m3
2. Save costs for transport and land fill
3. Save space and handling by dealing with the EPS in a quick and efficient manner
4. Generate income from sales of the compacted EPS blocks, save power consunption
5. No heat is added to the process
Technical Parameters
Styrofoam Extruder CF-CP380
The following sizes are for reference and special requirements can be discussed in detail
Plastic Recycling Machine CF-CP380 | ||||
Model Styrofoam compactor | CF-CP-380 Recycling Compacting machine | |||
Capacity | 150-200kg/h | |||
Screw Diameter | φ350mm | |||
Input size | 1000mmx600mm | |||
Screw rotation speed | 36rpm | |||
Crusher blades | 4Sets 10+9+10+9sets | |||
Blade rotation speed | 120rpm | |||
Main motor | 15kw | |||
Crusher motor | 2.2kw X 4 | |||
Hydraulic motor | 1.5kw | |||
Production size | 380x380mm | |||

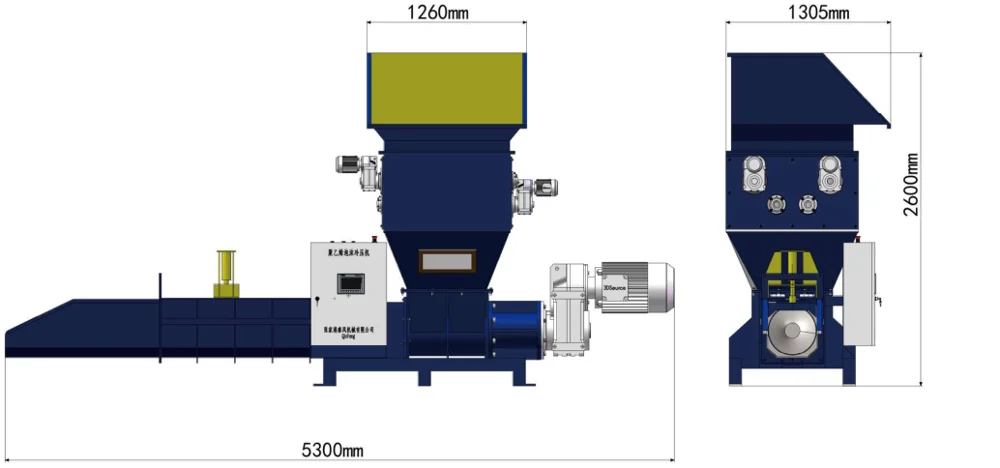

Machine Outline | 4800x1500x2500 | |||
Weight | 1800kg | |||
Configuration Item |
Simple Configuration |
Standard configuration |
Luxury configuration | |
Motor | Dongya | Dongya | SIEMENS | |
Control | (CURRENT CONTROL) | PLC Control SIEMENS | PLC Control SIEMENS | |
Touch Screen | (NONE) | WEINVIEW | SIEMENS | |
Gearbox | CASTLE | CASTLE | GUOMAO | |
Bearing | ZWZ | ZWZ | NSK | |
Hydraulic Station Electromagnetic valve | Fanhua,Changzhou | Taiwan Qiyang | Japan Yuken | |
Electricity Elements | CHNT | Main parts use SIEMENS Other parts use CHNT | All the elements use SIEMENS | |
Related Products
CF-CP250(80-100kg/h) CF-HM400(160-200kg/h)
Detail View
Operational principle :
Put the foams into the crushing bin, and the motor drives the crushing bin to break the foams(Polystyrene beehive box) into small pieces. The foams that pass will be screened through the filter screen. Those that pass will enter the squeezing bin, while those that don't will continue to break until they pass.The extrusion bin is fed by motor driven screw.There is a water tank between the discharge channel and the extrusion bin. Two water pipes are connected on the water tank for water circulation and cooling effect.When the screw transfers small pieces of foam to the front of the outlet, the surface of the outlet is covered with a layer of 304 stainless steel, and the upper part is pressed by a hydraulic pump, so it is difficult to extrude the foam during the discharge.Wait for the foam block to be pushed out by the screw. When the hydraulic pump drops down and there is no material, the cover plate and the upper surface of the discharge channel can form a negative Angle and wait for the accumulation of foam blocks, and then repeat the previous action in a cycle.

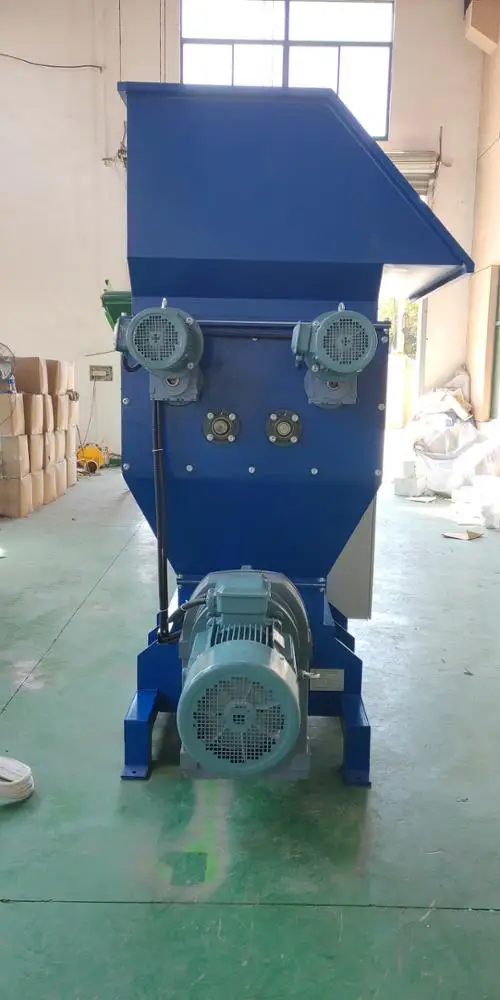

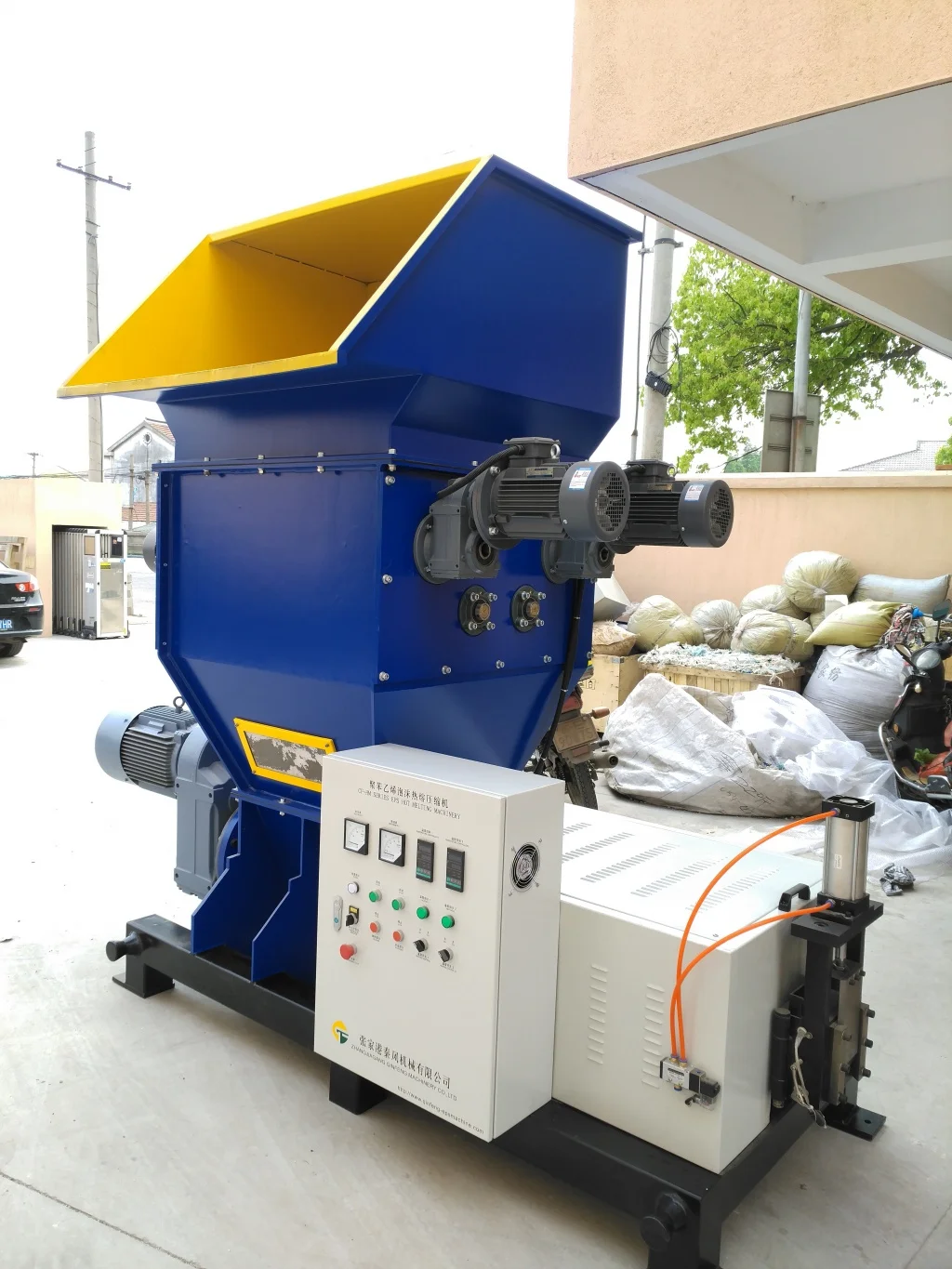

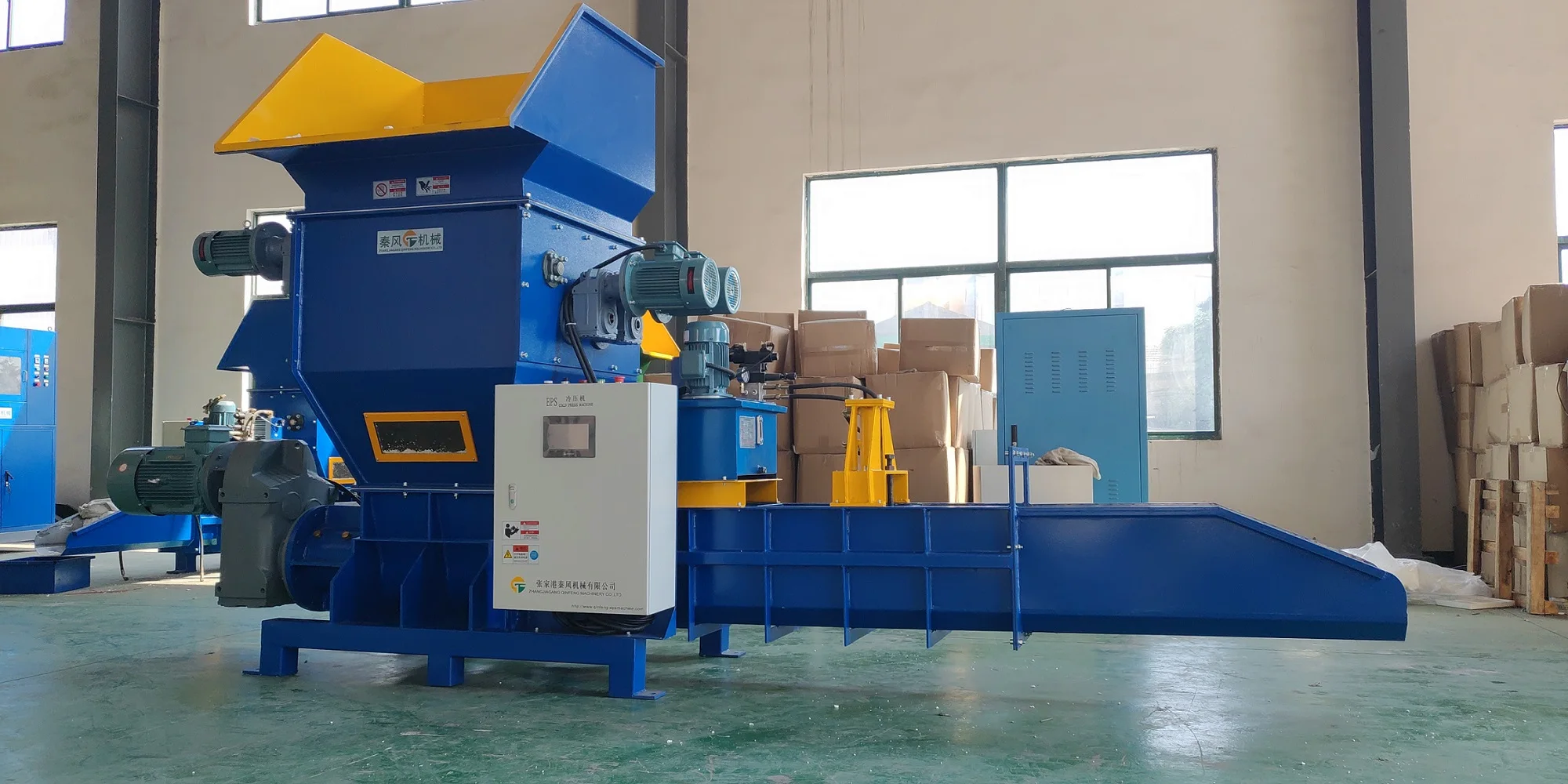

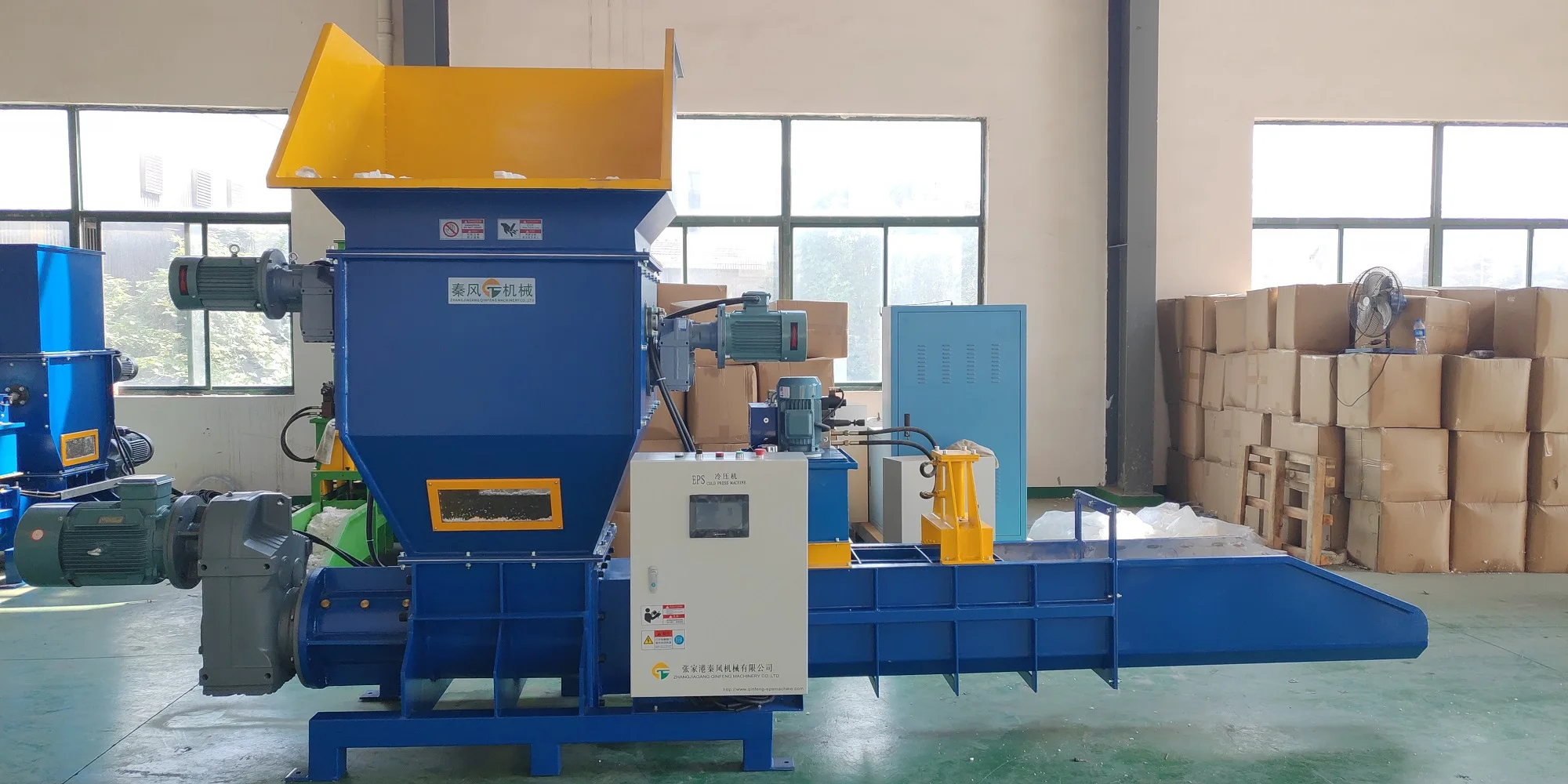

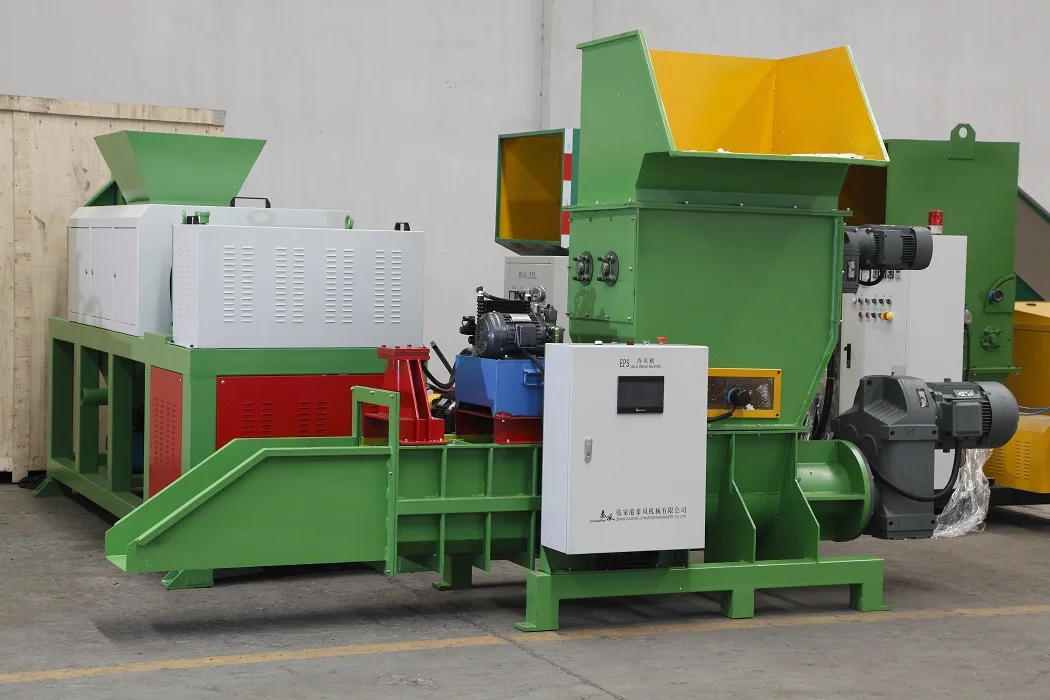

CF-CP380

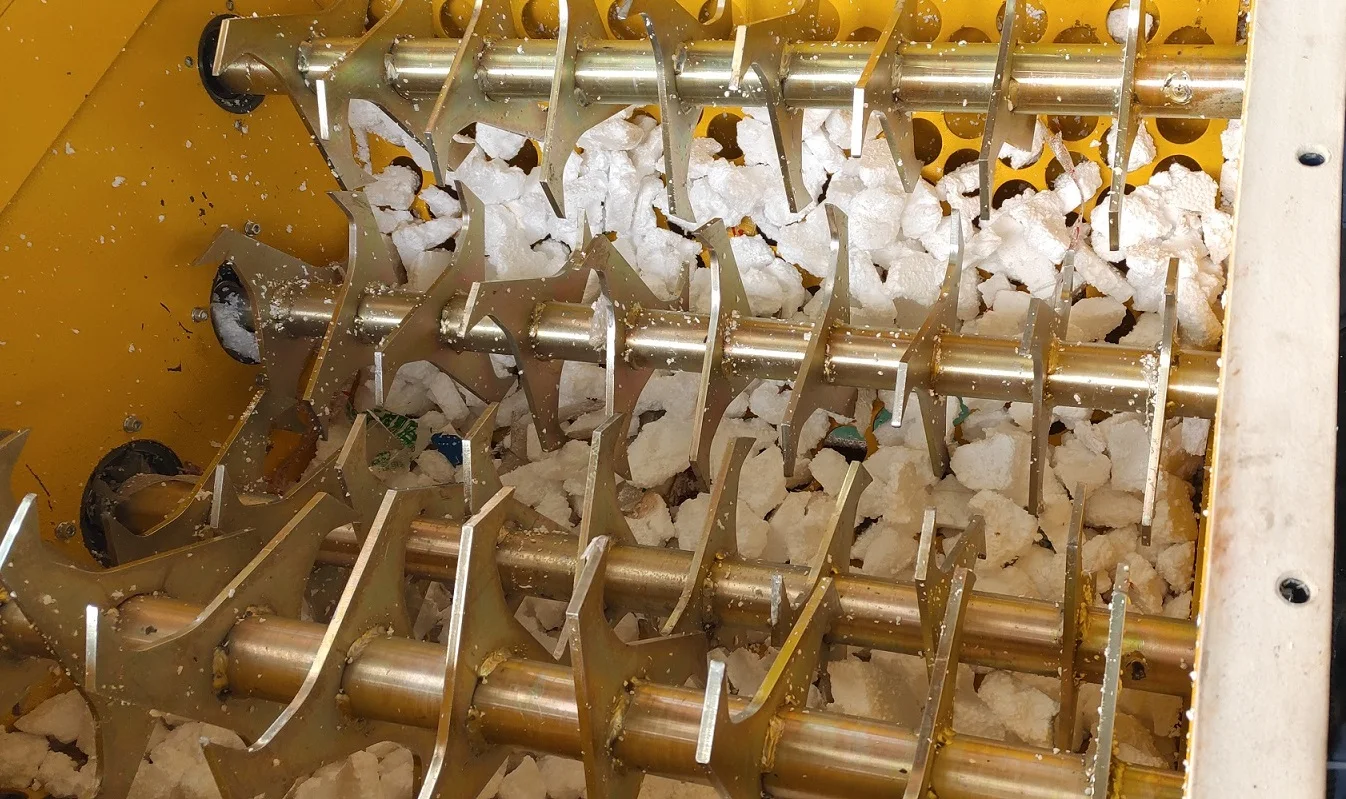

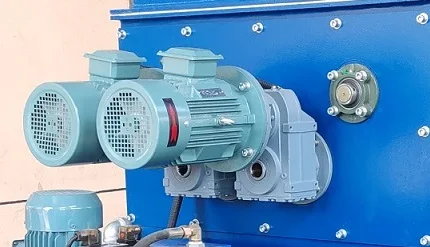

Broken warehouse Gear motor

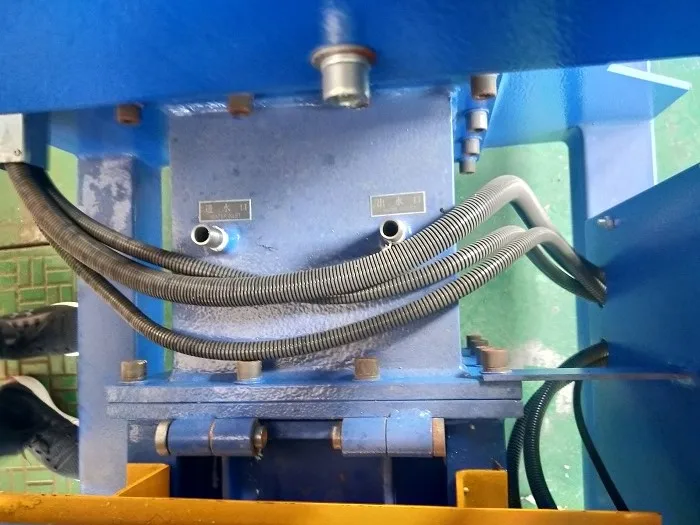

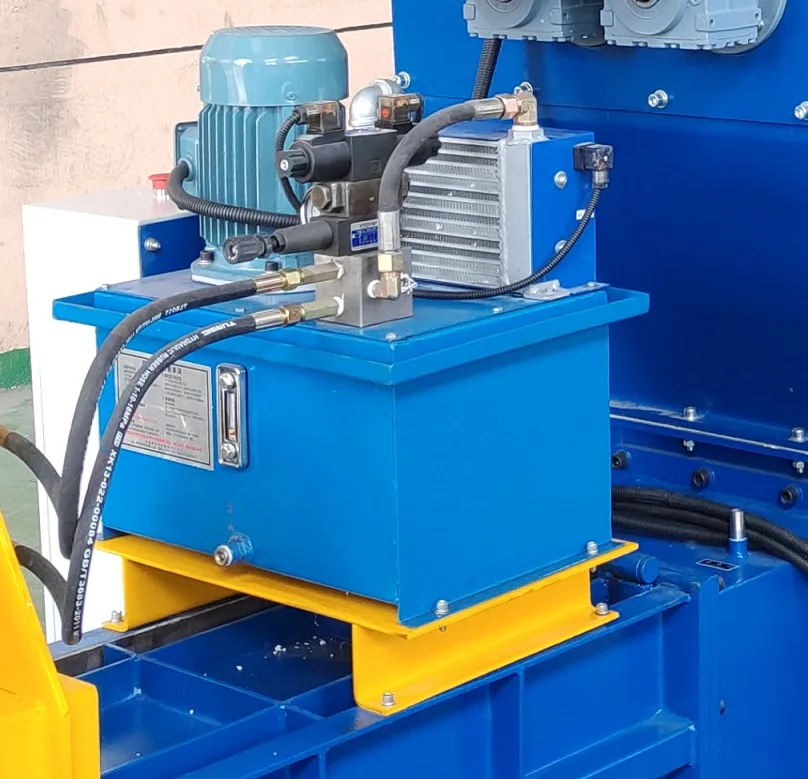

Tank connection Hydraulic system

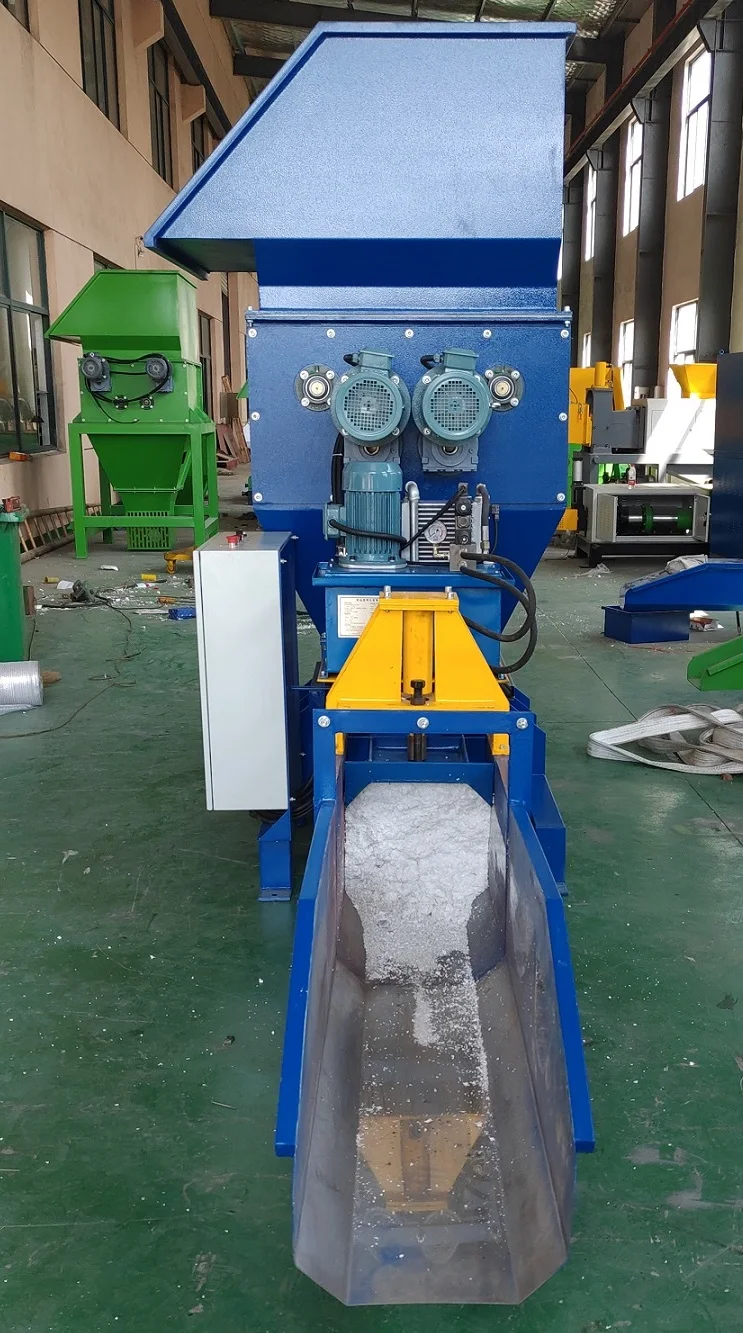

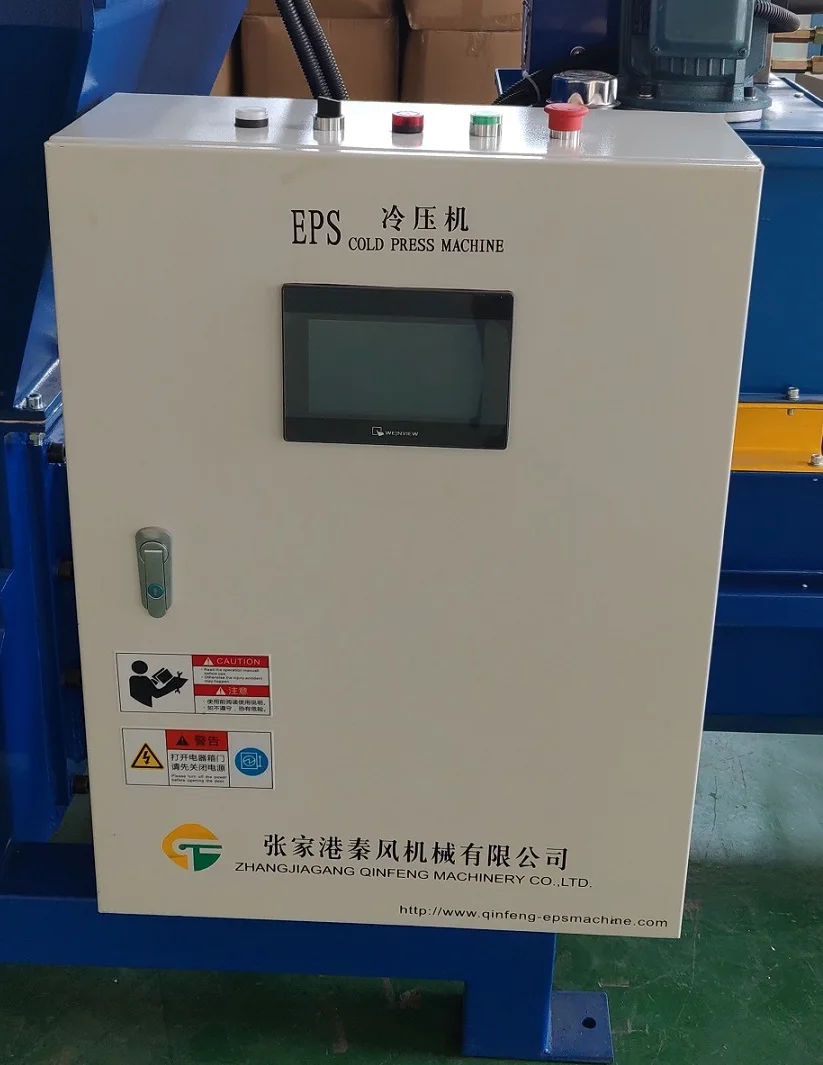

Outlet Electrics control cabinet
Company Information
Zhangjiagang Chinafor Machinery Co.,Ltd is a professional manufacturer and trader specializing in EPS recycling machinery,Plastic Mixing,Plastic Bottle Recycling,Plastic Extruder,Plastic Shredders ,we producting many types of recycling machine for waste recycling.Our boss has been a mechanical engineer for over twenty years.
Packaging & Shipping
FCL delivery, directly wrap film package packing;LCL, wrap with wrapping film first, then pack in wooden case, the wooden case is fumigation-free, in line with export requirements.
(The equipment can be packaged according to customer's requirement)FOB Shanghai
