Product overview

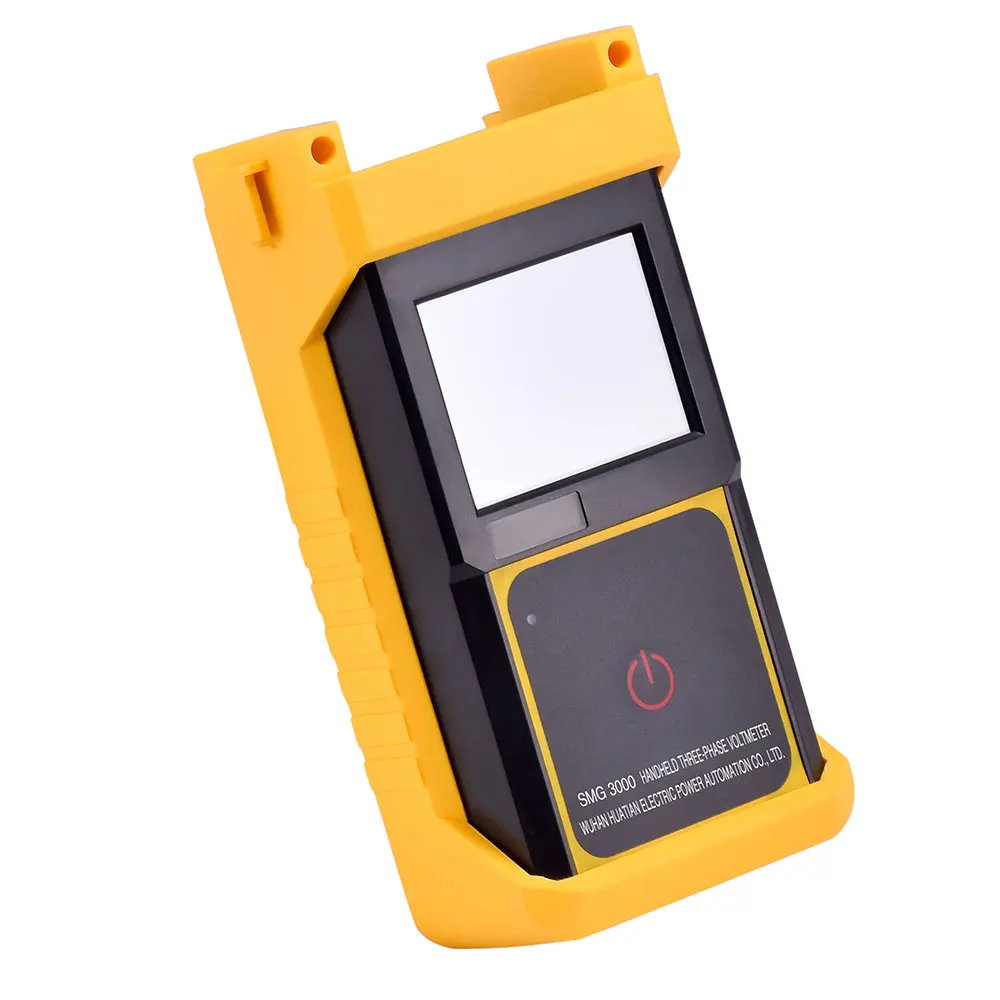

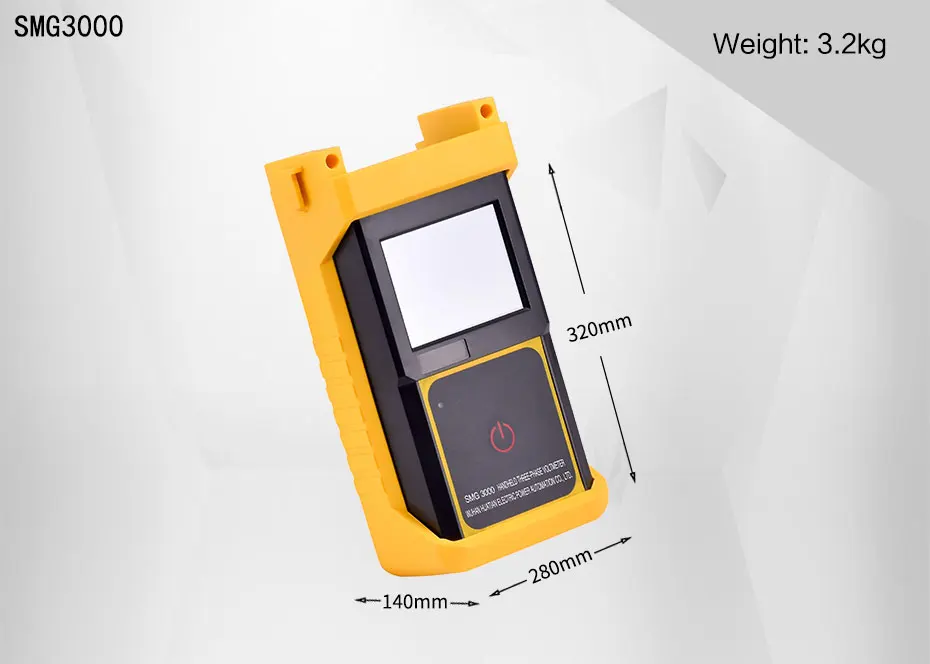

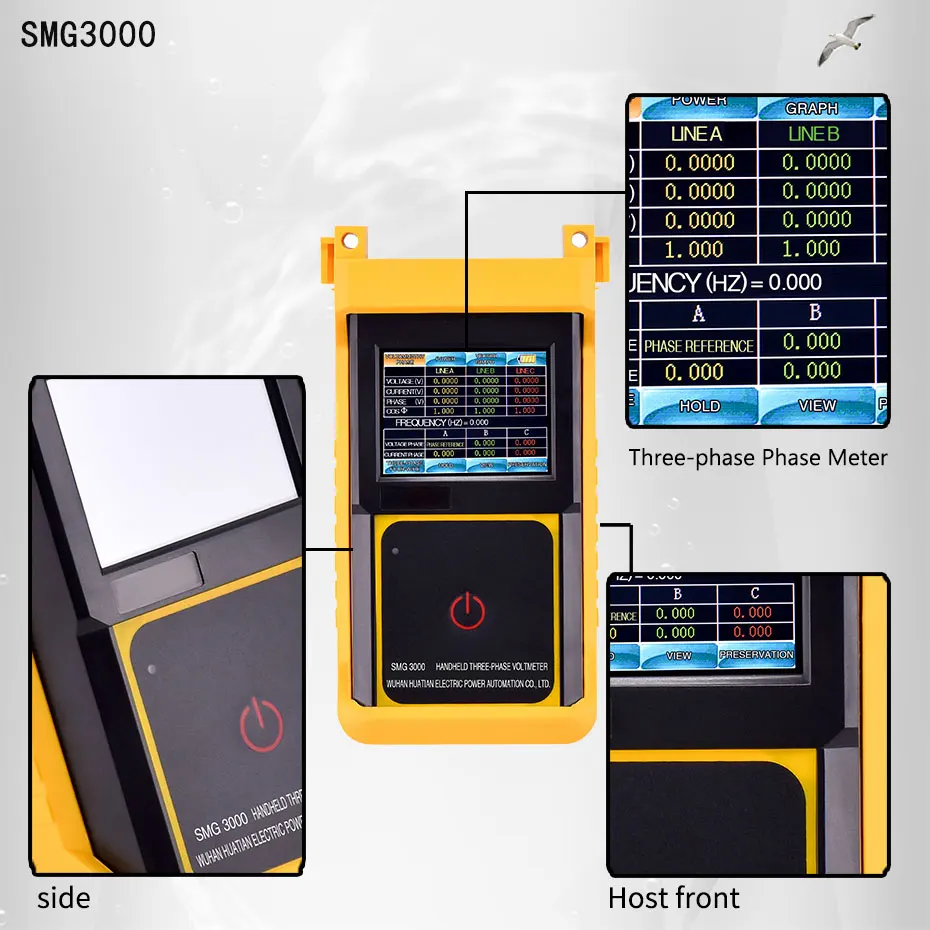

SMG3000 Three phase Meter a high precision instrument for measurement of three-phase electric parameters, it can be used to measure the three phase voltage, current and phase angle, frequency, power, power factor and so on.
Products features
1 Measure three-phase voltages and four lines of current (includes zero line current) at the same time;
2 Measure the three-phase ac voltage phase angle, current phase angle and power phase angle at the same time;
3 Measure power grid frequency and phase sequence;
4 Discriminate transformer winding, recognize, capacitive load and perceptual load automatically
5 Show hexagon vector diagram; do color sequence analysis;
6 Measure active power, reactive power, apparent power, three-phase power and power factor;
7 Data storage and view function;
8 Data static storage function;

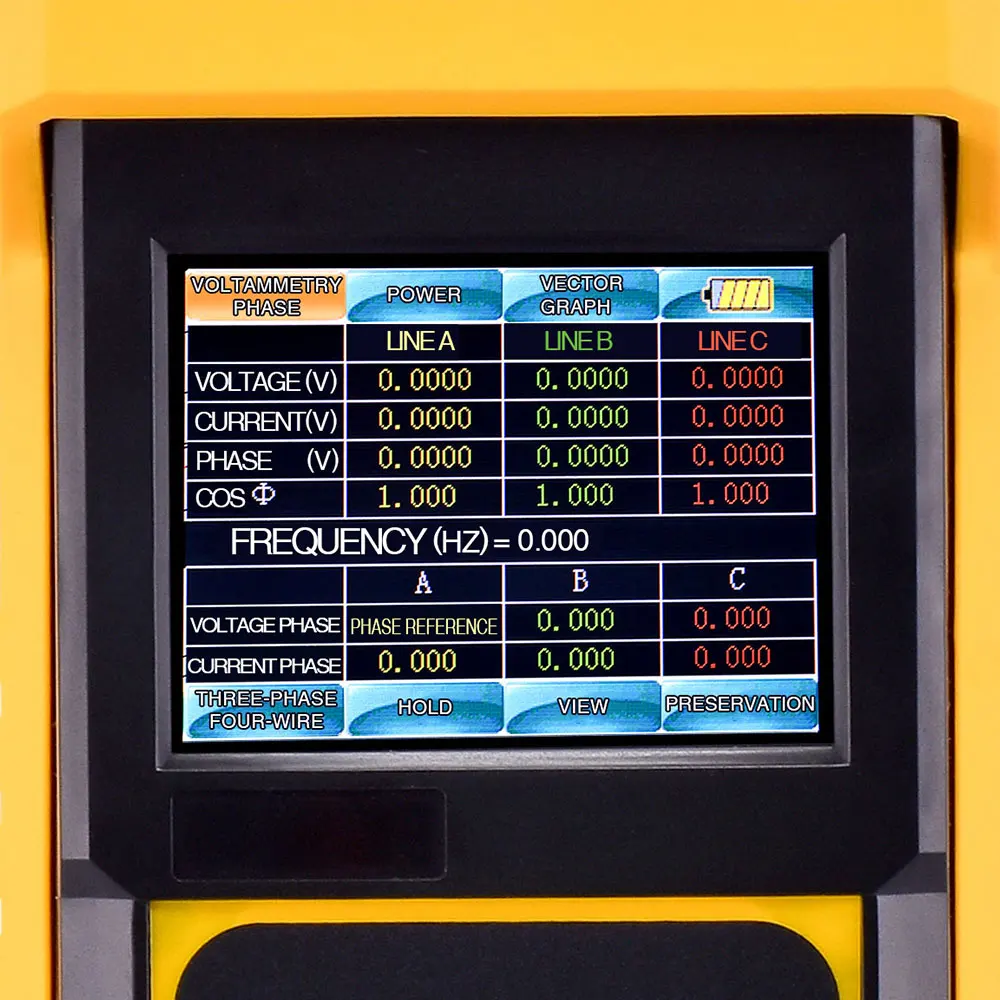

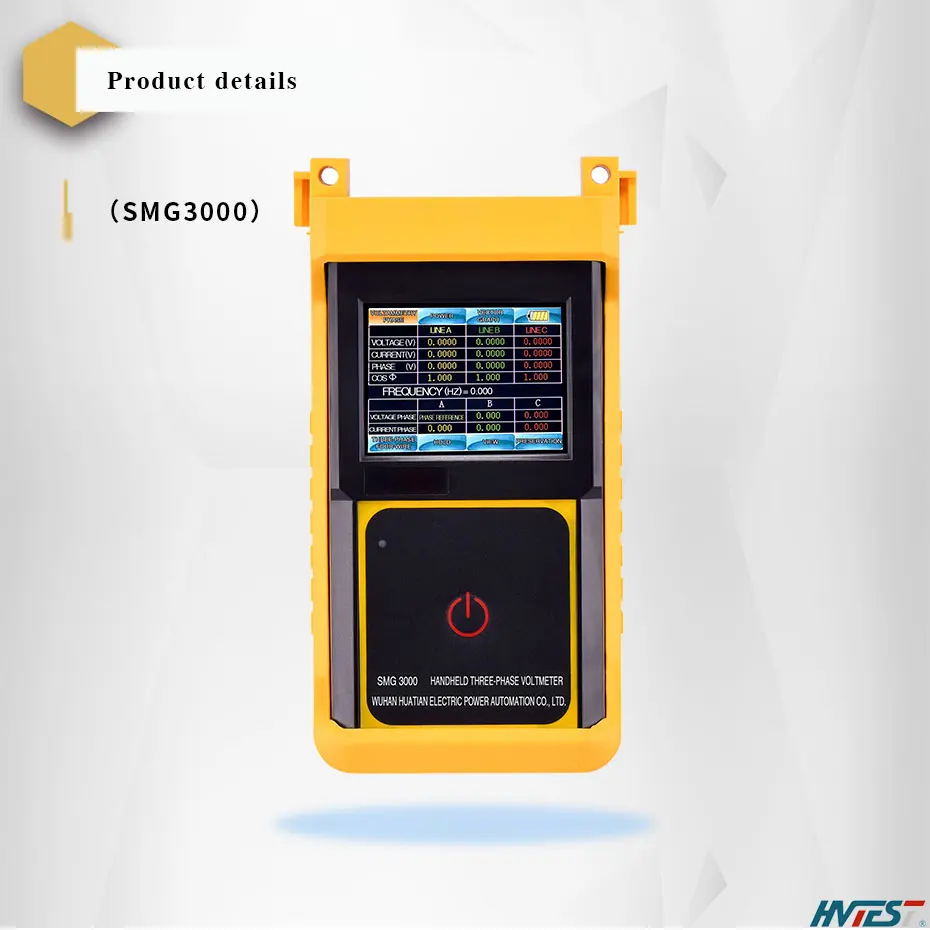

9 3.5 inch TFT color display with finger touch function;
10 Lithium battery power supply, rechargeable continuous standby for more than 20 hours
Technique parameters
Type | Measuring range | Unit | Error | Resolution rate |
Voltage | 1~600 | V | 0.5%×measuring range | 0.01V |
Current | 0.001~10 | A | 0.5%×measuring range | 0.0001A |
Active power | 0.001~5000 | W | 0.5%×reading(PF=1) | 0.1W |
Reactive power | 0.001~5000 | VAR | 0.5%×reading(PF=0) | 0.1VAR |
Apparent power | 0.001~5000 | VA | 0.5%×reading | 0.1VA |
Frequency | 45~65 | HZ | 0.1%×reading | 0.01HZ |
Phase position | 0~360 | ° | ±2° | 0.1° |
Note: Error is ±3°when current is 1mA-5mA
