Flexible Solar Panel Ningbo 100w 160w 150w mono Modules for Car RV Boat
Semi flexible solar panels Advantage - with high-efficiency mono crystalline cells
- own high High curvature, as like for the long 2m solar panel can reached 0.9m Arc diameter - ligh weight and min thickness is just 2mm

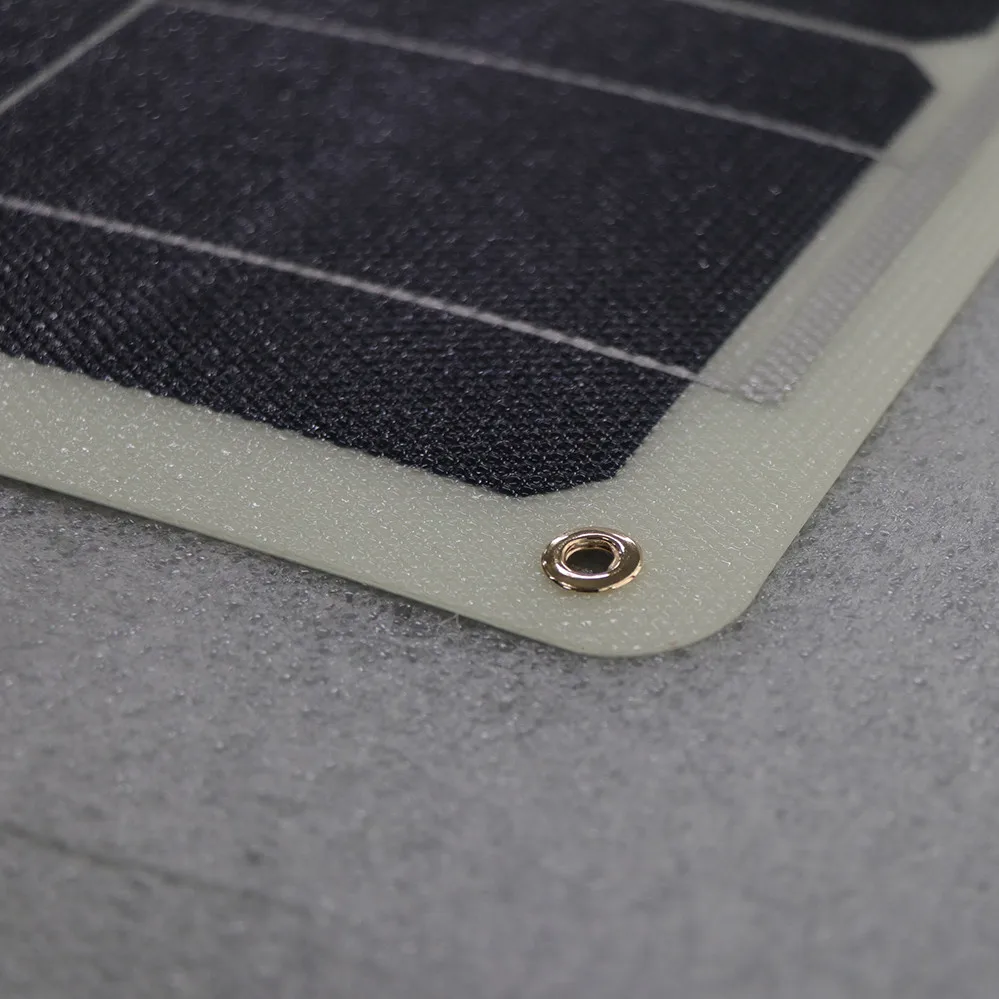

Easy Installation - Semi Flexible solar panels can be affixed by adhesive or grommets (with which you can easily attach or detach the panels.) - Holes on panels are pre-drilled for fast mounting and securing, perfect for non-permanent installations.

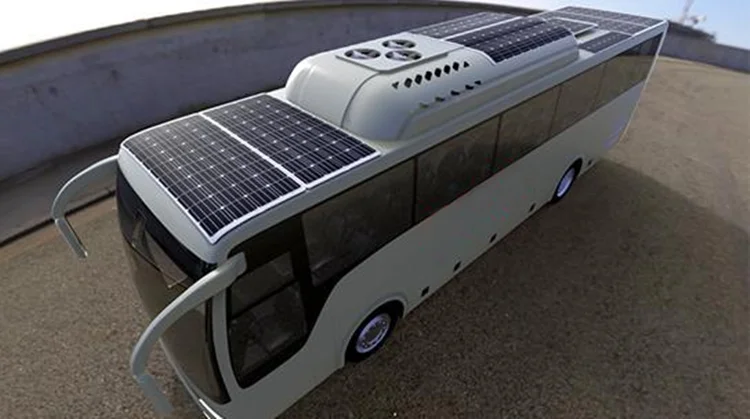

Flexible & Widely Compatibility - Versatile installation options: applicable for RV, boat, cabin, tent, yachts or any other irregular surfaces.
Reliability - The junction box is sealed and waterproof.
Leading Warranty - 5years warranty for off solar system using
10years warranty for on grid solar system using
with more than 25 years life

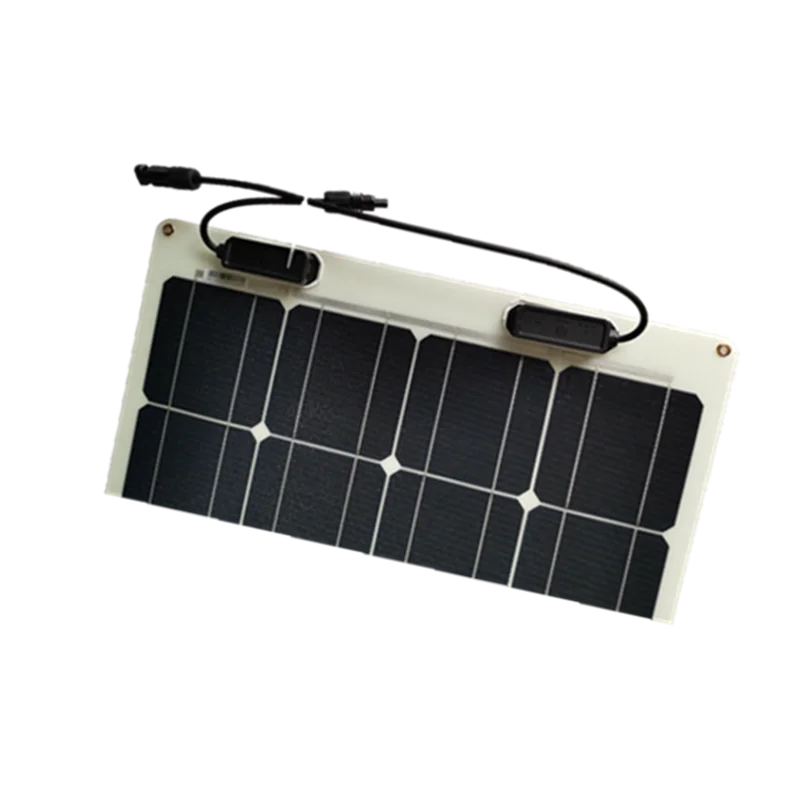

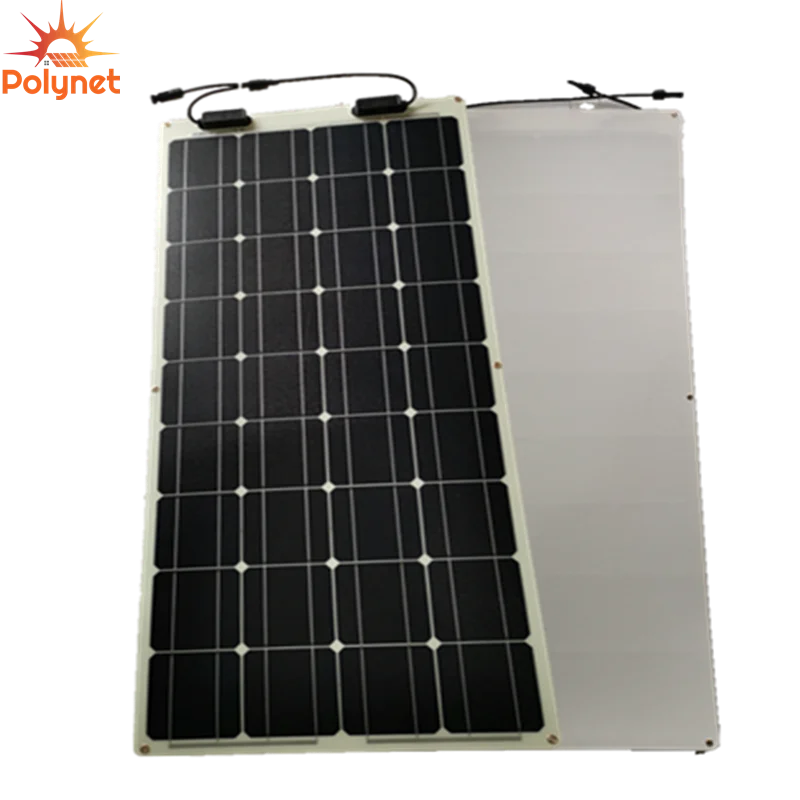

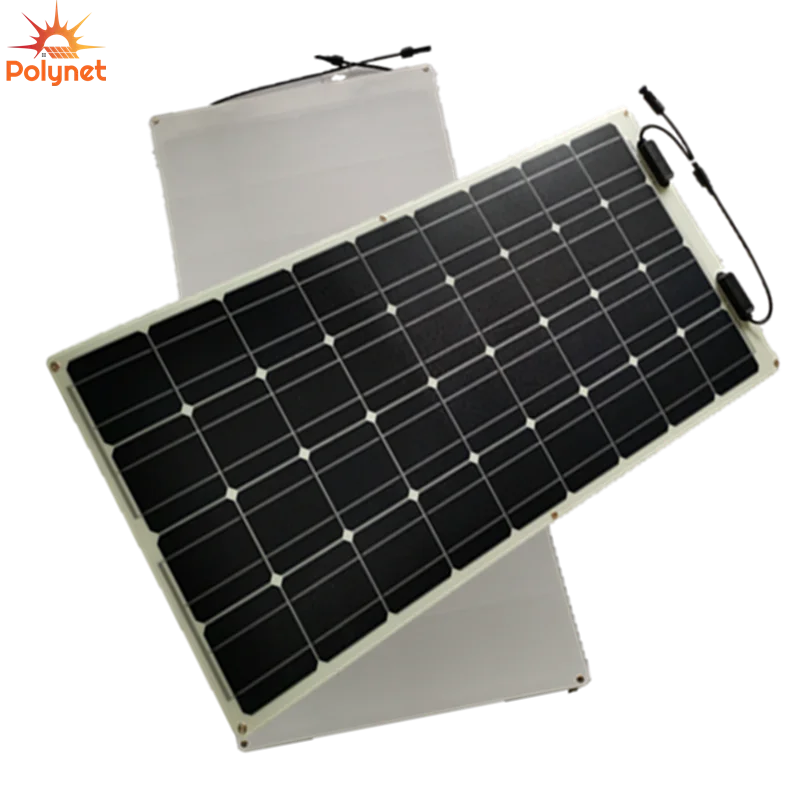

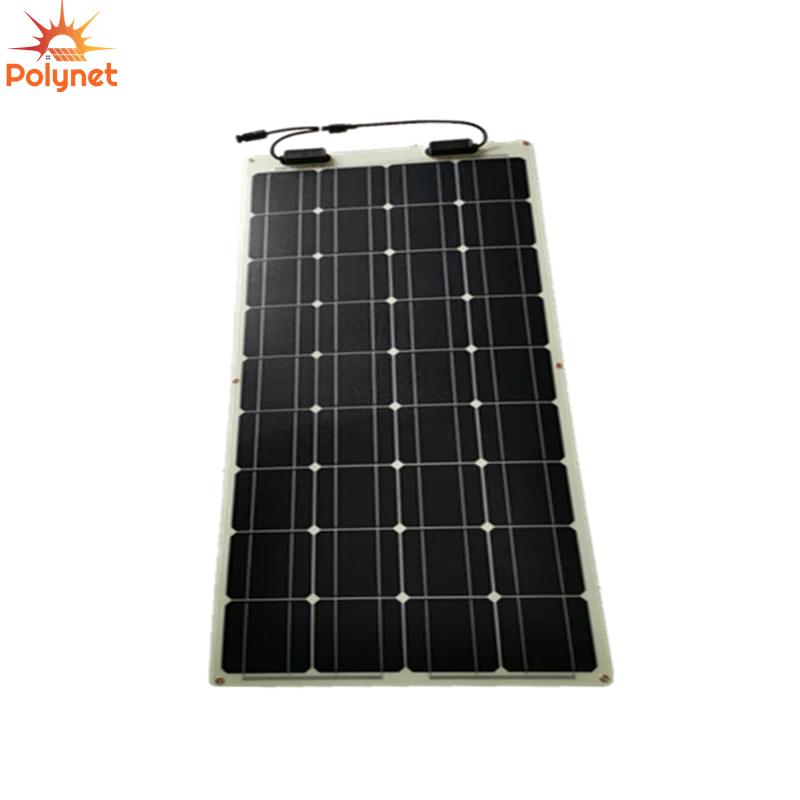

Semi flexible mono solar panel's picture display:
Specification
Quality and Safety
1. Rigorous quality control meets the highest international standards. 2. High-transmissivity low-iron tempered glass, strong aluminium frame. 3. Using UV-resistant silicon. 4. IEC,JET,DVE,CE,IS09001/14001
Technical date:
Flexible Solar Panel Ningbo 100w 160w 150w mono Modules for Car RV Boat
(with metal button size: 100w 1219x546x2mm / 160w 1504×673×2mm )
(without metal button size:100w 1216x533x2mm /160w 1502×660×2 mm )
Model
PN-160M
PN-100M
Open circuit voltage(Voc)
23.00V
23.5V
Max. operating voltage(Vmp)
19.1V
19.00V
Short circuit current(ISC)
8.88A
5.67A
Max. operating current(Lmp)
8.38A
5.27A
Maximum power STC(pm)
160W
100W
Customization
Solar panel can be customized as like the size,color or cost
Factory production
QA system
We conduct test on every solar panel.
Before Polynet Solar modules are distributed, they must undergo a broad range of specific tests that guarantee the quality of the production. This allows us to ensure that our modules meet the most stringent requirements so that you get a return on your investment.
Packing & Delivery
Normally packing: 66pcs per pallet / per pcs into one carton
