5.0MP Low illumination HD Network IP Camera Module Hisilicon 3516AV200 FOR Sony IMX 335 Cmos Sensor Modul cctv
- Category: >>>
- Supplier: Shenzhen Ccdcam Technology Co. Limited
Share on (62238557315):
Product Overview
Description
why choose us 1
WHY CHOOSE US
10 year world-wide marketing experience
Surveillance products manufacturer and solution provider
A deep understanding of customer needs and adhere to customer first.
Customized service: software, hardware and solution customization.
Key features:
1/2.8” Progressive Scan CMOS
2592X1944@30fps HD resolution
True Day/Night, 3D DNR, Digital WDR
Backlight compensation, and auto gain control (AGC)
Support the P2P on Android, IOS
Support ONVIF2.4
H.265/H.264 main profile & M-JPEG dual-stream encoding, three simultaneous video streams
Standard SDK(Linux,Windows), CGI,easily to be integrated with other digital system
Specifiation:
Models | IPB500UH | |
| 5.0MP Low-illumination HD Network Camera Module | |
Image Sensor | 1/2.8" 5.0M Pixels Progressive Scan CMOS | |
Min. Illumination | Color:0.05Lux@(F1.2,AGC ON) B/W:0.01Lux@(F1.2,AGC ON) | |
S/N Ratio | ≥50dB | |
Wide Dynamic Range | Digital WDR | |
Digital noise Reduction | DNR,3DNR | |
Exposure Mode | Auto/Manual/shutter mode(shutter range variable) | |
White Balance | Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp | |
Day & Night | Day / Night / External control(IR Cut Filter) | |
Video Compression | H.265/H.264 Main Profile /M-JPEG | |
Audio Compression | G.711PCM | |
Max. Image Resolution | 2592*1944@ 25fps | |
Image Resolution
| Main stream | 2592*1944,1-25(30)fps;2592*1520,1-25(30)fps;2304*1296,1-25(30)fps;1920*1080,1-25(30)fps |
Sub-stream | 640*480,1-25(30)fps;480*3601-25(30)fps;352*288,1-25(30)fps;176*144,1-25(30)fps | |
MJPEG | 2592*1944,1920*1080,1280*720,Close | |
Streams | Dual streams | |
Bitrate | CBR/VBR bitrate:32Kbps~10Mbps variable | |
Simultaneous Live View | Main stream Up to 3,Sub-stream Up to 6 | |
OSD | Support camera name,time display ,etc,OSD position can be adjusted | |
Motion detect | Support | |
Privacy Masking | 4 privacy masks programmable | |
P2P | Android,IOS | |
Protocols | HTTP/NTP/DHCP/UDNP/RTSP/P2P/ONVIF | |
Onvif | Onvif 2.4 | |
Network | 10/100M Base-TX Ethernet, RJ45 Connector | |
Store | Unspport | |
Protection Level | TVS 4,000V lightning protection | |
Power Supply | 12VDC at 0.25A | |

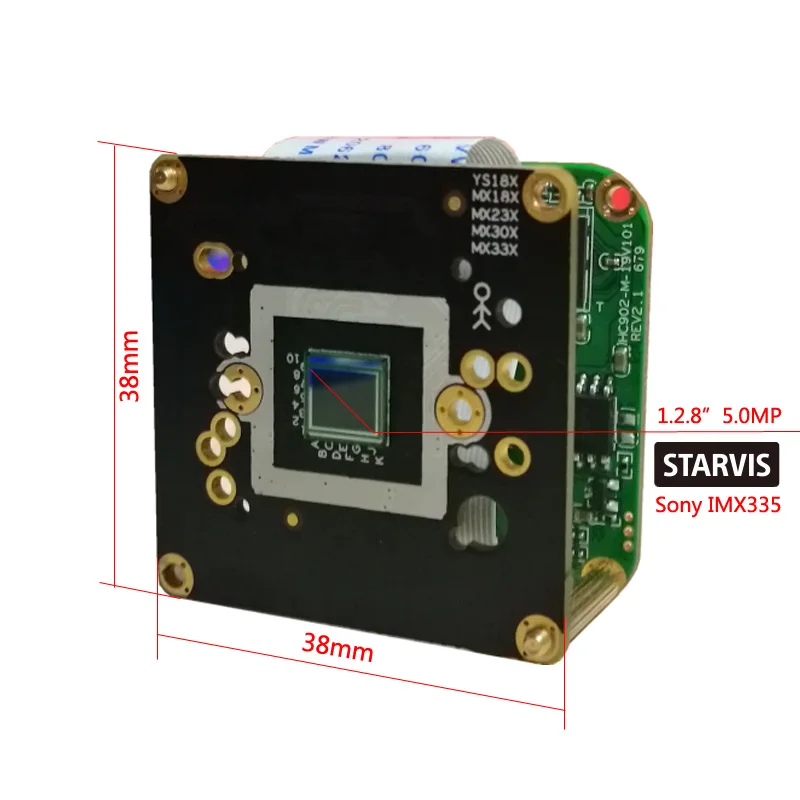

Dimensions | 38x38mm | |
Working Temperature | -10°C ~50°C, Humidity≤90%RH(Unsupport-condensing) | |

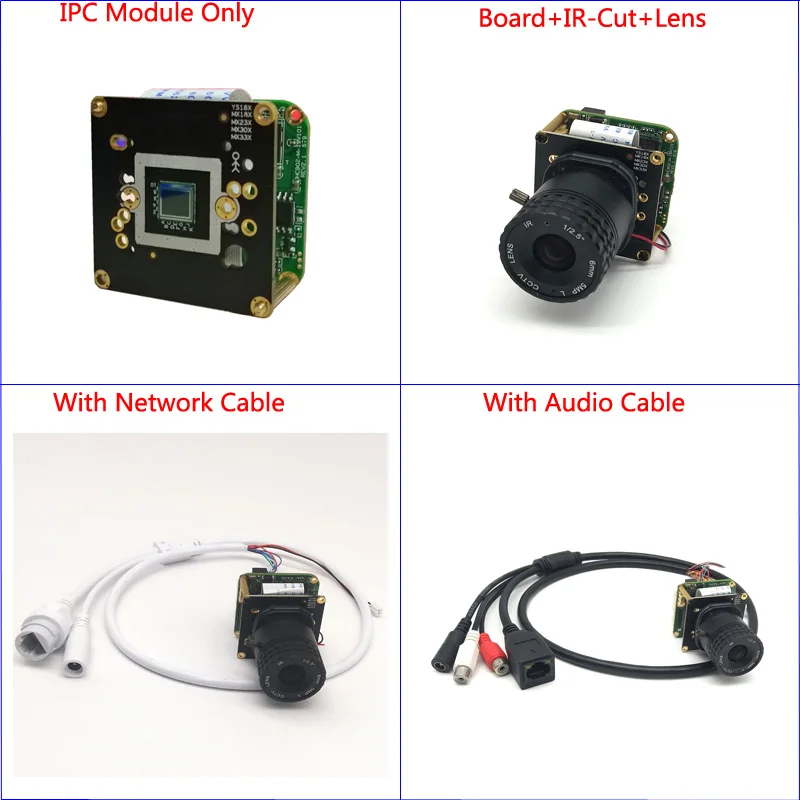

Product display
why choose us 2
Shenzhen CCDCAM Technology Co.,Ltd is a professional professional survelllance products manufacturer and project solution supplier-differentiation and customization.
We adhere to the customer first ,a deep understanding of customer needs, take the initiative to take responsibility; We always try our best to improve customer experience and satisfaction. Achieving long-term cooperation and win - win with our customers.
why choose us 3
More than 10 years world-wide
marketing experience.
Solution designer and provider ,
Surveillance products manufacturer
A deep understanding of
customer needs and adhere to
customer first.
Customized service: software, hardware and solution customization.
