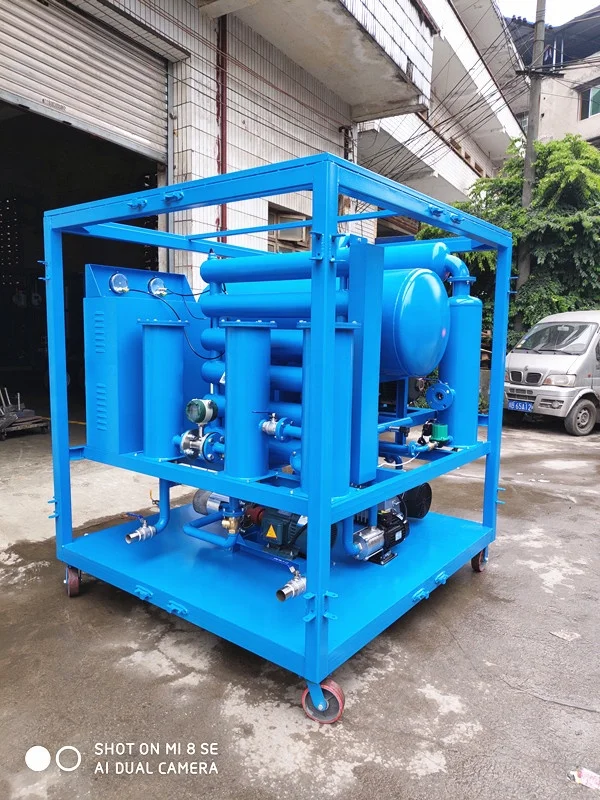

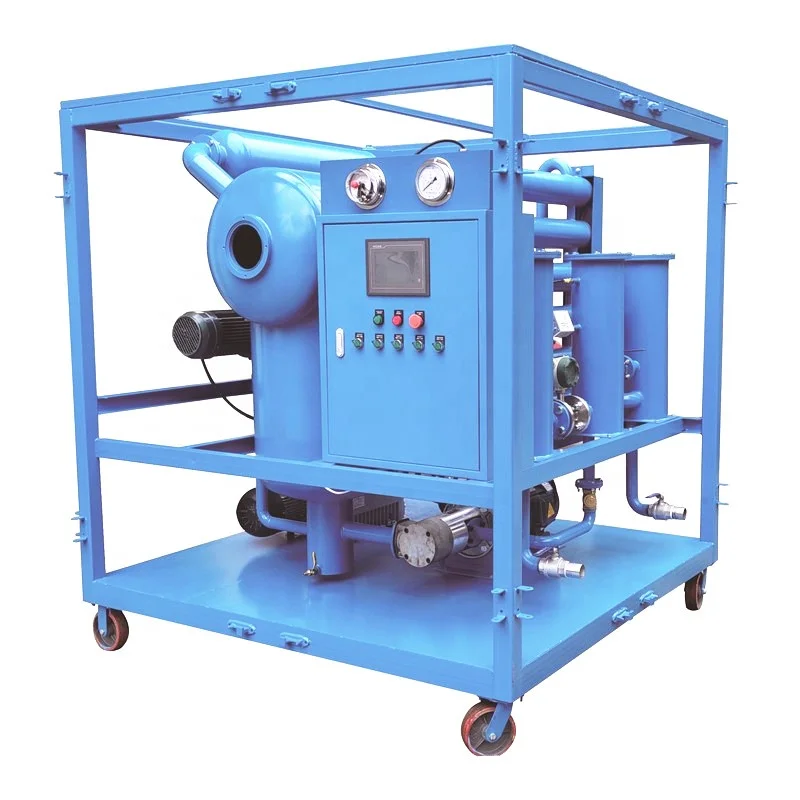

Used Transformer Oil Vacuum Recycling Machine Oil Purifier
Application and Function

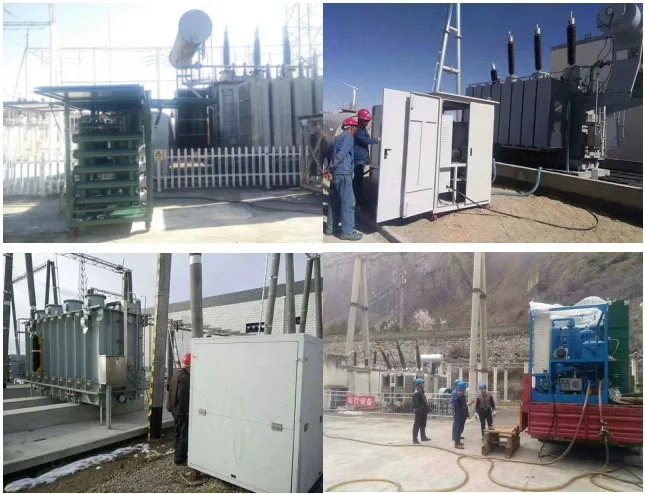

Series ZYD Used Transformer Oil Vacuum Recycling Machine Oil Purifier can quickly remove the water, gas, and other contaminants such as solid particles in the waste insulating oil, transformer oil, capacitor oil, switch oil, mutual inductor oil, etc. The breakdown voltage of the oil after processed can be improved by 35KV or above just for one-time. It is mainly suitable for the power transmissions equipment whose voltage is 110KV or above.

Transformer oil before treatment Transformer oil after treatment


Technical parameters
| Model | ZYD-50 |
| Flow Rate | 50L/min |
Vacuum Degree | ≤133Mpa |
Working Pressure | ≤0.5Mpa |
Continuous Working Hour | ≥200H |
Trouble-free Working Hour | ≥5000H |
Working Temperature | 40~70℃ |
Residual Water | ≤3PPM |
Impurity Size | ≤1-3 micron |
Residual Gas | ≤0.05% |
Breakdown Voltage | ≥75KV |
Oil Appearance | Transparent |
| Working Noise | ≤65dB(A) |
| Heating Power | 30kw |
| Total Power | 34kw |

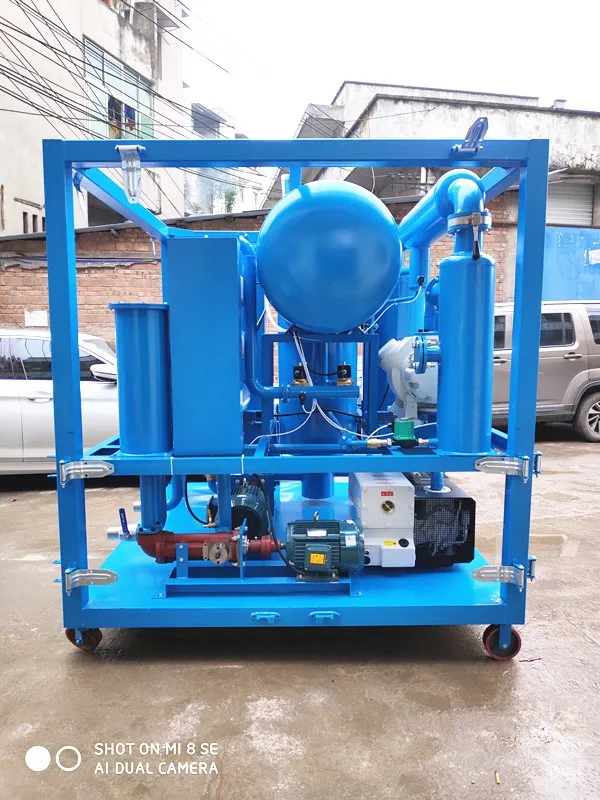

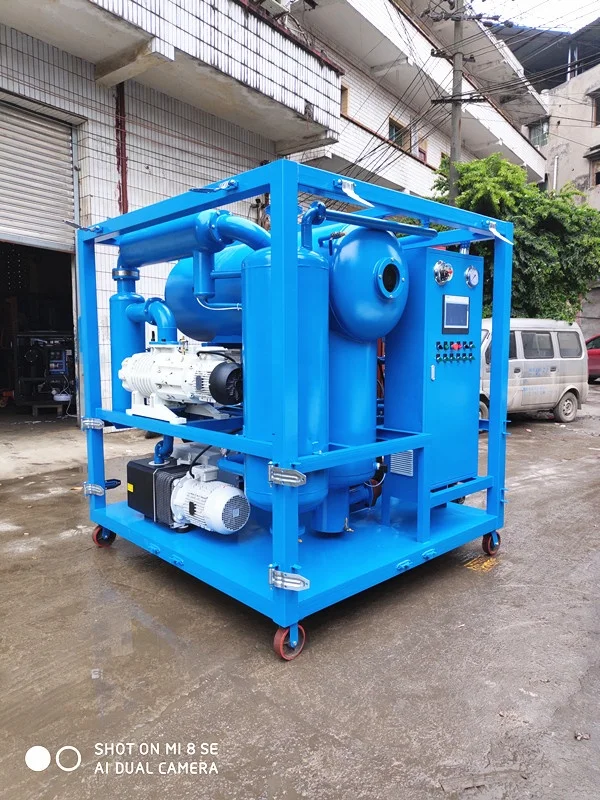

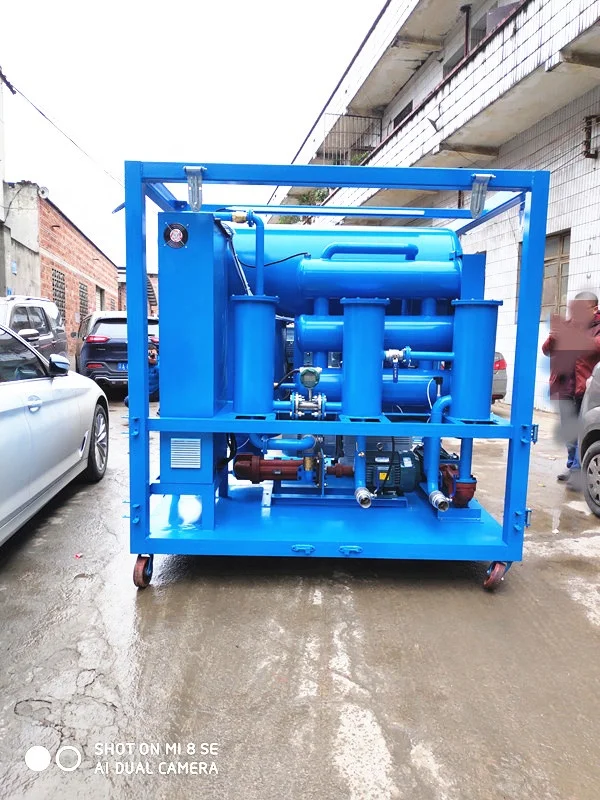

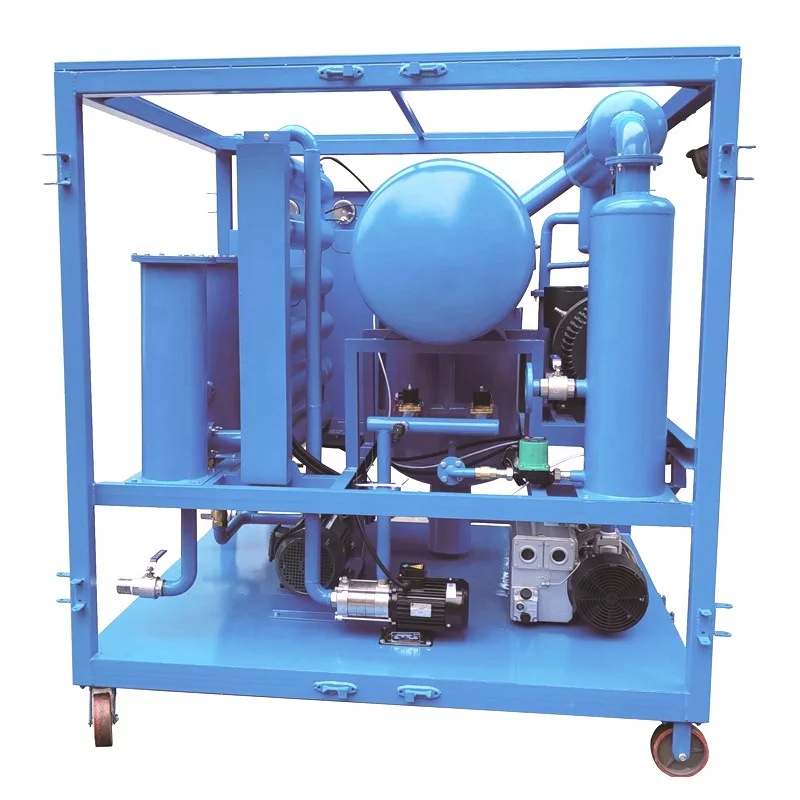

More Images

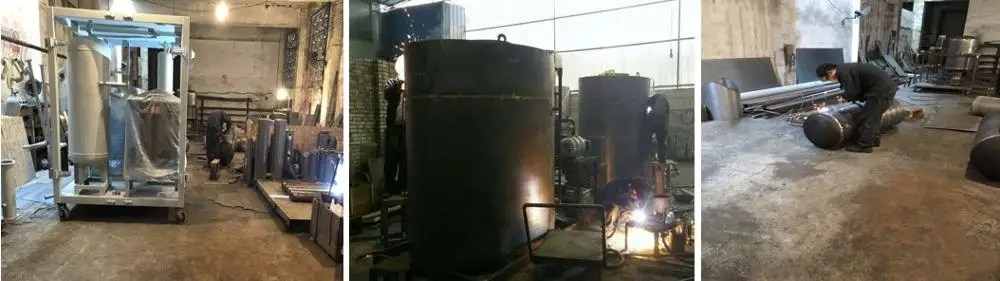

Process from manufacture to delivery

Chongqing Blossom Machinery Equipment Co., Ltd is located in Chongqing, one of the municipalities directly under the central government. The main products include instrument and apparatus, mechanical machinery such as liquid purification equipment and electric hoist, etc. The equipment is widely applied in construction, petroleum, mechanical, ships, pharmaceutical, lab test and edible oil processing, etc.

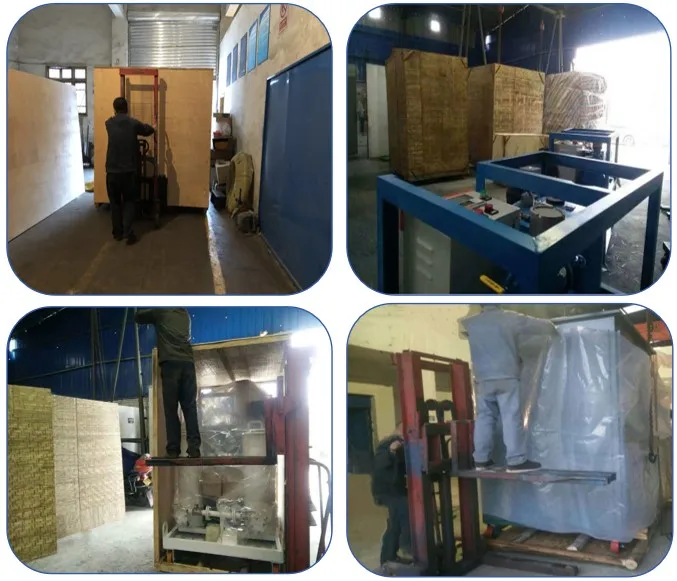

Package: Standard export packing or neutral packing if needed, carton box, wooden case or upon request, packing carefully.

Shipping Method: Air / Sea / Express(UPS, FEDEX, DHL, TNT, EMS, etc)

(Note: we can provide special packages according to buyer’s requirements.)
