Product Overview
Description
Products Description

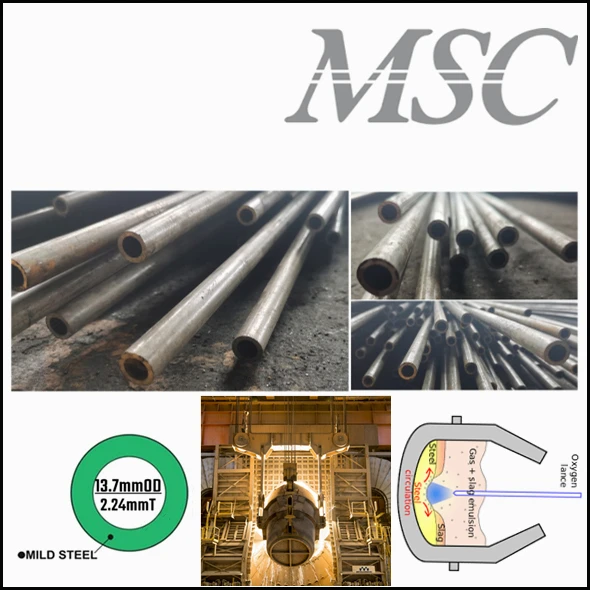

Oxygen Lance pipe
Oxygen Lance pipe is a hollow electric resistance welded (ERW) tube manufactured from mild steel. It is available in various sizes and end finishes and is used in the steel making process.
The Lance tube is also employed in the smelting industry, specifically in the mining. This is during the production of ferroalloys, copper, zinc and other ferrous and non ferrous metals industries. The tube is use to burn open large, bottom pouring smelting furnaces such as blast furnaces, basic oxygen furnaces as well as electric and induction furnaces. It is the most cost effective method available for tapping heats.
Besides, oxygen lance tube is also used to remove carbon during the smelting process of various metals. The process involves injecting oxygen into the molten metal causing the impurities to be oxidized. This results in slag that floats to the top of the melt which can then be more easily removed.
Product Details
Product Name | Oxygen Lance Pipe |
Material | Carbon Steel |
End protector | Plastic Pipe Cap |
Size | Customized |
Application | Steel Making Smelting Cutting Blowing Gas into Furnace |
Product Parameters | Working Pressure | |||||||||
DN | INCH | OD(mm) | LENGTH(mm) | 5 Bar | 10 Bar | |||||
6 | 1/8'' | 10 | 1000/1800/3000/6000 | ca.15Nm3/h | ca.35Nm3/h | |||||
8 | 1/4'' | 13.5 | 1000/1800/3000/6000 | ca.45Nm3/h | ca.90Nm3/h | |||||
10 | 3/8'' | 17 | 3000/5000/5500/6000 | ca.90Nm3/h | ca.180Nm3/h | |||||
15 | 1/2'' | 21.5 | 3000/5000/5500/6000 | ca.160Nm3/h | ca.290Nm3/h | |||||
20 | 3/4'' | 26.7 | 3000/5500/6000/9000 | ca.360Nm3/h | ca.700Nm3/h | |||||
25 | 1'' | 33.4 | 3000/5500/6000/9000 | ca.600Nm3/h | ca.1200Nm3/h | |||||
32 | 1-1/4'' | 42 | 5000/5500/6000/9000 | ca.1200Nm3/h | ca.2000Nm3/h | |||||
40 | 1-1/2'' | 48 | 5000/6000/9000/12000 | ca.1900Nm3/h | ca.3300Nm3/h | |||||
50 | 2'' | 60 | 5000/6000/9000/12000 | ca.3100Nm3/h | ca.5600Nm3/h | |||||
Note: All the pipe can be customized. | ||||||||||

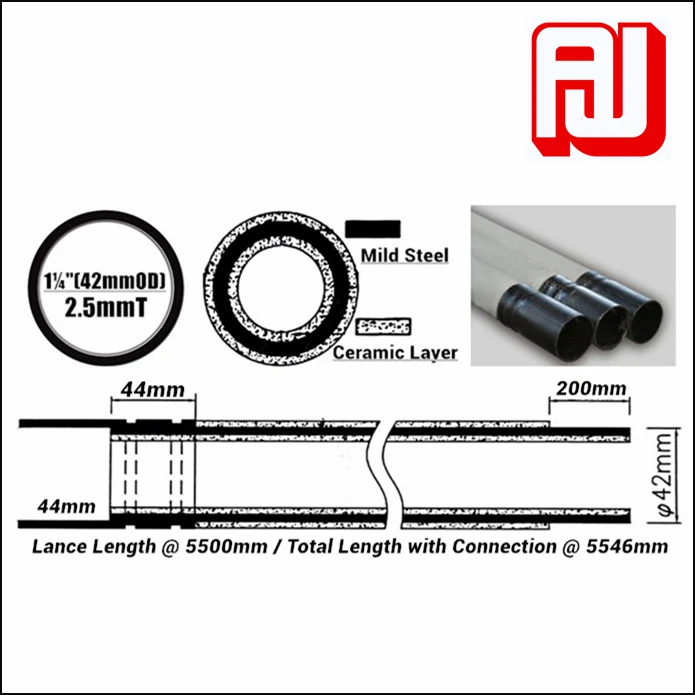

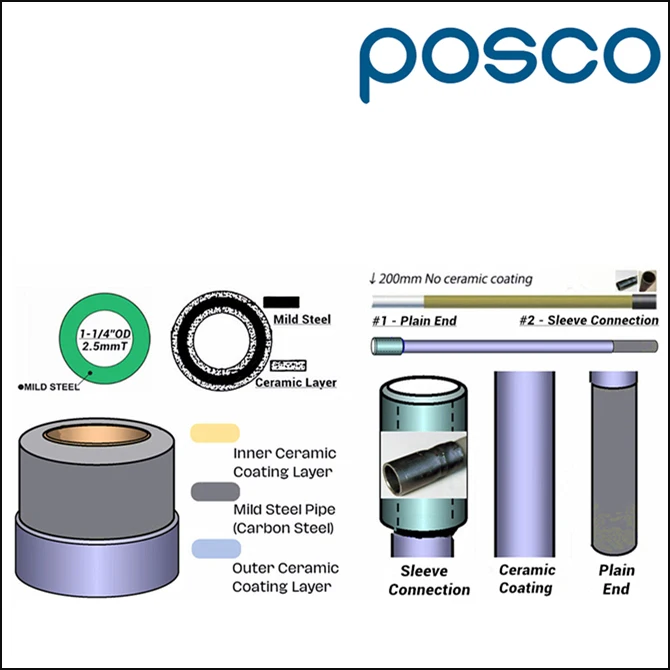

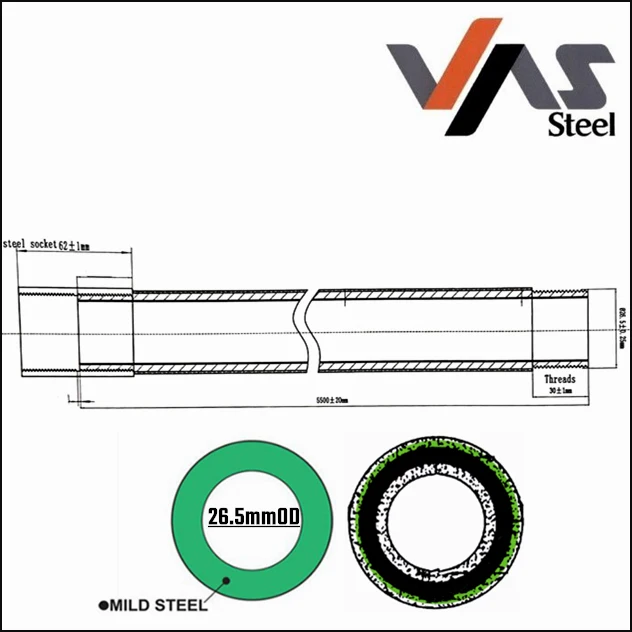

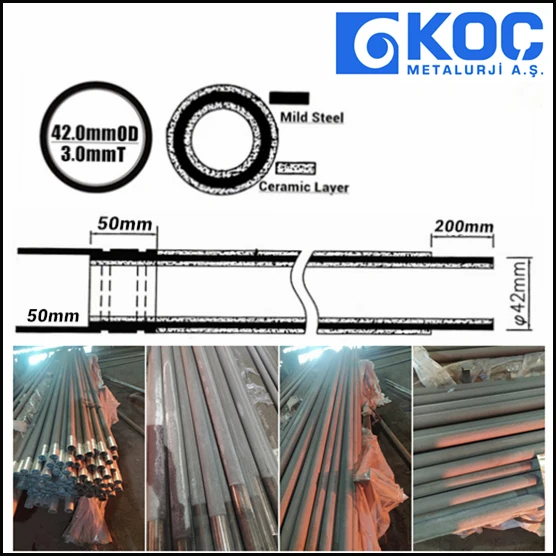

Ways of coupling
1. Plain end
2. Thread coupling
3. Un-threaded coupling
Related Products
Aluminum coated oxygen pipe
Calorised steel pipe
Ceramic coated oxygen steel pipe
oxygen lance pipe
underwater cutting oxygen pipe
Thermal lance
Products Application
Application of Cupola Furnace Usage Welded Carbon Steel Pipe Oxygen Lance
Cutting scrap, raising bath temperatures
Opening nozzles and ladles
Injecting carbon and other powders into the electric furnace and ladle
Opening the iron notch of a blast furnace
Injecting argon into ladles
Injecting argon and oxygen into the A.O.D. furnace
Injecting flux for degassing in aluminum melting furnaces
Product Packing
Detailed package and warehouse of Cupola Furnace Usage Welded Carbon Steel Pipe Oxygen Lance
STRAPPED BUNDLE WRAPPED IN PLASTIC
Company Profile
In 2011, JIANGSU XINGRUI PIPING CO.,LTD was formed to provide OXYGEN LANCE and THERMIC LANCE to the commercial steel-making and foundry casting industry. We provided the base of industry blow oxygen or inject carbon into electric arc furnace solutions and skilled experience of exothermic cutting methods.
Today, the company operates within a 24,000 square foot multiplex in China,this location offers a large inventory storage capability and four workshops for complex on-site fabrication capable of designing and producing standard or customized oxygen lancing pipe & thermic lances.
All Xingrui pipes are manufactured according to the highest relevant safety standards and passes our
rigorous quality controls before dispatch.
Innovation and inspiration,we always meet and value your various requirements.
Today, the company operates within a 24,000 square foot multiplex in China,this location offers a large inventory storage capability and four workshops for complex on-site fabrication capable of designing and producing standard or customized oxygen lancing pipe & thermic lances.
All Xingrui pipes are manufactured according to the highest relevant safety standards and passes our
rigorous quality controls before dispatch.
Innovation and inspiration,we always meet and value your various requirements.
FAQ
1) Why will you choose us ?
Because we are factory and can supply OEM and ODM for the pipe. We can get the lowest ex-factory prices. The price are quite reasonable and it is lower than our commercial peers. Also, we can guarantee the qualities of our products.
2) Our minimum order quantity?
2 Metric Tons as to different products.
3) How about the Delivery Time?
The steel pipe will be produced since we getting your deposit by T/T or Your original L/C. For normal size, some stocks in our factory now, we can supply timely once you need. 4)What kind of payment does your company support? T/T, 100% L/C at sight, Cash, Western Union are all accepted.
5) Do you charge for the samples?
According to our company principle, we just charge for samples, you pay for the freight charge.
6) Our main market?
Middle East, South America, South Asia, Africa, Southeast Asia, Northern Europe, Western Europe etc.
Because we are factory and can supply OEM and ODM for the pipe. We can get the lowest ex-factory prices. The price are quite reasonable and it is lower than our commercial peers. Also, we can guarantee the qualities of our products.
2) Our minimum order quantity?
2 Metric Tons as to different products.
3) How about the Delivery Time?
The steel pipe will be produced since we getting your deposit by T/T or Your original L/C. For normal size, some stocks in our factory now, we can supply timely once you need. 4)What kind of payment does your company support? T/T, 100% L/C at sight, Cash, Western Union are all accepted.
5) Do you charge for the samples?
According to our company principle, we just charge for samples, you pay for the freight charge.
6) Our main market?
Middle East, South America, South Asia, Africa, Southeast Asia, Northern Europe, Western Europe etc.
