We are solar professionals, with more than 10 years in solar panel manufacturing

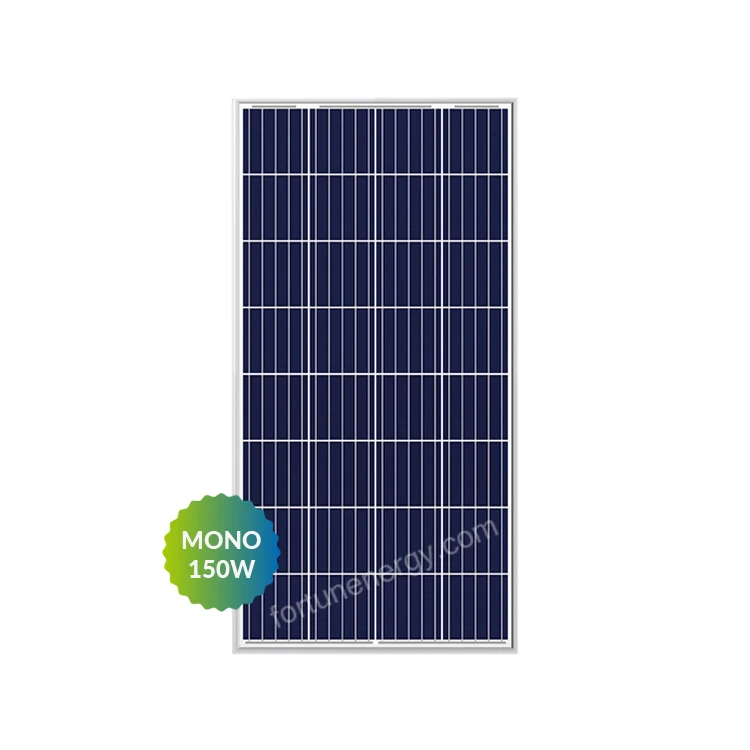

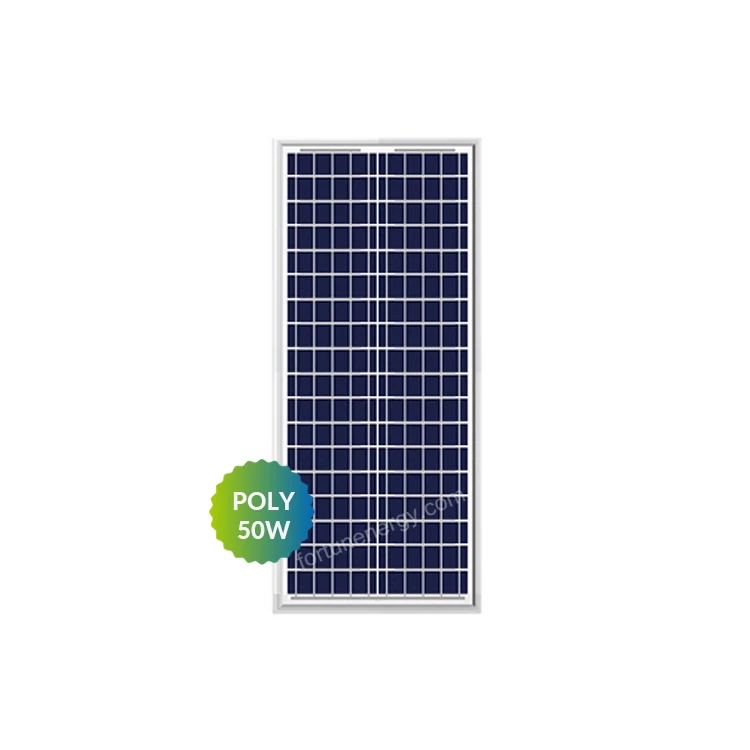

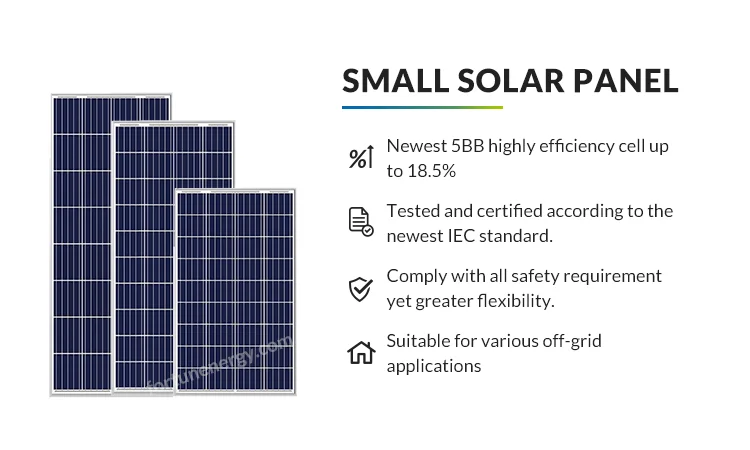

Small/custom solar panel from 30W up to 200W
MAKE INQUIRY NOW, AND ENJOY NEW CUSTOMER WELCOME DISCOUNT!
TECHNICAL CHARACTERISTICS (STC*)
Rated Power
100W
120W
140W
160W
180W
Rated Voltage Vmpp (V)
19.15
21.50
17.10
19.40
21.50
Rated Current Imp (A)
5.23
5.59
8.19
8.27
8.37
Open Circuit Voltage (Voc)
22.5
25.30
20.10
22.80
25.30
Short Circuit Current (Isc)
5.87
6.24
9.05
9.15
9.25
Conversion Efficiency
17.5% ~ 18.5%
Operating Temperature
-40°C ~ +85°C
Maximum Load Capacity
5400 Pa
MECHANICAL DATA
Cell Layout
49-T2
40-T2
48-S
49-S
40-S
Dimensions (mm)
1010*670*35
1120*670*35
1330*670*35
1480*670*35
1640*670*35
Dimensions (inch)
39.8*26.4*1.4
44.1*26.4*1.4
52.4*26.4*1.4
58.3*26.4*1.4
64.6*26.4*1.4
Cable
Optional | Customisable length
Connector
Compatible connectors

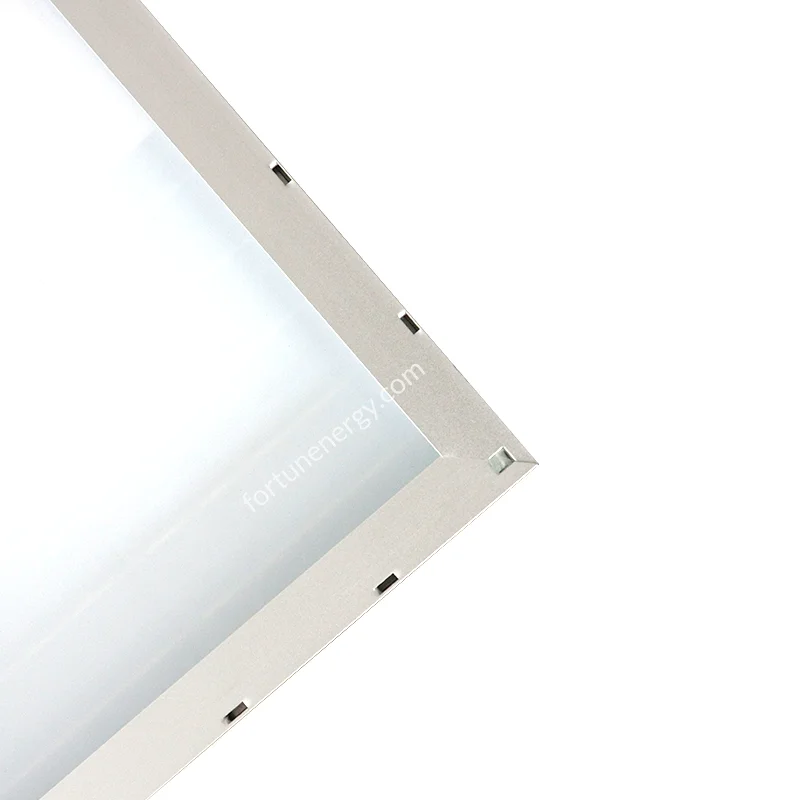

Frame
Anodised Aluminium Alloy
Glass Type
Low iron tempered 3.2mm thickness

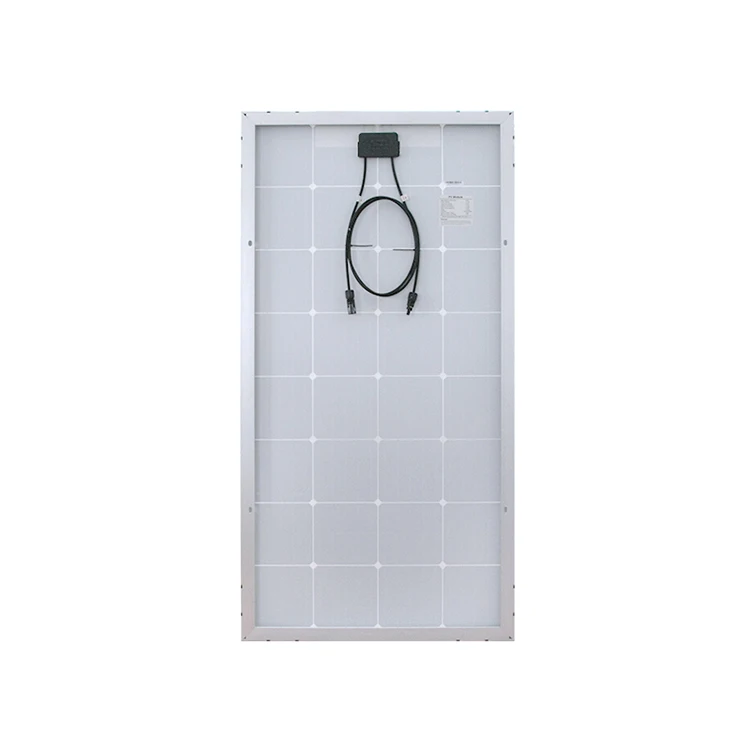

Junction-box
IP65 | IP67 | Customised
Weight (kg | lbs)
8kg/17.6 lbs
9 kg/19.8 lbs
10kg/22.1 lbs
11.5kg/25.4 lbs
12.5kg/27.6 lbs
WARRANTY
Warranty
18-month
Designed Lifespan
> 15-year
85W/90W Poly
Standardised with j-box, without cable and connectors

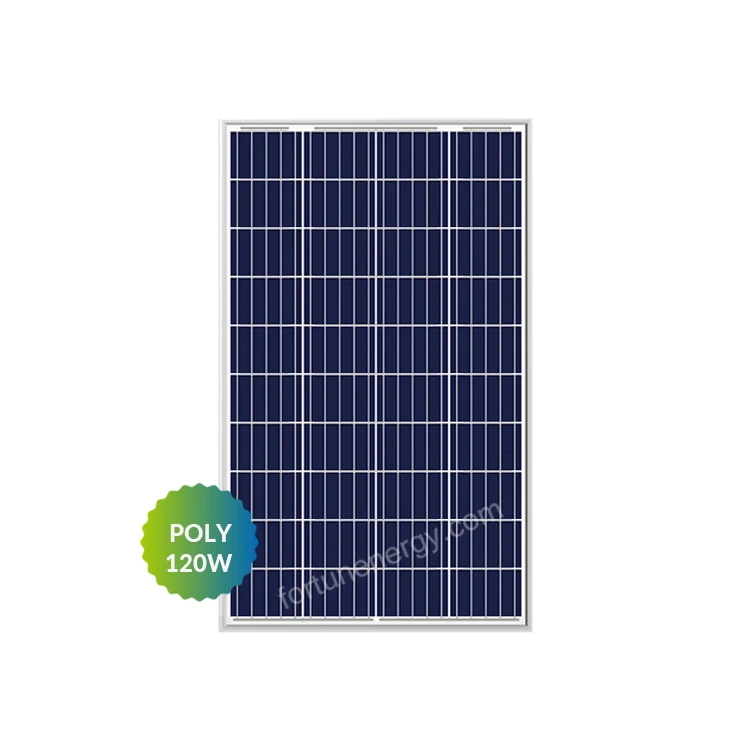

120W/130W
Standardised with j-box, cable and connectors
140W/145W Poly
Standardised with j-box, cable and connectors
180W Poly
Standardised with j-box, cable and connectors

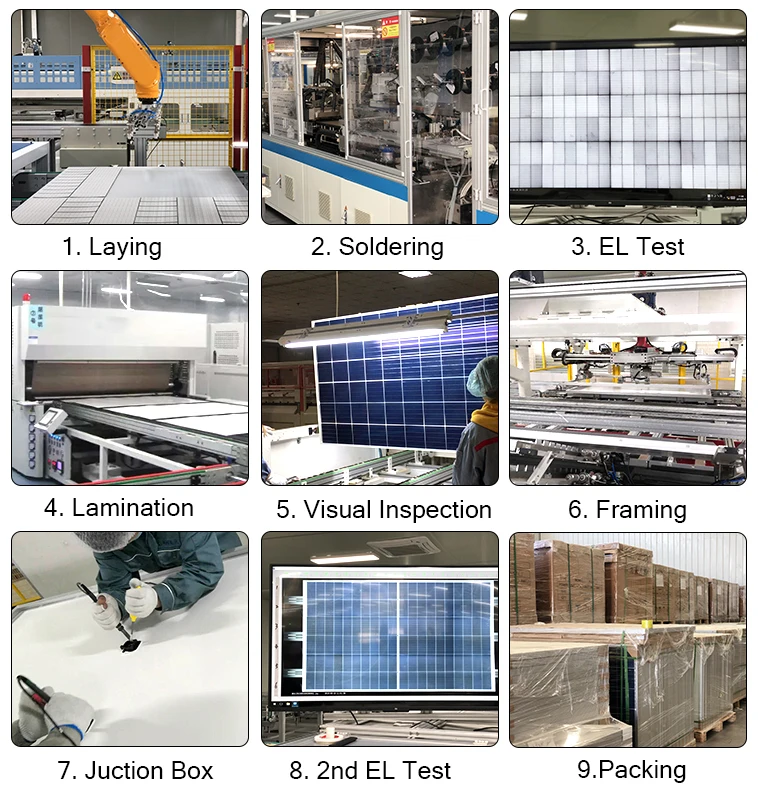

Production Process
We employ advanced equipment and skilled labour, dedicated to stringent quality control, from feeding, soldering, electroluminescence (UL) test, lamination, framing to final inspection, fully automated with the highest manufacturing standards.
Unlike other electric products, solar panels' rather larger size and weight require strong packaging and careful handling.
To save cost on whether air delivery or sea shipment, we suggest customers to start with minimum 1 pallet, not only this will save final cost per piece, but also ensure complete protection of the products.
PACKAGING QUANTITY
Power Range
Carton box
Pallet pack
30W/50W
50 pcs per box
Variable upon request
80W - 100W
Single pack, 2 pcs pack
30 pcs or 100 pcs
150W - 200W
Single pack, 2 pcs pack
30 pcs or 100 pcs
ORDER FULFILLMENT
By Air (sample order)
By Sea Shipment
LEAD TIME
5 ~ 20 days
15 ~ 30 days
TRANSIT TIME
7~15 days
10 ~ 45 days
FAQ
1. Are you a factory or trading company? We design and manufacture small solar panel, custom solar panels, and we manufacture standard solar panel via certified factory, not only do we have manufacturing capability, we are also TUV certified party for 3rd-party production supervision.
2. Can you do OEM and ODM? Absolutely. We offer a wide range of options for conventional panels and non-standard ones, tailored to most on/off-grid solar applications, along with our best pricing.
3. Can you do custom panel? That is what we do, explain your idea, details, specification, we will lead the process clear and visible to come up with technical and design solutions.
4. What is your lead time? For convention panels, usually can be fulfilled between 2~3 weeks.
5. Can you provide sample? Sure, please contact our representative for arrangement.
6. Why order from Fortune Energy? · Quality with excellent design; · Meets major international standards; · 24-hour respond to any post sales service; · Accept all major payment condition such as T/T and L/C.
7. What is your advantage? · Key components are manufactured by our own; · Combined 30+ years of experience in solar energy; · Research and Development capability, OEM and ODM; · Trade Assurance protected.
8. What are your main products? On/off-grid solar panels, small solar panels, custom solar panels, portable solar power station generator, integrated solar street light/lamp, hybrid wind solar led street light/lamp.
