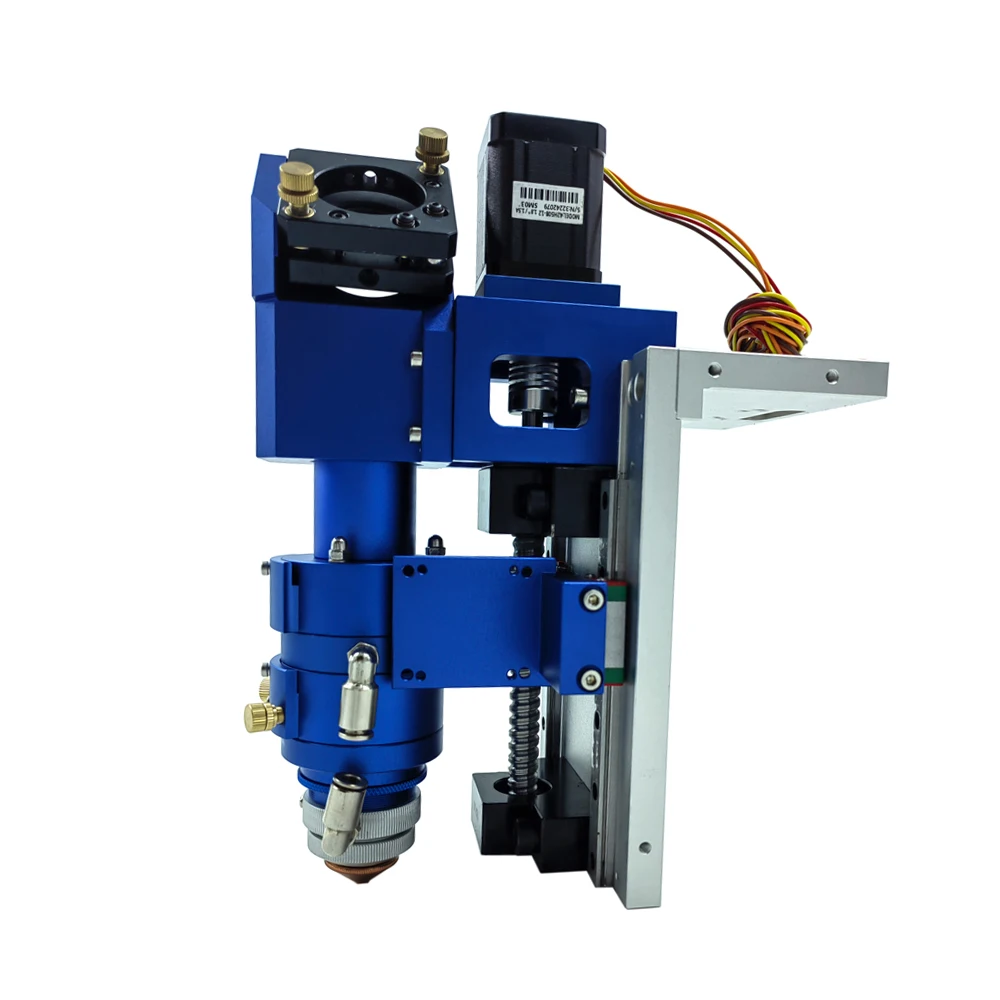

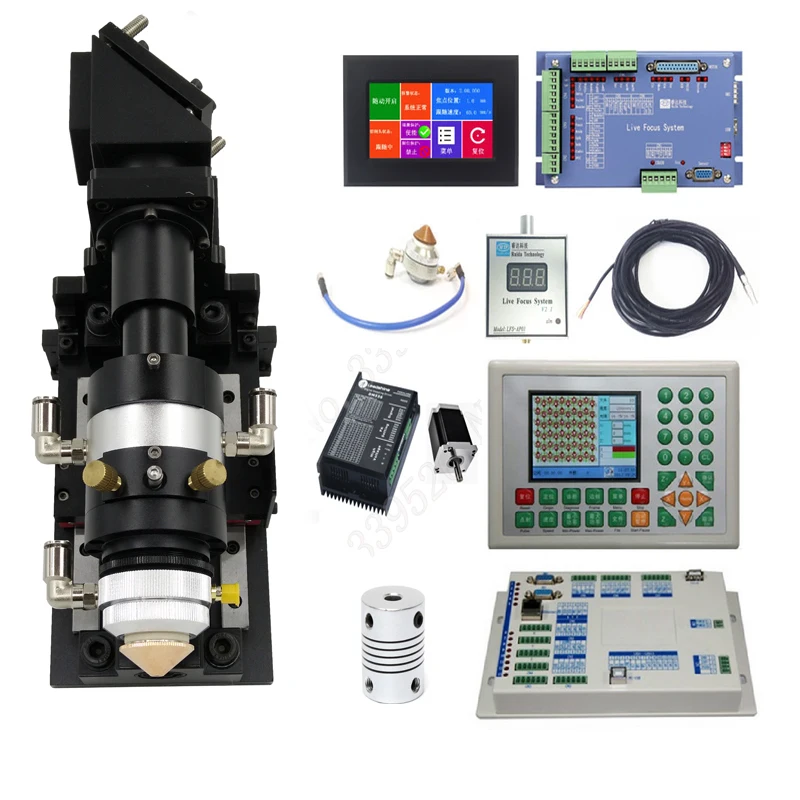

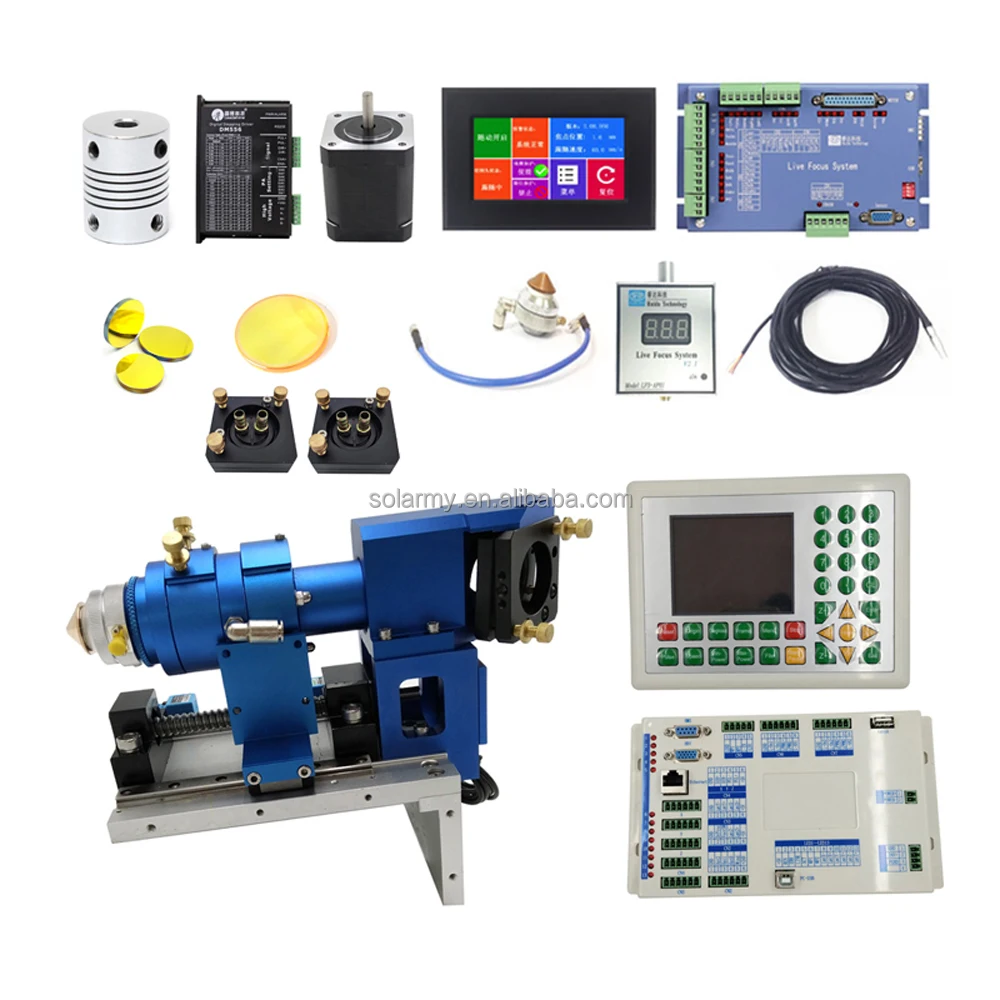

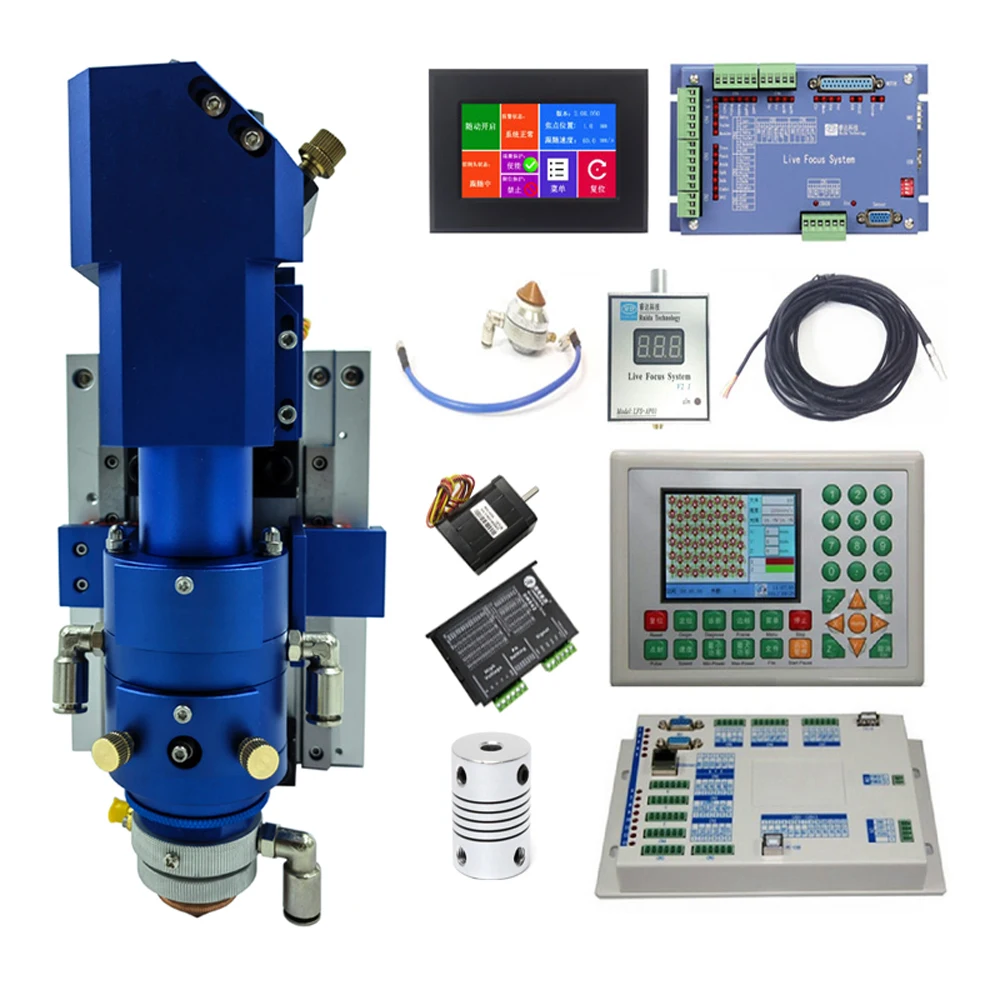

Black Auto Focus CO2 Laser Cutting Head Set And LFS AM T43 RD6332M Laser Controller For Metal And Non Metal Material Cutting

 1.Principle :

The laser beam enters the cavity of the hybrid cutting laser cutting head through the mirror, and passes through the focusing mirror to concentrate the energy of the laser beam at a certain point, and melts the surrounding material to form processing marks by high temperature to achieve the cutting effect.

The mixed laser cutting head cooperates with the capacitance height adjustment system to move the focusing mirror according to the undulation of the material surface, change the position of the focus, and keep the position of the focus at a certain distance from the board surface, thereby accurately cutting the metal..

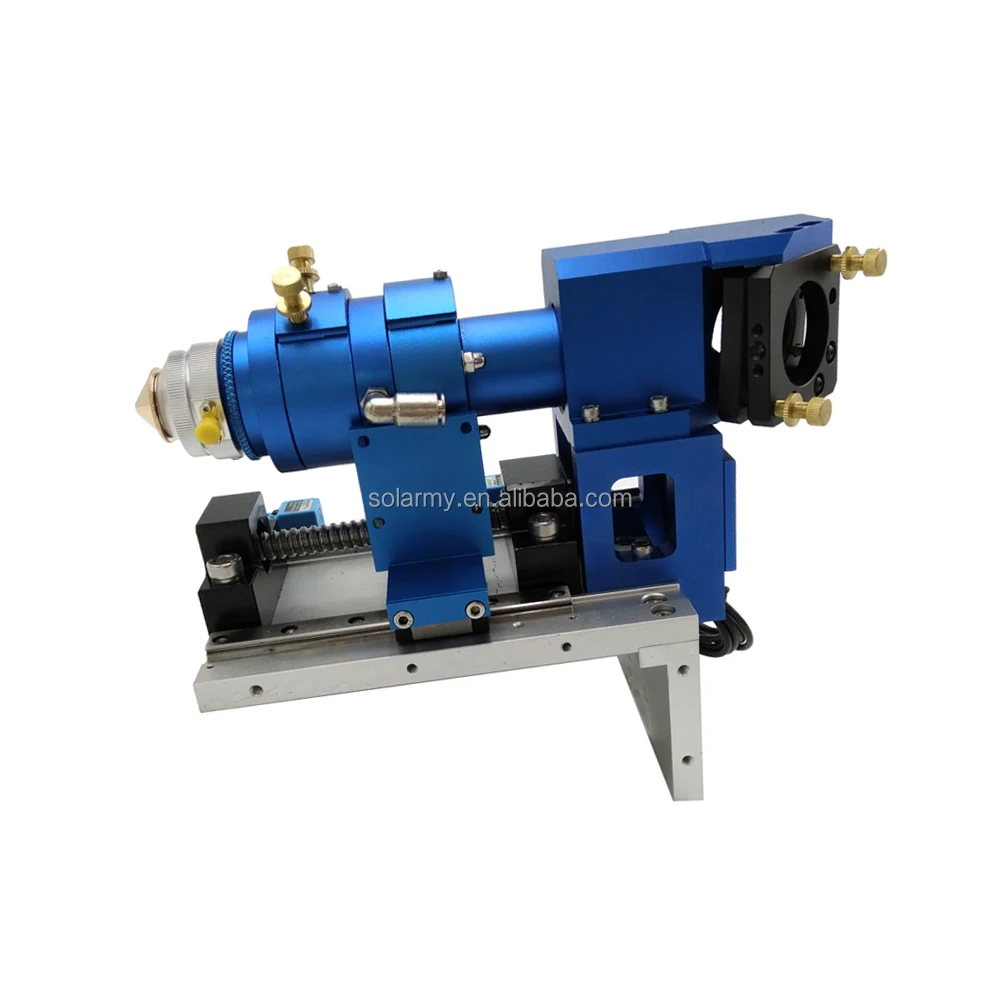

2.Component

1, Z-axis transmission

2,Three-dimensional mirror bracket

3,Focusing lens  cavity

4,Cutting nozzle

3.Feature

1.With Z-axis transmission part, it can move up and down to accurately track the focus position.

2. the use of double drawer structure, long and short focal length matching, users can easily replace the focusing mirror of different focal lengths, to achieve the cutting of different materials, do not need to repeatedly check the focus position.

3.Good air tightness and can withstand high gas pressure during metal cutting

4. Conical cutting nozzle is adopted, and the shape of the gas jet is favorable for cutting the metal thin plate.

5.The use of a focusing lens air-cooled/water-cooled structure prevents the lens from overheating.

4.Application industry

It can cut metal materials such as stainless steel, carbon steel, and galvanized sheet, as well as non-metallic materials such as acrylic, MDF, wood, plastic, leather, and cloth.

Mainly used in sheet metal processing, metal advertising word cutting, stainless steel kitchen processing, advertising industry, sheet metal cutting and other industries.

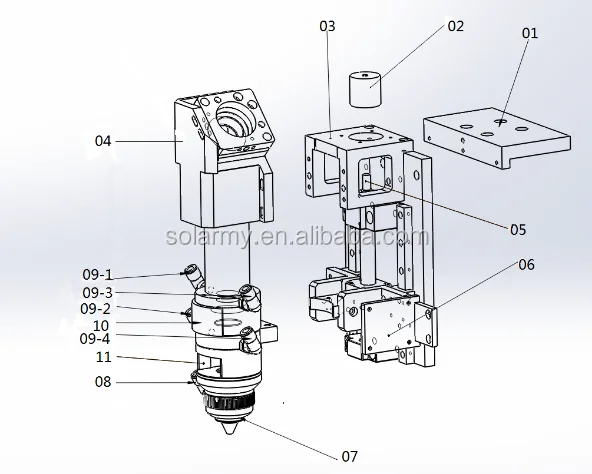

01:        Slider mounting plate with sliders with a hole spacing of 35*35MM (eg HIWIN25 series),

02:        Coupling, one end is connected to 05 ball screw and the other end is connected to motor output shaft.

03:        Motor mounting block.

04:       Laser head mirror mounting block, if you need to install 01, you need to remove 04 from 03.

05:       Ball screw rod.

06:       Amplifier mounting plate.

07:       The base for Adjust the height

08:        The cutting gas interface, on the 07 (adjustment base), may have screws, please remove the screws and install the air pipe connector.

09-1/09-3:  104MM focal length focusing lens cooling interface. (If the chiller does not have a constant temperature water function, please do not use water cooling to prevent condensation and burst the focusing mirror).

09-2/09-4:    63.5MM focal length focusing lens cooling interface. (If the chiller does not have the constant temperature water function, please do not use water cooling to prevent condensation and burst the focusing lens)

10:        104MM focusing lens  installation  position

11:         63.5MM focus lens installation position

Note: This laser head requires the customer to install the Z-axis upper and lower limit switch. After the installation, ensure that the Z-axis upper and lower limit switches work normally and effectively.then the machine can be on.

Co2 laser controller

♦Product Introduction:

Metal and non-metal laser cutting system is based on the RDC6332Mmotion controller .Employed with thin metal plate and non-metal laser cutting techniques, this control system is suitable for non-metal laser cutting and metal laser cutting.

♦Functions:

System encryption and parameters storage on board, file storage capacity is up to 256M.

Customized boot screen, controller kernel program upgrade remotely

2-way digital/analog laser control interface

Dedicated RF laser control interface

At most 4-axis stepper/servo motor open/closed loop control

Soft/ hard limit coordinates protection for optional

Linear, circular arc and B Spline interpolation

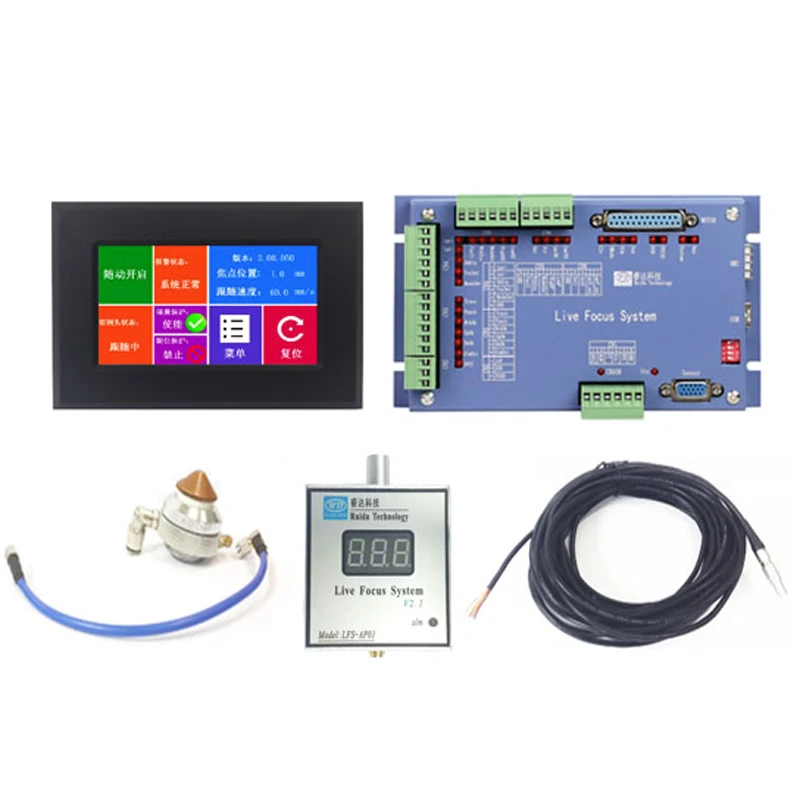

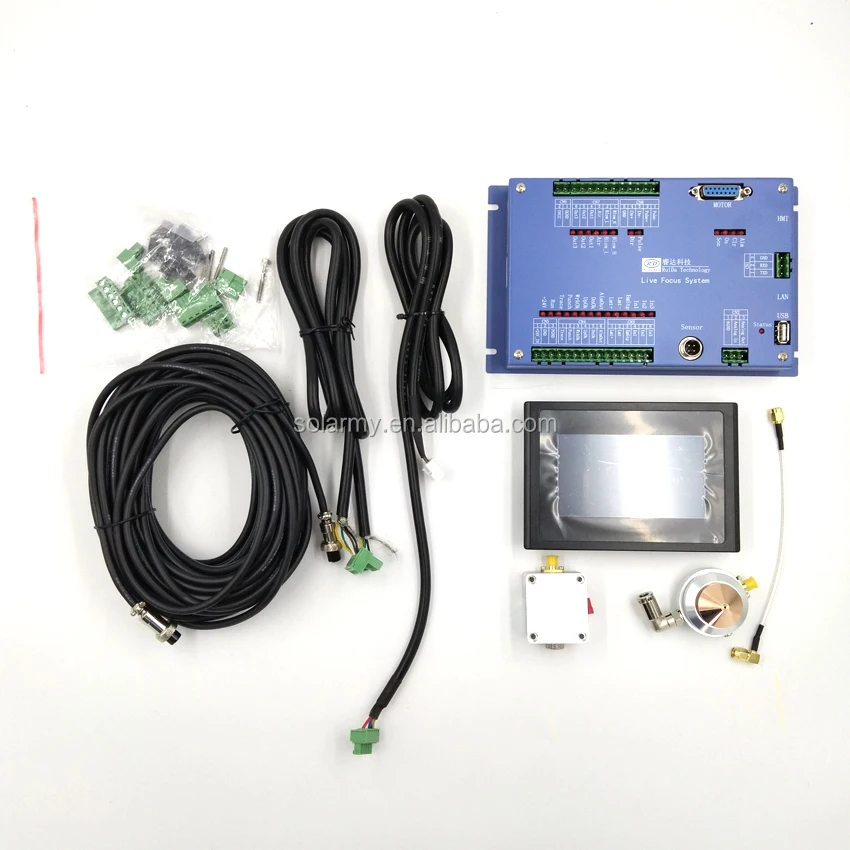

Flexible dedicated LFS interface, supporting many manufactory’s LFS system

Support various metal cutting technology control

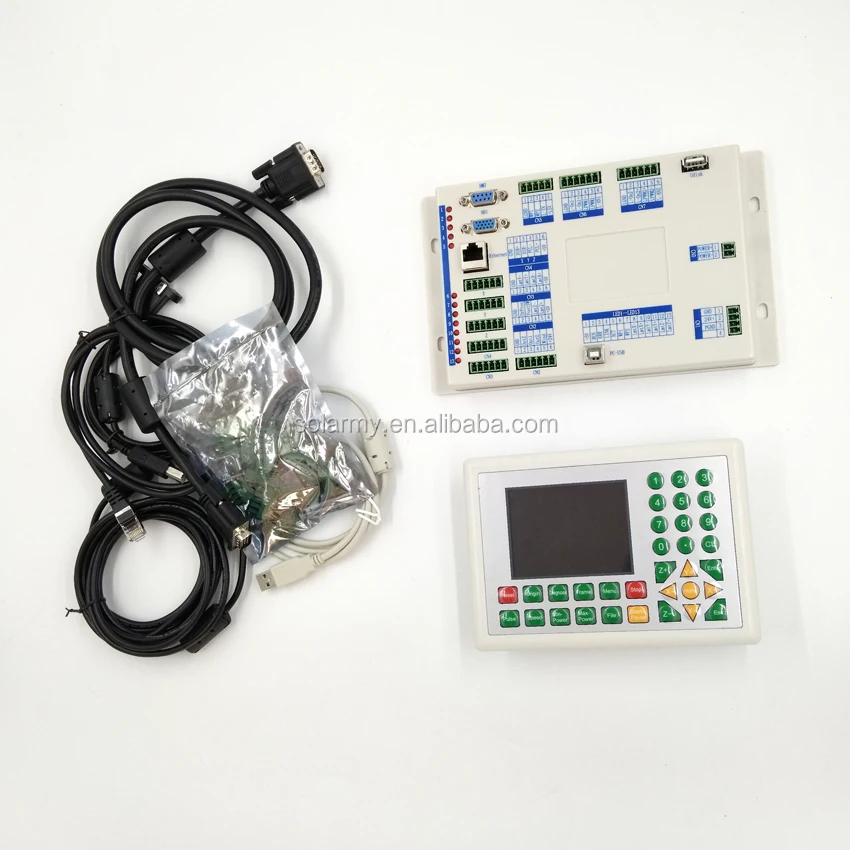

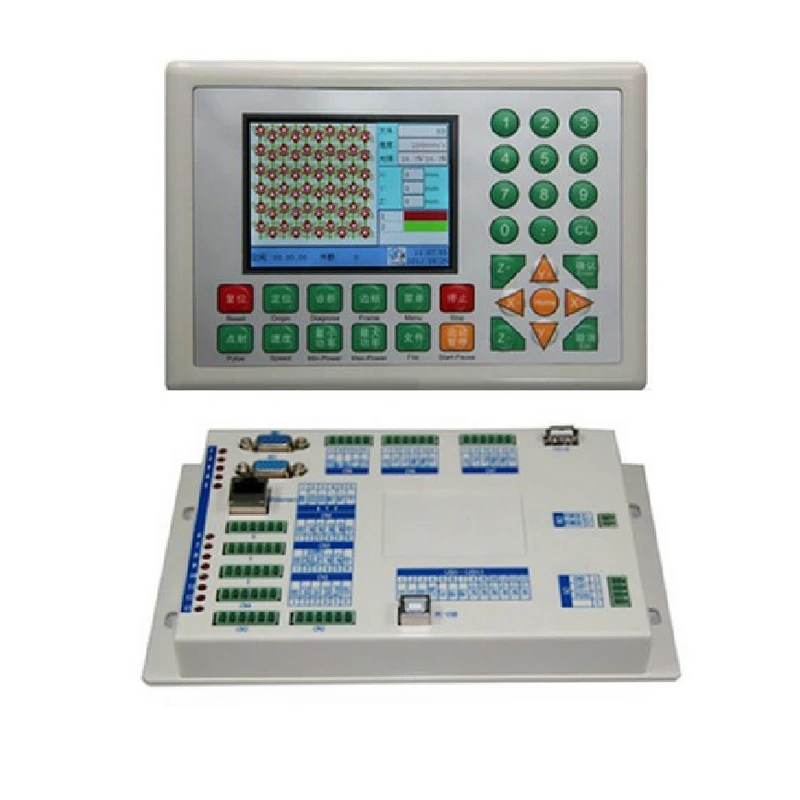

Metal and Non-metal Laser Cutting Controller ( RDC6332M)

Product Accessories:

controller, display panel, shielded Ethernet cable, shielded USB cable, 3.81mm terminal

Main board Size:220mm * 134mm

Extension interface board size:170mm*120mm

Power Source:24V/3A

Product show
