Hebei automatic carton box folder gluer machine
- Category: >>>
- Supplier: Dongguang Xinyu Carton Machinery Co. Ltd.
Share on (62239224692):
Product Overview
Description
Hebei automatic folder gluer machine attach spare parts
Product Description
Automatic folder gluer machine consists of feeding unit, gluing &folding unit and counting unit. The whole machine has easy operating features of frequency converter, PLC controlling, data input by touching screen, auto-feeding, auto-folding, auto-counting.

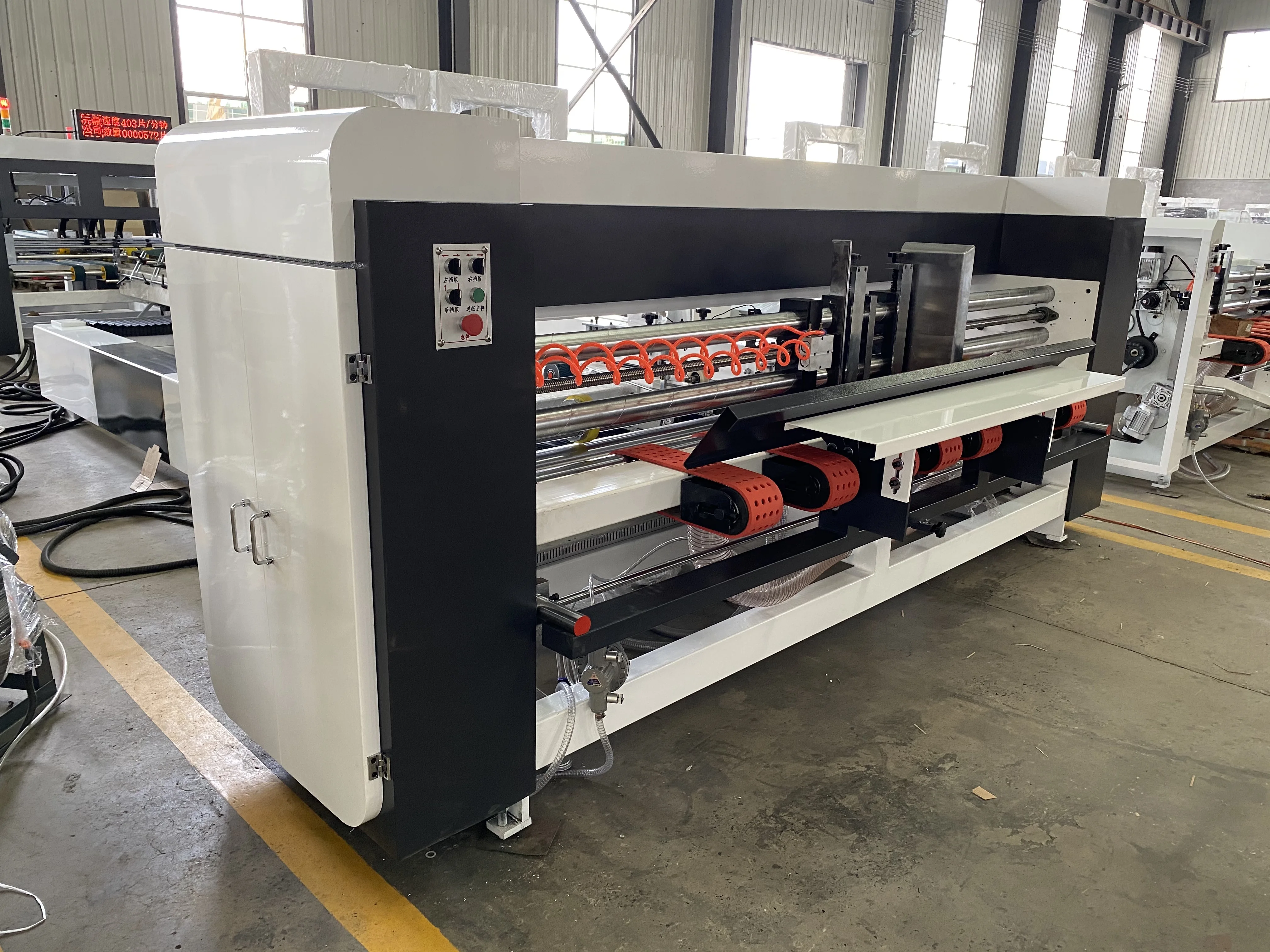

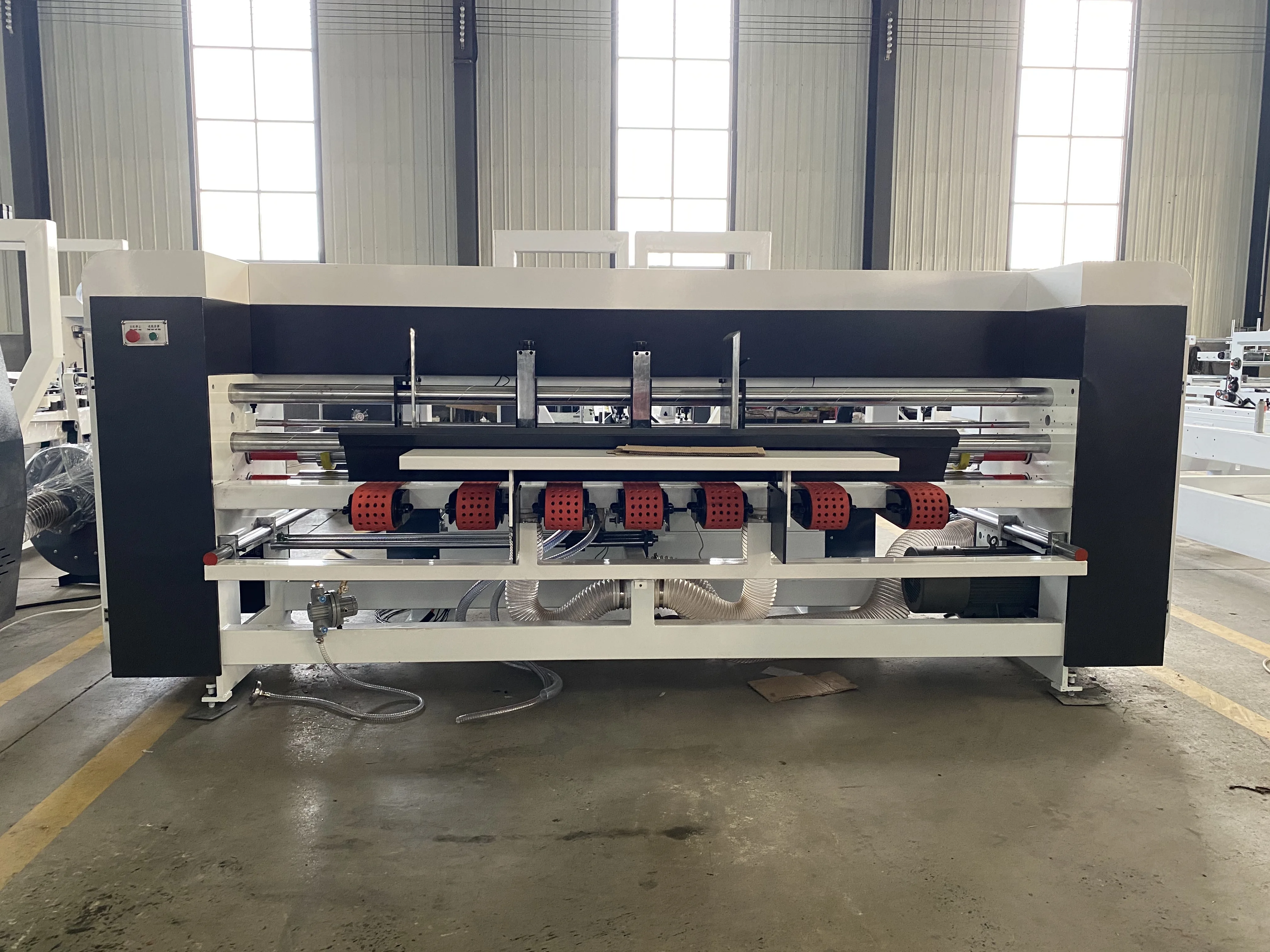

Feeding Unit
² Belt lead-edge feeder with feature of accuracy and stabilization assisting by suction.
²The advanced electromagnetic clutch enables feeding units to be operated separately and easily.
²Height of pressing roller can be adjusted.
²Link-moving with folding unit and frequency converter controlling. Speed of feeding:80-100m/min
²The doctor board can be adjusted left and right

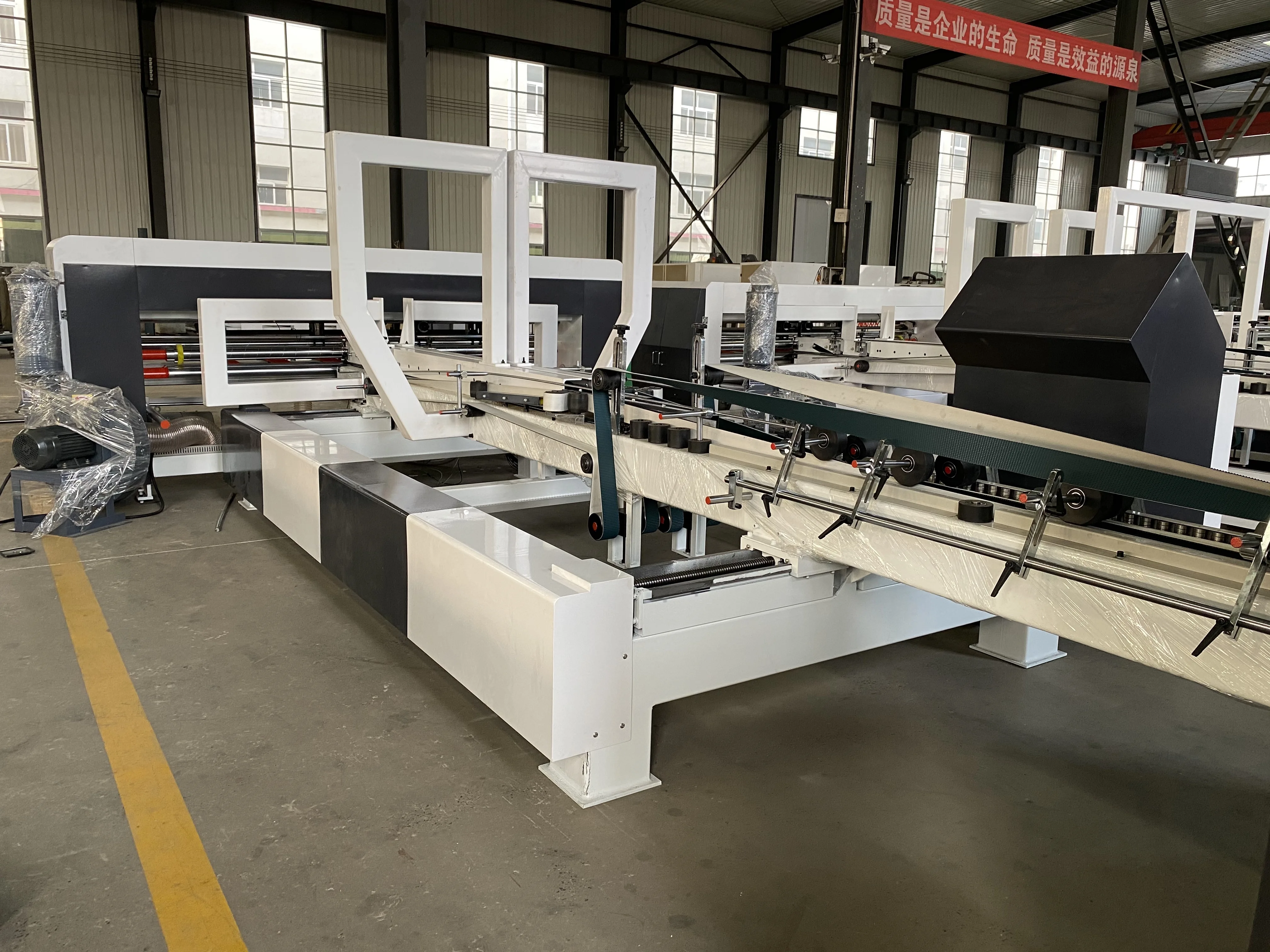

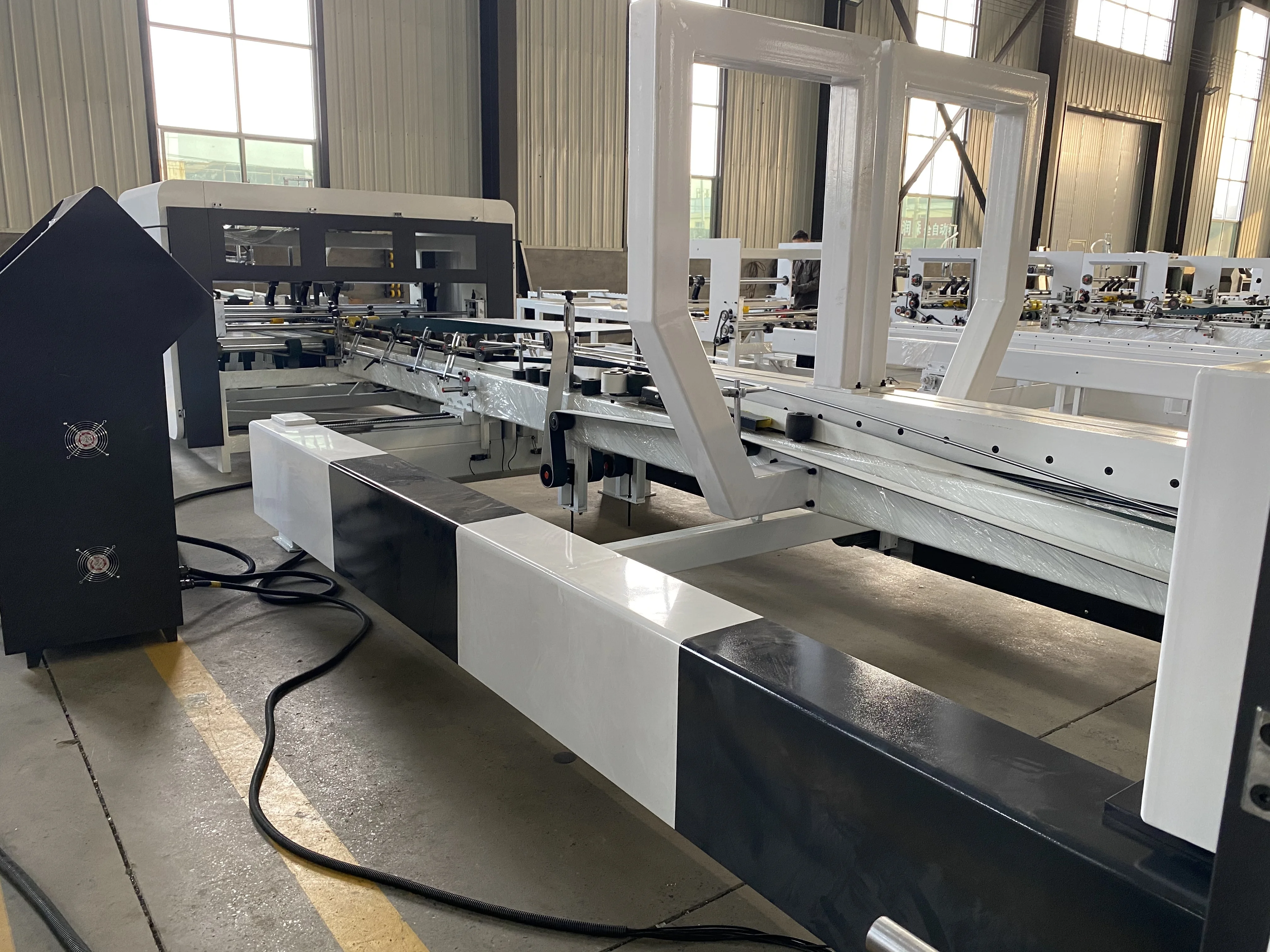

Gluing & folding units
²The frequency conversion motor has advantages of no-noise, flexible, stable
²The sheet are conveyed and folded by imported hard friction belt
² The glue applying by stainless steel wheel with feature of glue equality, saving and smoothly.
² The folding unit adopts sheet and scoring rectification device
Counting Unit

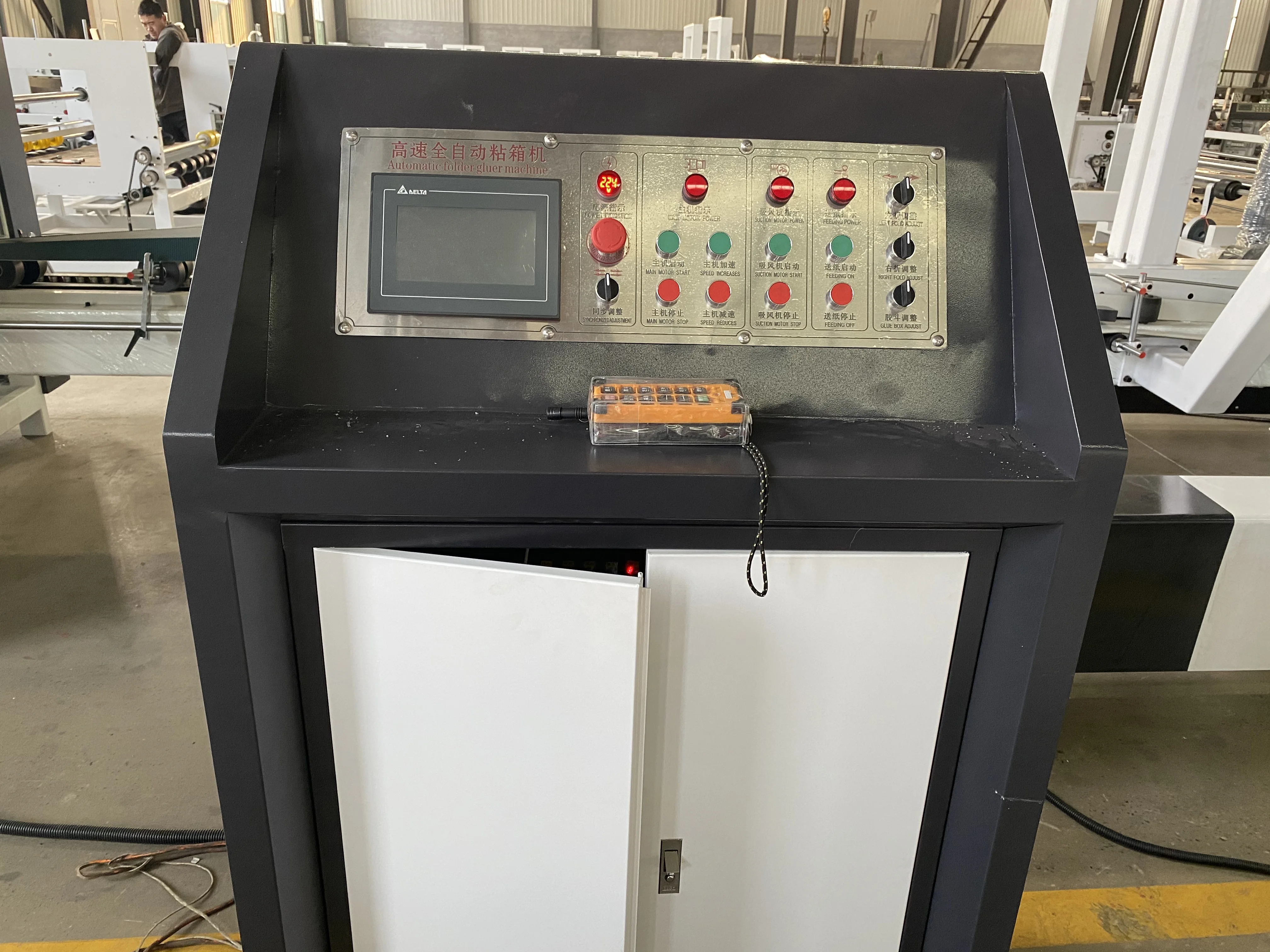

²Adopting PLC and touching screen machine has advantage of easy and accurate operating, inputting data without stop, auto-counting and accurate output.
²Rectify deviation. Windage becomes smaller
²Pneumatically pushing out and counting controlled by PLC with fast and accurate feature
²Outputting unit adopts pressing way: lower of conveying belt and upper pressing belt. The finished box has been cemented tightly and tidily.
main technology parameter
| model | 2400 | 2500 |
|---|---|---|
| max feeding size(mm) | 900*2200 | 1200*2500 |
| min feeding size(mm) | 300*900 | 300*900 |
| overall size(L*W*H) | 11000*3000*1600 | 12500*3200*1600 |
| weight(kg) | 5500 | 6500 |
| thickness of cardboard | 3-5 ply cardboard | |
| control way | PLC touch screen | |
Company Information
Based on DONGGUANG CANGZHOU, XINYU CARTON MACHINERY was established in 1990, Mrs Li, the CEO of the company, has always helped in overcoming challenges in the industry. with the rich of experience of around 30 years, we are capable of successfully serving several clients.
Quality Assurance
At XinYu company, quality is our prime forte. Keeping this in mind, we have directed all our endeavors to attaining highest level of quality in our products, We have a trained team of quality auditors who take care of quality department. Also, we manufacture our products from the finest quality of material.
Client Satisfaction
We provide quick solutions to clients for their feedback and queries,Meanwhile,we provide our client with easy payment modes.
Our Services
1.We need to test the machine working condition before delivery to customer country.
2.If you need our engineers install and teach you how to operate machine, we also can send our engineers to your country, but need you bear all fee: tickets, food, hotel and salary.
3.Our machine has one year warranty, during this period, if problems caused by our machine quality, we will change all parts for you by free fee. If any questions, send me email by 24 hours, we also help you solve these problems.
