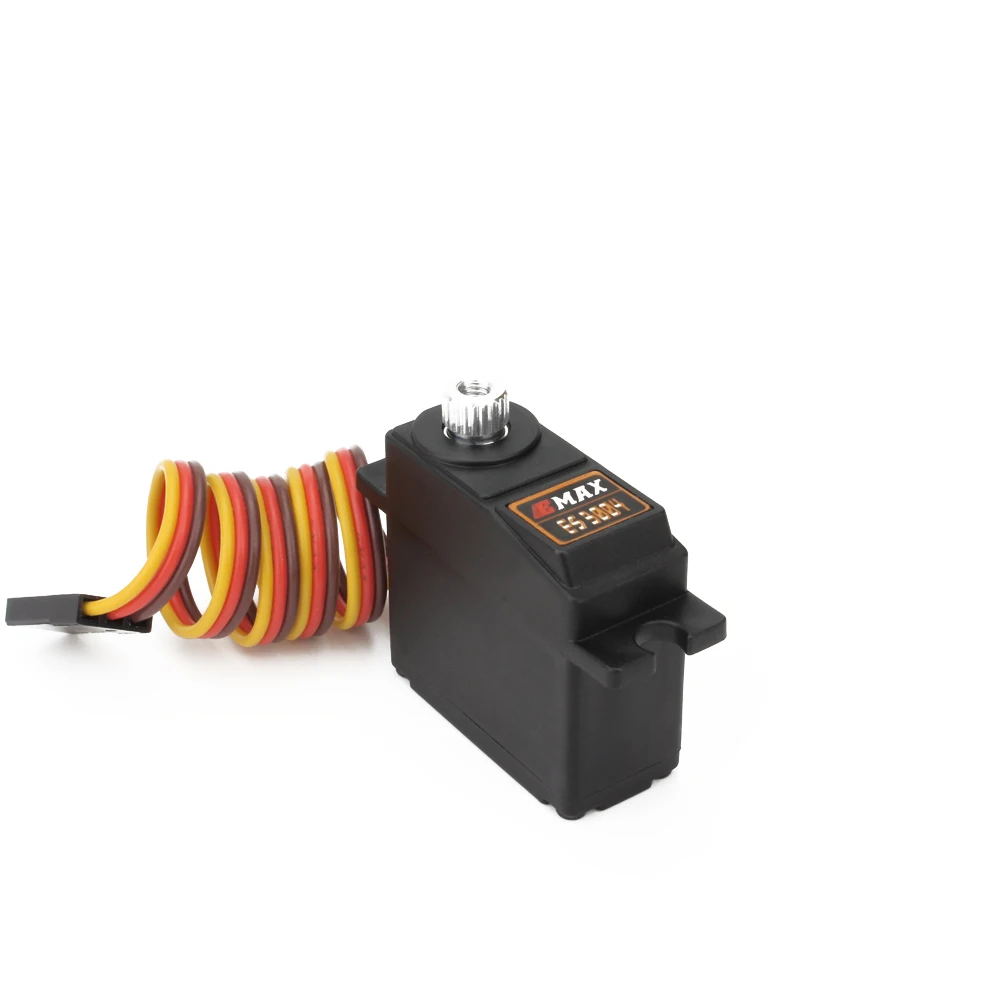

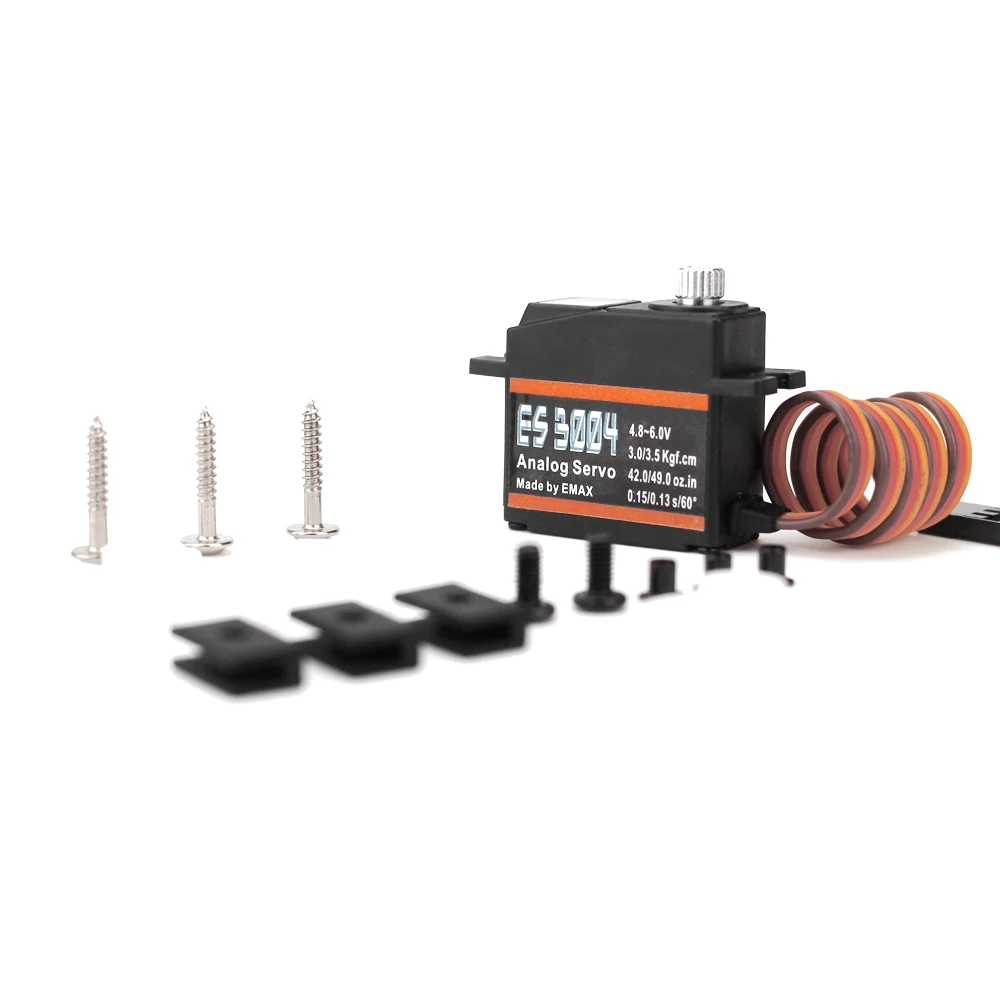

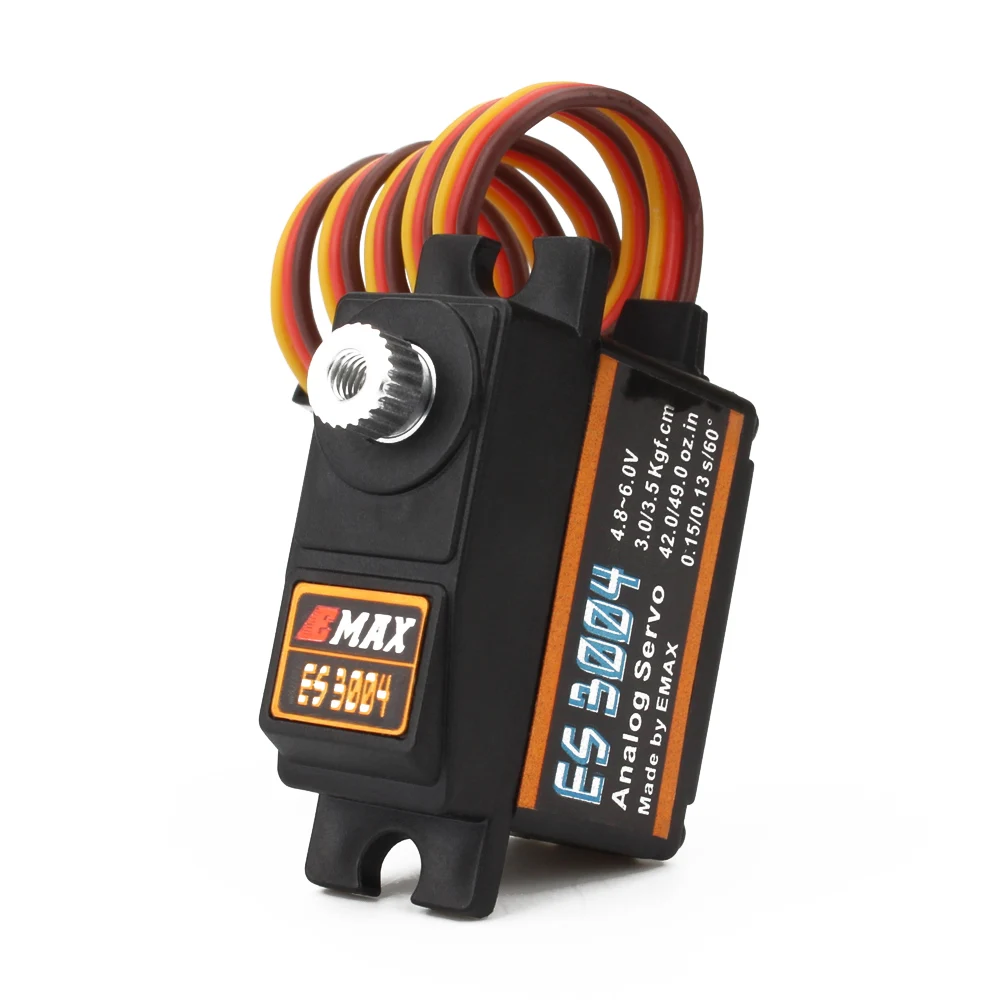

Factory Price Emax ES3004 20g 3.5kg 0.15 sec Metal Gear Analog Servo

Wholesales EMAX ES3004 17g 3.5kg 0.13sec 23T High Quality Metal Gear Analog Servo For RC Airplane

 (ES3104 upgrade Version)

Brand:Emax

Item: ES3004 Servo
Weight: 17g
Usage: For RC car boat airplane robot General Usage

Working Environment
No.	Item	Temperature
1	Storage temperature Range	-20℃~70℃
2	Operating temperature Range	-10℃~60℃

Electrical Specification (Function of the Performance)
No.	Item	4.8V	6V
1	(±10%)Operating speed (at no load)	0.15 sec/60°	0.13 sec/60°
2	Running current (at no load)	300mA Max	350mA Max
3	Stall torque	3kg.cm Max	3.5kg.cm Max
4	Maximum current/Stall current (at locked)	1.0A Max	1.1A Max
5	Idle Current	6.5mA	6.5mA
6	Ultimate life expectancy	100,000times (It depends on environment)

Mechanical Specification
NO.	Item	Specification

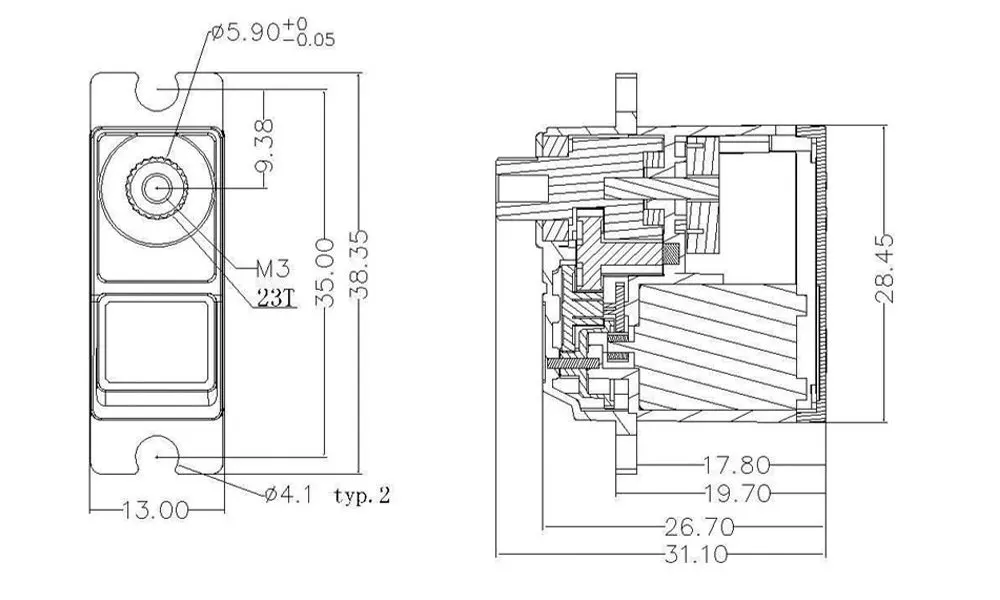

1	Overall Dimensions	See chart below
2	Weight	17.5±0.5 g
3	Connector wire gauge	JR
4	3P Connector wire length	240±8(terminal excluded)
5	Flower Head	23T
6	Bearing	2BB
7	Gear Type	4metal gear + 1 plastic gear
8	Extreme angle	360°

Control Specification
NO.	Item	Specification
1	Control system	PWM
2	Operating travel	90° ±10°( when 1000-2000 μ sec )
3	Neutral position	1500 μ sec
4	Rotating direction	Counter Clockwise / Pulse Traveling 1500 to 1900 μ sec
5	Pulse width range	700-2300 μ sec
6	Maximum travel	145° ±10°( 700-2300μ sec )
