Product Overview

Description



Product Description

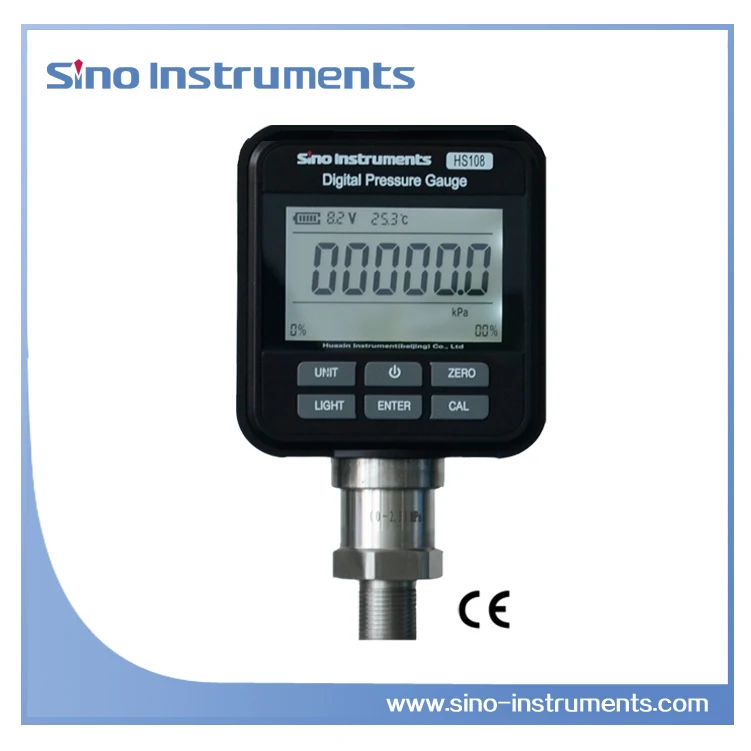

 HS108 Digital Pressure Gauge is portable, high-accuracy test gauge. With advanced state-of-the-art silicon pressure sensors and microprocessor technology , HS108 provides an accurate, reliable and economic solution for pressure application in the industries of Power,chemical, petrol, metallurgy, metering, etc.
Every HS108 Pressure calibrator pass the high and lower temperature aging,so it could assure the products more accurate and reliable.





Specifications:
































































ModelHS108
Accuracy±0.025% F.S , ±0.05% F.S , ±0.1%F.S
gauge typegauge pressure, compound pressure, absolute pressure, differential pressure
work mediumoil, water , noncorssive gases
over pressure alarm 150% full scale
display6 digits big LCD with blacklight
display rate2 readings per second (Default setting)
pressure unitPa, kPa, MPa, psi, bar , mabr, mmH2O, mmHg, kgf/cm2
compensated temperatur10~50 C
Pressure connection

  1/4NPT male, 1/2NPT male, 1/4BSP male, 1/2BSP male,


Other connections available per request


 powerBattery: One piece 7.4V lithium
External power:220V external power adapter (optional)
Housing

Case material: Plastic   ,Wetted parts: 316 SS


Dimension: Ø110mm×45mm,Total height:170(mm), Weight: Approx 0.75kg


certificateCE marked  , EX certifid intrinsically
communicationRS232 (Do not use the RS-232 connector in ahazardous atmosphere)




Fetures


 1. Pressure ranges to 10,000 psi (700 bar)
2. High accuracy up to ±0.025%F.S
3. Nine selectable pressure units
4. Advanced temperature compensation: 0°C to 50°C
5. Large , easy to read with 6-digit resolution
6. % Pressure indication with bar graph
7. Backlight and RS232 serial interface
8. 7.4V Rechargeable battery or AC adapter
9. Max/Min values function
10. CE&EX Approval
