Product Overview
Description
Product Overview
Fanchi-tech Highly Versatile X-ray Inspection System for Public Security Sector
FA-XIS series is our most popular and widely deployed X-ray inspection system. Dual energy imaging provides automatic color coding of materials with different atomic numbers so that screeners can easily identify objects within the parcel. It offers a full range of options and excellent image quality.
Fanchi-tech dual-view X-ray banner/luggage scanner adopted our latest innovative technology, which facilitates operator to identify threat objects easily and accurately. It is designed for customers requiring inspection of hand-held baggage, large parcel and small cargo . The low conveyor allows for easy loading and unloading of parcels and small cargo. Dual energy imaging provides automatic color coding of materials with different atomic numbers so that screeners can easily identify objects within the parcel.
FEATURES AT A GLANCE
1. Compact Design
2. High Density Alarm
3. Full Features
4. Multi-language Support
5. Extremely High Resolution
6. Assist to detect drug and explosives
2. High Density Alarm
3. Full Features
4. Multi-language Support
5. Extremely High Resolution
6. Assist to detect drug and explosives
1. Large Cargo/Large Parcel Screening
2. Multi-language support
3. Dual-energy material discrimination
4. Assist to detect drug and explosive powder
5. Powerful X-ray source imaging performance and penetration
6. Extended height tunnel with square opening easily accepts outsized parcels, boxes and other freight
7. Ergonomically designed operating console features user-friendly
2. Multi-language support
3. Dual-energy material discrimination
4. Assist to detect drug and explosive powder
5. Powerful X-ray source imaging performance and penetration
6. Extended height tunnel with square opening easily accepts outsized parcels, boxes and other freight
7. Ergonomically designed operating console features user-friendly
Right elevation
Front elevation
Left elevation
Scanned Images by Fanchi-tech X-ray Baggage Scanner
PRODUCT SPECIFICATIONS

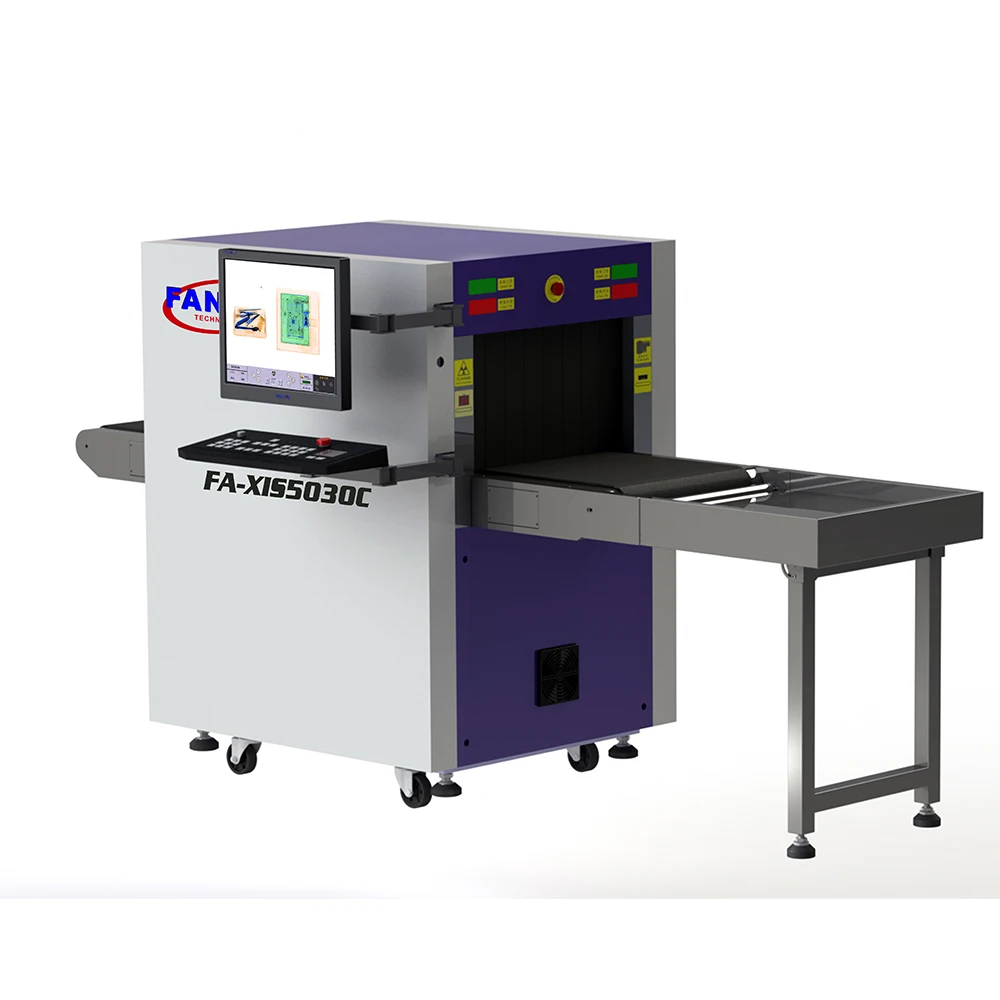

Fanchi-Tech X-Ray Baggage Scanner For Checkpoint
Specifications: | |||||||||
Model | FA-XIS5030A | FA-XIS5030C | FA-XIS5536 | FA-XIS6040 | FA-XIS6550 | ||||
Tunnel Size(mm) | 505(W)x307(H) | 505(W)x307(H) | 555(W)x365(H) | 555(W)x365(H) | 655(W)x505(H) | ||||
Conveyor Speed | 0.20m/s | ||||||||
Conveyor Height | 730mm | 730mm | 745.5mm | 645mm | 645mm | ||||
Max Load | 150kg(even distribution) | 150kg(even distribution) | 150kg(even distribution) | 160kg(even distribution) | 160kg(even distribution) | ||||
Wire Resolution | 40AWG (0.0787mm of wire)> 44SWG | ||||||||
Spatial Resolution | HorizontalΦ1.0mm/ VerticalΦ1.0mm | ||||||||
Steel Penetration | 10mm | 38mm | 38mm | 38mm | 38mm | ||||
Monitor | 17-inch color monitor,resolution of 1280*1024 | ||||||||
Anode Voltage | 80Kv | 140-160Kv | 140-160Kv | 140-160Kv | 140-160Kv | ||||
Cooling/Run Cycle | Oil cooling /100% | ||||||||
Per-inspection Dose | <1.0μG y | ||||||||
Image Resolution | Organics:Orange Inorganic:Blue Mixture and Light Metal:Green | ||||||||
Selection and Enlargement | Arbitrary selection,1~32times enlargement, supporting continuous enlargement | ||||||||
Image Playback | 50 checked images playback | ||||||||
Storage Capacity | At least 100000 images | ||||||||
Radiation Leaking Dose | Less than 1.0μGy /h(5cm away from shell ),Comply with all domestic and international health and radiation safety standards | ||||||||
Film Safety | In full compliance with the ASA/ISO1600 film safe standard | ||||||||
System Functions | High-density alarm,auxiliary examination of drugs and explosive,TIP(threat image projection);date/time display,baggage counter, user management,system timing, ray-beam timing, power on self-test, image back-up and search,maintenance and diagnosis, bi-directional scanning. | ||||||||
Optional Functions | video monitoring system/ LED( liquid crystal display)/energy-conservation and environmental-protection equipment / Electronic weighing system etc | ||||||||
Overall Dimension(mm) | 1719(L)x761(W)x1183(H) | 1719(L)x761(W)x1183(H) | 1813(L)x855(W)x1270(H) | 1915(L)x865(W)x1210(H) | 2114(L)x955(W)x1310(H) | ||||
Weight | 500kg | 500kg | 550kg | 600kg | 600kg | ||||
Storage Temperature | -40℃±3℃~+60℃±2℃/5℃~95% (No condensation of moisture) | ||||||||
Operation Temperature | 0℃±3℃~+40℃±2℃/5℃~95% (No condensation of moisture) | ||||||||
Operation Voltage | AC220V(-15%~+10%) 50HZ±3HZ | ||||||||
Consumption | 0.6KvA | ||||||||

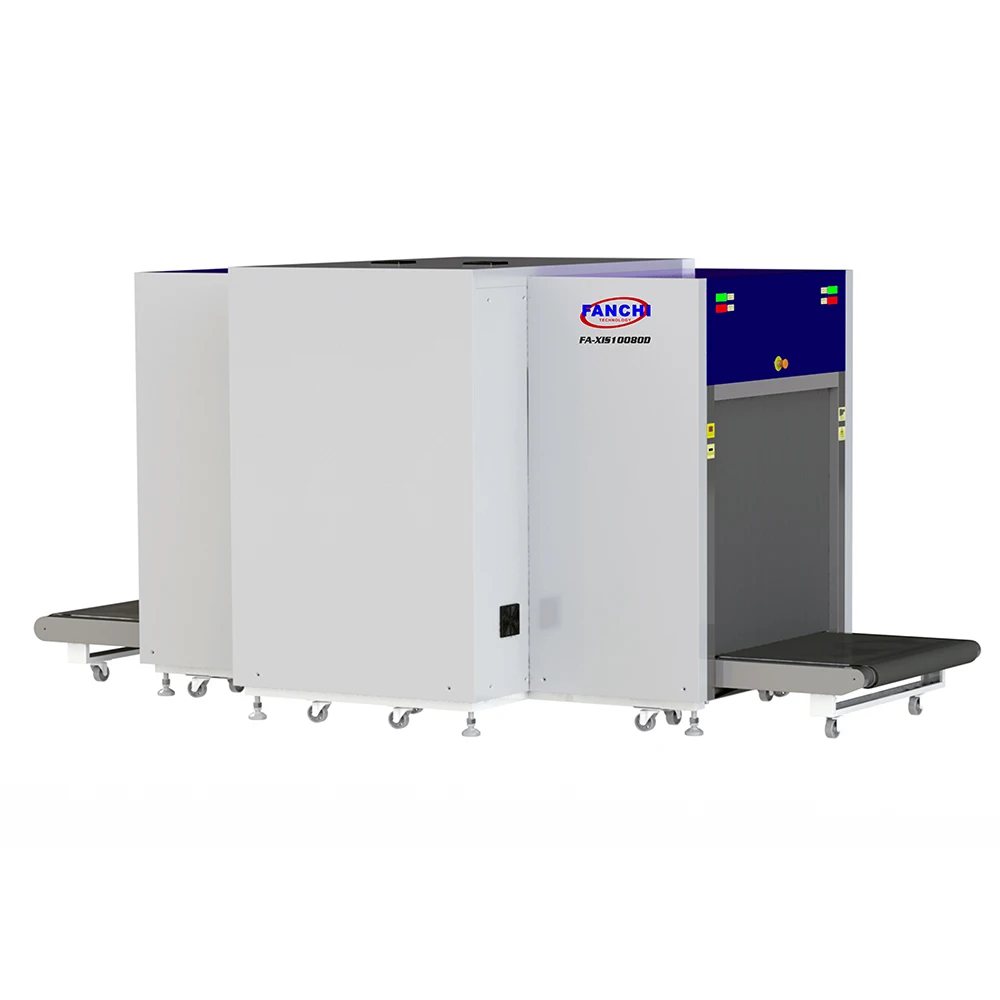

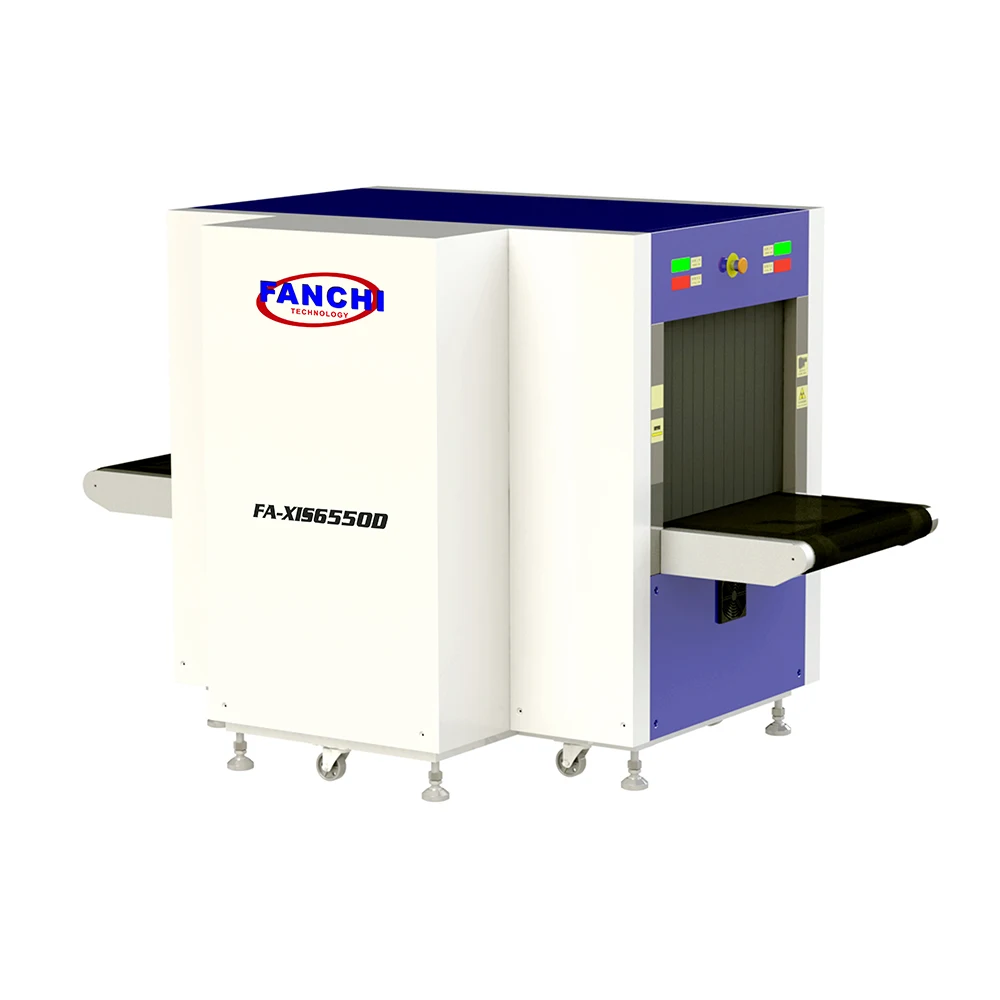

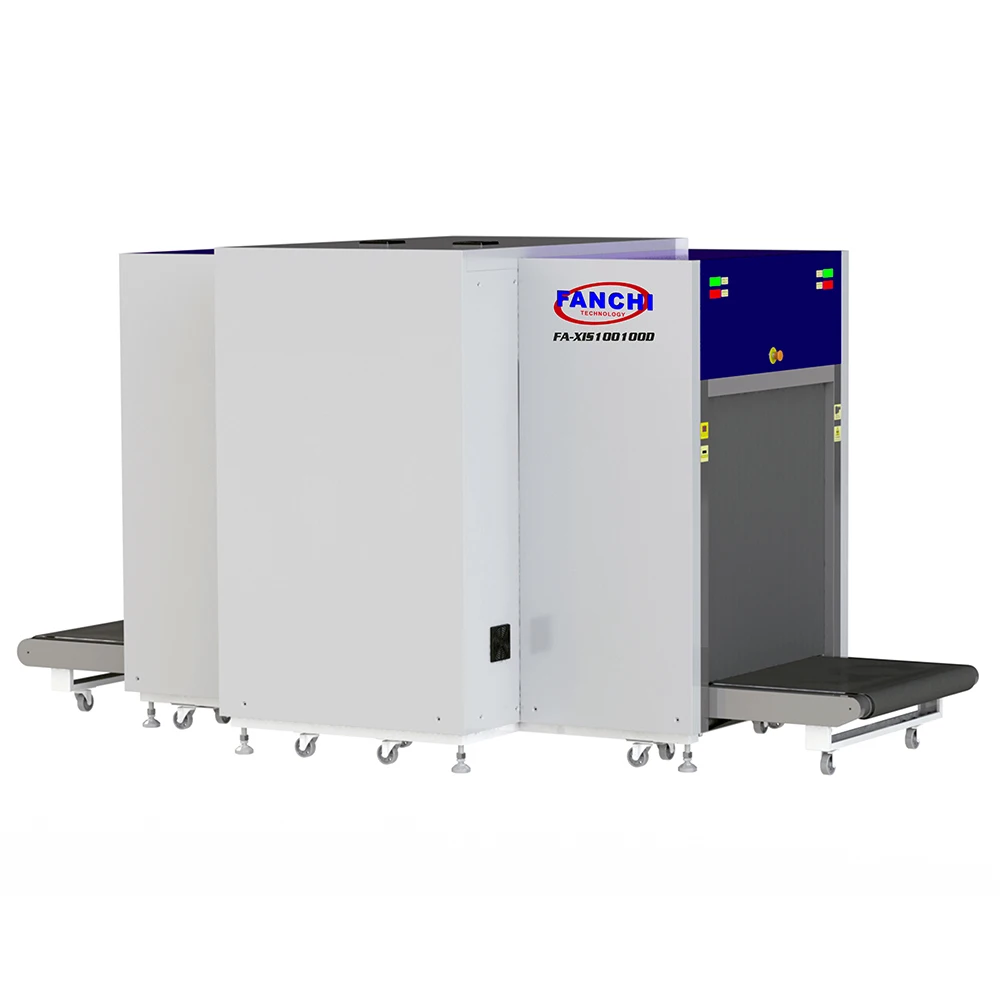

Fanchi-tech Dual-view X-ray Baggage Scanner
Fanchi-tech X-ray Baggage Scanner is designed for customers requiring inspection of hand bags or small parcel. Dual energy imaging provides automatic color coding of materials with different atomic numbers so that screeners can easily identify objects within the parcel.
Model | FA-XIS6550D | FA-XIS10080D | FA-XIS100100D | ||
Tunnel Size(mm) | 650WX500H | 1018Wx810H | 1018Wx1010H | ||
Conveyor Speed | 0.20m/s | ||||
Conveyor Heigh | 300-650mm | ||||
Max. Load | 200kg(even distribution) | ||||
Line Resolution | 40AWG(Φ0.0787mm of wire)>44SWG | ||||
Spatial Resolution | HorizontalΦ1.0mm & VerticalΦ1.0mm | ||||
Penetrating Power | 38mm | ||||
Monitor | 17-inch color monitor,resolution of 1280*1024 | ||||
Anode Voltage | 140-160Kv | ||||
Cooling/Run Cycle | Oil cooling / 100% | ||||
Per-inspection Dose | <2.0μG y | ||||
Image Resolution | Organics:Orange Inorganic:Blue Mixture and Light Metal:Green | ||||
Selection and Enlargement | Arbitrary selection, 1~32times enlargement, supporting continuous enlargement | ||||
Image Playback | 50 checked images playback | ||||
Radiation Leaking Dose | Less than 1.0μGy /h(5cm away from shell ),Comply with all domestic and international health and radiation safety standards | ||||
Film Safety | In full compliance with the ASA/ISO1600 film safe standard | ||||
System Functions | High-density alarm,Auxiliary examination of drugs and explosive,TIP(threat image projection);Date/time display,Baggage counter,User management,system timing, Ray-beam timing, Power on self-test, Image back-up and search,Maintenance and diagnosis,Bi-directional scanning. | ||||
Optional Functions | Video monitoring system/ LED( liquid crystal display)/Energy-conservation andenvironmental -protection equipment /Electronic weighing system etc | ||||
Overall Dimension(mm) | 2660Lx1070Wx1460H | 3160mmLx1270Wx1610H | 3960Lx1270Wx1800H | ||
Weight | 805kg | 900kg | 950kg | ||
Storage Temperature | -40℃±3℃~+60℃±2℃/5℃~95% (No condensation of moisture) | ||||
Operation Temperature | 0℃±3℃~+40℃±2℃/5℃~95% (No condensation of moisture) | ||||
Operation Voltage | AC220V(-15%~+10%) 50HZ±3HZ | ||||
Consumption | 0.8KvA | 1KvA | 1KvA | ||

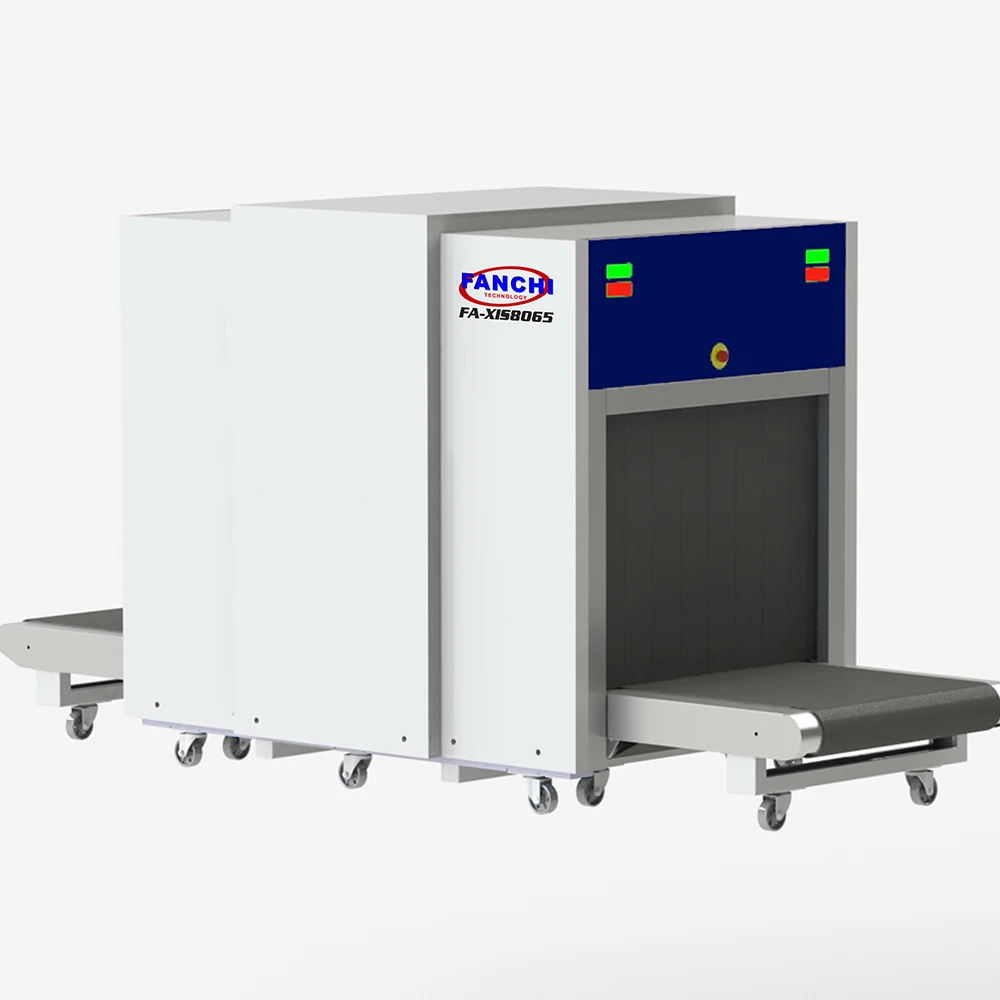

Fanchi-tech X-ray Cargo/Pallet Scanner
Fanchi-tech X-ray Cargo/Pallet Scanner is designed for customers requiring inspection of small cargo, large cargo and pallet . The low conveyor allows for easy loading and unloading of parcels and small cargo. Dual energy imaging provides automatic color coding of materials with different atomic numbers so that screeners can easily identify objects within the parcel.
Model | FA-XIS8065 | FA-XIS10080 | FA-XIS100100 | ||
Tunnel Size(mm) | 810WX660H | 1018Wx810H | 1018Wx1010H | ||
Conveyor Speed | 0.20m/s | ||||
Conveyor Heigh | 300mm | ||||
Max. Load | 200kg(even distribution) | ||||
Line Resolution | 40AWG(Φ0.0787mm of wire)>44SWG | ||||
Spatial Resolution | HorizontalΦ1.0mm & VerticalΦ1.0mm | ||||
Penetrating Power | 38mm | ||||
Monitor | 17-inch color monitor,resolution of 1280*1024 | ||||
Anode Voltage | 140-160Kv | ||||
Cooling/Run Cycle | Oil cooling / 100% | ||||
Per-inspection Dose | <1.0μG y | ||||
Image Resolution | Organics:Orange Inorganic:Blue Mixture and Light Metal:Green | ||||
Selection and Enlargement | Arbitrary selection, 1~32times enlargement, supporting continuous enlargement | ||||
Image Playback | 50 checked images playback | ||||
Radiation Leaking Dose | Less than 1.0μGy /h(5cm away from shell ),Comply with all domestic and international health and radiation safety standards | ||||
Film Safety | In full compliance with the ASA/ISO1600 film safe standard | ||||
System Functions | High-density alarm,Auxiliary examination of drugs and explosive,TIP(threat image projection);Date/time display,Baggage counter,User management,system timing, Ray-beam timing, Power on self-test, Image back-up and search,Maintenance and diagnosis,Bi-directional scanning. | ||||
Optional Functions | Video monitoring system/ LED( liquid crystal display)/Energy-conservation andenvironmental -protection equipment /Electronic weighing system etc | ||||
Overall Dimension(mm) | 2660Lx1070Wx1460H | 3160mmLx1270Wx1610H | 3960Lx1270Wx1800H | ||
Weight | 805kg | 900kg | 950kg | ||
Storage Temperature | -40℃±3℃~+60℃±2℃/5℃~95% (No condensation of moisture) | ||||
Operation Temperature | 0℃±3℃~+40℃±2℃/5℃~95% (No condensation of moisture) | ||||
Operation Voltage | AC220V(-15%~+10%) 50HZ±3HZ | ||||
Consumption | 0.8KvA | 1KvA | 1KvA | ||
Successful Project
Company Profile
Company Profile
We’re a group company owning Fanchi and ZhuWei brands, founded in 2013, and now being an industry leader in the custom fabrication, finishing of sheet metal products and product inspection equipment. In Sheet Metal Fabrication Industry, our ISO-certified company handles everything from pre-production prototypes to high-volume production runs, while performing all fabrication and finishing in-house. This means we can provide high-quality, quick-turn parts at competitive prices. Our versatility means that, for example, we can design, fabricate, finish, silk screen, assemble and ship custom sheet metal enclosures and assemblies. We assure quality at every step of the process with computerized and in-process inspections, and regular troubleshooting. Working with OEM’s, assemblers, marketers, installers and servicers, we offer the “full package” of product development and fabrication, from start to finish. The typical products/projects we’ve made are including Electronic Equipment, Bill payment kiosks, Check sorters, Filter Enclosures, Electrical Control Cabinets, etc.
In Product Inspection Industry, we’ve been designing, manufacturing and supporting inspection equipment used to identify contaminants and product defects within the food, packaging and pharmaceutical industries, principally offering Metal Detectors, Checkweighers and X-Ray Inspection systems, believing that through superior product design and engineering the production of higher quality equipment with customer-satisfied service could be achieved.
Our quality and certification: our Quality Management System is at the heart of everything we do and combined with our measurement standards and procedures, it meets and exceeds the requirements of ISO 9001-2015. Besides, all our products are fully compliant with EU safety standards with CE Certificate, and our FA-CW series Checkweigher is even approved by U L in North-America(through our distributor in US).
With integration of our Sheet Metal Fabrication Business, our Product Inspection sector has the following advantages: short lead times, modular design and excellent availability of spare parts, coupled with our passion for customer service, allows our customers to: 1. Comply with, and exceed, product safety standards, weight legislation and retailer codes of practice, 2. Maximize production uptime 3. Be self-sufficient 4. Lower lifetime costs.
Certifications
Fanchi CE for Metal Detector
Fanchi CE for Checkweigher
Fanchi CE for X-ray Machine
UL Certificate Achieved by our Agent
Fanchi Group ISO Certificate
Radiation Leakage Report
After-sale Services
After-sale services
Fanchi-tech recognises that providing great service, with great people on time, every time shows you the value of their investment in
our company. Our cost effective designs and industrial ruggedness has ensured a longevity of high standard world-wide equipment.
For reliability, serviceability we make our machines with standard and universal parts so once you own a machine in emergency's
you are able to get your local fitter or local electrician to look after them. 12 months parts and labor is warranted on all
equipment installed and supplied by Fanchi
our company. Our cost effective designs and industrial ruggedness has ensured a longevity of high standard world-wide equipment.
For reliability, serviceability we make our machines with standard and universal parts so once you own a machine in emergency's
you are able to get your local fitter or local electrician to look after them. 12 months parts and labor is warranted on all
equipment installed and supplied by Fanchi
FAQ
Q: Is x-ray security scanning safe?
A: Yes. All of our systems are completely safe. They are designed to meet or surpass safety regulations around the world. Where appropriate, heavy shielding is in place. You could eat your lunch safely even if it had passed through our machines, or been left on them. You can use, work near and walk past our equipment all day without concerns. A typical chest x-ray radiation dose is around 0.1 mSv. Ordinary background radiation is 3.6 mSv per year.
Q: What security applications use x-rays?
EOD / IEDs
Mail scanning
Baggage scanning
Border Control and Customs
Special Forces operations
Mail scanning
Baggage scanning
Border Control and Customs
Special Forces operations
Q: What can Fanchi-tech x-ray systems detect?
Explosives
Different materials can be highlighted
Weapons
Chemical and biological threats
Powders and liquids
Threat items
Drugs
Power sources/IED triggers
Sharp/hazardous items
Malicious mail
Different materials can be highlighted
Weapons
Chemical and biological threats
Powders and liquids
Threat items
Drugs
Power sources/IED triggers
Sharp/hazardous items
Malicious mail
Q: What should I do if I spot a suspect item?
A: If you are in any doubt about a package, do not touch it, move it or open it and call the emergency services.
Q: Will electronics or cameras be harmed by x-rays?
A: No
Q: Should we scan all incoming post and parcels?
A: Ideally yes. Letter bombs, poisons and biological threats are extremely dangerous. Even hoaxes need to be treated as threats until they are uncovered!
Q: What common names are used for X-Ray security screening systems?
A: X-ray security system, X-ray scanning equipment, X-Ray Security Systems, X-Ray Inspection Systems, X-Ray Screening Systems, Baggage X-Ray screening, Freight X-Ray Security Screening, Cargo scanning.
