agricultural drone farming Spray Drone UAV 16KG/ Drones Agriculture Sprayer 16KG/ agro drone for agricultural spraying
- Category: Agriculture Machinery & Equipment >>>
- Supplier: Shenzhen,Top-Peak,Electronics,Co.,Ltd.
Share on:
Product Overview
Description

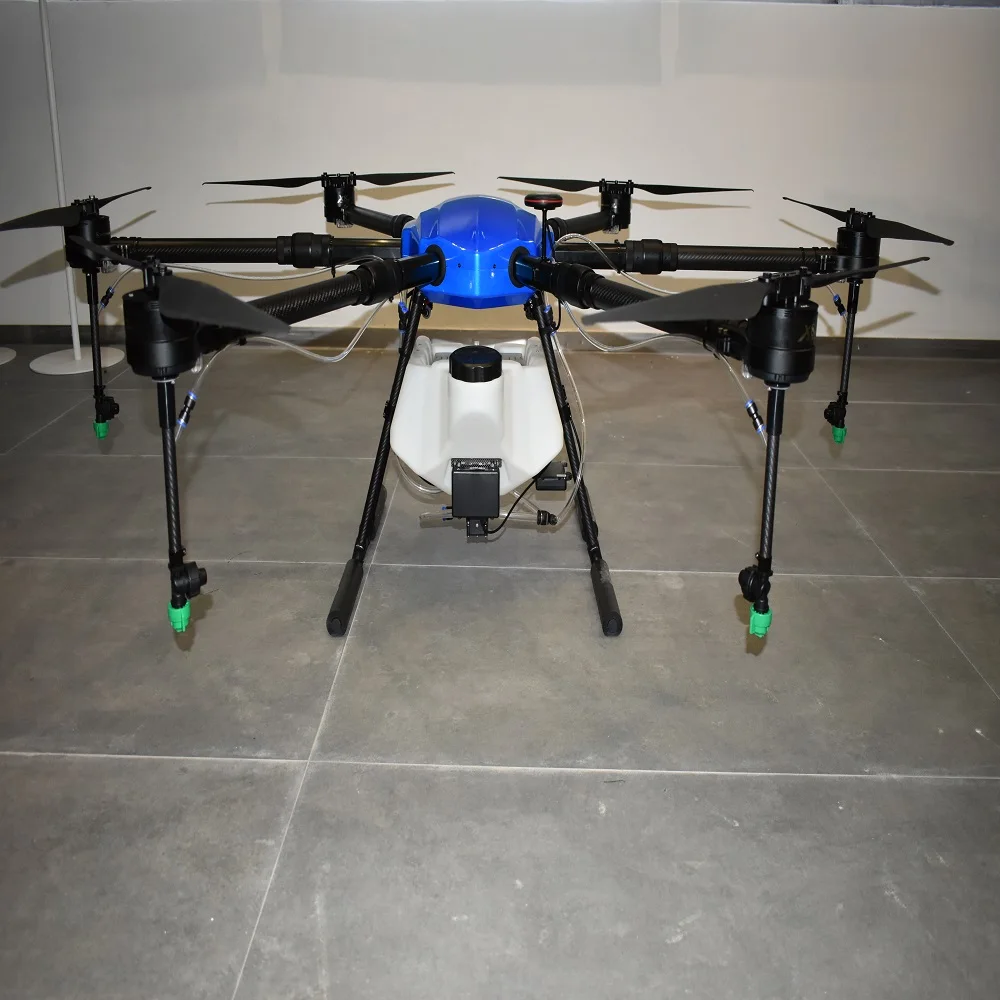

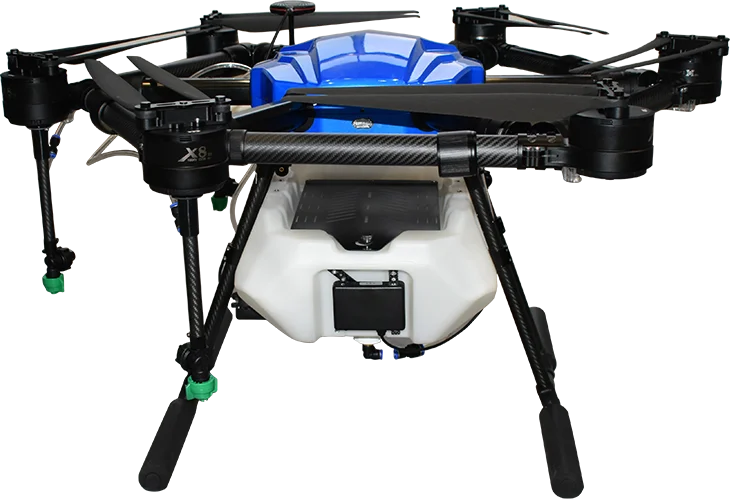

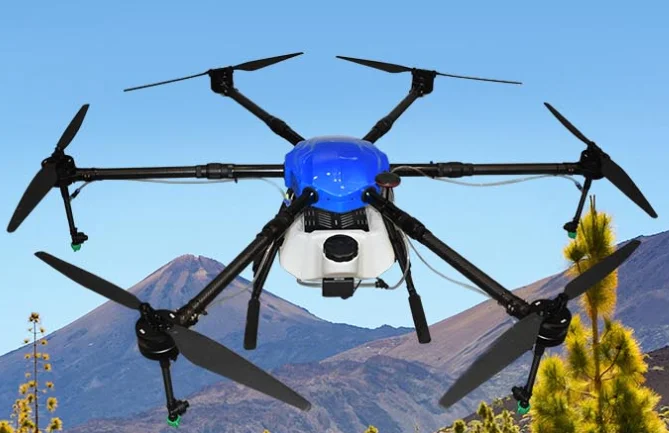

agro farming Spray Drone UAV 16KG/ Drones Agriculture Sprayer 16KG/ agro drone for agricultural spraying
Product Description
| Aircraft Frame | |
| Size spreaded L*W*H | 1710*1710*570mm |
| Size floded L*W*H | 1000*1000*570mm |
| Diagonal wheelbase | 1630mm |
| Materal of chassis | Carbon fiber |
| Materal of propeller | Carnon fiber |
| Motor | Brushless 8120 100KV ,6Motors |
Flight Parameters
| Total Weight | 15.5KG(Without battery) |
| Max Flight Weight | 48KG |
| Spray Flight time | 10-12Mins |
| No load flight time | 20-25Mins |
| Max Flight speed | 10m/s |
| Max service ceiling above sea level | 30m(GPS mode) |
| Anti-wind | <8m/s(28.8km/h) |
| Operating modes | standard/spary/GPS |
| Operating temperature | 0-50 |
Spray System
| Container material | Rigid plastic |
| Container volum | 16Liters |
| Standard operating payload | 16KG |
| Spray droplet diameter | 130-250um |
| Nozzles | 4pieces |
| Spray Flow Rate | 2.2-2.6L/min |
| Spary width | 3-6m |
| Spray height | 2-5m |
Remote controller
| Operating frequency | 2.400-2.483 GHz |
| Max operate range | 3km |
| RC Battery | 3.7V 4000mAh |
| Operating temperature | 0-50 |
Aircraft
| Power battery | 22000mAH-25C 44.4V |
| Charging time | 45-60minutes |
| Recharge cycles | 300-500times |
