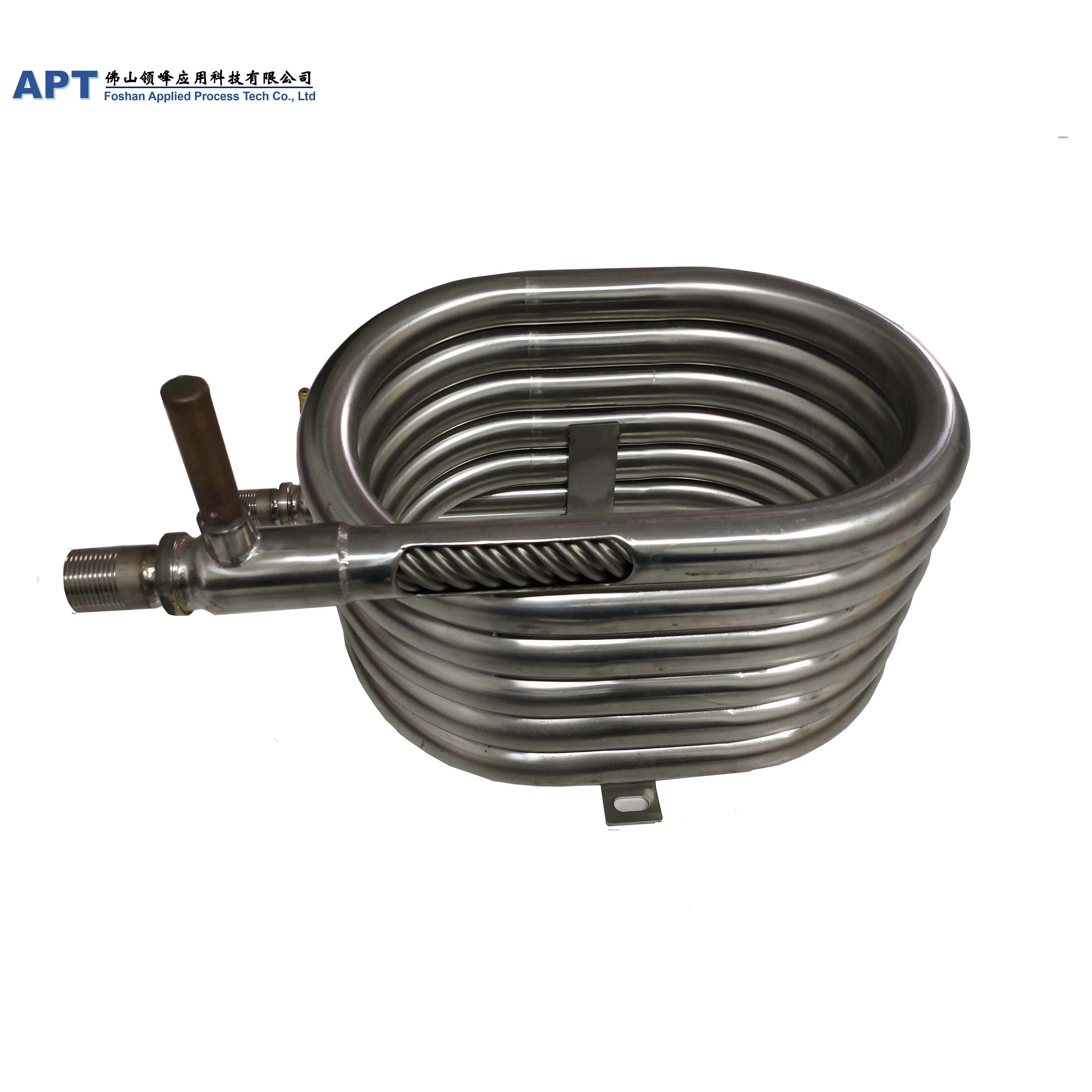

Coaxial heat exchanger consist of one spiral grooves inner tube and a outer tube. Cold liquid and heat liquid flow in the gap that between inner and outer tube or in inner tube separately.
Structure Feature
High efficiency
Spiral groove structure can enhance heat transfer on both sides. The axial flow and spiral rotation flow of the fluid in the tube will intensify the mixing of the fluid near the tube wall, thus enhancing the turbulence intensity and increasing the heat transfer coefficient
Self-cleaning ability
The coaxial heat exchanger has self-cleaning ability because the fluid spiral flow washes the surface. Coaxial heat exchanger has stable performance and low attenuation. The cross-section area of the waterway is large, allowing sediment and large diameter fibers to pass through without blocking. The water passage is clean because the inner tube of the spiral groove keeps the flow turbulent and cleans the surface
Effective prevention of freezing
Water is not easy to freeze because it is turbulent when it flows at a low speed in a spiral groove. The special spiral groove structure of the inner tube makes the inner tube flexible to a certain extent and does not produce the risk of frost cracking.
Less risk of leakage
Heat exchangers are very worried about leakage due to long-term vibration, pressure fluctuation, alternation of heat and cold, and so on. The risk of leakage of coaxial exchangers is seldom due to fewer welding points, simple processing and easy control of welding quality
Adapt to all kinds working conditions
In the actual operation of refrigeration system, the internal pressure is often in an alternate state due to temperature fluctuation, start-stop cycle, heat pump defrosting, expansion valve regulation and other factors. Spiral coaxial heat exchanger is more resistant to pressure shock and pressure shock than plate heat exchanger under constant vibration and pressure change, and can adapt to the complexity of actual working conditions
Kinds of coaxial heat exchanger that APT design and produce
1 Based on shape

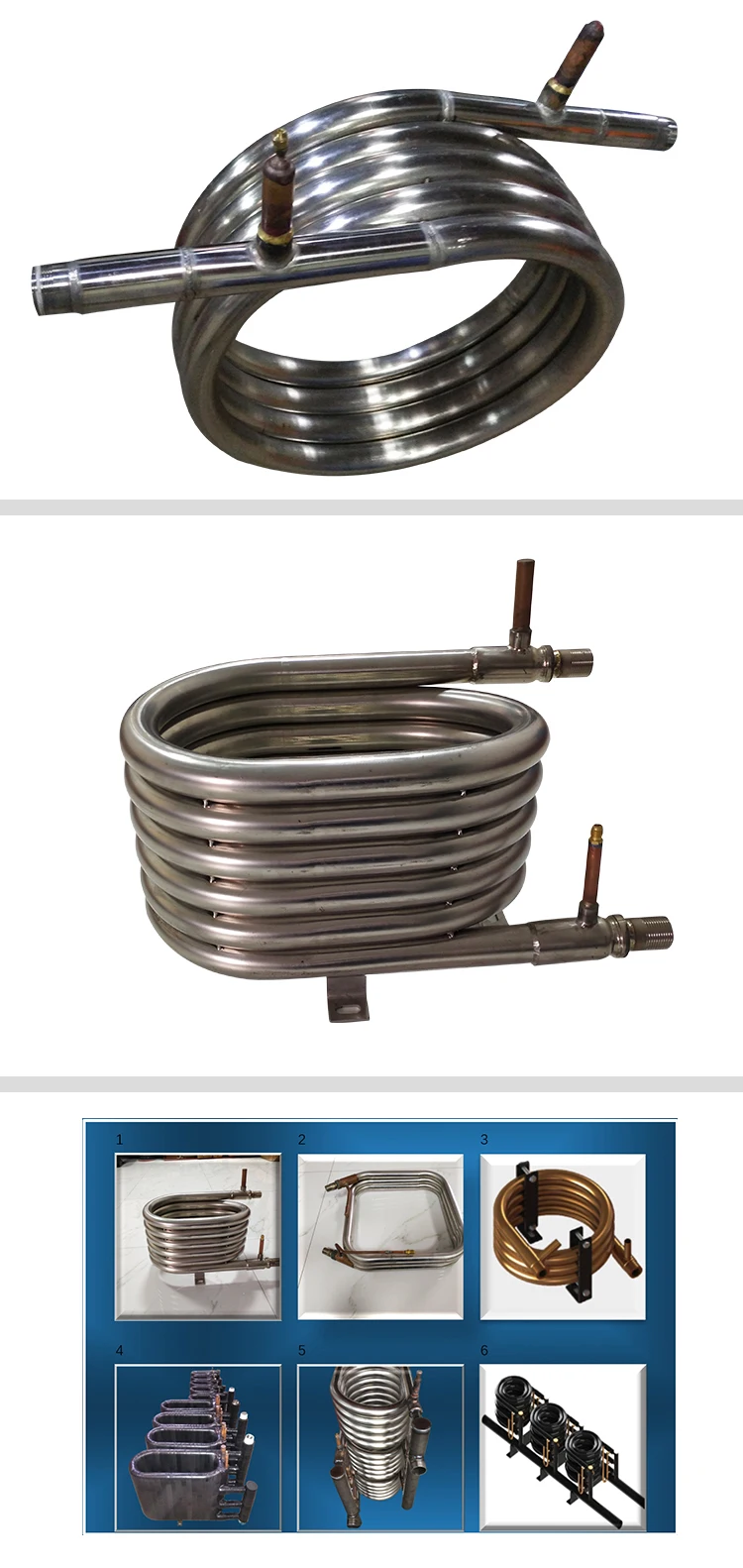

Circle ,Rectangle,Double helix,Spiral,Trombone
2 Based on system No.
Single system,Double helix type 3 systems,Trombone interspersed 2 systems,Trombone type 6 systems,Spiral type 9 systems
3 Based on material
Red copper,Cupronickel (BFe-10-1-1),Titanium,Stainless steel,Steel
Inner tube material
Inner tube material can be: red copper, cupronickel(BFe-10-1-1), Titanium, Stainless steel. And inner tube can be choosed by smooth tube or enhanced surface tube. And there are also double-wall copper inner tube.
Outer tube material
Depending different working condition, outer tube material can be: steel, red copper, cupro-nickel, titanium, stainless steel etc.
Liquid Flow Rate
2.09-100m3/h
Maximum Working Pressure
Refer to details
Weight
1-100KGS
Warranty
1 Year
After-sales Service Provided
Field installation, commissioning and training
Applicable Industries
Manufacturing Plant
Condition
New
Place of Origin
Foshan, China (Mainland)
Brand Name
APT
Structure
Tube Heat Exchanger
Voltage
110V/220V/380V
Dimension(L*W*H)
880*450*50mm
Certification
CCC, CE, ROHS, UL
Material
Pure titanium tube
Application
Heat exchanger
Type
New energy

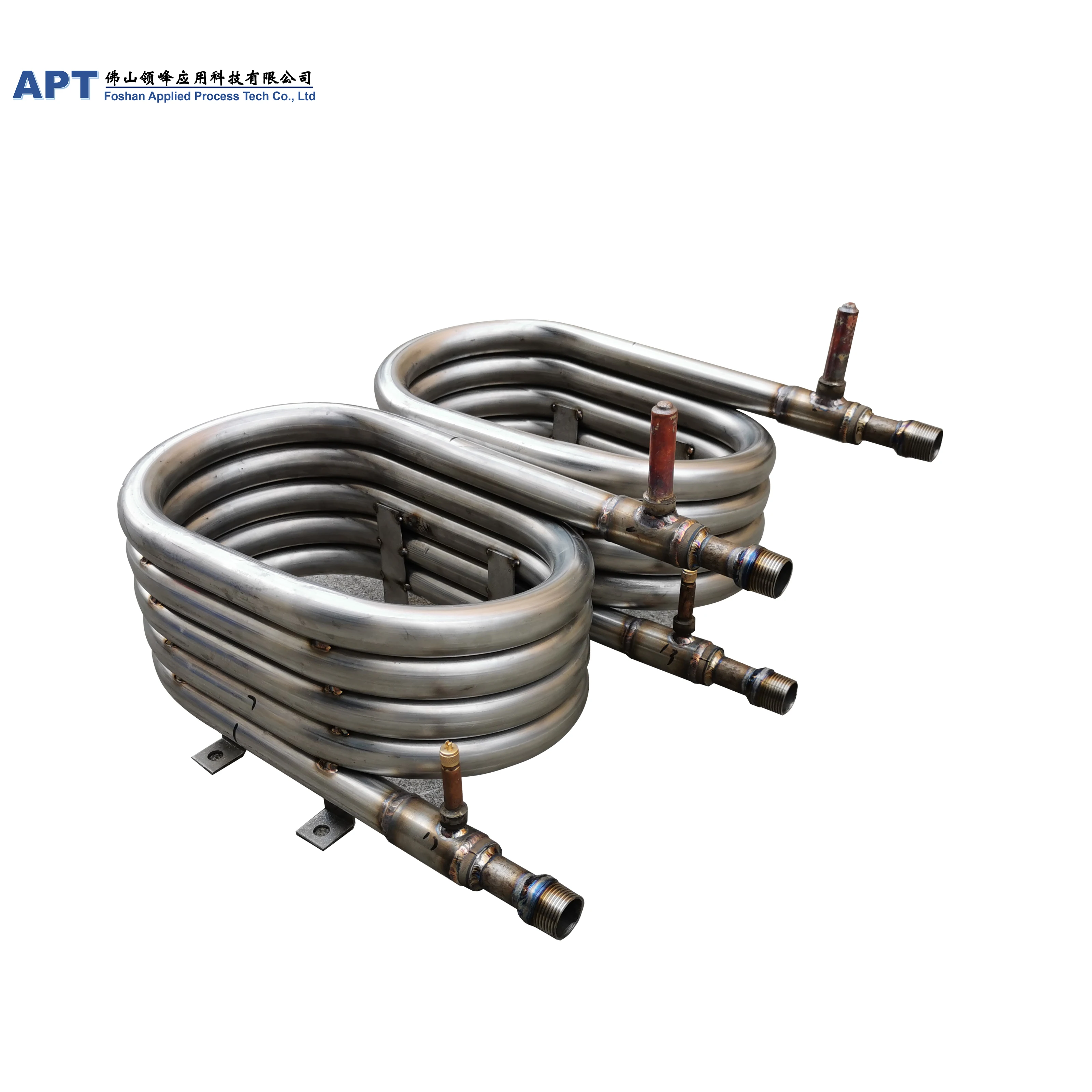

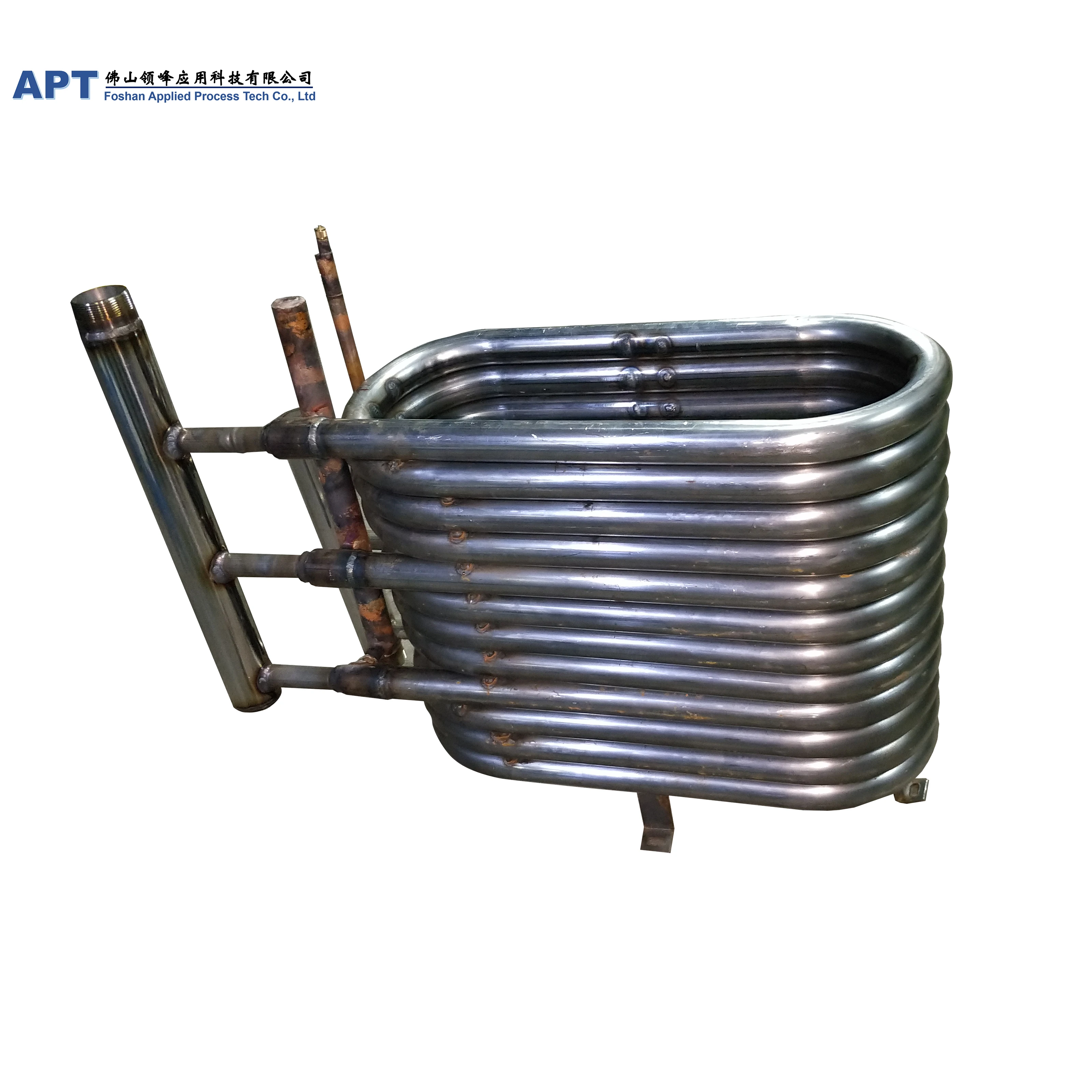

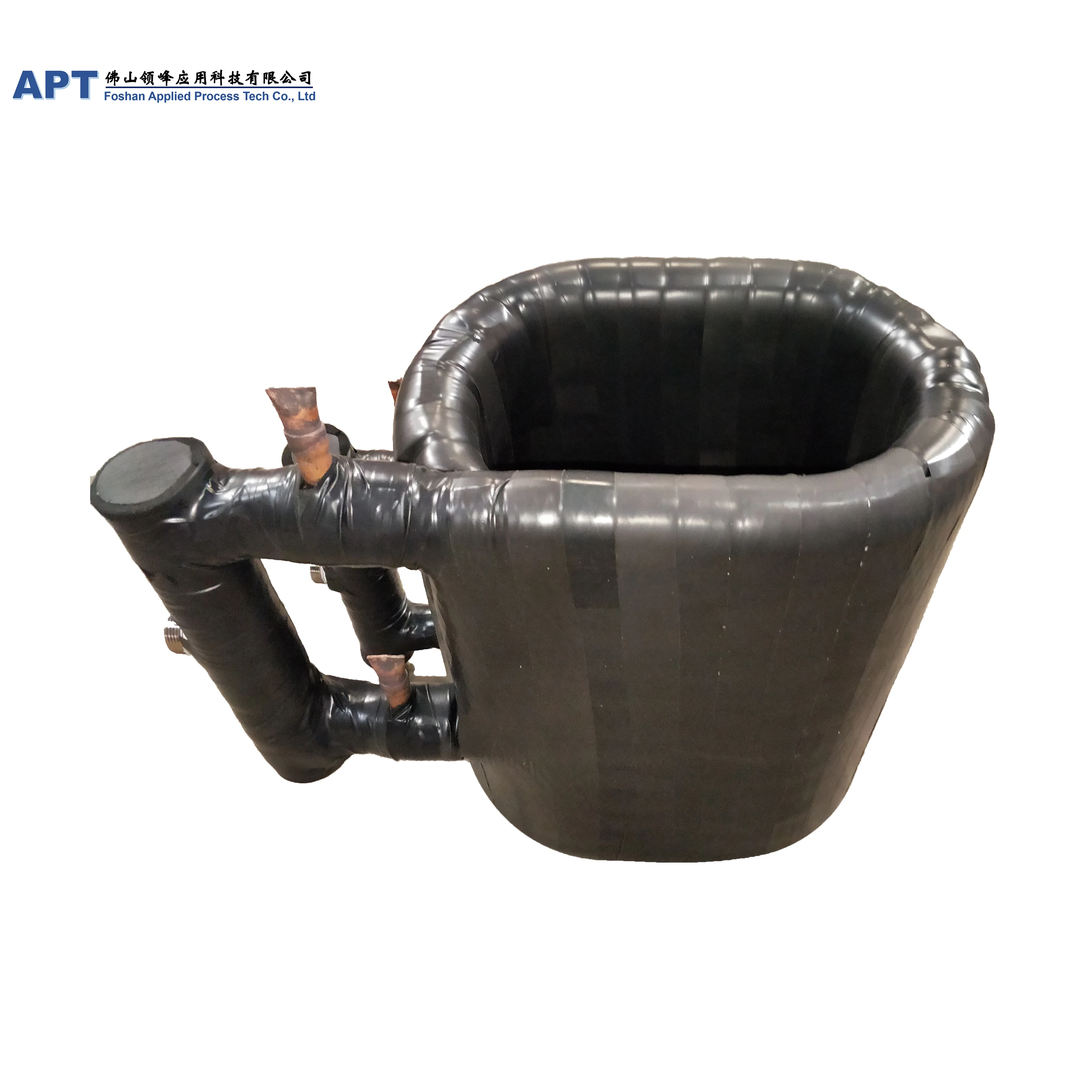

Product shows
Application Object
APT coaxial heat exchangers with excellent ability for heat exchanging and adaptation are widely used for:
1. Heat pump water heater condenser
2. Condenser/evaporator for water chiller
3. Condenser for pool heat pump
4. Condenser/evaporator for water(ground) source heat pump
5. Cooler or regenerator for CO2 heat pump air
6. Condenser/evaporator for marine AC
7. Condenser for ice machine
8. Evaporator for water purifier
9. Evaporation or condenser for mariculture constant temperature machine
10. Condenser for dish washer
