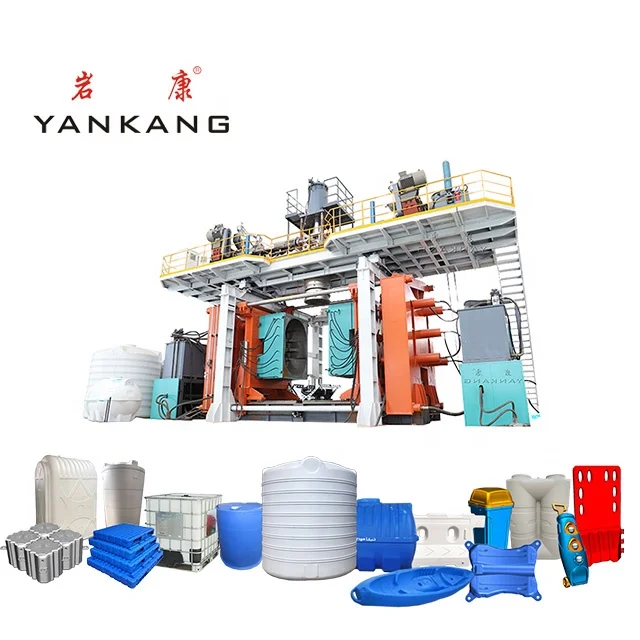

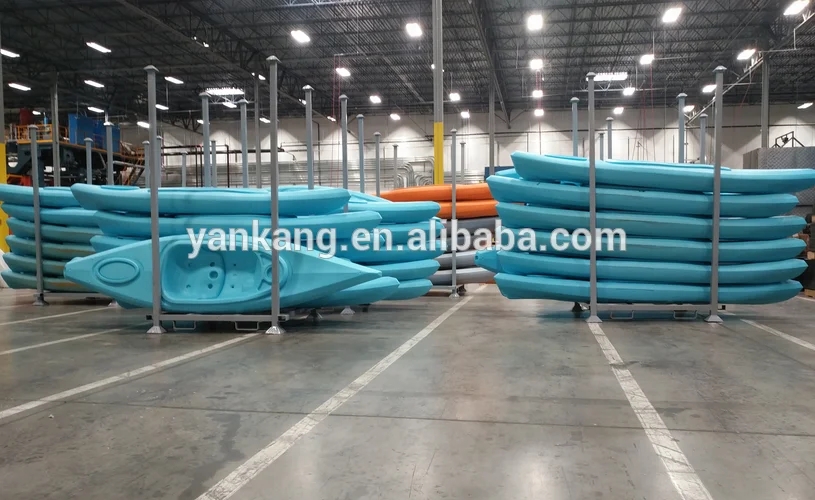

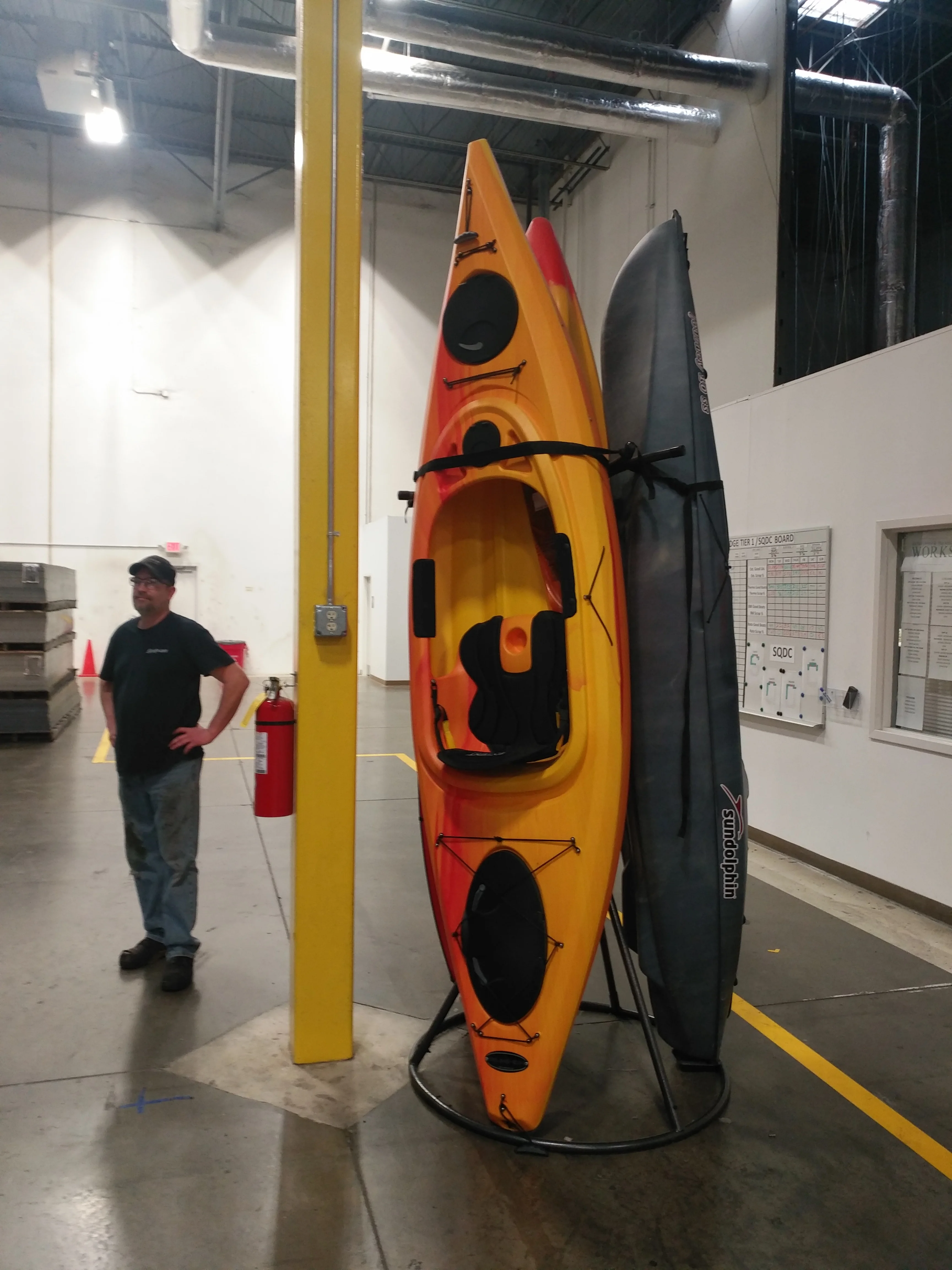

HDPE PLASTIC sea river Kayak blow molding machine

Product Overview

Description

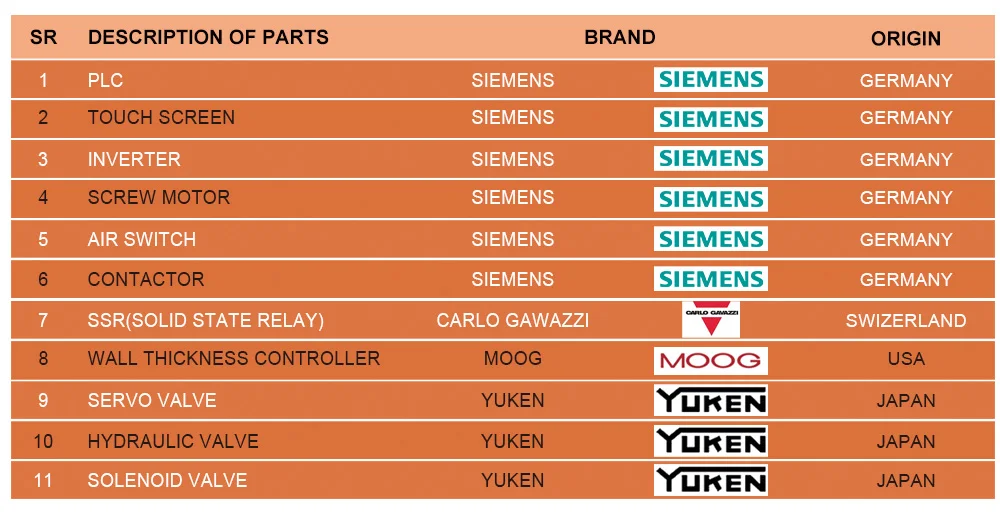

MAIN PARTS

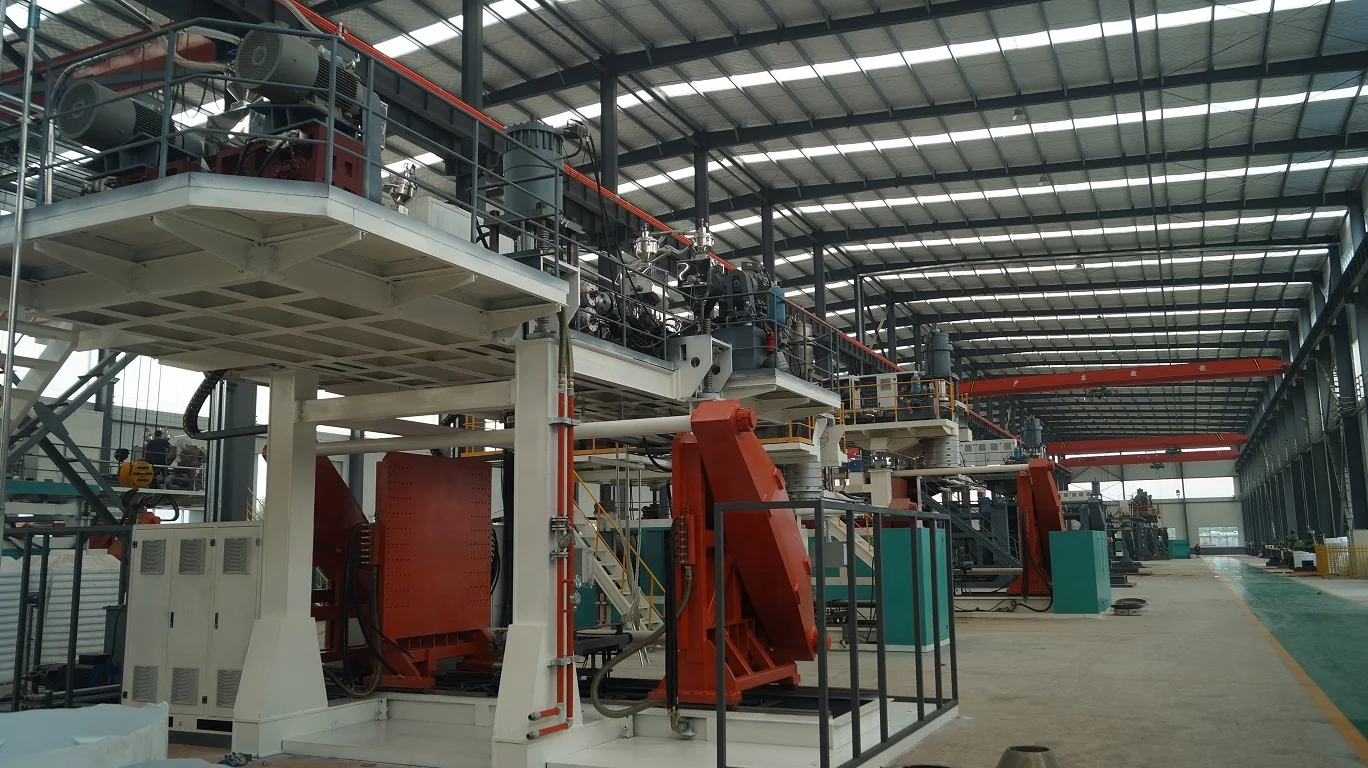

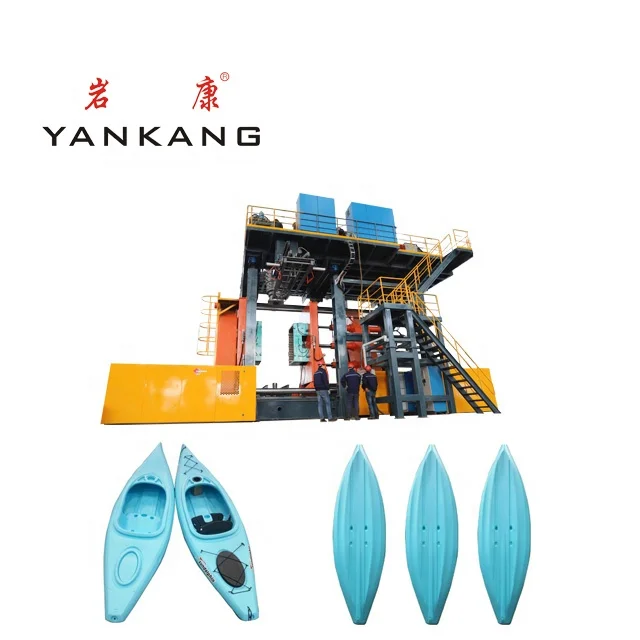

OVERVIEW OF Kayak BLOW MOLDING MACHINE



6.Technical Specification of Kayak 2 Layers blow molding machine.

No		Specifications	KAYAK
		Model No.	2 layers
		Processing material	HDPE/HMWHDPE
1	Extruders	Screw Diameter (Internal layer	110mm Barrier barrel
		Screw Diameter (Outer Layer)	110mm Barrier barrel
		Plasticizing Capacity	500kg/h
		L/D	L/D32:1
		Gear Box Type	Hard surface
		Extruder Drive Motor (outer)	90kw
		Extruder Drive Motor (Inner)	90kw
		Heating Load	80KW
		Max Screw Speed	50RPM
2	Accumulator Die Head	Accumulator capacity	80kgs
		Heating Load	100KW
		Die-Core size	450mm & 710mm
3	Moulding Clamping Unit	Max opening between Clamping Plate	3500mm
		Min opening between Clamping plate	1000mm
		CLAMPING PLATEN Size	1800x4200mm
		Mould Clamping Force	2200KN
4	Take out arm
5	Hopper Loader	Loader	1500kg 1pc
		Hopper	50kg 2pcs
6	Delivery period		5 months
7	Size of Machine	[L xW xH ]  (M)	14*8.5*12m



Training

1. The Buyer could send their operators to the Seller’s factory for training, including machine operation, maintenance & simple repairs.

2. Against the requests of the Buyer, the Seller’s technician could train the Buyer’s operators in the Buyer’s factory in the periods of installing & adjusting.

3. The training is free of charge.



Guarantees

1. The guarantee time is one year after the machines normally works at the Buyer’s factory.

2. After the Guarantee period is over, the seller should still provide services to the buyer in case need arises. The buyer affords the hotel,food and air ticket.

Inspection

1. Seller should issue or apply workable invitation letter so that buyer can apply China visa.

2. Seller should inform of the exact inspection dates so that buyer can make arrangements in advance.

3. Seller should do proper preparation of inspection so that buyer can make the inspection at once, when the buyer reaches seller’s factory

4. If buyer has some special inspection program, they should inform the seller in advance so that the seller can arrange it in advance.

5. Buyer can make both in-line and final inspection. If buyer does not want to do the in-line inspection, then seller should inform the buyer about the progress in the machine with appropriate pictures and videos

6. The seller is required to inform the buyer about the status of the machinery on a monthly basis.

7. Seller affords all the expenses of the inspection, which includes plastic material, power, workers and other needed facilities to the satisfaction of the buyer

8. Final inspection should last enough time in order to test every parameter requested by the buyer.

9. The buyer will test all different molds on the machines to check the quality of all products.

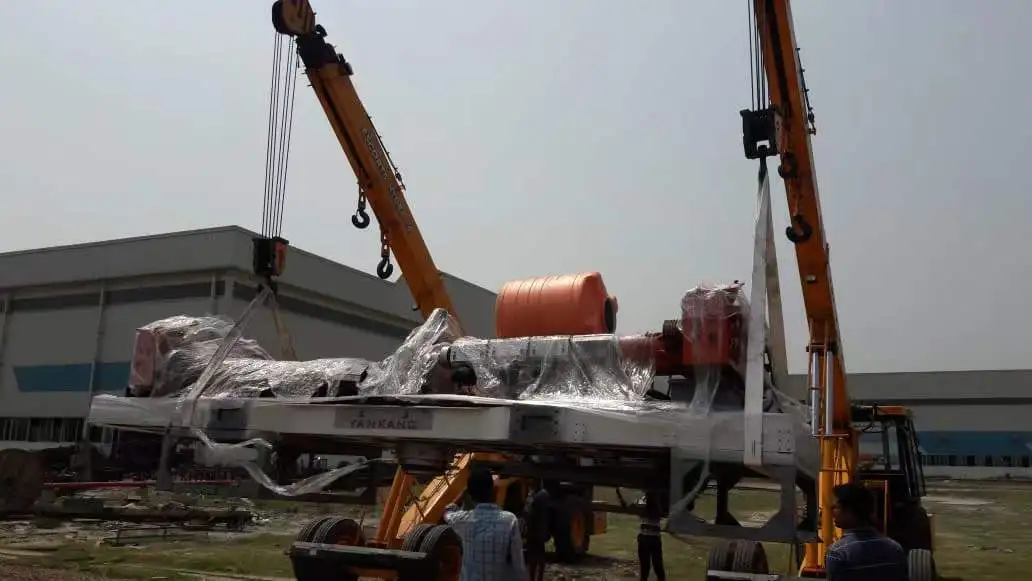

Installation & Adjustment

1. The Seller should send an engineer & his team to install and adjust the machines in the Buyer’s factory.

2. Machine assembly should be instructed by seller’s engineer, buyer can not assemble machine before sellers engineer reaches the factory

3. Buyer should inform seller the exact date on which the products are all unloaded to their factory, so that buyer can arrange the trip for installation to buyers factory.

4. Seller engineer is free of charge for 7-10 days till full installation for machines and successful commercial production.

5. Buyer should provide accommodation & food expense for engineer once sellerr’s engineer arrices buyer’s factory for installation & Adjustment.

6. The seller bears the cost of engineer’s air ticket for the first installatation & adjustment..
