Double sides UV LED dry film Exposure machine for PCB making

Share on:


Price:RUB 1,224,163.20 - RUB 1,912,755.00
Price in USD:Details

Quantity:


Product Overview

Description

Product Application

KST-E10070-XL UV LED Exposure machine is designed and developed by our own R&D Department. It is an ideal equipment for making PCB. This machine is specialized in the mass production of various kinds of dry film, wet film, inner layer and outer layer.

This machine is applied by the PLC control system,Touch screen human-computer control interface. With LED lamp imported from Korea, super power saving, and long service life, with 3 years warranty. High energy, greatly short down the exposure time, main dry film only takes 10s,  Its reasonable design and stable performance improve the work efficiency and the quality of the products greatly.

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Automatic energy calibration and compensation, uniformity>85%, some above>90%

3) LED Technology, power savings, high efficiency, cost effective.

4) Built in temperature monitor module, alarming when LED over temperature.

5) High precision constant current driving power supply design, reducing the current impact of LED, greatly prolongs the LED service life.

Certifications

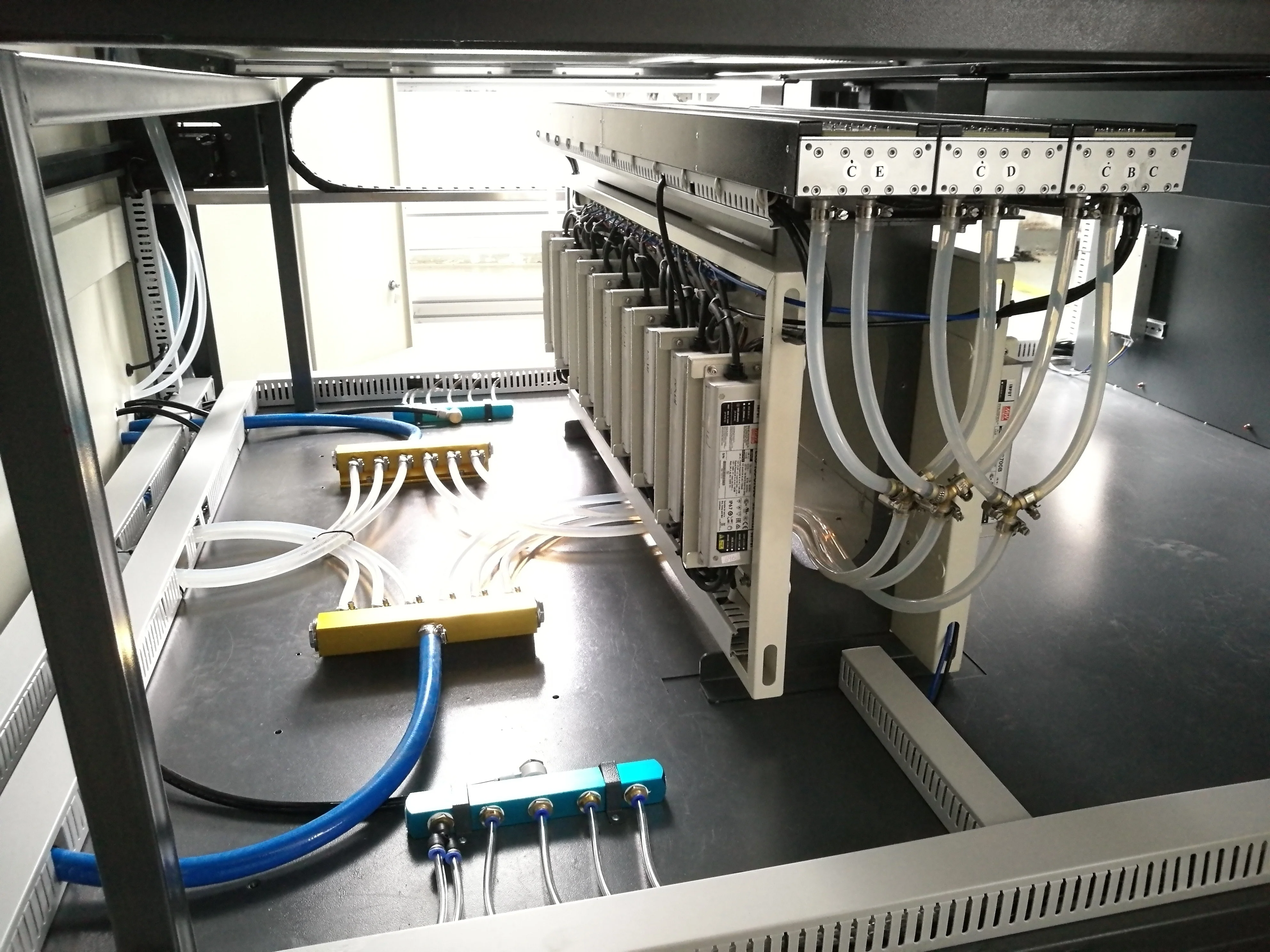

Detailed Images

Machine Parts

Name: UV LED light source

Brand: SVC

Original: Korea

LED Technology, power savings, high efficiency, 3 years no need lamp replacement, cost effective.

Automatic energy calibration and compensation, uniformity>85%, some above>90%

Main Features

Name: Breaker
Brand: Schneider
Original: France
From the Global 500 Companies Schneider, stable performance, good quality, long service life.

Machine Parts

Name: PLC
Brand: Mitsubishi
Original: Japan
Mitsubishi PLC is Easy programming,high-performance, high-speed computation, well-know brand,easy maintain and replacement.

Main Features

Name: Power supply
Brand: Meanwell
Original: Taiwan
Meanwell power supply have the advantage of regulate voltage range large, output current large, stable voltage accuracy high, control property excellent.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
300 (L) * 180 (W) * 190 (D)
Weight
1.2 T



Packaging Details
 Easy rusting in wet condition during the sea shipment, Do the vacuum packing, Protect the machine from the bad condition during the trasportation
Packaging
Size
300(L) * 180 (W) * 190 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden case (Size: 300L*180W*190H). All export wooden cases are composite material.
