1. No drying technology, normal temperature granulating, once forming.
2. Low investment, quick profit, good economic returns, etc.
3.Combine granulating,forming,screening into one machine,making beautiful appearance granules, easy operation and low energy consumption, etc.
4.Especially, DZJ 5.0not only has the above features, but also upgrades its rack.The bearing frame body is
made of high quality and anticorrosive cast materials, so that it become more stable and extends the roller’s service life.
Parameters of the granulator
Model
DZJ~I 1.0
DZJ~I 2.0
DZJ~I 3.0
DZJ~I 4.0
DZJ~II 1.0
DZJ~II 2.0
Product capacity(t/h)
1~1.5
1.5~2.5
2.5~3.5
3.5~4.5
1~2
1.5~2.5
Power
15KW
18.5KW
30KW
45KW
15KW
18.5KW

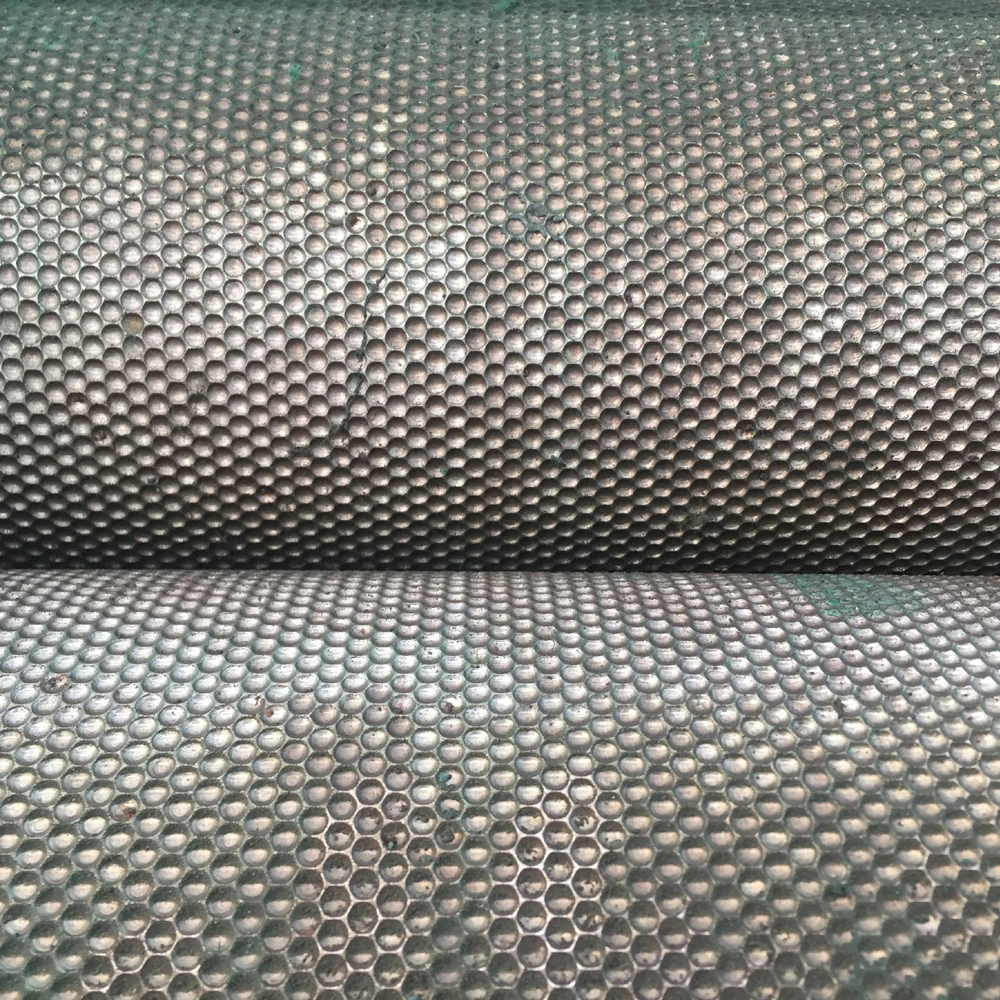

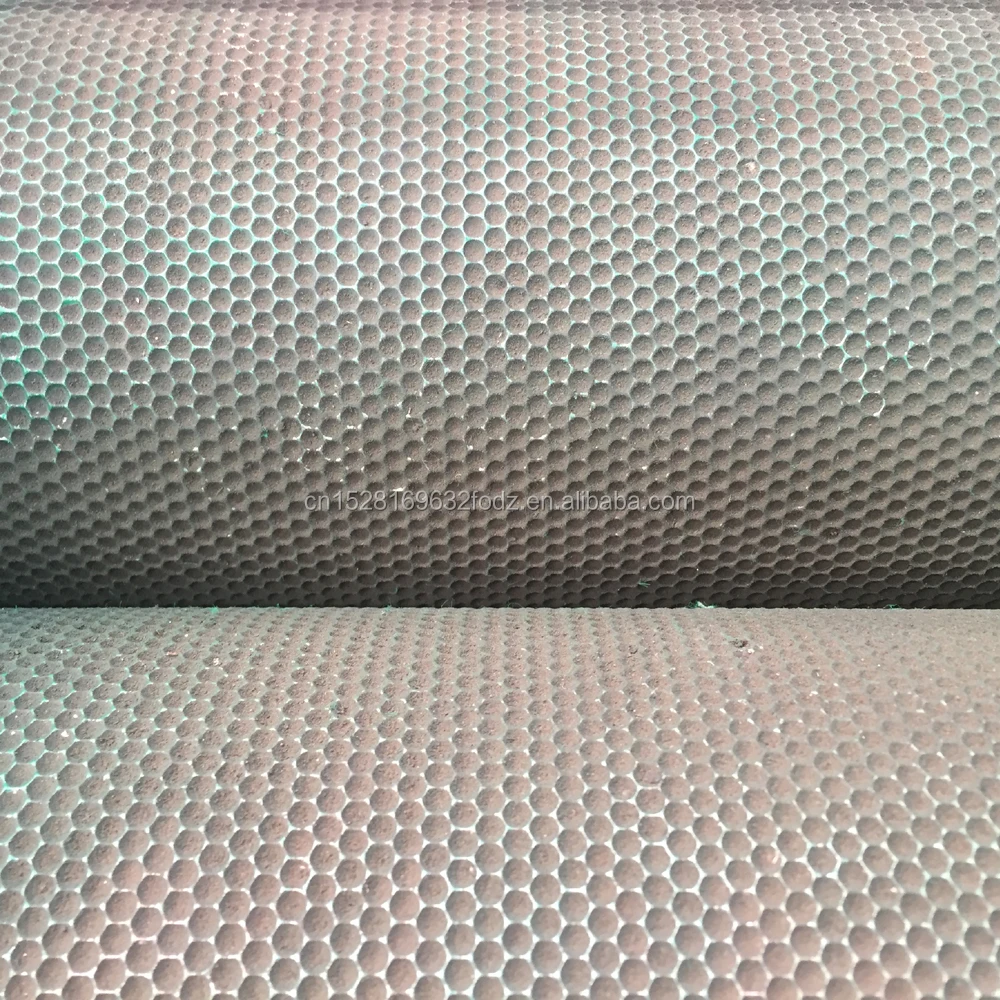

Pressure roller Spececification
Φ150×22O
Φ150×30O
Φ186×30O
Φ300×30O
Φ150×22O
Φ150×30O
Feed size
≤0.5mm
≤0.5m
≤ 0.5mm
≤ 0.5mm
≤0.5mm
≤0.5mm
Finished product Spec
Φ2.5~Φ10
Φ2.5~Φ10
Φ2.5~Φ20
Φ2.5~Φ30
Φ2.5~Φ10
Φ2.5~Φ20
Speed reducer Model
ZQH350
ZQH400
ZQH400
ZQH500
dedicated
dedicated
Material moisture content
2%~5%
2%~5%
2%~5%
2%~5%
2%~5%
2%~5%
Features of granulator
1,Simple machine structure
2,Easy operation and maintenance
3,Low power consumption
4,Once forming,no drying process,normal temperature granulating
5,Long service life
Packaging & Shipping
Packing details
standard export packing; nude packing, wood case package
Delivery time
within 5 - 25 days after order confirmed

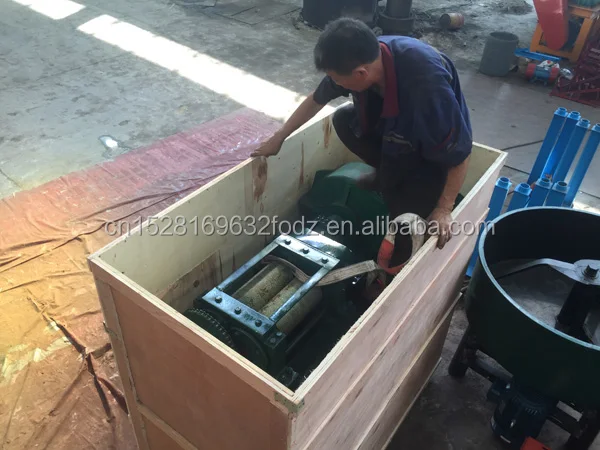

Double roller granulator packed in wood case
Our Services
Pre-sales service:
Be a good consultant and assistant to customers, to ensure our customer's investment rewarded with great profit.
On-sales service: Every customer is respected and convenience and reliability will be provided. We are devoted to helping you to benefit as much as possible.
After-sales service: 1. Installation, adjustment, and testing of equipment is available. 2. Train of technicians and workers at site is promised.
