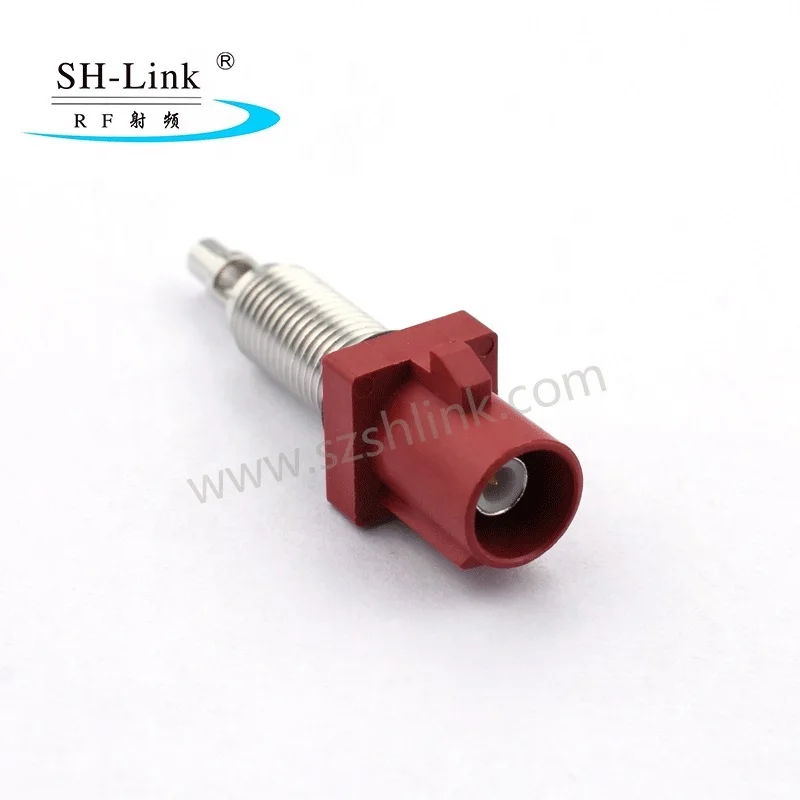

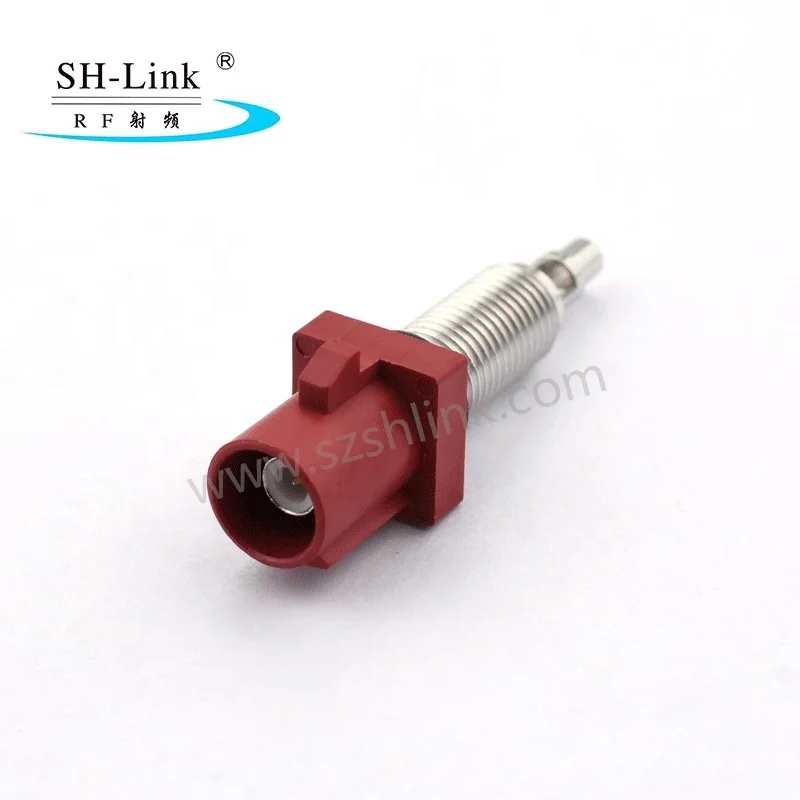

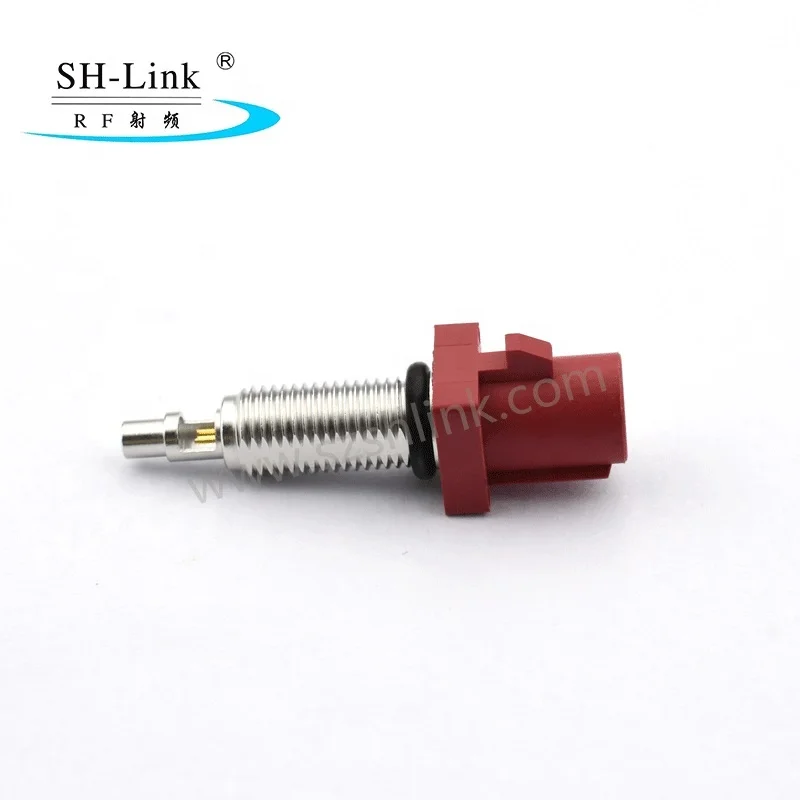

FAKRA L type male connector with screw thread for SH Link

Product Overview

Description

FAKRA L type male connector with screw thread for SH-Link

Embedded within a plastic housing which features multiple color codes for easy identification and unique keying to prevent mis-mating, FAKRA connectors are designed to perform up to 3 GHz and meet the particular mechanical and environmental requirements of the automotive industry.FAKRA connectors are used in Automotive,Global Positioning Satellite,Satellite Radio,Bluetooth,Infotainment Systems.

Technical Characteristics:

Impedance		50 Ω
Frequency Range		0 -4GHz
Working Voltage		335V r.m.s at sea level
Dielectric Withstanding Voltage		1000V r.m.s at sea level
Contact Resistance	Center contact	≤20m Ω
	Outer contact	≤10m Ω
Contact Pin		Brass-Au / Ag plated
Insulation resistance		≥1000M Ω min
Center Conductor Retention Force		≥0.28N
Voltage Standing Wave Ratio	Straight	≤ 1.10+0.02f
	Right angle	≤ 1.20+0.03f
Durability(mating)		≤100 mating cycles min
Body		Brass--gold plated
Contact		Beryllium copper
Insulator		PTFE
