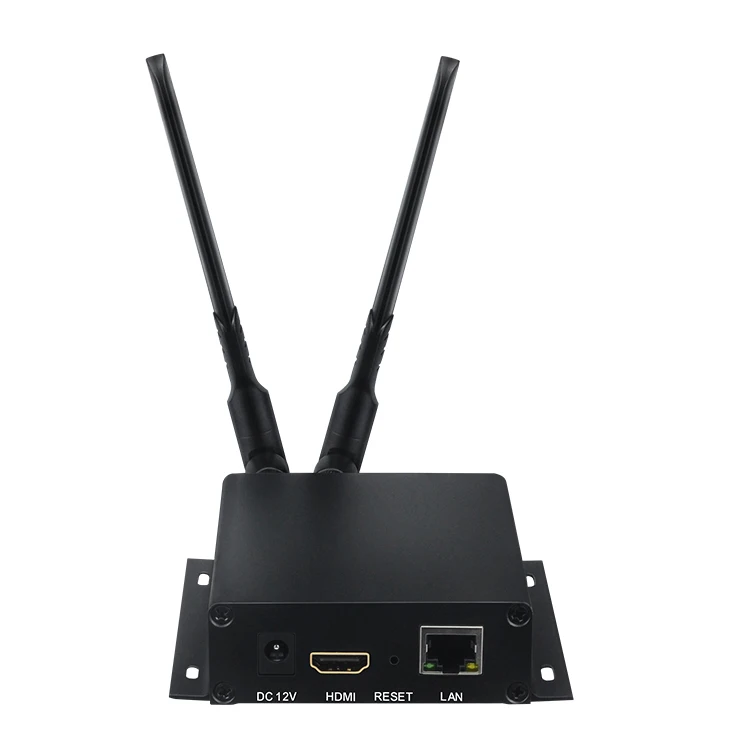

WIFI audio streaming H.264 HDMI wifi IP streaming h264 encoder
WIFI audio streaming H.264 HDMI wifi IP streaming h264 encoder
WIFI audio streaming H.264 HDMI wifi IP streaming h264 encoder
WIFI audio streaming H.264 HDMI wifi IP streaming h264 encoder
WIFI audio streaming H.264 HDMI wifi IP streaming h264 encoder
WIFI audio streaming H.264 HDMI wifi IP streaming h264 encoder
WIFI audio streaming H.264 HDMI wifi IP streaming h264 encoder

WIFI audio streaming H.264 HDMI wifi IP streaming h264 encoder

Share on (62240091062):


Price:$90.00 - $115.00

Quantity:


Product Overview

Description


WIFI audio streaming H.264 HDMI wifi IP streaming encoder





Product feature:                                                                                                              1. Supports 720P/1080P input. Supports Blue ray HD.


2. Supports 1-channel HDMI input, supports SDI/VGA/CVBS to HDMI input.


3. Supports WINDOWS and LINUX systems.


4. Multiple devices can be displayed on one computer.


5. Supports RTSP, RTP, HTTP, RTMP, UDP protocols, unicast or multicast. RTMP supports adding user and password. Supports DHCP, Onvif,


6. Supports dual main and second streams.


7. Supports Wowza/FMS/RED5/Vstream/Youtube Live, works with media server, can realize live streaming.


8. Encoder status display.


9. Encoding format: H.264/H.265, MP3 and AAC audio. Sampling rate: 32000, 44100 etc. Audio bit rate after encoding: 48K, 64K, 96K, 128K, 160K, 192K, 256K.


24

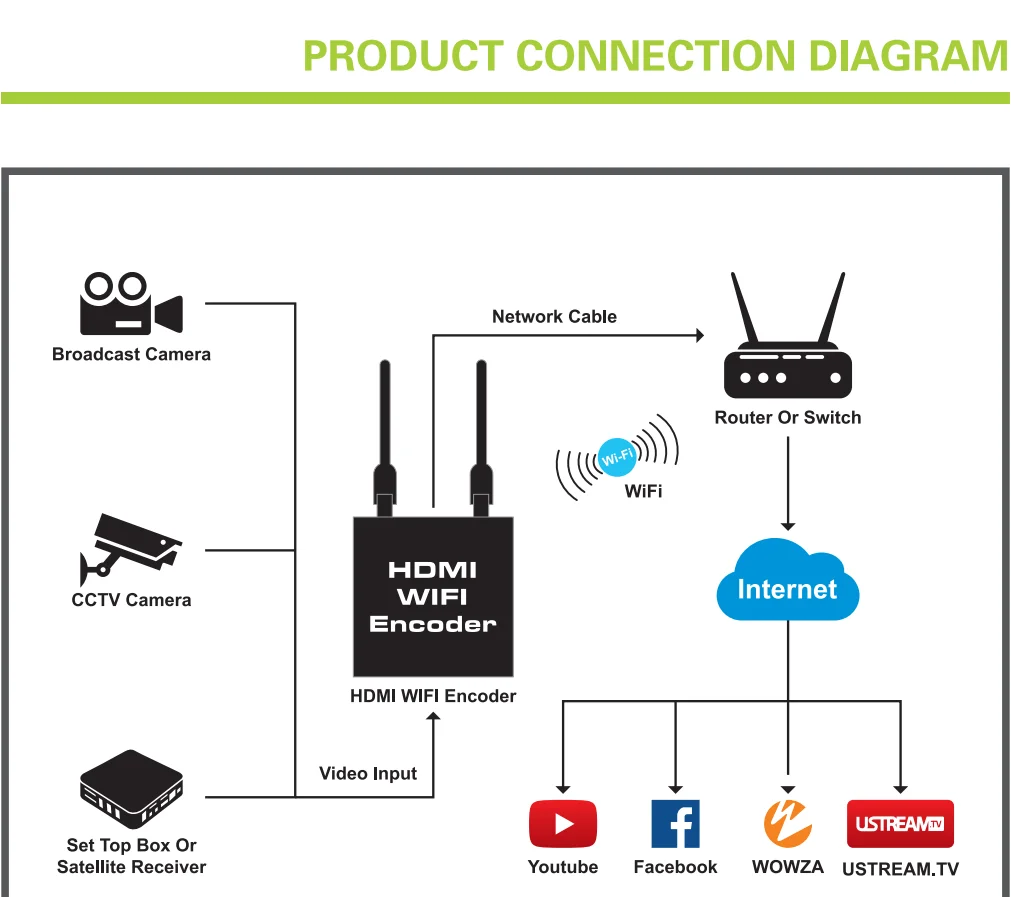

WIFI Encoder.jpg





Parameters:



































































































































































































Specifications



Parameter



Audio and video input



Video input



1-channel HDMI






Audio input



1-channel HDMI built-in audio



1-channel 3.5mm external audio



Video coding



Coding type



H.264



H.264 level



Baseline /Main /High Optional



Coded frame rate



5-60 Adjustable



Key frame interval (frame)



5-300 Adjustable



Bit rate (kbit)



32-32000 Adjustable



Coding resolution



1920x1080/1680x1056/1280x720/1024x576/850x480/720x576



Code stream control



CBR/VBR Optional



flow



RTMP/ RTSP /HTTP TS/HTTP FLV/HLS/UDP Multicast/RTP Multicast



Audio coding



Audio input



Digital / analog / hybrid



Coded sample rate



44100/48000 Optional



Coding method



AAC/AAC+/AAC++/MP3/MP2/AC3 Optional



Coding bit rate



AAC:48000-256000 Adjustable/AAC+:24000-48000 Adjustable/


AAC++:12000-32000 Adjustable/MP3:64000-320000 Adjustable/


MP2: 64000-320000 Adjustable/ AC3:40000-640000 Adjustable



Digital volume



-50~50Adjustable



RTSP stream use G711A code



Disable/enable optional



WIFI



WIFI Module



Disable/enable optional



Chip model



RTL8192DU



WLAN standard



IEEE802.11a/b/g/n



Transmission rate



300Mbps



Antenna connection



external



Working frequency



2.4GHz/5GHz



RF antenna



2T2R



WIFI mode



STA/AP



WIFI DHCP



Disable/enable optional



WIFI



WIFI main configuration/WIFI standby configuration 1/WIFI standby configuration 2/ AP mode



OSD



transparency



0-128 Adjustable



Types



Text/picture/scroll text



region



4 areas available



X coordinate



0-1920



Y coordinate



0-1080



LOGO



Upload 4 LOGO options



font size



8-72



Background color



Transparent / white / black



font color



RGB color optional



Others



Network



1000M



Configuration management



Configuration management through WEB



ONVIF



Support ONVIF to browsing videos



Power Adapter



12V/DC,2A



Power consumption



<5W



Operating temperature



-20℃+60℃



Working humidity



<90%,No condensation

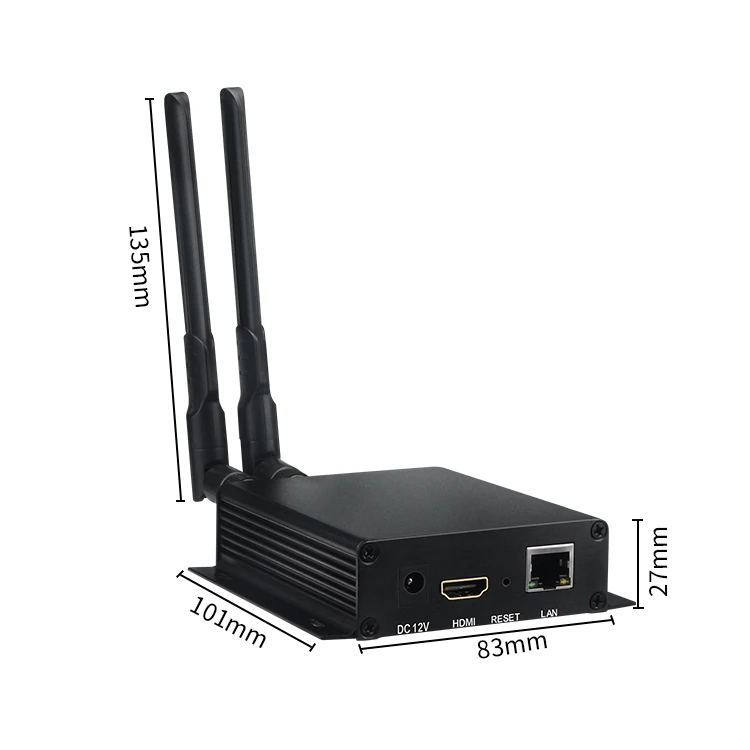

Size



107X80X30mm



Weight



266g

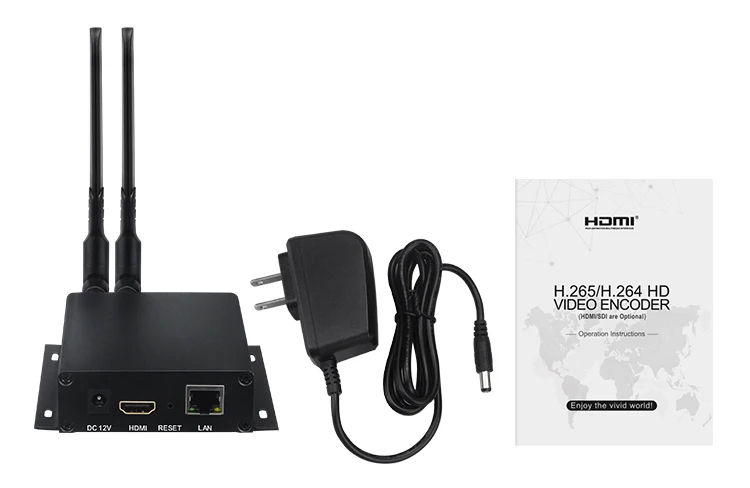

Package Contents:





1. H.264 HDMI WiFi encoder 1080P   x1


2. User Manual     x1


3. Power Adapter   x1






Product Description


H.264 1080P _13H.264 1080P _14H.264 1080P _08H.264 1080P _09H.264 1080P _05


H.264 1080P _06


H.264 1080P _07


H.264 1080P _10


H.264 1080P _15





Related Products

























Company Information





_01(1)_02(1)








FAQ


1.Can this support HLS protoclo?
Yes, it can support with HL S(Any iOS browsers are able to have streams from IPTV Streaming Encoder in Any-time, Anywhere without install any software players),HTTP/UDP/RTSP, RTMP(Best choice for the Facebook,YouTube Live) ONVIF protocols.





2. Can this device stream to the Facebook, YouTube and so on?
Our Streaming encoder series products have been working closely with the world-renowned StreamingMedia Platform for many years. With perfect compatibility,It could be pushing stream to the Facebook, YouTube,Ustream, Wowza server





3. How and where can I set up the device? Is by software?
The Streaming encoder is set up by Web-management. lt's very easy for operation.
An User Manual which has detailed t-utorial will be shipped with encoder. Also our professionaltechnical are willing to be of help





4.How is the delay?
Over the years, our R&D department keeps working on decrease the delay. Now the delay of our encoder is lessthan 100 msec(teseted by LAN, except the HLS protocol).If the result turns out the delay is more than that, could becaused by the internet or decoder.
