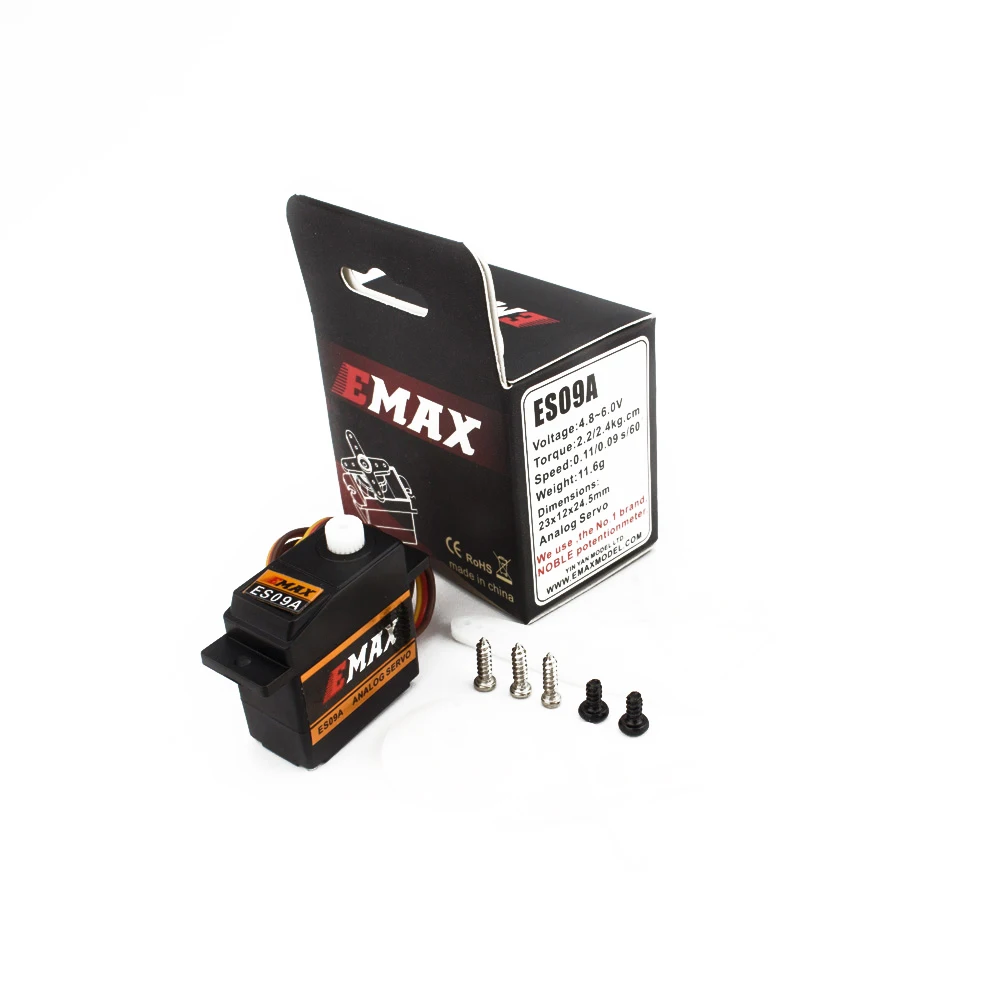

Factory Price Emax ES09A Dual Bearing 450 Size 2.4kg / 0.9sec RC Helicopter Swash Servo
- Category: >>>
- Supplier: Dongguan Yinyan Electric Tech. Ltd.
Share on (62240119613):
Product Overview
Description
Wholesales Emax ES09A Dual-Bearing Size 2.6kg.cm max / 0.09sec for 450 RC Helicopter Swash Servo High Quality servo
Brand:Emax
Item: ES09A Servo
Weight: 11.6g
Usage: General Usage For RC Helicopter car boat airplane robot,etc
Working Environment | ||||
No. | Item | Temperature | ||
1 | Storage temperature Range | -20℃~70℃ | ||
2 | Operating temperature Range | -10℃~60℃ | ||
Electrical Specification (Function of the Performance) | ||||||
No. | Item | 4.8V | 6V | |||
1 | (±10%)Operating speed (at no load) | 0.11 sec/60° | 0.09 sec/60° | |||
2 | Running current (at no load) | 300mA Max | 350mA Max | |||
3 | Stall torque | 2.3kg.cm Max | 2.6kg.cm Max | |||
4 | Maximum current/Stall current (at locked) | 1.1A Max | 1.3A Max | |||
5 | Idle Current | 6.5mA | 6.5mA | |||
Mechanical Specification | ||||
NO. | Item | Specification | ||

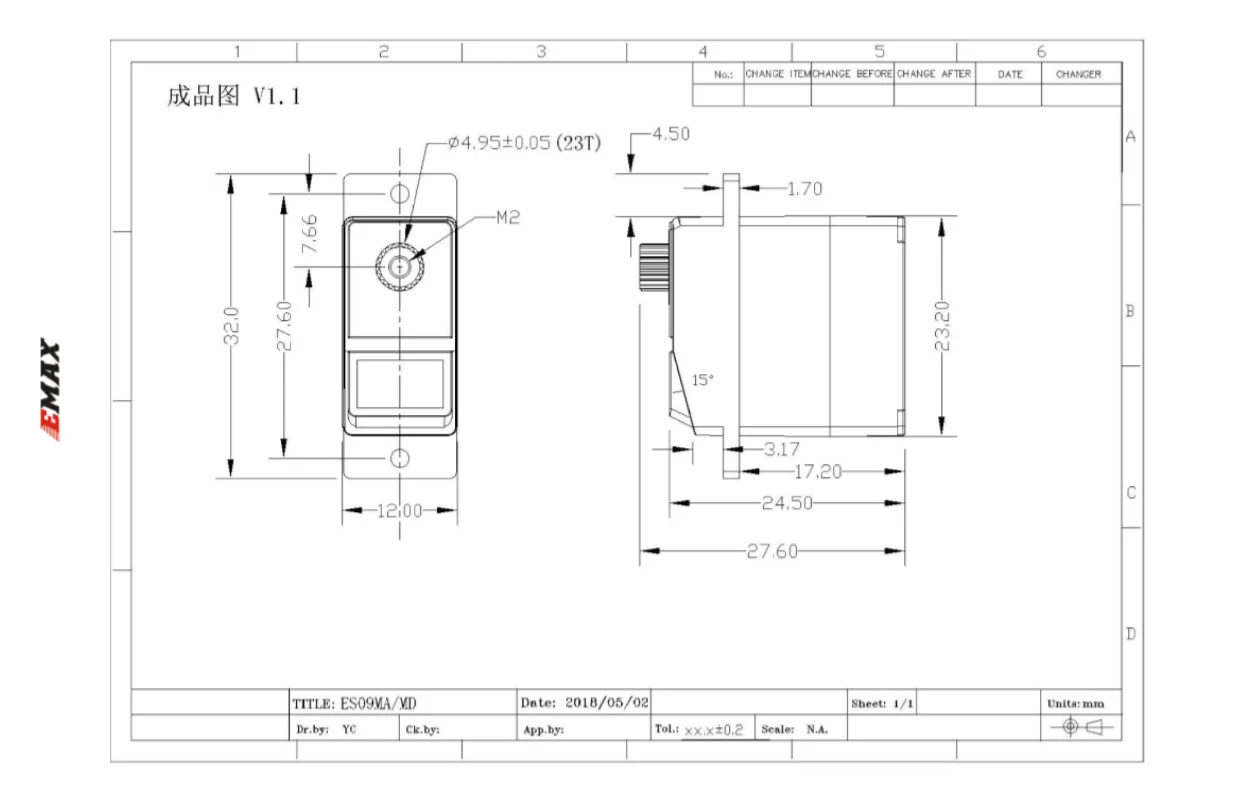

1 | Overall Dimensions | See chart below | ||
2 | Weight | 14.5±0.5 g | ||
3 | Connector wire gauge | JR | ||
4 | 3P Connector wire length | 250±8(terminal excluded) | ||
5 | Flower Head | 21T | ||
6 | Bearing | 2BB | ||
7 | Gear Type | plastic gear | ||
8 | Extreme angle | 220° | ||
Control Specification | ||||
NO. | Item | Specification | ||
1 | Control system | PWM | ||
2 | Operating travel | 90° ±10°( when 1000-2000 μ sec ) | ||
3 | Neutral position | 1500 μ sec | ||
4 | Rotating direction | Counter Clockwise / Pulse Traveling 1500 to 1900 μ sec | ||
5 | Pulse width range | 700-2300 μ sec | ||
6 | Maximum travel | 145° ±10°( 700-2300μ sec ) | ||

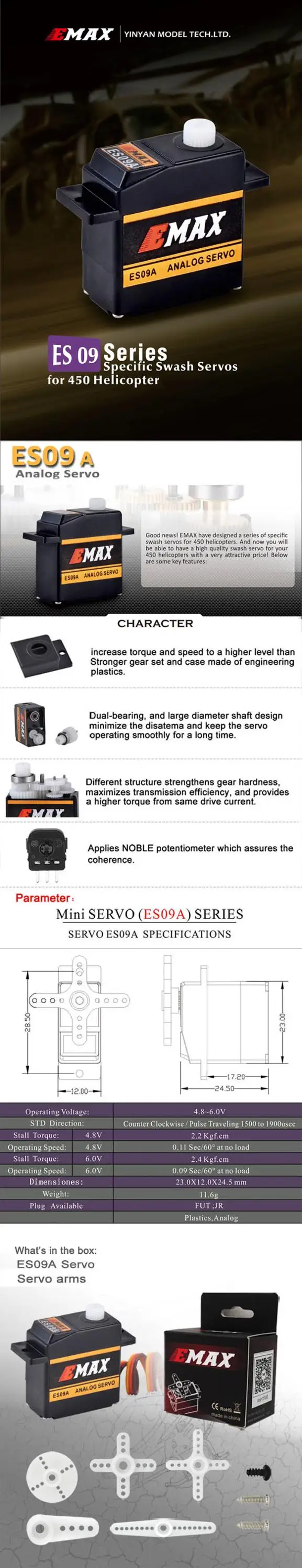

Products Show

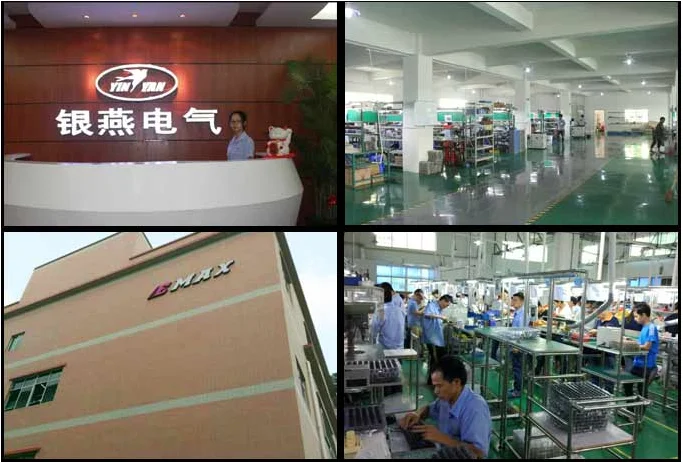

Our Company
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample. But need to charge the product price and the cost of freight.
Q: What is your terms of payment ?
