Dual LANs HD VGA portable mini pc GPIO DDR3L Linux Intel J1900 barebone server 4G SIM card 8 bit used gaming computer
- Category: >>>
- Supplier: Shenzhen Eglobal Import And Export Co. Limited
Share on (62240211126):
Product Overview
Description
Dual LANs HD VGA portable mini pc GPIO DDR3L Linux Intel J1900 barebone server 4G SIM card 8-bit used gaming computer
Products Description
Specifications
General | |

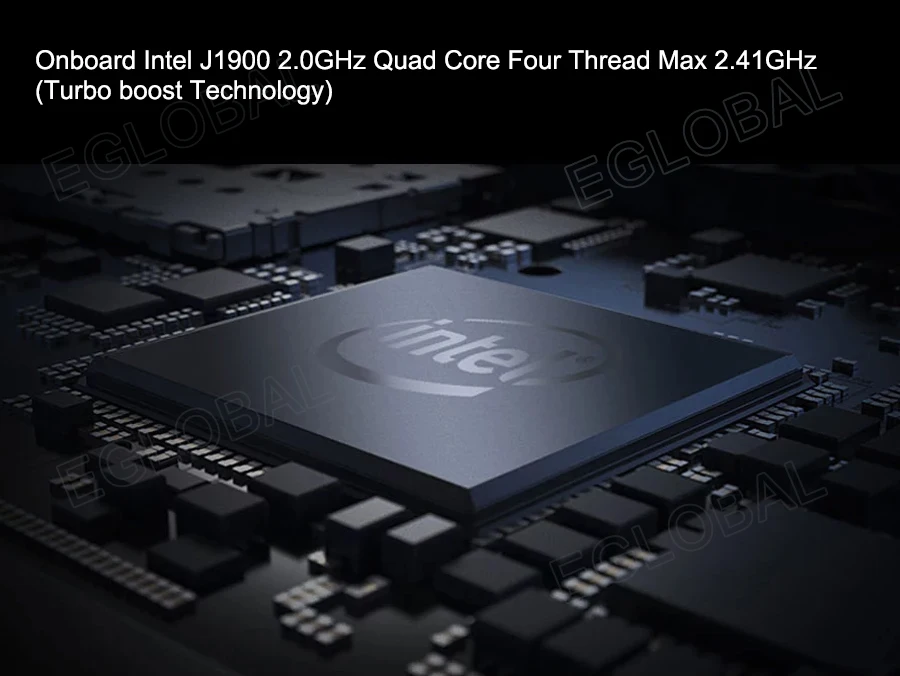

CPU | Onboard Intel J1900 2.0GHz Quad Core Four Thread Max 2.41GHz(Turbo boost Technology) |
Core (FSB) | 100MHz |
CPU Technique | 22nm |
L3 Cache | 2 MB, CPU integrated |
Motherboard | Intel CRESCENTBAY ( Lynx Point-LP ) Support GPIO |
BOIS | AMI BIOS, ACPI supported Support Auto power on |
Chipset | Intel BTY SOC |
Memory | 1* SO-DIMM DDR3L Slot Support 4GB/8GB DDR3L 1333 |

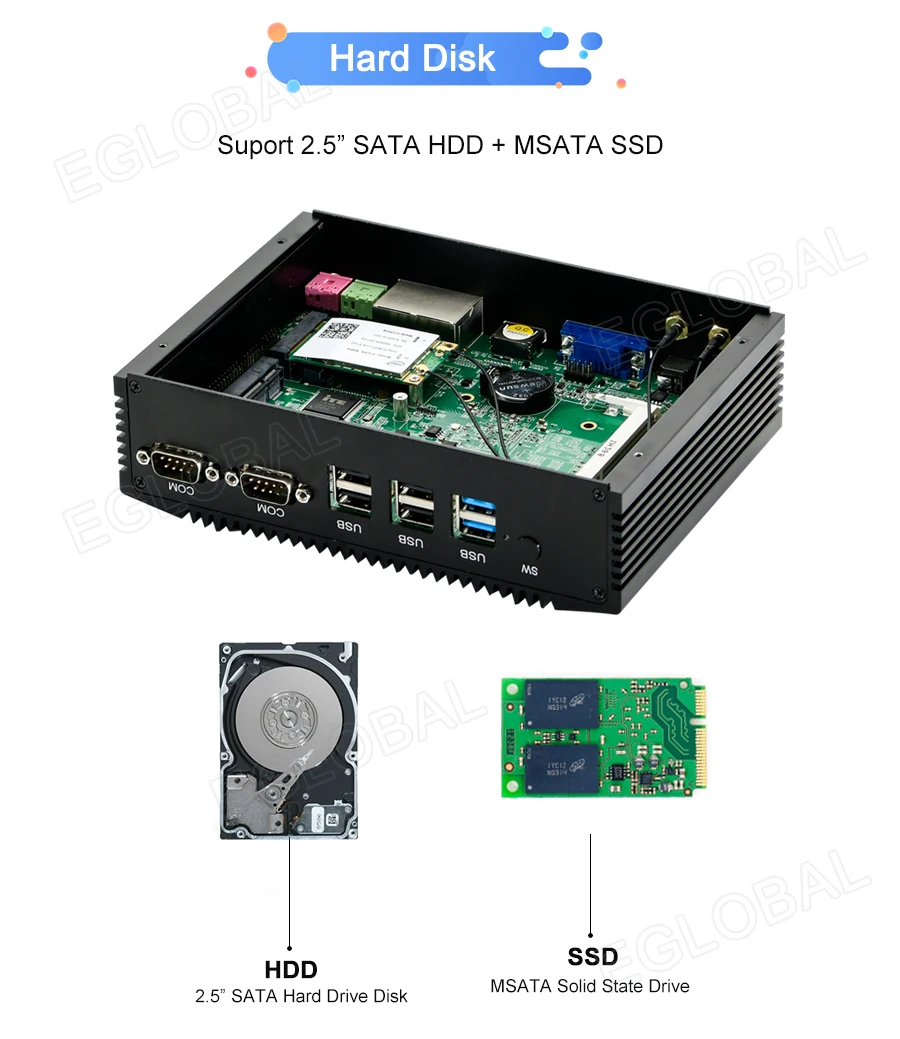

Storage | 1*MSATA SSD: 8G/16G/32G/64G/128G/256G/512G/1TB 1*SATA HDD: 160G/320G/500G/1TB |

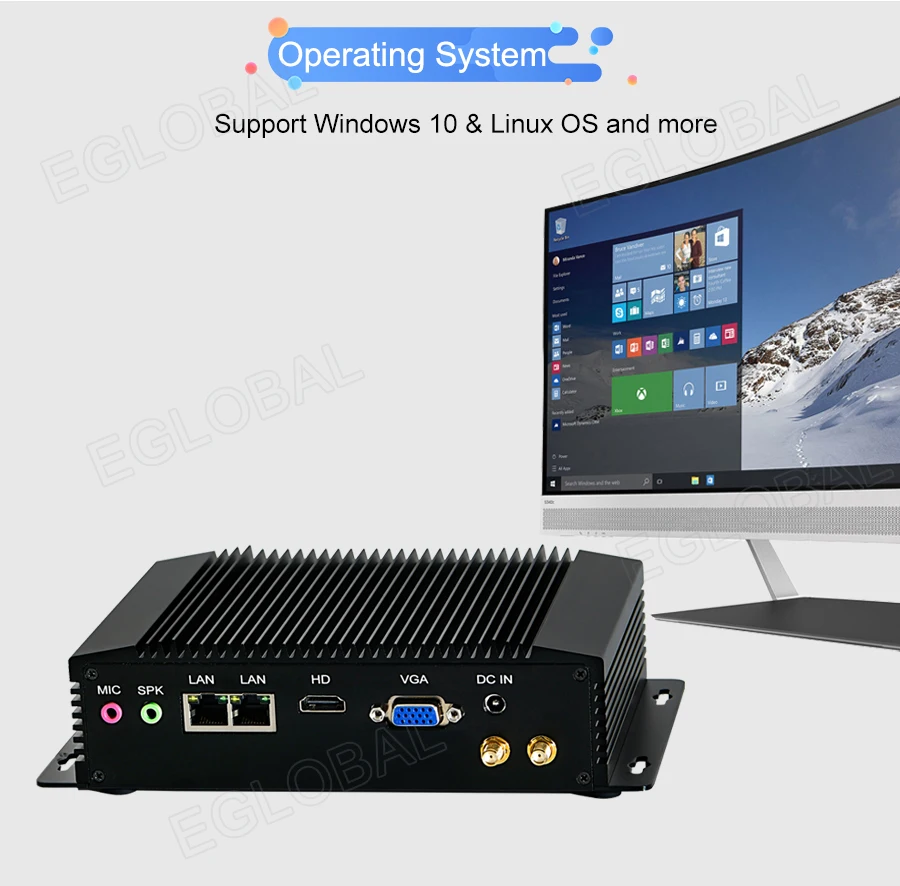

Operating System | Win7/8/10/Linux |
Audio | ALC662 HD Audio, 6 channel sound |

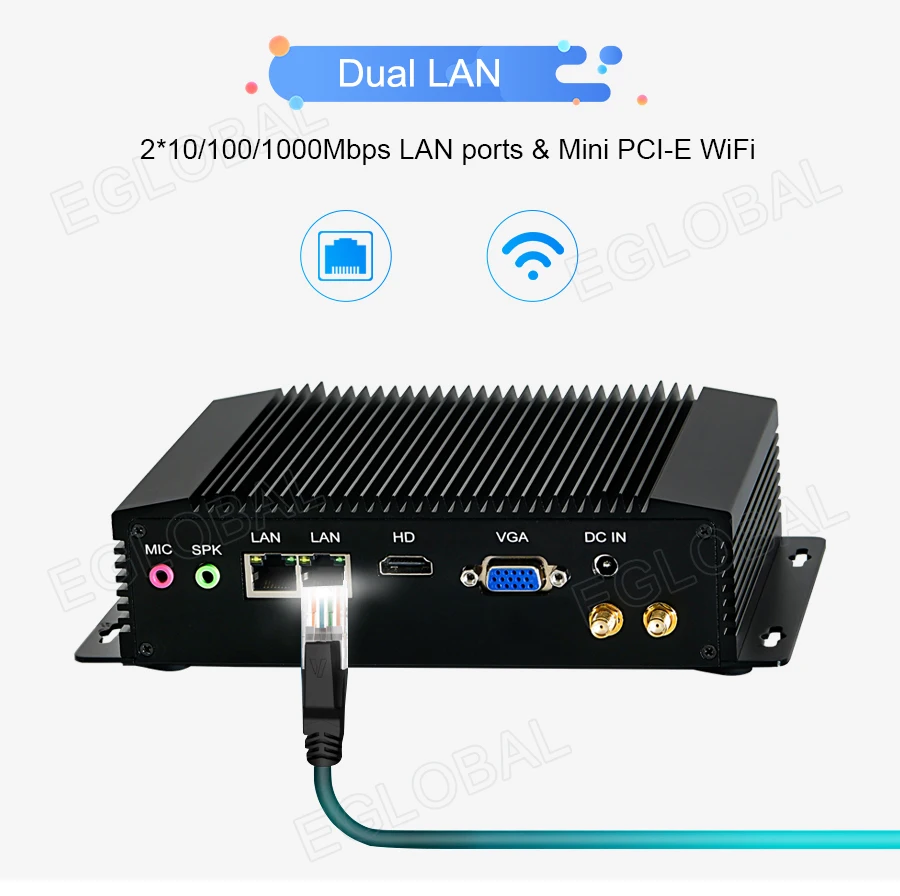

Network | Onboard Intel i211 Gigabit Network Connection 10/100Mbps/1000Mbps BaseT LAN |
Video | Intel Haswell- ULT Integrated Graphics Controller Intel HD Graphics |
I/O port | |

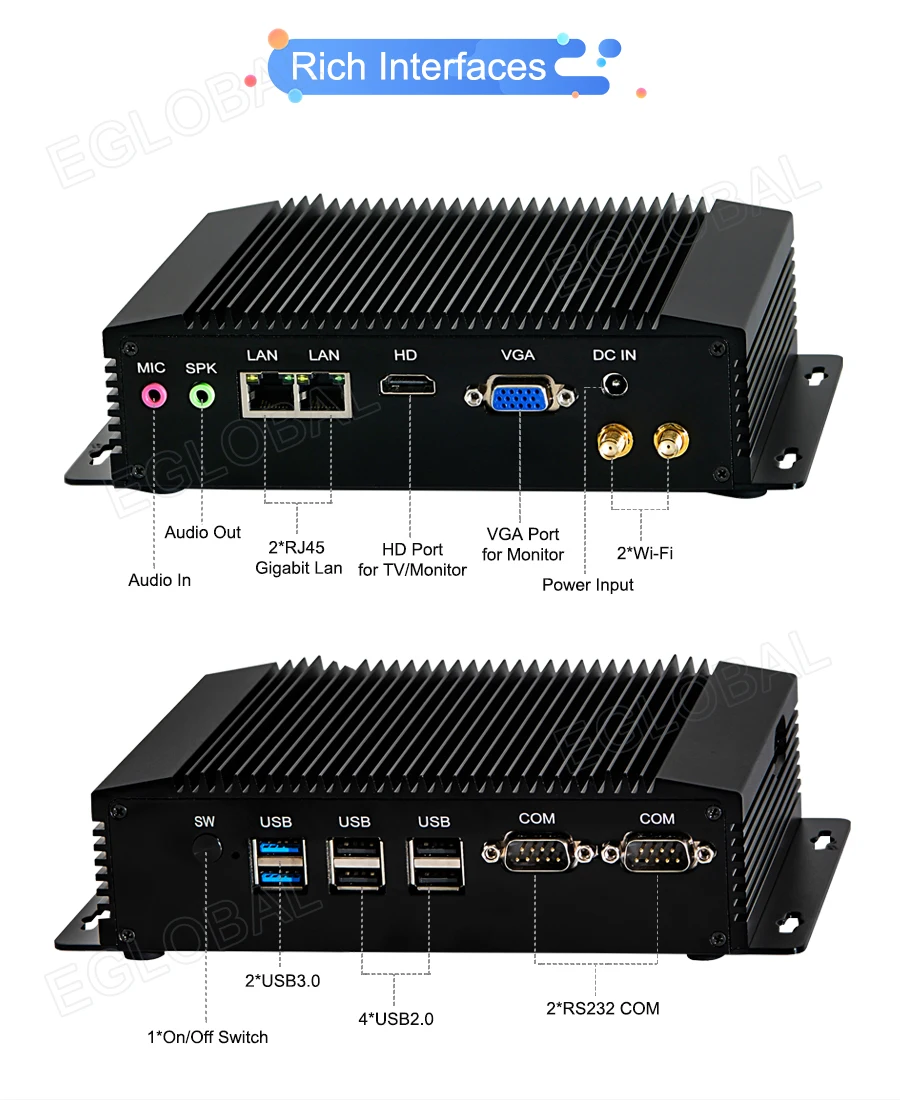

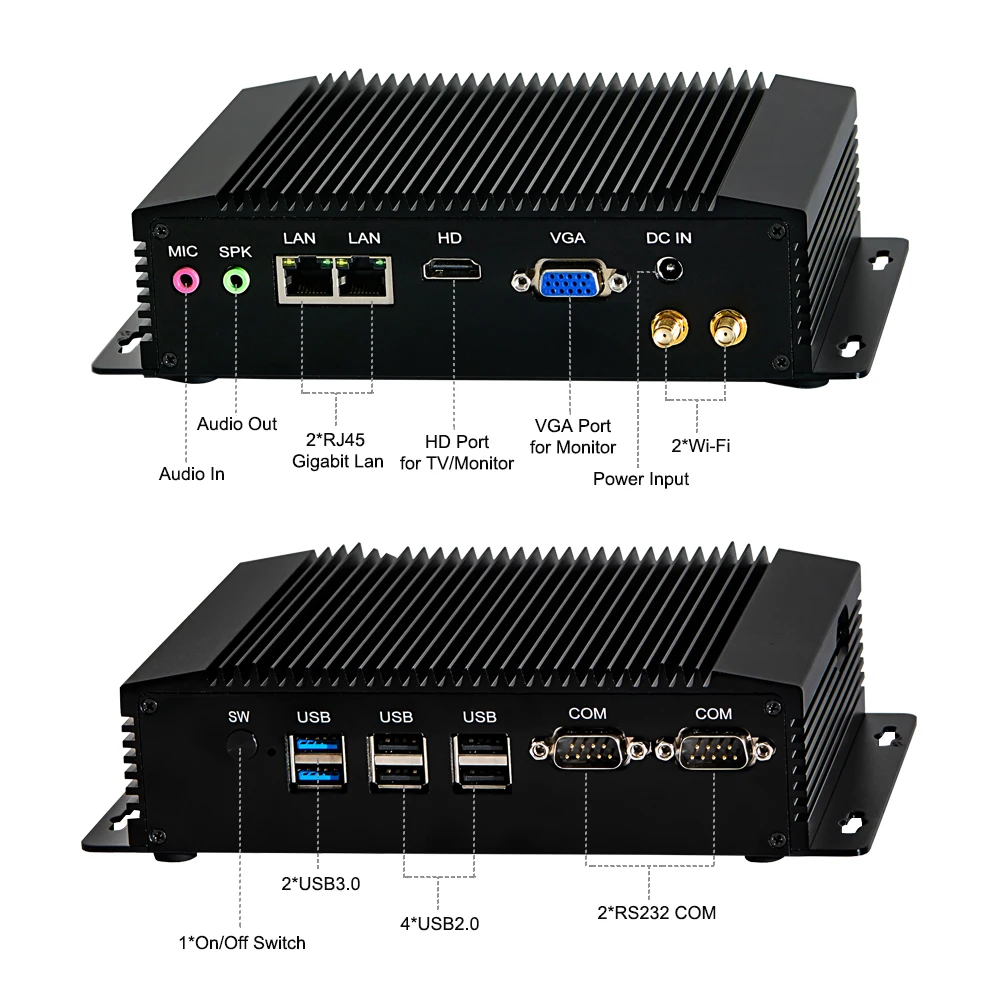

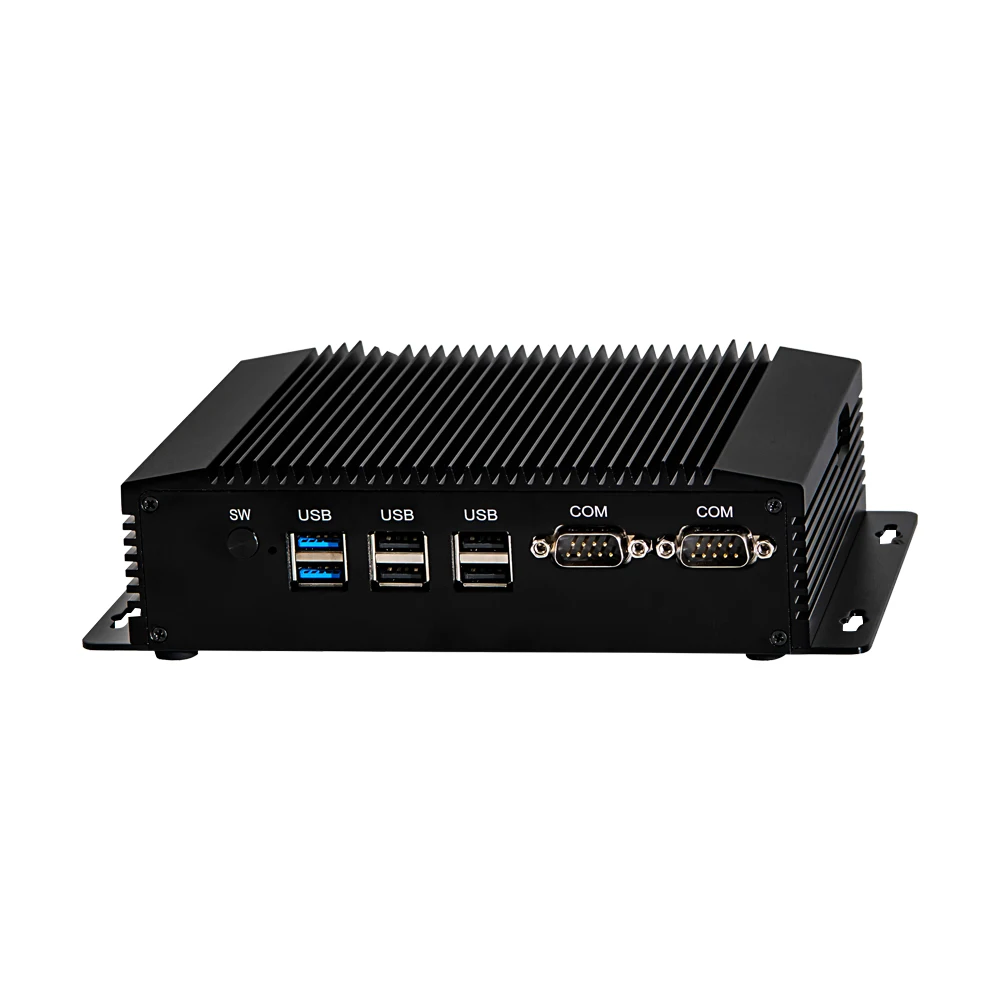

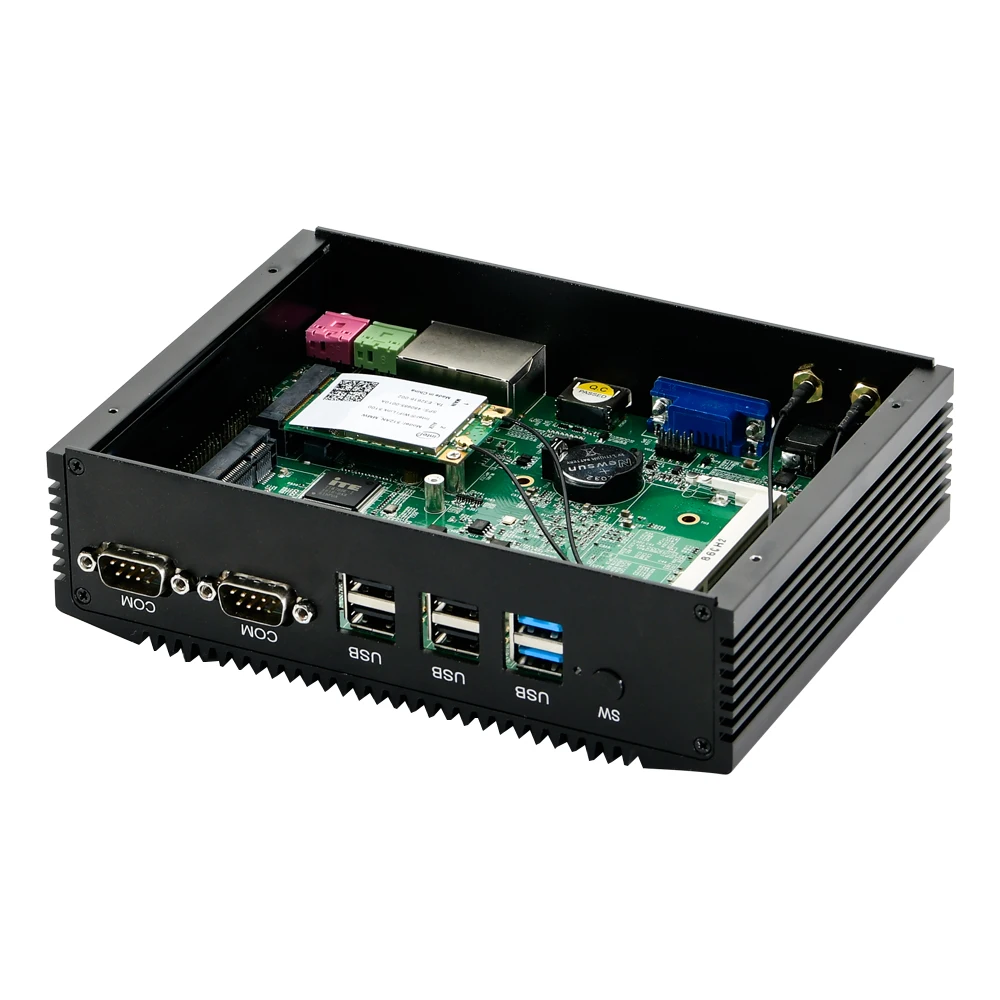

front panel ports | 1* Switch On/Off, 1*LED, 2*USB3.0, 4*usb2.0, 2*RS232/422/485 COM |

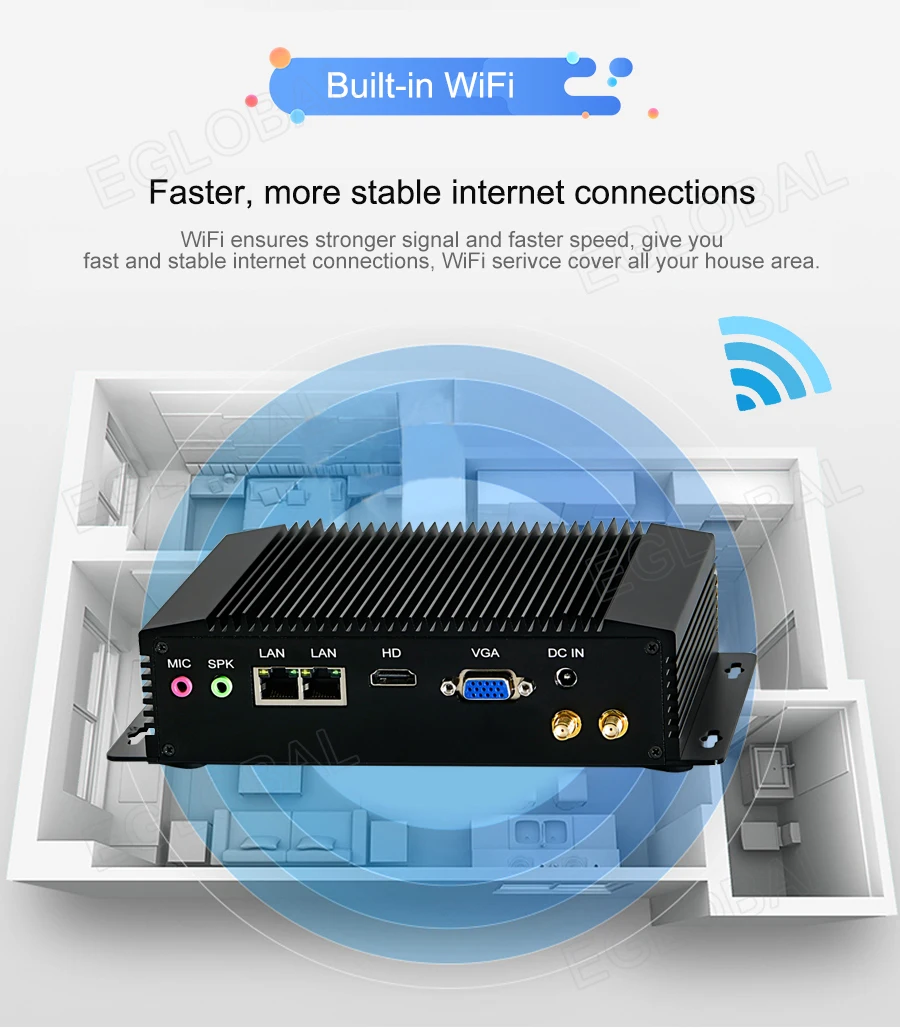

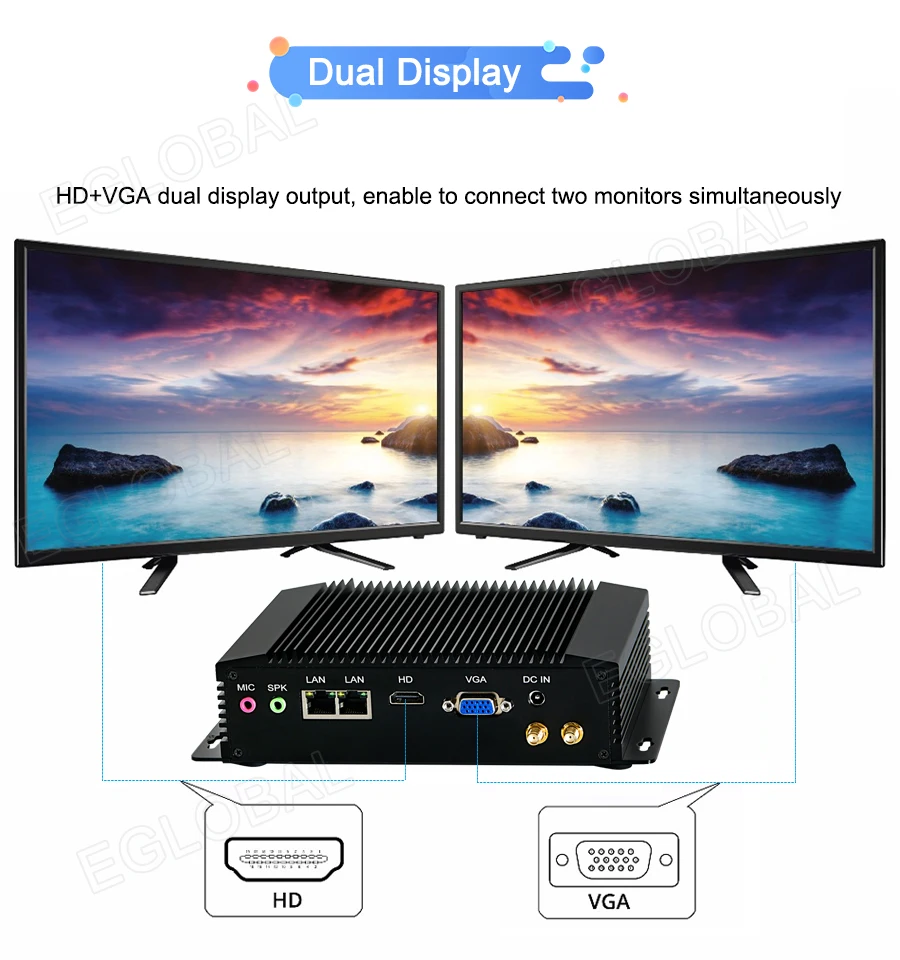

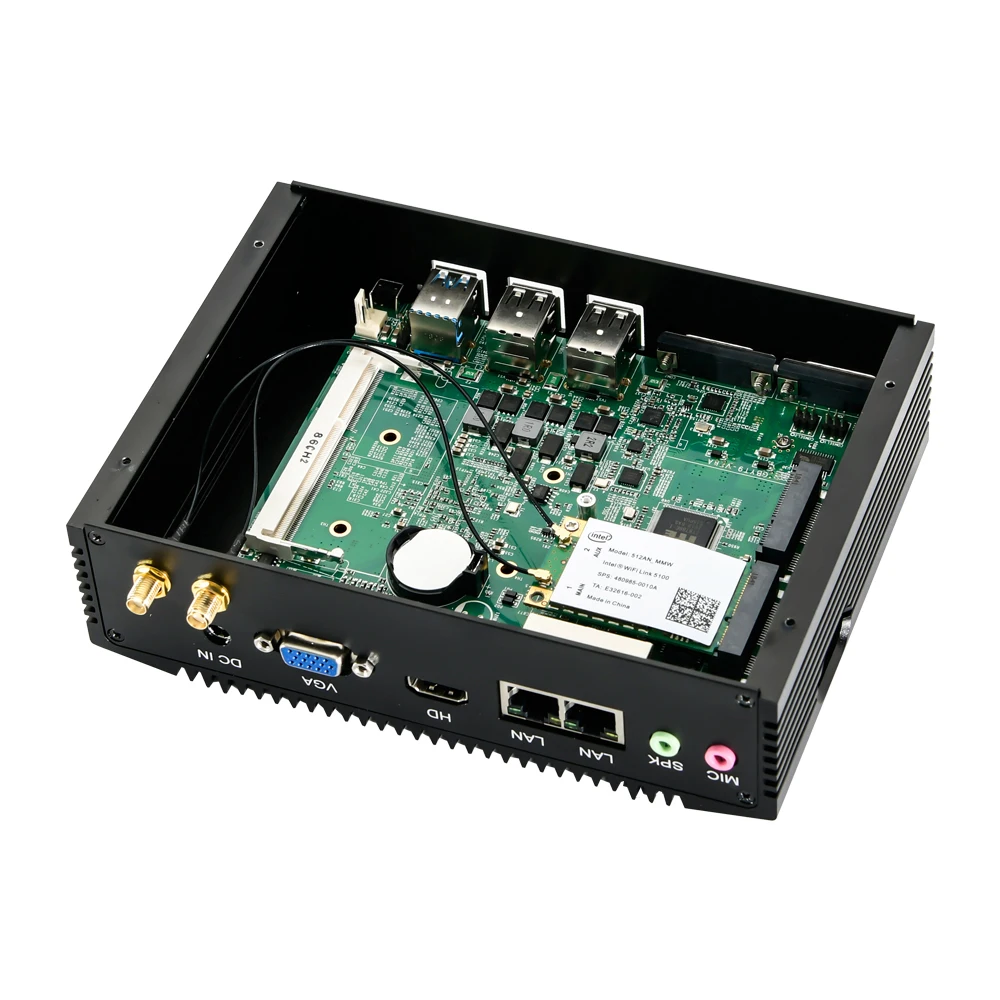

Backside ports | 1*MIC, 1*SPK, 2*RJ45 LAN, 1*HD, 1*VGA, 1*DC IN, 2*Wi-Fi |
COM | 2* RS232/RS422/RS485(convert from BIOS) |
Internal ports | 1*M-SATA3.0 port, support 6Gb/s 1*SATA3.0 port, support 6Gb/s 1*mini PCIE-half port for WiFi module 1*mini PCIE-full port for 4G module |
SIM slot | Micro SIM, with PUSH function(on the side) |
Power and Working Environment | |
Input | DC100-240V AC/50-60Hz |
Output | DC 12V/5A |
Operating Temperature | -10/+60 Centigrade(22°F~130°F) |
Storage Temperature | -20/+80 Centigrade (-68°F~176°F) |
Relative Humidity | 10%~90% (non-condensing) |
Product Dimension & Details | |

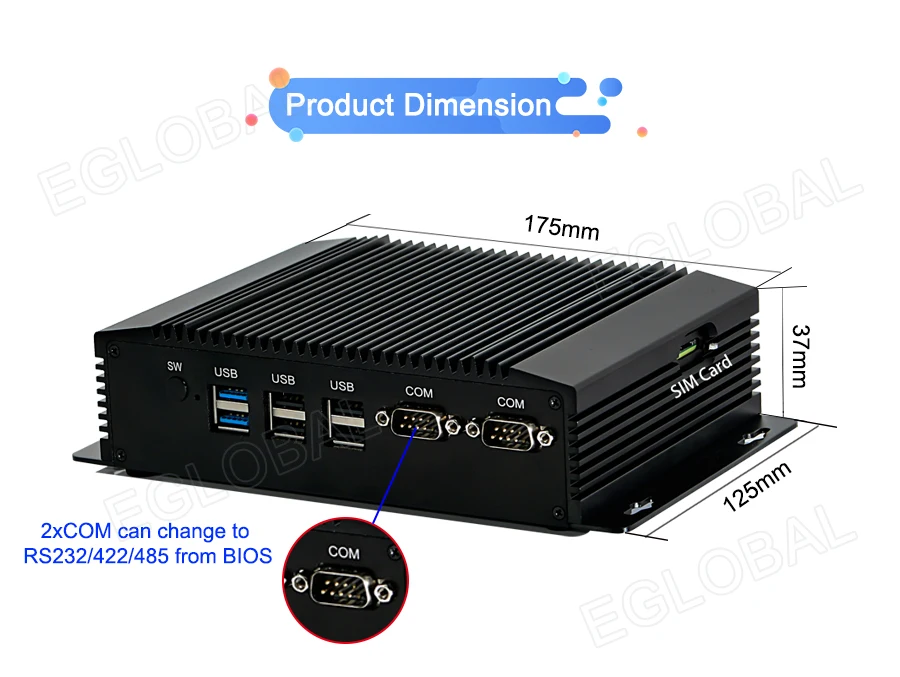

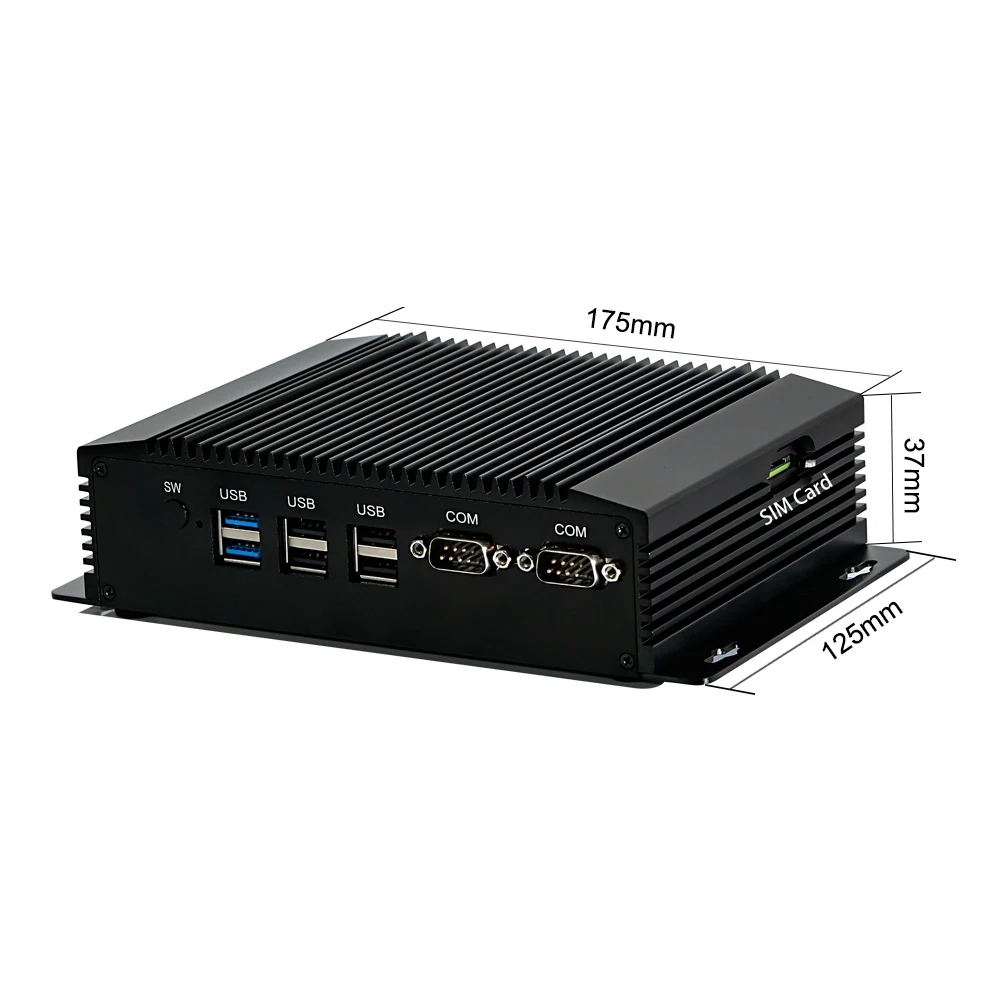

Size | 175*125*37mm |
Net Weight | 0.5KG |
Gross Weight | 1.5KG(incl. package accessories) |
Consumption | 10W |

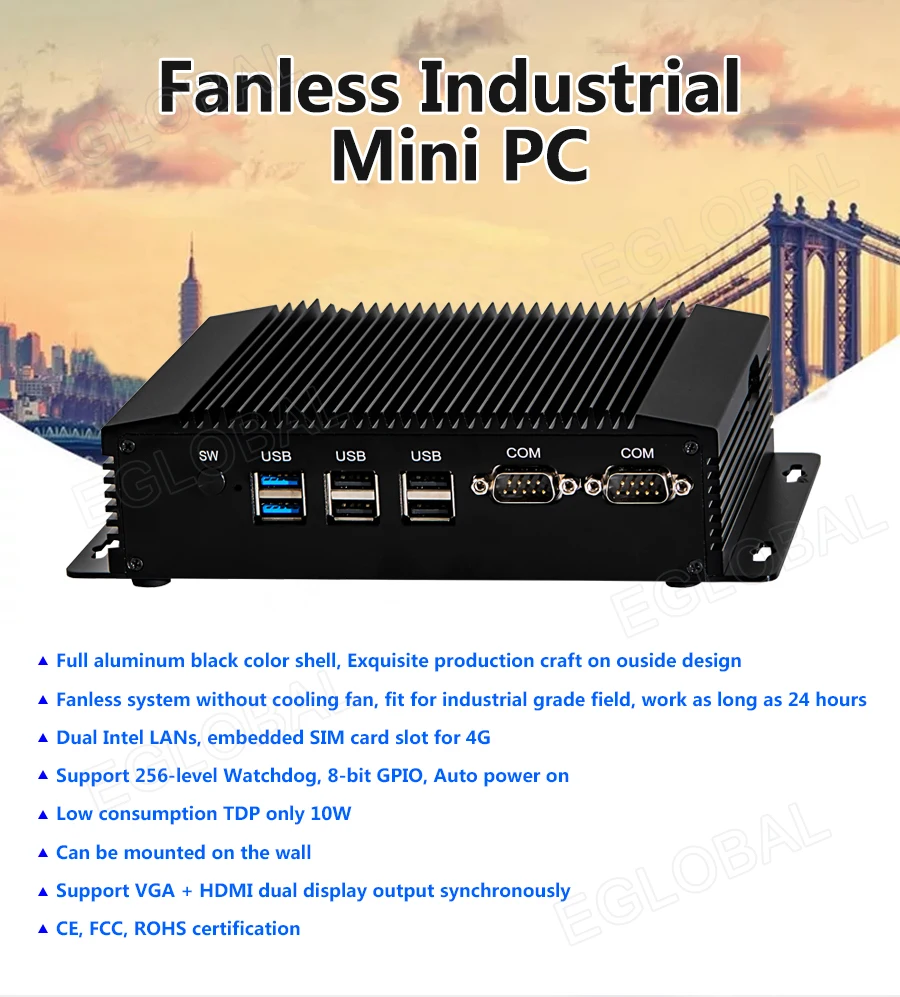

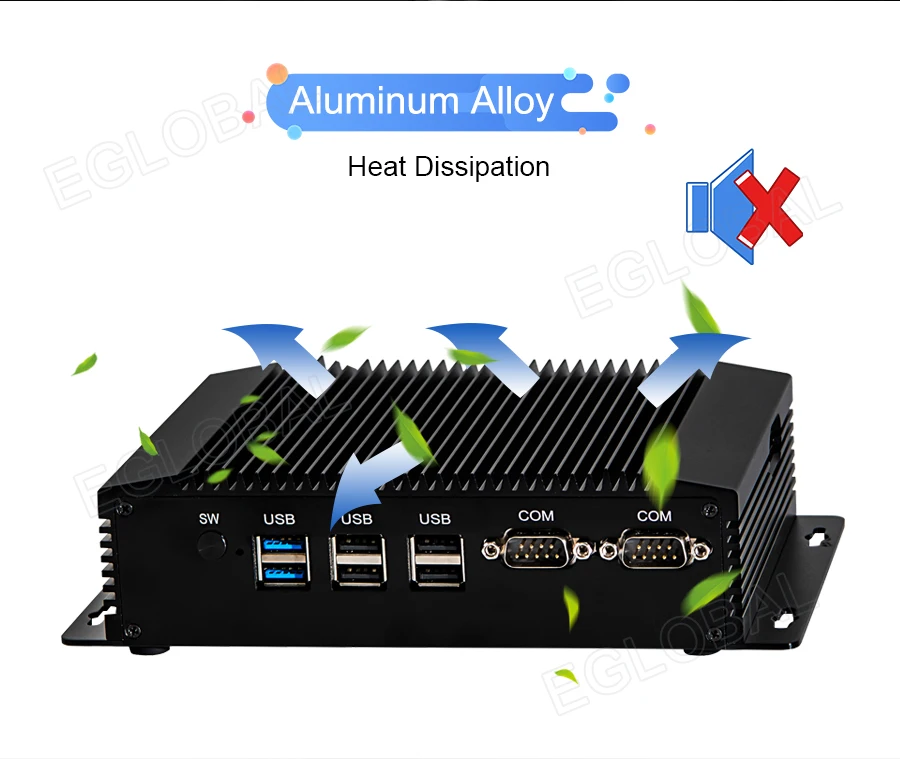

Shell | Black color aluminum alloy |

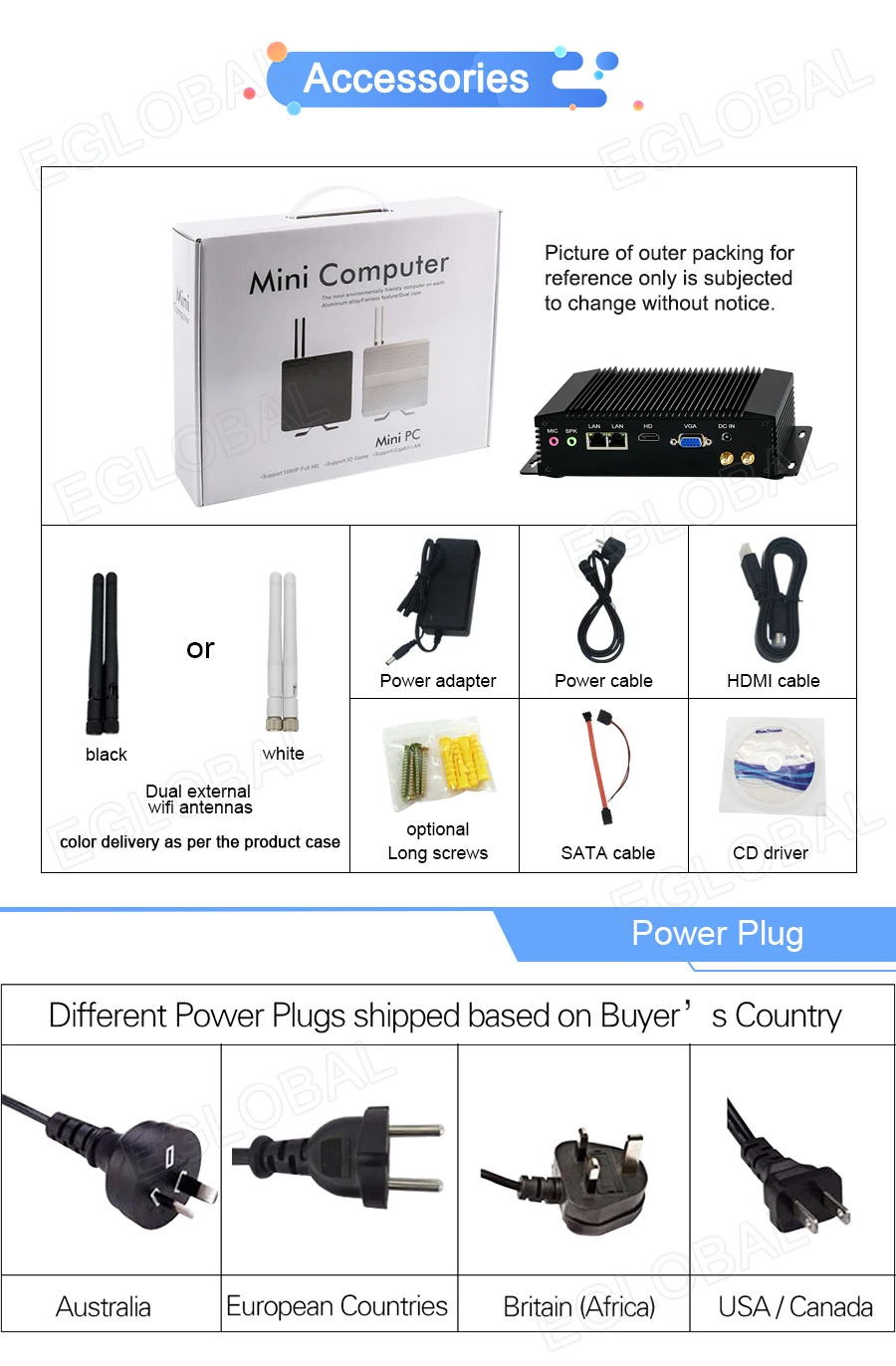

Package Accessories | power adapter, dual Wi-Fi antennas(optional), a HD cable( optional), a Screw Bag |
Product packaging
Shipping
Shipping Cost :
We supply Free Shipping. Price here include shipping cost.
Note: Price not including any import tax or other customs fee, we are not responsible for your customs taxes or VAT
Shipping Methods:
Normally we will provide DHL free shipping, but we will also send by the other carriers for free shipping in different cases, they are UPS/EMS or e-EMS/FedEx/TNT/ARAMEX etc.
Delivery Time:
Mostly the mini pc will be shipped out within 72 hours after you have checked out. In general, it may take about 1 to 2 business days for delivery; quantity OEM producing orders may take about 7 to 15 days depends on the exact order. We are not responsible for wrong or undelivered address. Please make sure your shipping address is correct and deliverable.
Our service
A.OEM Service For large order quantity.
B.Free Operating System before deliver.
C.3 Years long warranty for fanless system mini pc.
D. We will reply you for your inquiry in 24 hours.
Certifications
Company Information
Eglobal Technology Co., Limited established in 2009, is a manufacturer, trader and wholesaler in line with the latest computer technology, good quality, reasonable prices and nice service. Before Eglobal comes online, our factory in Shajin, Shenzhen already producing and supplying thin client and mini computer hosts since 2006. Now we devotes into fanless system mini pc supplying. With our deeply-accumulated experience and knowledge of oversea marketing, Eglobal soon gets worldwide markets, including Latin America, Asia, Africa and some European countries. Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
Customer Photos

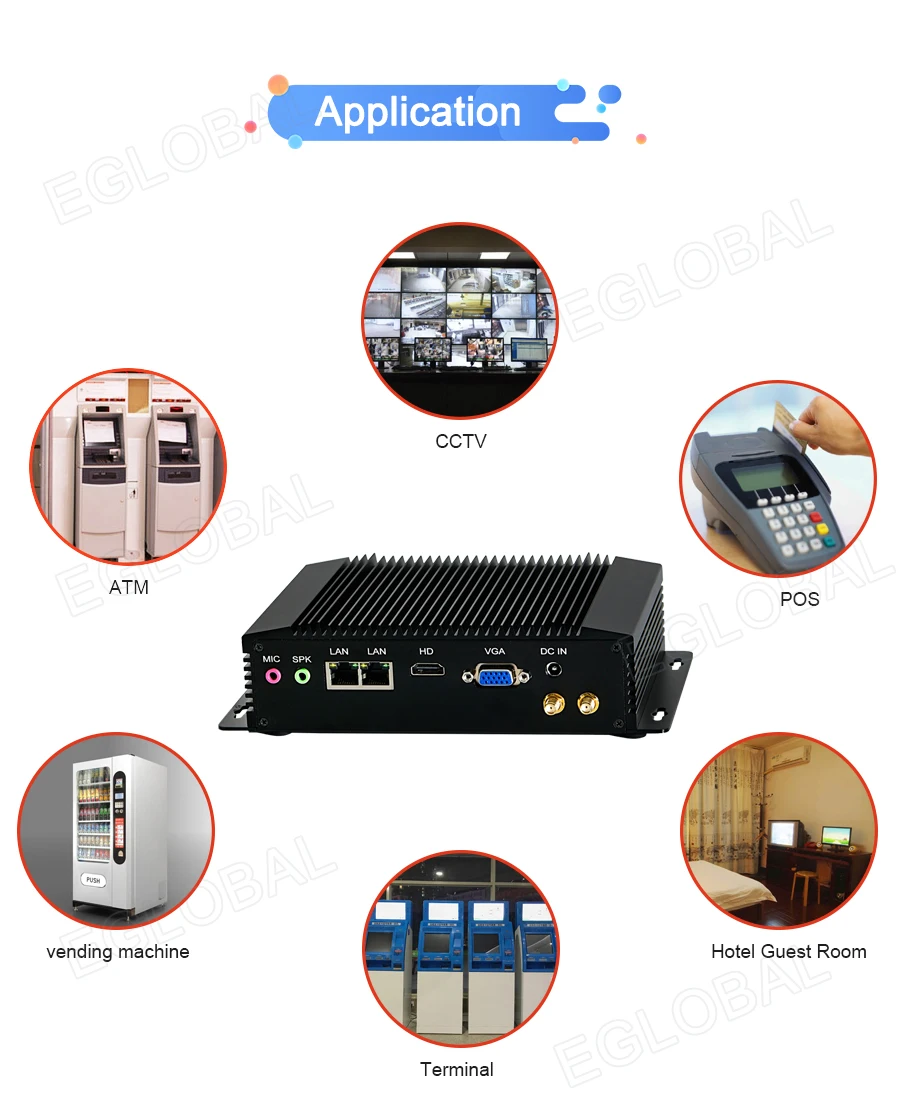

Applications
Any problems or needs,Please contact with me freely!
