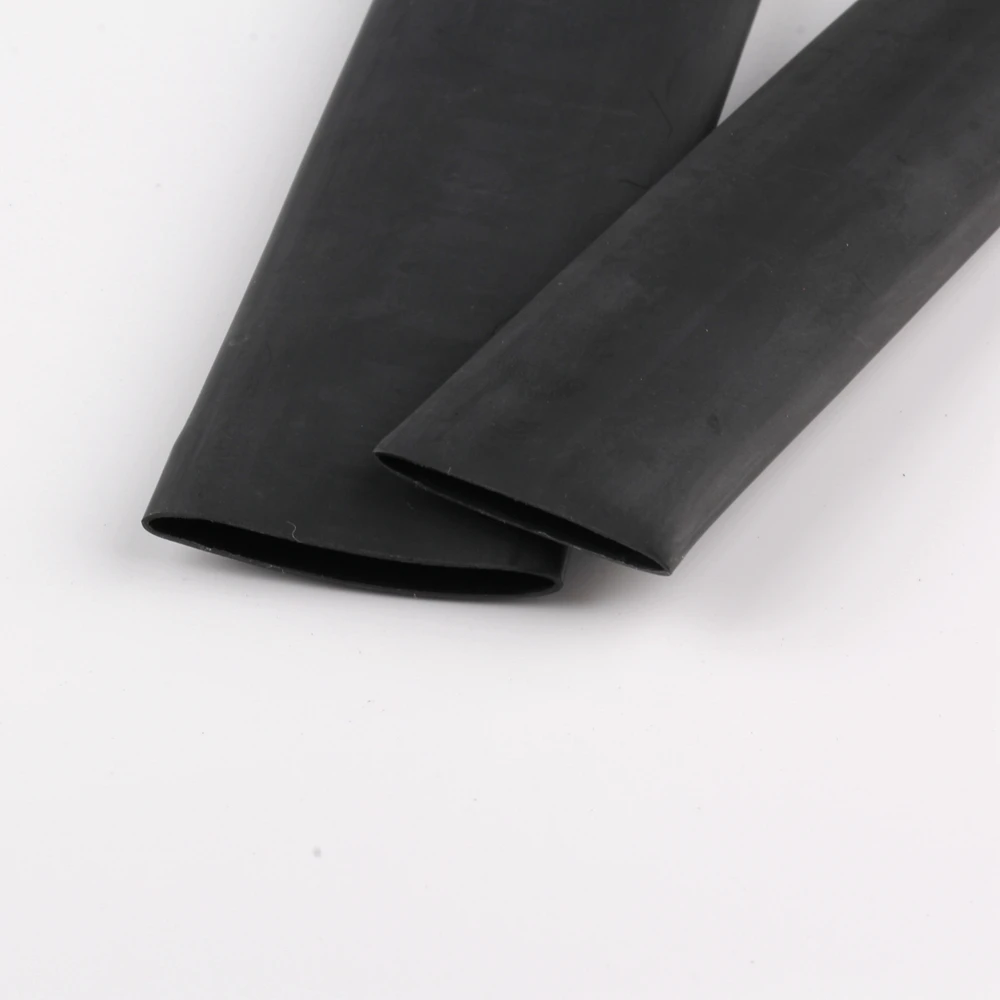

25.4mm black Dual Wall Adhesive Heat Shrink Tubing
25.4mm black Dual Wall Adhesive Heat Shrink Tubing
25.4mm black Dual Wall Adhesive Heat Shrink Tubing

25.4mm black Dual Wall Adhesive Heat Shrink Tubing

Share on (62240217754):


Price:

Quantity:


Product Overview

Description


Product Description

non-slip heat shrink tube

◆ Shrink ratio: 3:1, 4:1


◆Environmentally seals and protects components, joints and interconnections
from fluids, moisture and corrosion


◆ A Good mechanical, electrical and chemical properties


◆Adhesive has good stickiness and bonds to a wide variety of plastics, rubbers
and metals


◆Conforms to European RoHS environmental directive

 Size
As Supplied(mm)
After Recovery(mm)
mm
 Min I.D. D
 Max I.D. d
Total W.T T+t
Adhesive thickness t
&2.4
≥2.4
≤0.80
0.80±0.30
0.40±0.20
&3.2
≥3.2
≤1.00
0.90±0.30
0.40±0.20
&4.8
≥4.8
≤1.60
1.05±0.30
0.40±0.20
&6.4
≥6.4
≤2.20
1.25±0.30
0.45±0.20
&7.9
≥7.9
≤2.70
1.35±0.30
0.45±0.20
&9.5
≥9.5
≤3.20
1.45±0.30
0.50±0.20
&12.7
≥12.7
≤4.20
1.65±0.30
0.50±0.20
&15.0
≥15.0
≤5.20
1.80±0.30
0.55±0.30
&19.1
≥19.1
≤6.30
1.95±0.30
0.60±0.30
&25.4
≥25.4
≤8.50
2.00±0.40
0.60±0.30
&30.0
≥30.0
≤10.20
2.15±0.40
0.65±0.30
&39.0
≥39.0
≤13.50
2.45±0.40
0.75±0.30
&50.0
≥50.0
≤17.00
2.75±0.40
0.80±0.30
&64.0
≥64.0
≤21.00
3.05±0.40
1.05±0.30
&75.0
≥75.0
≤25.00
3.05±0.50
1.05±0.40
&90.0
≥90.0
≤30.00
3.10±0.50
1.05±0.40
&100.0
≥100.0
≤34.00
3.10±0.50
1.10±0.40
&125.0
≥125.0
≤42.00
3.15±0.50
1.10±0.40
Detailed Images
◆This is a flexible, flame-retardant, dual wall, high-shrink-ratio, irradiated heat-shrinkable tubing manufactured by co-extrusion of polyolefin and hot-melt adhesive.
◆Inner is hot-melt adhesive with good stickiness and outer is flexible, irradiated cross-linked polyolefin.
◆It is widely used to environmentally seal and protect interconnections, joints and components from fluids, moisture and corrosion.

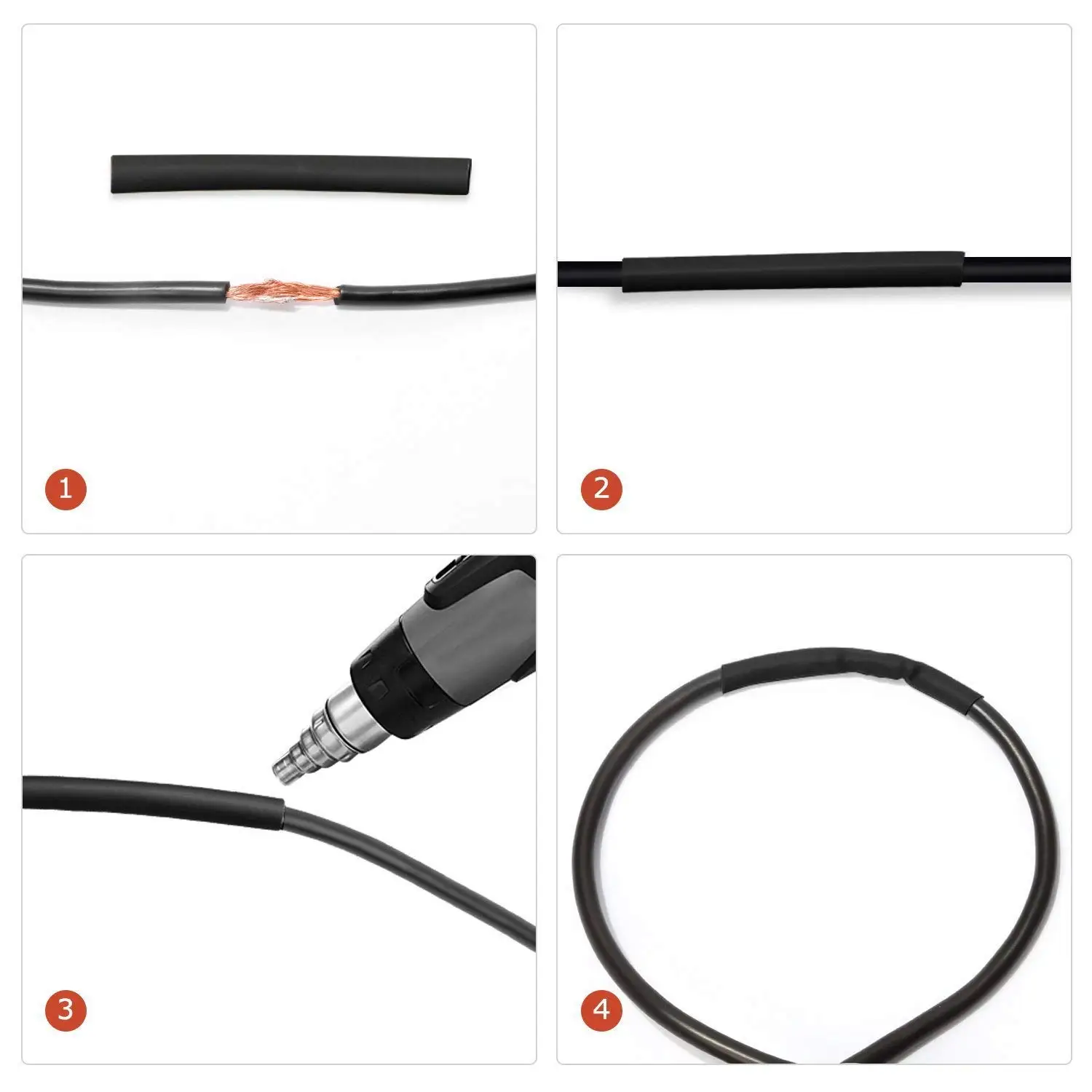

◆High shrinking ratio allows for connector-to-cable sealing and makes it possible to repair most damaged cable jackets without removing connectors.
Exhibition
Our Company

Total Solution ProviderDongguan Liansi electronics Co. Ltd is specilized in manufacturing Braided expandable sleeves,connector series and Optical Fiber cables more than 7 years. Overall our products are compliant UL, ROHS, ISO9001:2008 systerm. low-smoking and Halogen free approvals.


From the design of new products to the re-engineering of existing products for quality improvement or cost reduction, our engineering team is capable of meeting our customers' requirements. Other advantages:Plastic injection, molding, automatic assembly equipment and automatic train lines.


Hold hundred sets of high-speed braid machines which can do colorful, multi-patterns ,multi-specs sleeve. (2MM-150MM) . Sample lead time:0.5-3 days

laboratory

Office

WorkShop

Our Certifications
FAQ

1.What is the MOQ ?
◆100 meters for our own available designs.

2.Can I get a lower price if I order large quantities?
◆Yes, cheaper prices with more bigger size orders.

3.What is your terms of payment?
◆T/T 100% in advance.

4.What is your terms of delivery?
◆FOB,CIF,EXW.

5.Can you produce according to the samples?
◆Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

6.What is your sample policy?
◆We can supply the sample, the customers just need to pay the courier cost.

7.Can I mix different designs?
◆sure!

8.How about your delivery time?
◆Generally, it will take 1 to 7 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Our Service

◆OEM Manufacturing welcome: Product, Package.
◆ Sample order.
◆We will reply you for your inquiry in 24 hours.
◆ after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
