Heating system for floor by hot water

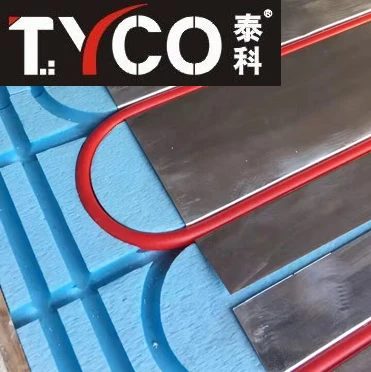

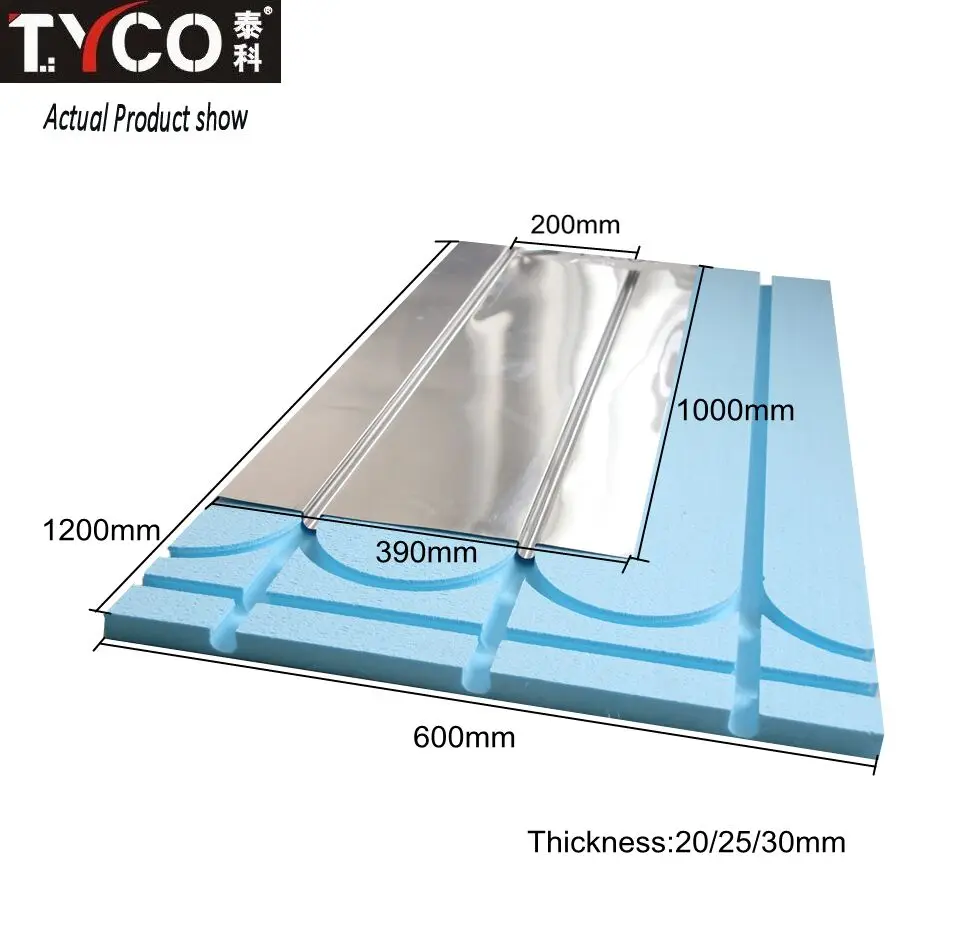

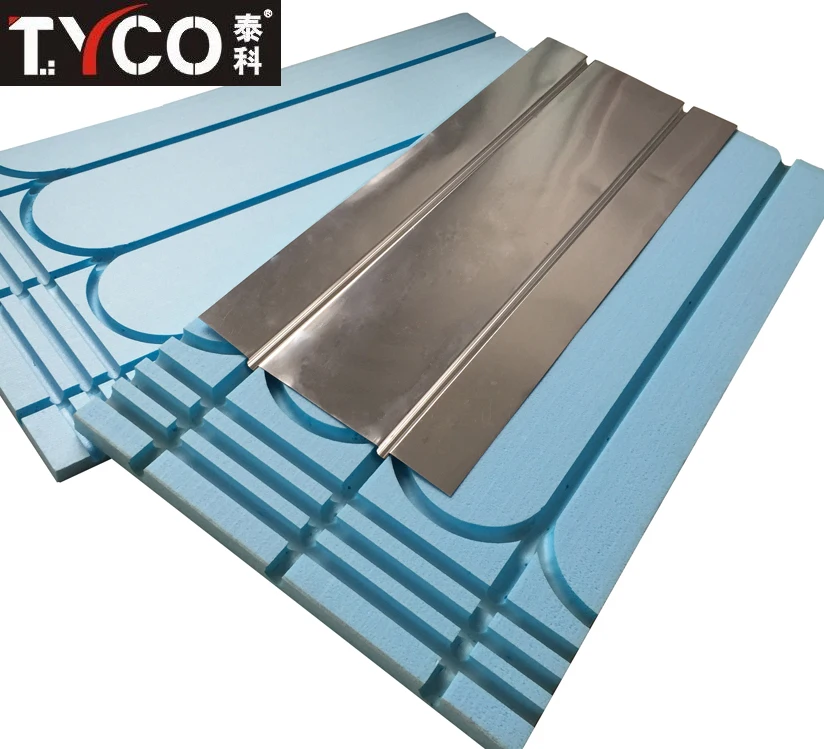

TYCO UHP consists of grooved XPS/EPS and brown paper and aluminum foil. The aluminum foil and PS is laminated in the grooved side of XPS/EPS. It is used as an alternative to a screed type system when using water underfloor heating systems. It is only 20/25/30mm thick and come with the pipe work grooves cut out ready to fit the pipe inside.

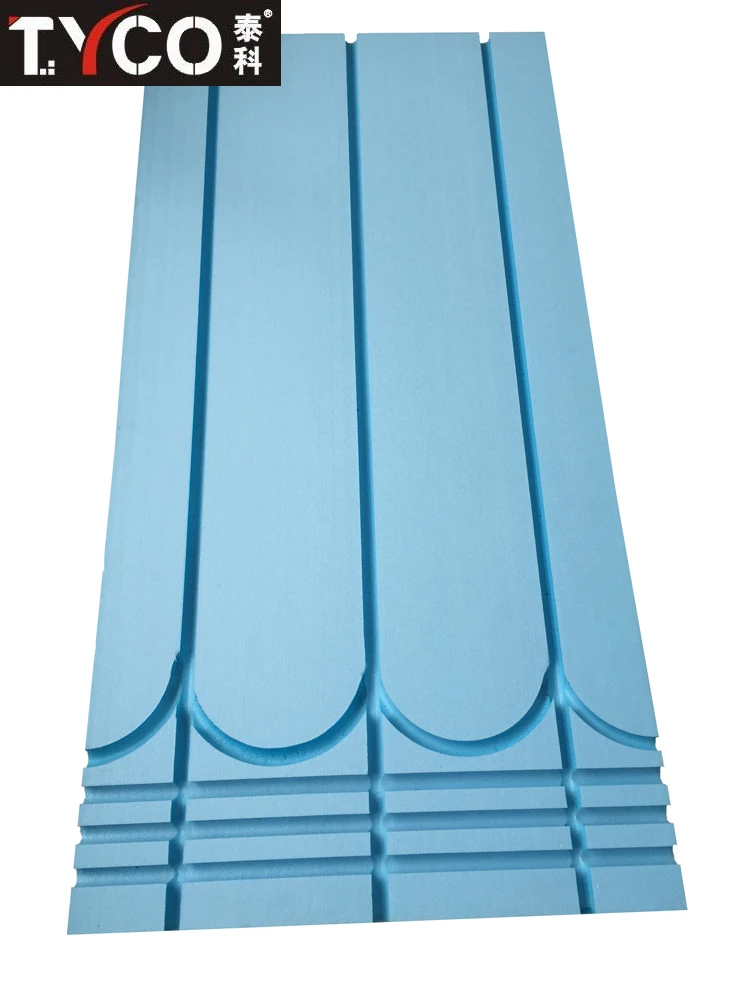

EPS moulded panels enable quick and simple installation of underfloor heating into both suspended and ground floors, in both new build and renovation projects. They are made from lightweight moulded expanded polystyrene with pre formed slots for the heating pipe to be inserted.


Product Show














Size Details


Item No.
Color
Size of the Panel
Pipe OD
Chanel Distance
UHP-25-16
Blue
1200x600x25mm
16mm
150/200mm
UHP-30-20
Blue
1200x600x30mm
16/20mm
150/200mm
EPS 400
White
1200x600x20mm
16mm
150/200mm
TYCO-036
Black
600x600x26mm
16/20mm
150/200mm
TYCO-112
Orange
1400x800x45mm
16/20mm
150/200mm
TYCO-050
Orange
1000x500x33mm
16/20mm
150/200mm
TYCO-076
Yellow
1155x660x48mm
16/20mm
150/200mm
TYCO-66
Blue
1100x600x46mm
16/20mm
150/200mm
ECOB
White
1450x850x34mm
16mm
150/200mm


Production Process




Company Introduction


HANGZHOU TYCO INDUSTRIAL CO.,LTD
TYCO is devoted to developing, designing and manufacturing XPS shower tray,XPS tile backer
board, XPS shower niche and under floor heating insulation panel etc,which is mainly applied for the waterproof and insulation purpose both in new decoration and renovation of the old building.


Packing & Delivery






Related Products


XPS Tile Backer Board---TYCO Waterproof Insulation Board


XPS Foam Board--TYCO Board

Characteristics：



²  Stable performance and anti-aging



²  Resistance to compression



²  Water resistance



²  Lightweight



²  Resistance to deformation



²  Resistance to impact



²  Versatile



²  Recyclable
