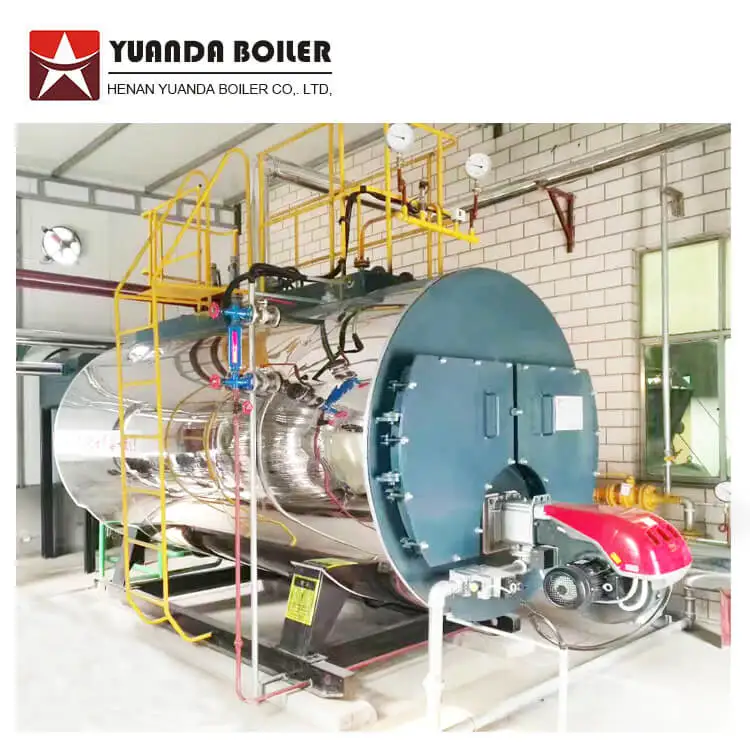

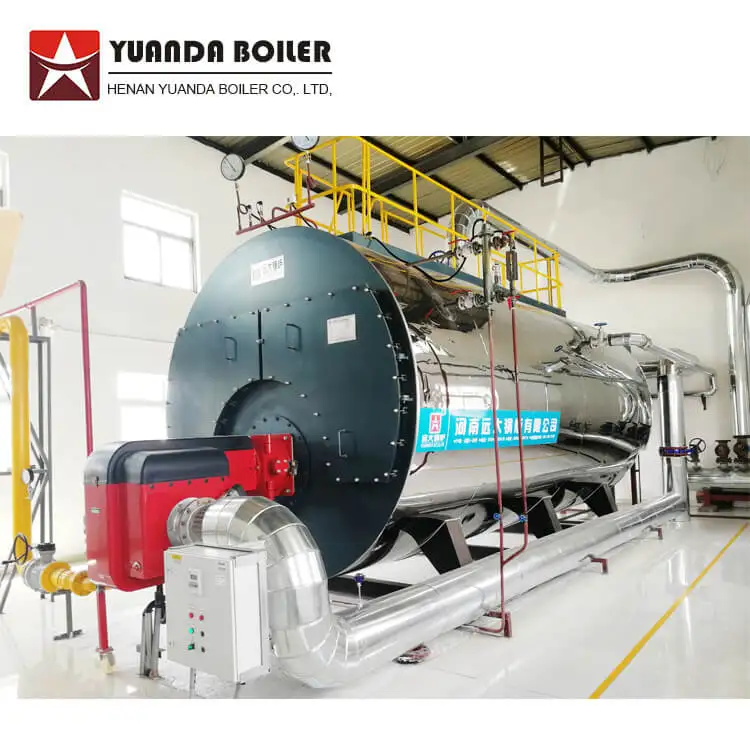

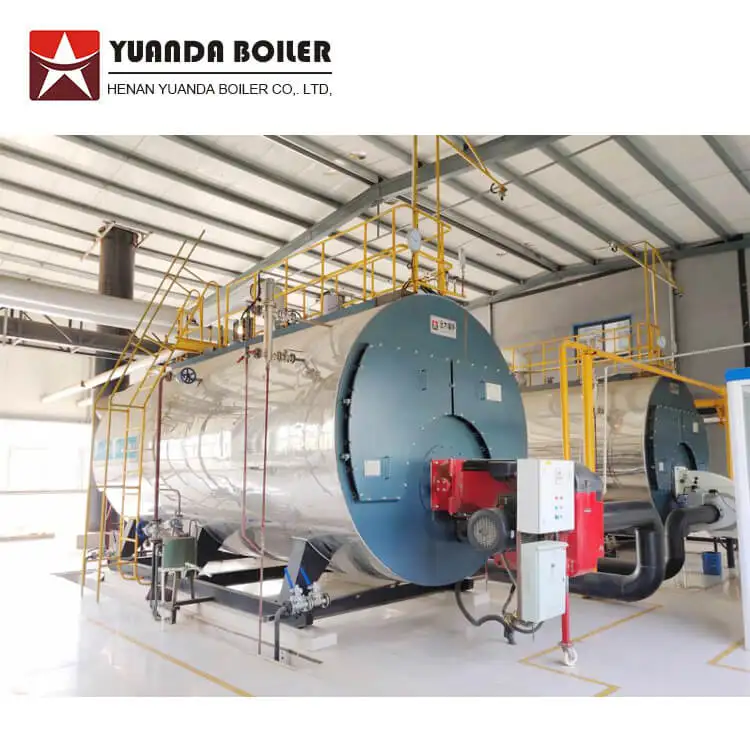

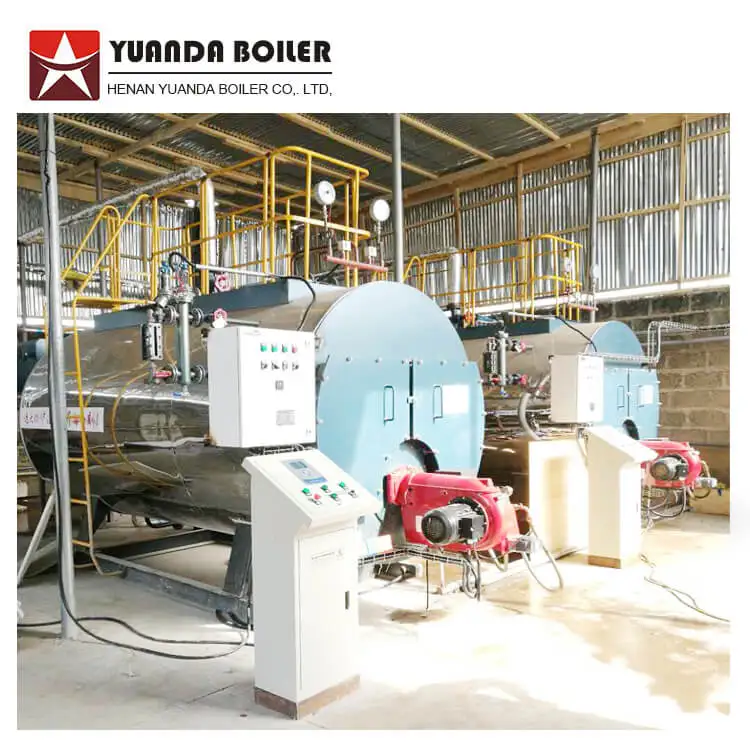

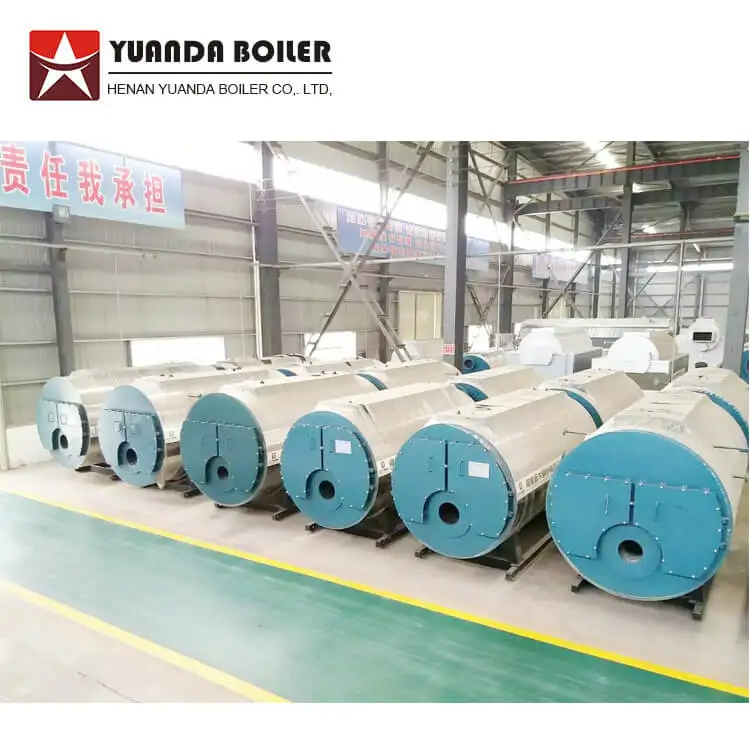

200 bhp three pass industrial diesel natural gas lpg water steam boiler

Product Overview

Description

200 bhp three pass industrial diesel nawater steam boiler

Tips: As 1 ton is equal to 71 bhp, 200 bhp steam boiler is about 3 ton steam boiler.

Model:WNS

Capacity:0.5-20 ton/h

Design pressure:0.7/1.0/1.25/1.6/2.5Mpa(7/10/12.5/16/25bar)

4.Stem temperature:184/194/205/226℃

5.Design fuel:natural gas, lpg,lng,cng,city gas,biogas, diesel oil,heavy oil,etc

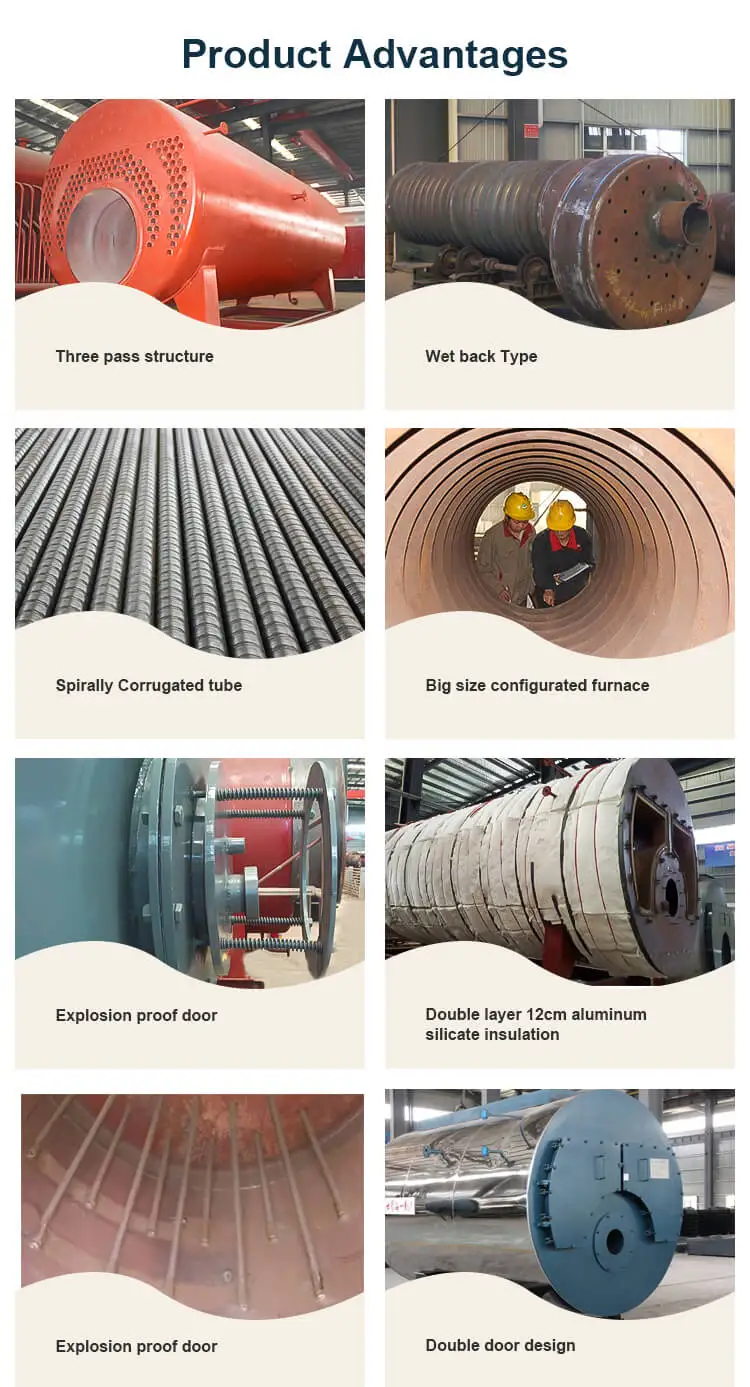

6.Structure: three pass fire tube wet back

2.Core technology:
1. Low Nitrogen oxide emissions
2. PLC control system;
3. The 5th stage water level protection;
4. Flame-out, power failure self-locking protection function;
5. Automatic fault identification function;
6. Data collection, analysis function;
7. Internet of Things remote monitoring.



3.Technical parameter:



Boiler model	Rated capacity	Rated pressure	Rated steam tempe rature	Fuel consumption				Thermal effiency	Weight	Diemension
				natural gas	Diesel oil	heavy fuel oil	lpg
	ton/h	Mpa(bar)	℃	m3/h	kg/h	kg/h	m3/h	%	ton	mm
WNS0.5-1.0-Y(Q)	0.5	1(10)	184	43	33	34	14	92	3	3000*1500*1800
WNS1-1.0-Y(Q)	1	1 (10)	184	84.2	65.5	67.3	29	92	4.3	3561*1690*1910
WNS1.5-1.0-Y(Q)	1.5	1.25(13)	194	120	90	98.5	43.5	92	5.6	3681*1870*1980
WNS2-1.25-Y(Q)	2	1.25(13)	194	165	129.6	132.2	57.3	92	7.2	4111*1950*2199
WNS3-1.25-Y(Q)	3	1.25(13)	194	250	192	195	82	92.5	8	4330*2248*2564
WNS4-1.25-Y(Q)	4	1.25(13)	194	323.6	256	261.9	109	93	9.6	4732*2150*2448
WNS5-1.0-Y(Q)	5	1.25(13)	194	386	318	322	140	93	12.5	5970*2360*2796
WNS6-1.25-Y(Q)	6	1.25(13)	194	450	380	390.6	164	93.5	16.5	5500*2600*2990
WNS8-1.25-Y(Q)	8	1.25(13)	194	642	503	517	209	93.5	24.8	6450*2800*3200
WNS10-1.25-Y(Q)	10	1.25(13)	194	805	628	643	264	94	26.8	6800*2900*3394
WNS12-1.25-Y(Q)	12	1.25(13)	194	970	758	775	321	94	32	7050*3100*3450
WNS15-1.25-Y(Q)	15	1.25(13)	194	1185	940	965	400	94.5	38	7150*3200*3540
WNS20-1.25-Y(Q)	20	1.25(13)	194	1597	1250	1301	520	94.5	55	8200*3400*3826

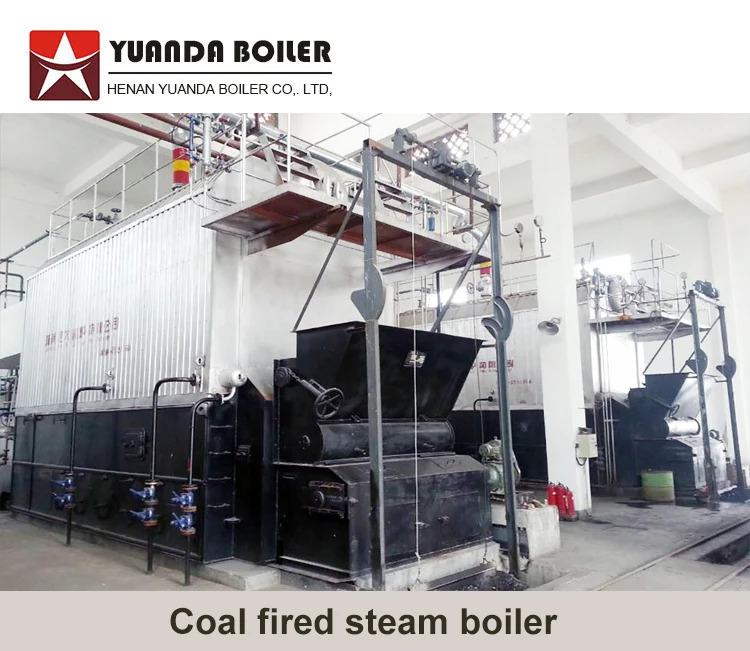

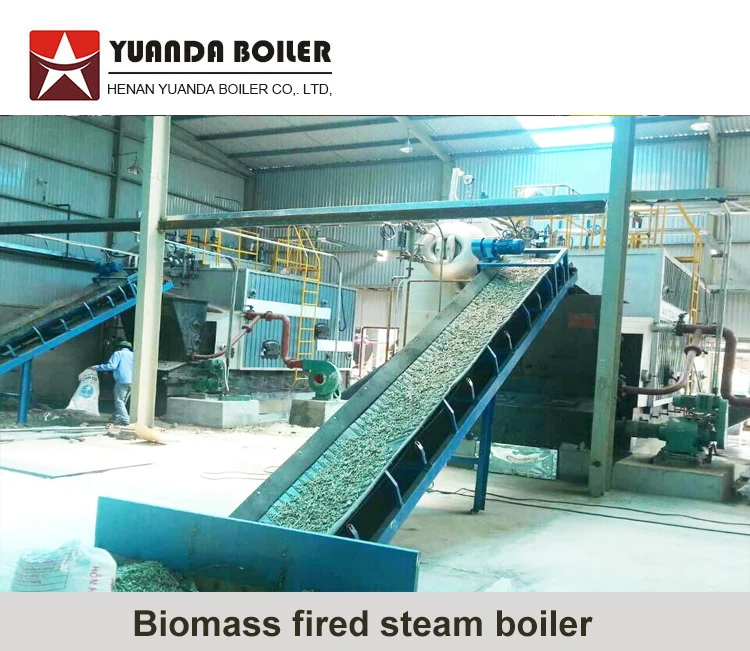

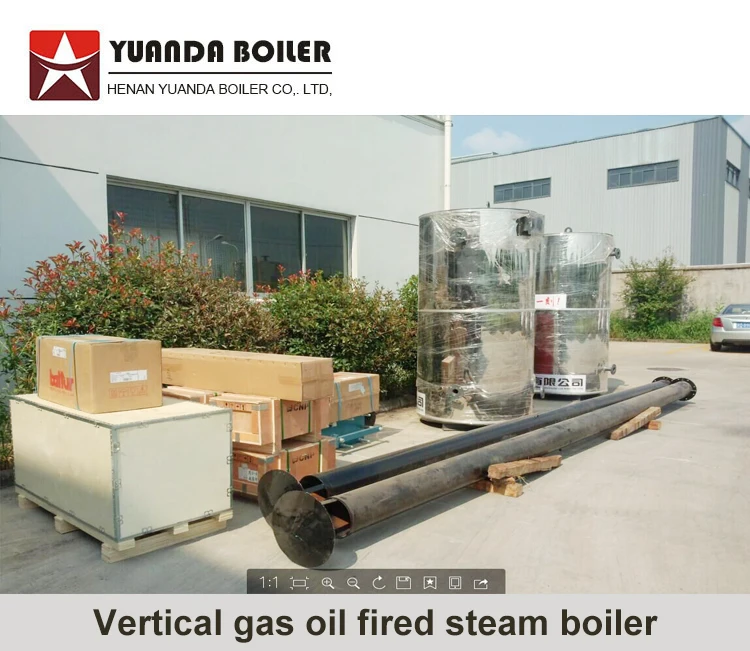

If what you need is other types steam boiler, please click the following pictures.
