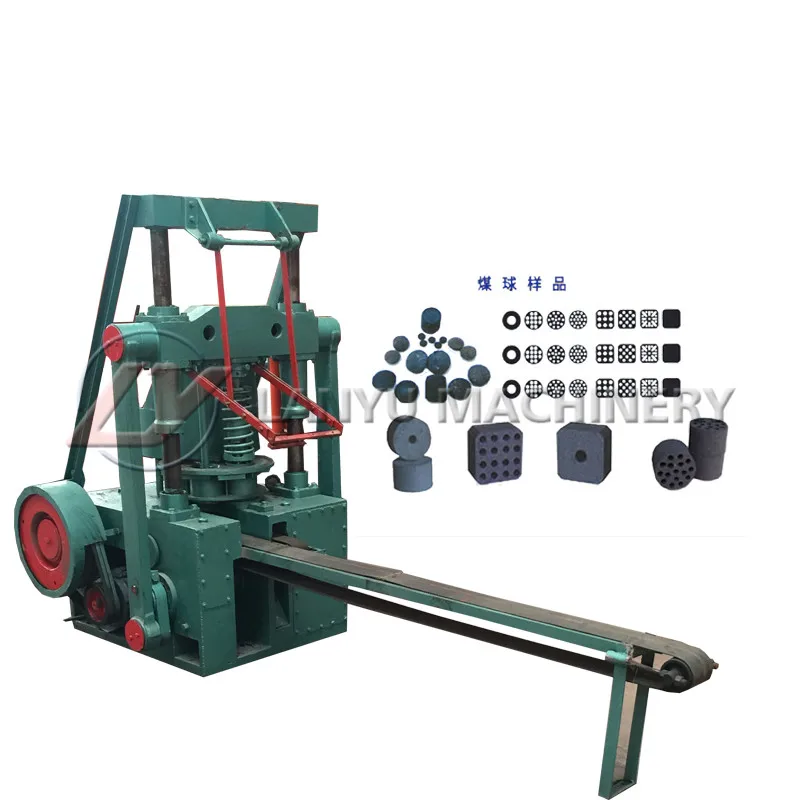

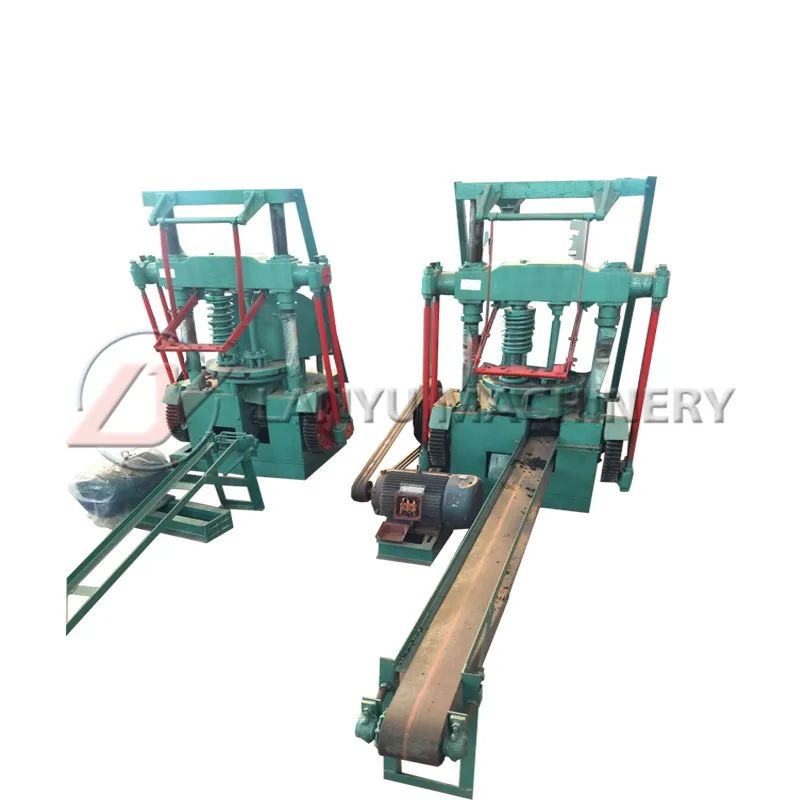

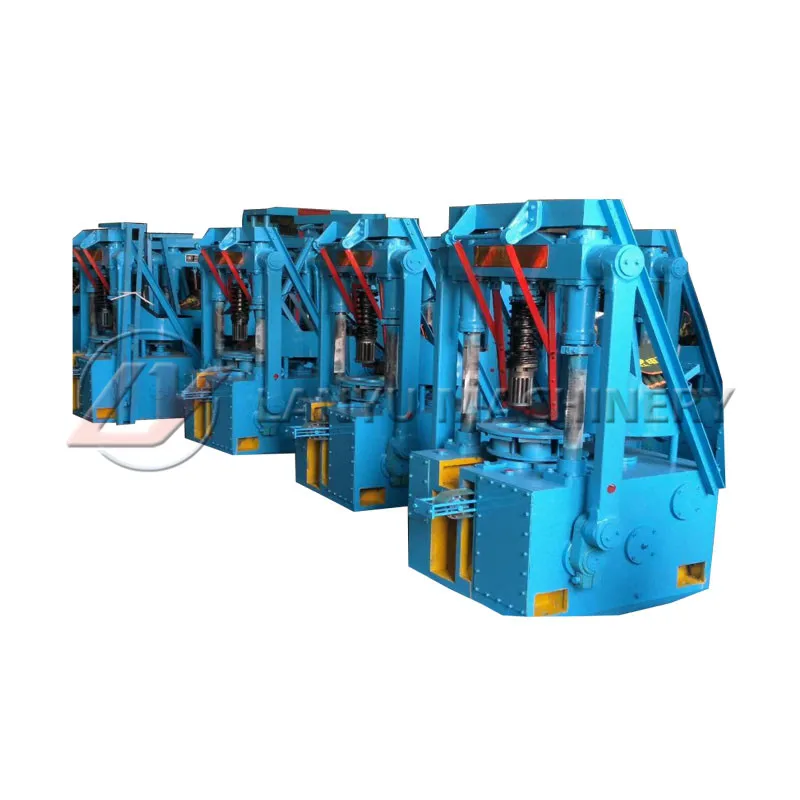

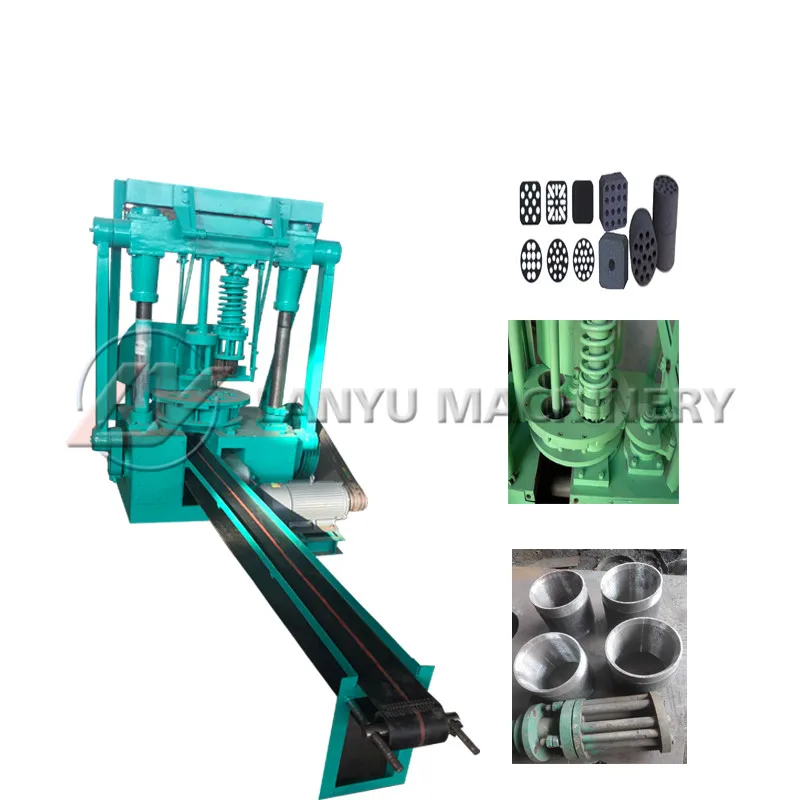

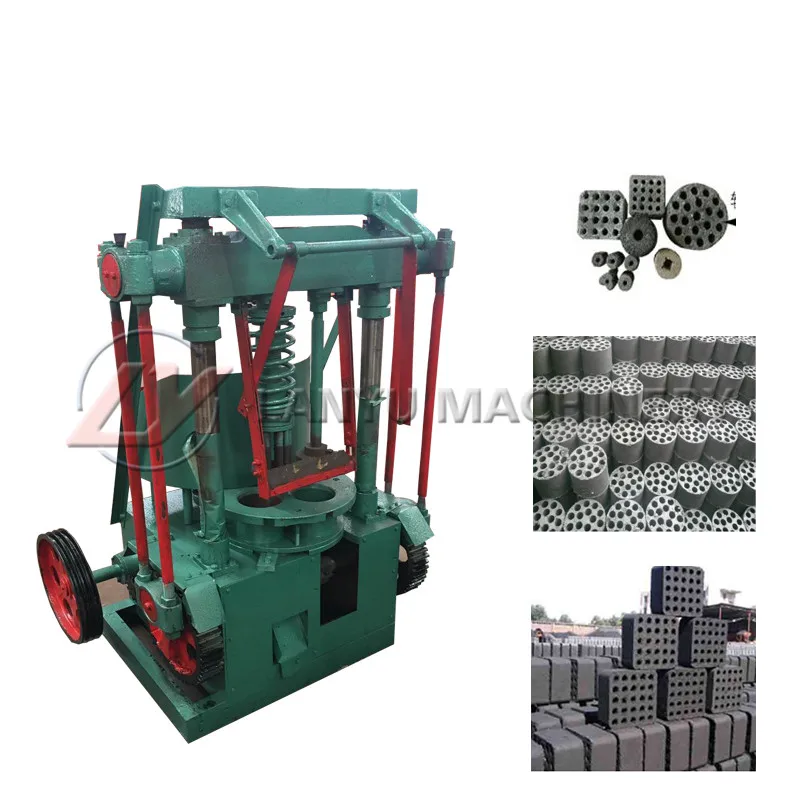

honeycomb charcoal production/honeycomb charcoal production line/honeycomb coal briquetting machinery

1.Introduce:

It is maily used to make the coal briquettes in honeycomb shapes.It has been popularly used in China for almost 80 years.Previously raw coal been processed into the coal sphere slightly larger than pingpong,and later the coal processed into one cylinder,and marked with a number of holes inside the cylinder makes it seems like honeycomb,because it can increase the surface area of coal.make the full combustion of coal, to reduce rsource waste.

(1) Raw material: All kinds of coal powder or charcoal powder.

(2) Raw material diameter: Less than 3 mm.

(3) Raw material moisture: 8-15%.

(4) Shapes of final briquettes: There are different shapes, such as round, square, flowershapes

and fan-shaped, hexagonal shapeless. Or we can custom the related moulds as your
(5) Honeycomb diameter: 120mm; 140mm; 160mm; 180mm; 220mm or custom-made.

2. Structure:

Our honeycomb briquette machine is divided into five parts: main body, transmission part, feeding part, punching part, and transport part. And every part works together in order to provide a stable and reliable performance.

(1) Frame: consist of platen, engine base, forming the skeleton entity.

(2)Transmission part: composed of motor, belt pullry, gear, transmission shaft, etc. The motor make the gear shaft rotating through belt pulley, and through two gears pass to axis, and then by a pair of bevel gear and the axis of rotation to drive the dial, and then pass to the four panel movement.

(3) Feeding parts: consist of spindle, hopper, agitator. It will strike by axial gear mixer, beaten charcoal and load mode barrel.

(4) Punching parts: it is meanly consist of four slide, sliding beam, punch, punch holder, punch pin, activity pressure plate, end of activity mode, spring, etc.

(5) Conveying parts: consist of transmission rack, belt pulley, support, conveying belt, etc. The conveyor belt random rotation then the shaped charcoal briquettes come out of the body, the adjustable screw on the conveyor rack can adjust the tightness.

The production line

(1)Coal briquette machine production line:

Coal powder---binder mixer---crusher and mixer---conveyor belt---dosing machine---briquette machine---dryer

(2)Charcoal briquette machine production line:

Carbonization furnace---charcoal crusher---binder mixer---wheel mill---conveyor belt---dosing machine---briquette machine---box dryer.

ü Technical services

1. Designing production line and equipments layout according to your specific workshop.

2. Supplying drawings of equipments you’ve purchased.

3. Supplying technical parameters of peripheral equipments.

4. Offering technical service freely on request for adjusting the layout in your workshop.

5. Updating your equipments on request if necessary.

ü After-sales services

6. During the installation and commissioning of the honeycomb coal briquette machine, we will send our technician to your site for guiding the installation and we will also offer training service for your party if requested.

7. If anything goes wrong with the honeycomb coal briquette machine because of improper handling, we’ll take care of the maintenance if requested, and material and labor costs will be charged at cost price.

8. We’ll offer spare parts for the honeycomb coal briquette machine with favorable price and perdurable maintenance. After the warranty expires, only material and labor costs will be charged if the equipments need to be repaired.

l Who we are

Established in 1980, Henan Lanyu Machinery is a professional the honeycomb coal briquette machine manufacturer based in Henan Province. Every year, we exported hundreds of the honeycomb coal briquette machine to Sudan, Egypt, and Zimbabwe etc.

l Why us

We use stringent quality control measures to ensure the reliability of our products. Our products including the honeycomb coal briquette machine have gained CE and ISO 9001 certificate guarantee. With sound business credit, rich experiences, excellent after-sales services and modern manufacturing facilities, we’ll cooperate with and serve you better.

Certificates

Q: Why Choose Us?

1). More than 15 Year's Experience
We have rich experience in equipment manufacturing. Our machines have high reputation both at home and abroad (Such as the Middle East, Southeast Asia, Africa and so on more than 10 countries and regions.)And often visit customers to provide services to customers.
2). Manufacturer
Not Dealer Factory direct sale makes price more competitive.Customers are always welcome to visit our factory for machine test.
Q: How do I know the quality of your machine?
You can send your sample scrap materials to us and we will test the machine for you without charging the fees. And we can send the machine test video to you. We also warmly welcome you to visit our factory to test our machine personally.
Q: Will you dispatch the engineer to guide installation?
Yes, according to the customer's requirement, we will dispatch engineers to guide installation and traning about the operation of the machine.
