High Brightness Resolution 800x480 IPS 7 inch TFT LCD RGB Or LVDS TouchScreen Panel
- Category: >>>
- Supplier: Shenzhen Yunlea Electronics Co. Ltd.
Share on (62240342954):
Product Overview
Description
High Brightness Resolution 800x480 IPS 7 inch TFT LCD RGB Or LVDS TouchScreen Panel
1.IPS or 12 o'clock display screen.
2.Customized :Logo,Touch Button,Silk-Printing,Mirror Cover Lens,Shape/Hole
3.Anti-Glare/Anti-Finger/ Anti-Reflective/Waterproof/Gloves Touch Available
4.Supply TFT / touch panel / touch display module
Hot Selling Product
Click items you like
| 3.5 inch touch display 5 inch touch display 7 inch touch display |
| 10.1 inch touch screen 15.6 inch touch scree 21.5 inch touch screen |
Product Description

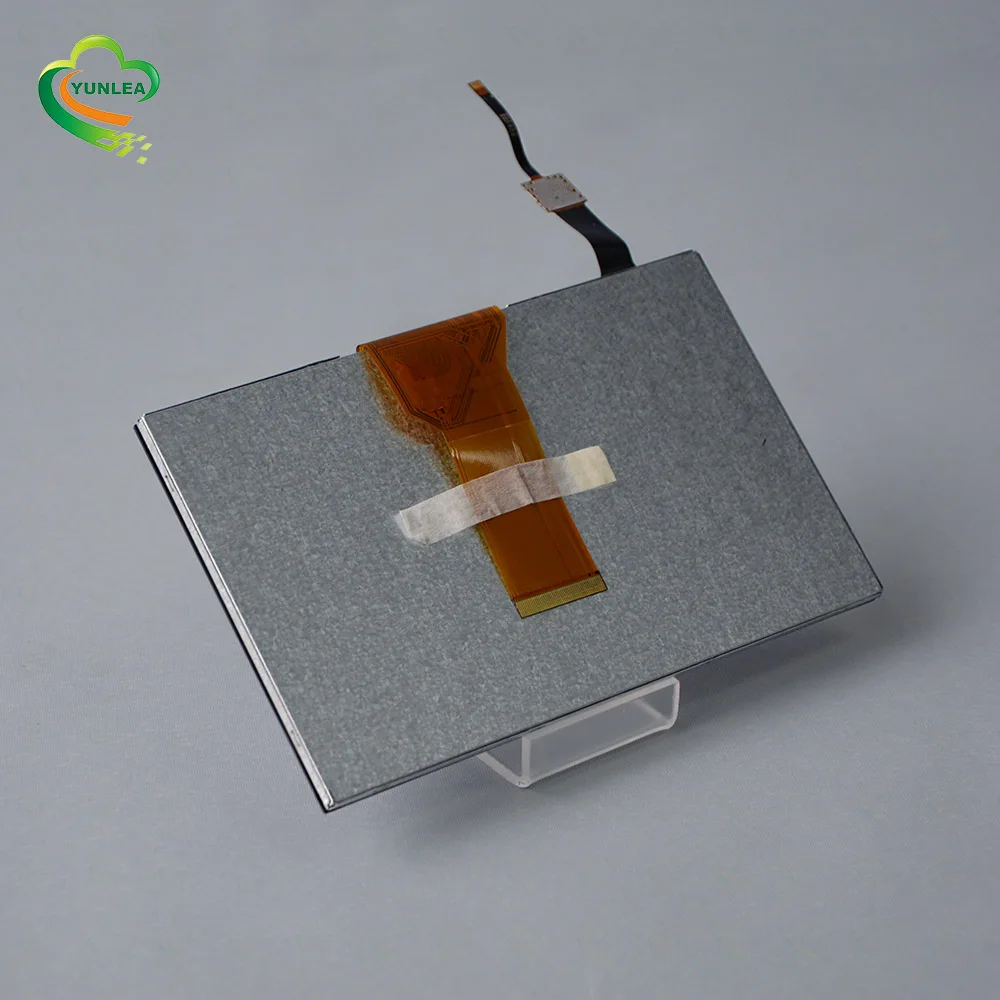

| The Specification of New-designed 7" touch display | |
| Size | 7 inch |
| Outline dimension | 164.9x100x6.93mm |
| Active area | 154.08x86.42mm |
| Resolution | 800x480 dots |

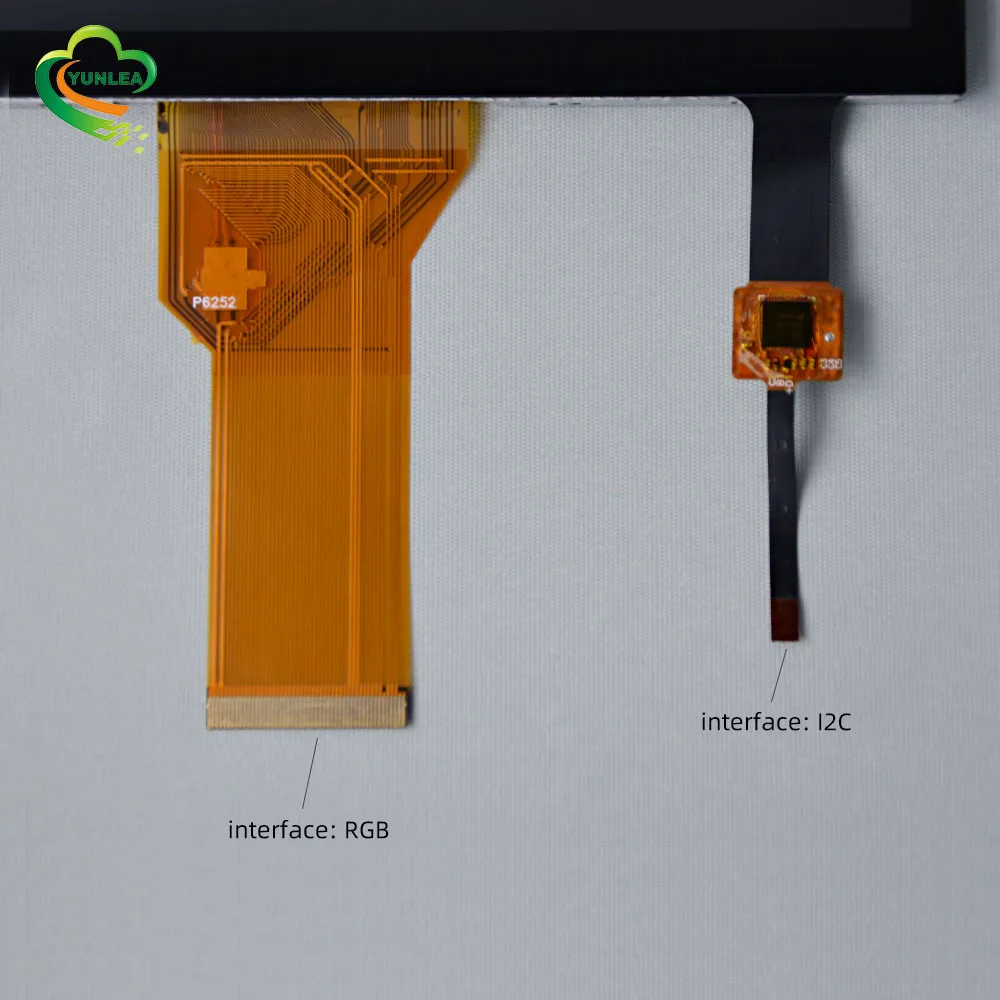

| TFT interface | RGB |
| Touch points | 5 |
| Touch controller | FT5316 |
| Surface Hardness | 6H |
| Transparency | 86%min |
| CTP interface | I2C/USB/RS232 |
| Operating temp | -20 to 70 degree |
| General Business Clauses | |
| MOQ | 1 piece |
| Lead time | Samples in stocks,2~4 weeks for mass production |
| Trade Terms | EXW or FOB |
| Payment | 100% T/T or Western union in advanc for samples ,50% T/T in advance and 50% before delivery for mass production |
| Warranty | 12 months |
| Package | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton |
Customer feedback
It's Really Good for the Customers to Say Yes!
product catalog
Click item you like:
| Size | Part No. | Outline dimension | Active area | Resolution | TFT interface | CTP interface | Touch controller | color | |
| 3.5 | YL035MY01 | 66.86x94.94 | 48.96x73.44 | 320x480 | RGB 18 bit+SPI-3 | I2C | Mstar 2133A | Black | click here |
| 4.3 | YL-S99816D | 114x77x4.88 | 95.04x53.86 | 480x272 | RGB | I2C | FT5346 | Black | click here |
| 5 | YL050MY01 | 127X85.8 | 108X64.8 | 800X480 | RGB | I2C | FT5436 | Black | click here |
| 7 | YL070MY01 | 164.9x100 | 154.08x86.42 | 800X480 | RGB | I2C | FT5436 | Black | click here |
| 10.1 | YL101MT02 | 235X143 | 222.72X125.28 | 1024X600 | LVDS | I2C | GT928 | Black | click here |
| 10.1 | YL101TT05 | 255X178 | 216.96X135.6 | 1280X800 | LVDS | I2C | GT927 | Black | click here |
| Size | Part No. | Sensor OD | Sensor (T) | Lens OD | Cover glass(T) | Window VA | Touchcontroller | color | |
| 3.5" | YL035CY03 | 82.34X56.86 | 0.4 | 94.94X66.86 | 0.7 | 74.94X50.36 | Mstar 2133A | Black | click here |
| 4.3" | S82327H | 103.10x85.40 | 0.7 | 114x77 | 0.7 | 96.04x53.86 | FT5346 | Black | click here |
| 5" | YL050CY01 | 120.7X75.8 | 0.55 | 127X85.80 | 0.7 | R5109x65.8 | FT5436 | Black | click here |
| 7" | YL070CY01 | 159.70X94.10 | 0.55 | 164.90X100 | 0.7 | 154.08X85.92 | FT5316 | Black | click here |
If you interested in Big size touch screen,pls click here to know more about the detail.
Customized solution
We have standard 3.5-55 inch Touch screen.So if our standard one can't fit with your project.We are welcome you to customized own touch screen.If you have any demand ,pls don't hesitate to contact with me.
We can according to your demand to customized your touch screen like customized cover glass's shape,silk-printing color,touch with water,touch with gloves and so on.If you are interested in,pls click it to watch the video.
Company Information
Shenzhen Yunlea Electronics Co., Ltd.
YUNLEA is is a leading designer and manufacturer of Capacitive Touch Panel, And we have rich experiences in medical & industrial & home automation& products supply.
Our strength lies in understanding the special needs of clients, to provide the most suitable products and professional technical supports.
Yunlea have :
1.5000 m2 factory area
2.10 years touch screen experience
4.Stronger engineer team and 24 hours -7 days Online service
5.High quality&low price and high reliability of our touch screens and Ensure long-term supply
Yunlea can do:

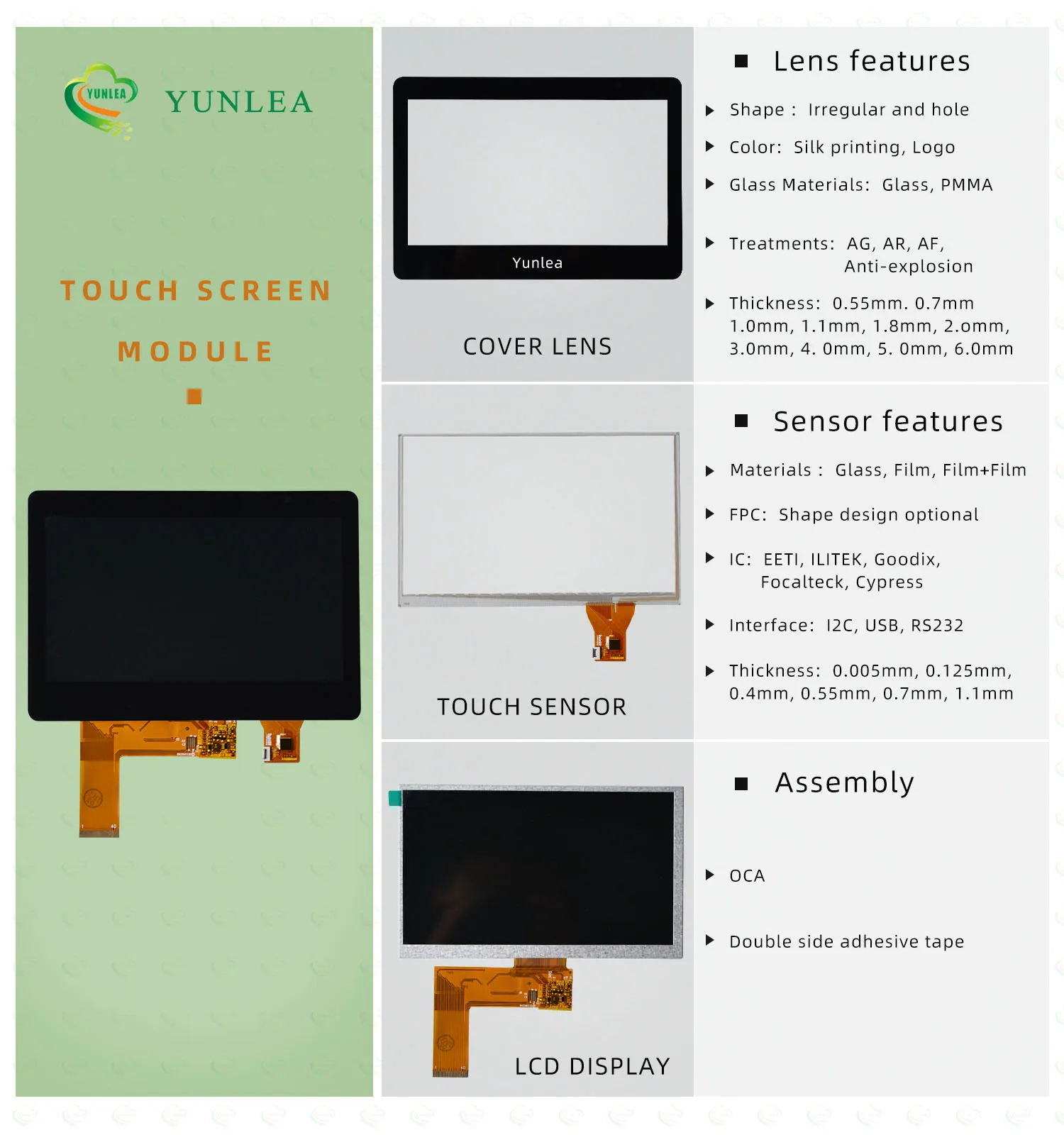

1.ITO sensor glass/ ITO sensor film/ Touch screen panel/ Touch display
2.We have some standard products (3.5 inch to 55 inch PCAP )in stock and no tooling request
2. Customized available : size, FPC,logo printing, silk-printing color
3. Special Treatment :AG/AG/AF ,Water-proof,With glove touch
4. Touch controller: ilitek, EETI ,Goodix, Focaltech and so on.
3.Short lead time,15 days for customized product,2-4 weeks for mass production
Our customers

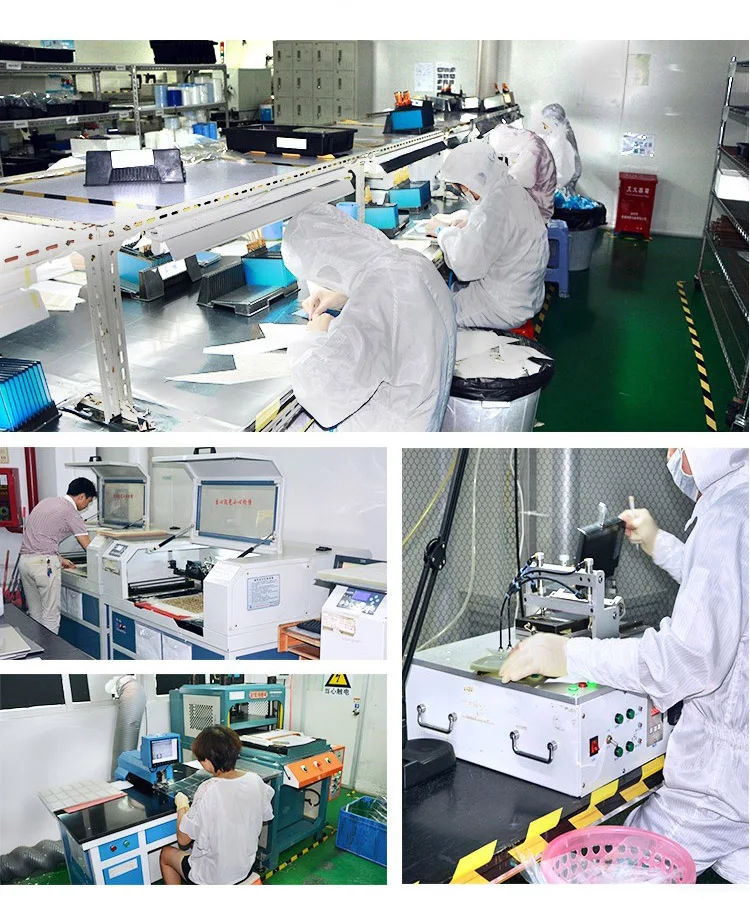

If you come to China, welcome to visit our factory. We will show you how touch screen is made.
Packaging & Shipping
All our products are standard packed, you can contact us sales for detailed information.
FAQ
Q1:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply
Q2: How can I trust your product quality?
A:We have more than 10 years Touchscreen experience. The company has advanced the incoming inspection, on-line test and reliability test equipment and system, the company products through the ROHS testing
Q3: What is the lead time of the products?
A:Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production
Q4:Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q5:How long is the warranty period?
A:Generally the warranty period is one year. It depends on different products.
Q6:What is the Product MOQ?
A:Different product has the different MOQ, please contact us sales for detailed information.
Q7: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional technical team.
