fiberglass reinforced aluminum foil composite materials for pu roof for export

Product Overview

Description

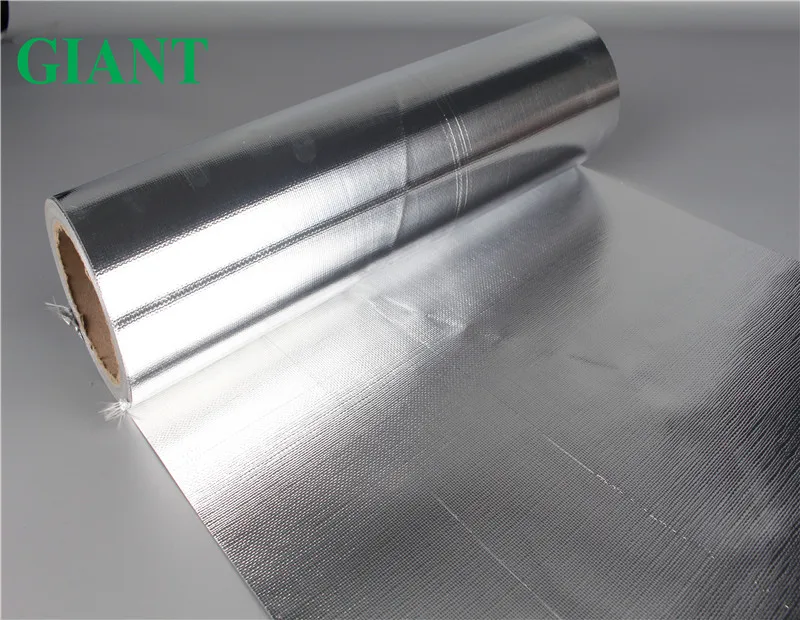

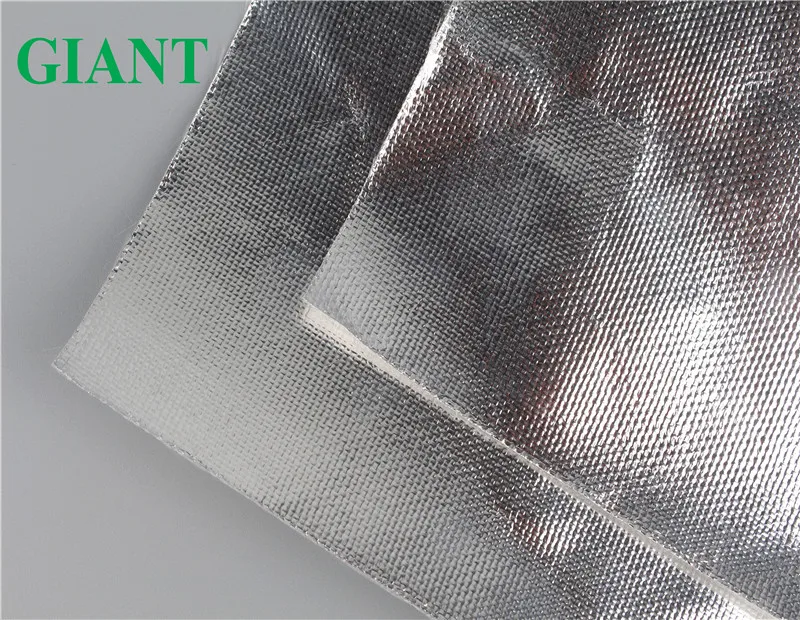

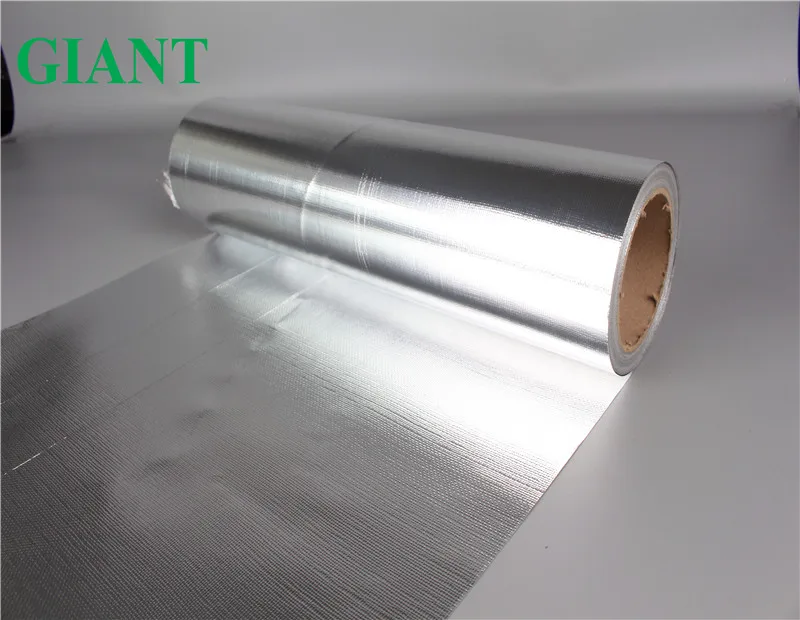

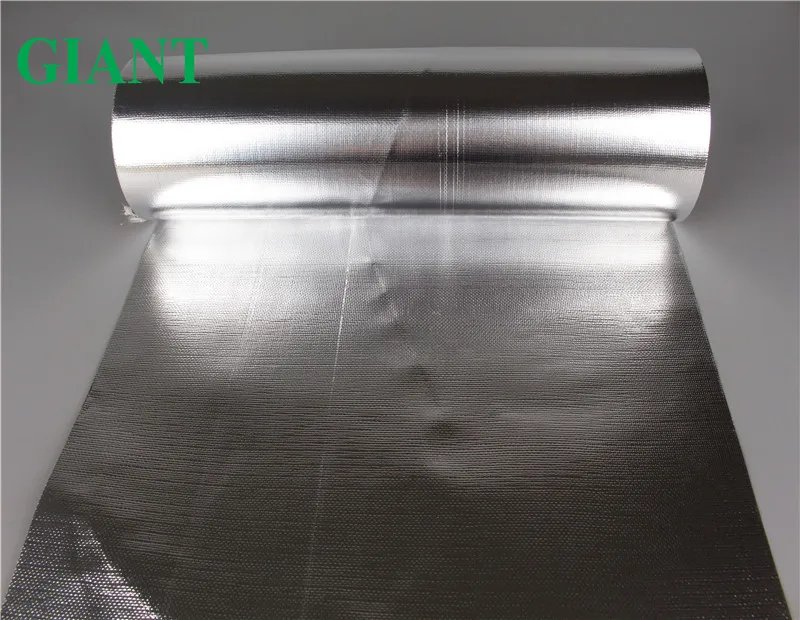

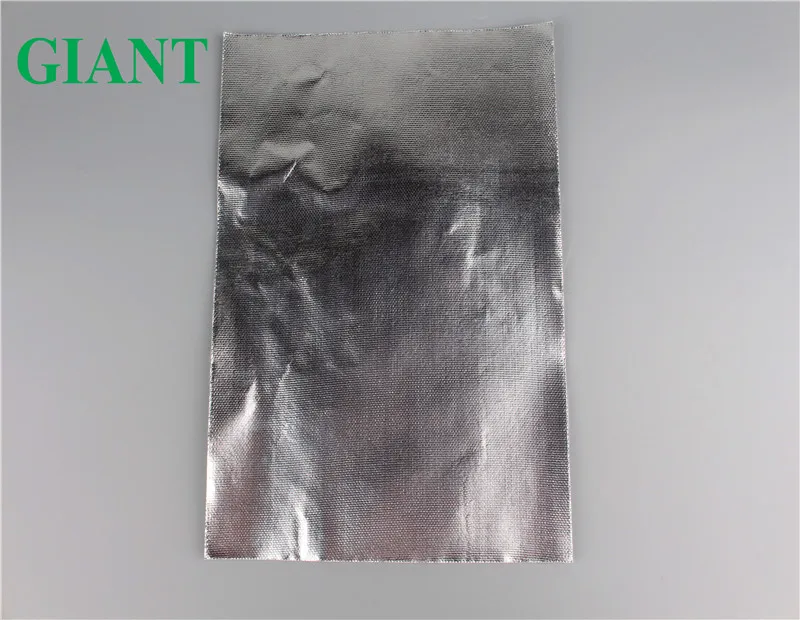

fiberglass reinforced aluminum foil composite materials for pu roof





Double side aluminum foil woven
Model	WPSK-1007-22
Appearance	silver
Structure	aluminum foil/polyethylene/woven/polyethylene/aluminum foil
Specifications	width(cm) 100/120/125/130   length(m)  60/120   1%+/-	Testing method
Norm	141g/m2	BALANCE
Water vapor penetration	2.0ng/NS	ASTM E96-A
Tensile strength	Endwise:290N/25mm	GB/T453
	Broadwise:240N/25mm
Bursting strength	630N	Q/320281NPB02
Temperature resistance	4 hours no decladding -30℃/90℃	ASTM C1263



Aluminum foil fiberglass cloth laminate(flame retardant)
Model	WPSK-1007A-3
Appearance	silver
Structure	aluminum foil/flame retardant adhesive/fiberglass cloth
Specifications	width(cm) 100/120  length(m)  100/200   1%+/-	Testing method
Norm	105g/m2	BALANCE
Tensile strength	Endwise:419N/25mm	GB/T453
	Broadwise:307N/25mm
Bursting strength	207N	Q/320281NPB02
Temperature resistance	4 hours no decladding -30℃/100℃	ASTM C1263

1, FSK Facing for Duct Wrap

FSK facing is mainly used for insulation & vapor barrier materials for duct wrapping in HVAC systems.

Specifications:

2, Double-sided Aluminum Foil Vapor Barrier

Double-sided aluminum foil vapor barrier consists of two layers of aluminum foil, one layer of high strength craft paper, one layer of fiberglass reinforcement and laminated together by special flame retardant adhesive. It is suitable for roof and wall insulation of house, warehouse, cold storage, factory etc.

3, Aluminum Foil with Woven or Fiberglass Cloth



Both single-sided and double sided aluminum foil with woven are used as insulation material under roofs, in walls behind cladding or under timber floors for residential and commercial buildings.



Specifications:

Product	Type	Width (M)	Length(M)	Core(MM)
Single-sided Alum Foil or PET with Woven	FW-760/PW-860	1.25	60, 100	38 or 76
Single-sided Alum Foil with Fiberglass Cloth	FG-795/FG-1895	1.2	Available	38 or 76
Double-sided Alum Foil with Woven	FWF-7607	1.25	60, 100	38 or 76
Double-sided PET Foil with Woven	PWP-8608	1.25	60, 100	38 or 76

4, Heat-sealing Aluminum Foil Facing

Heat Sealing Foil Scrim Kraft Facing is used for in-line lamination with insulation materials by heating. No extra adhesive is needed. It has good corrosion resistance, high and low resistance.

5, WPSK Facing for Metal Building

6, Metalized PET / Aluminum Foil with LDPE Coating

Product Description:

The material provides excellent insulation: reflects up to 97% of radiant energy in addition to resisting other types of heat transfer from conduction,convection,and radiation.The side of metalized PET/Alu forms an effective barrier against moisture,air currents and vapors.It is economical solution in many field.

 Characteristics:

1.Water, corrosion, light can be prevented effectively.

2.for keeping  warm ground, warm wall, moisture-proof floor,  etc.

3.Eco-friendly .insulation,.water-proof,oil resistant, etc.

4.For construction,OEM is available.

Strengths:

1,Prompt Reply to customers’ inquiry

2,Strict quality control system

3,Good Service & Good reputation in the market.

4,Low MOQ can meet your promotional business very well.

5,Fast Delivery & Cheap Freight Charge from forwarders.

6,OEM & ODM are welcome.

Wuxi Giant is a professional manufacturer of aluminium foil insulation since 1996, with more than 100 employees and 200 types of products. We have 9 sets of machines for scrim series, 3 sets for laminating, 1 set for breathable membrance, 5 sets for rewinding etc.



Application:

Foil Insulation is mainly used as insulation facing & vapor barrier material for wrapping glass wool duct,rock wool duct,mineral wool duct and foam duct,etc. Our foil kraft facings are also suitable for other insulation applicationn where a general use vapor retarder is needed,they are also good choices for radiant barrier applications because of their low emissivity.
