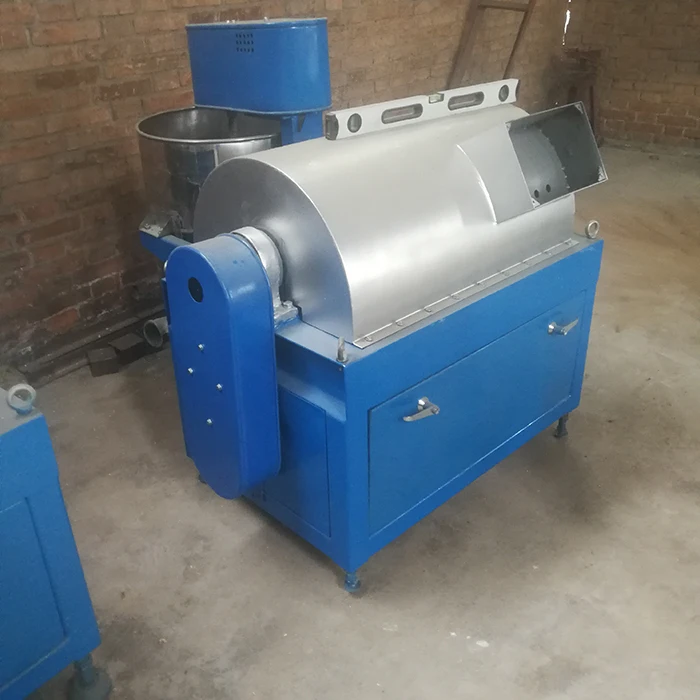

New generation automatic Oil residue separator(can work without stop)

Product Overview

Description

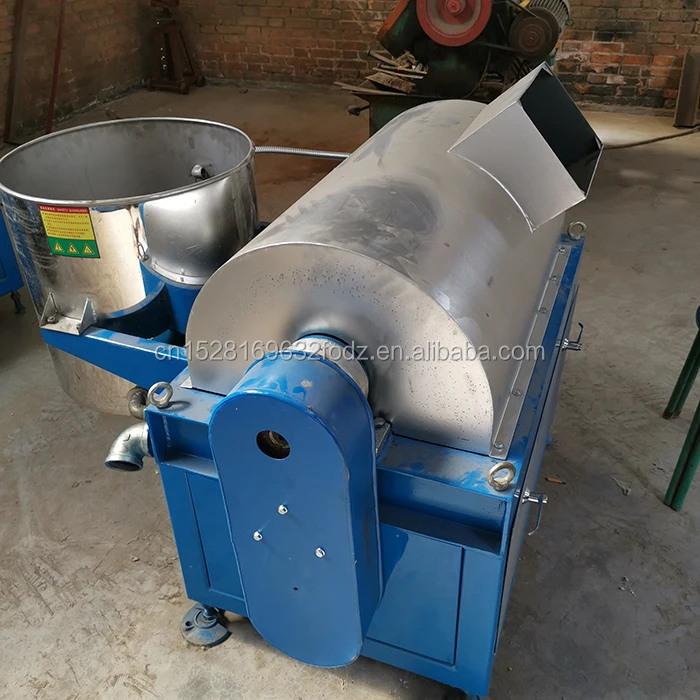

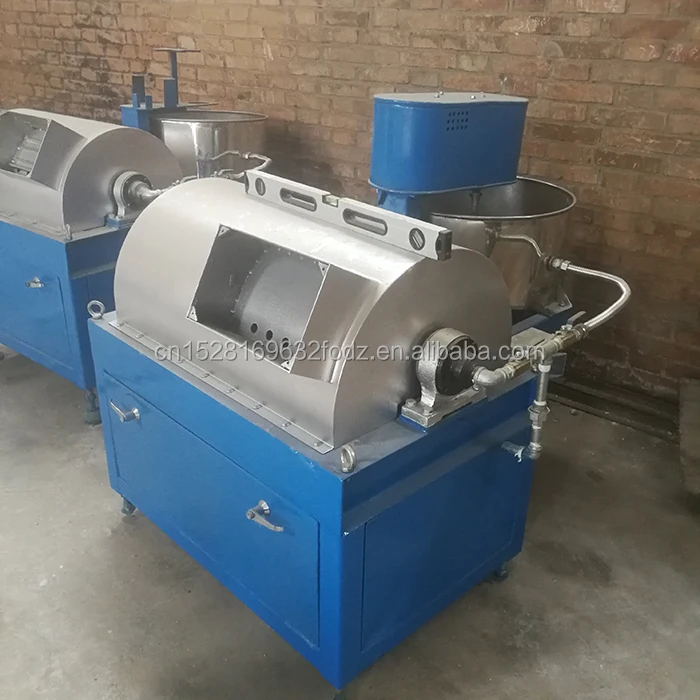

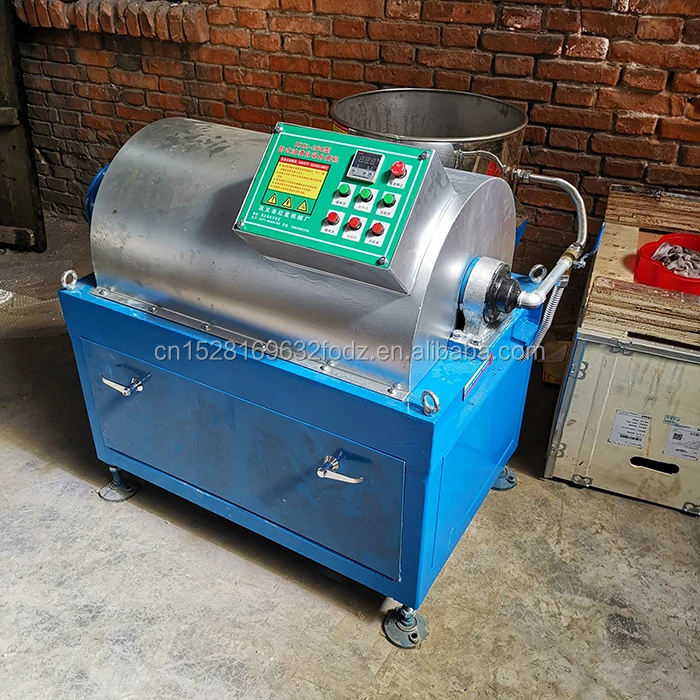

New generation automatic Oil residue separator



Technical datas	Unit	LYF--150
Rotating drum type		Cylindrical cone
Drum dia.×drum length	mm	150 X550
Drum max rotating speed	r/min	4180
Separating factor		1465
Motor power	KW	3
Capacity	kg/h	380
Overal size	L×W×Hmm	980×1130×986
Weight	kg	260





Horizontal screw centrifugal oil residue separator is based on the dynamic principle that the solid phase and liquid phase in the mixture move in the screw drum with high speed: liquid phase moves to the lower part and solid phase moves to the higher part. It uses the variable diameter drum and the variable diameter helix as well as the velocity difference between them, and uses the high speed centrifugal separation factor of 5000 rpm to separate the particles. The solid phase is in a polar state. It separates rapidly from the high end along the changing diameter of the helical blade and the horizontal drum. Oil is discharged on one side and slag is discharged on the other.



The advantages of automatic oil residue separator over traditional centrifugal oil filter are as follows:

Oil residue automatic separation, residue forming, clear oil quality, continuous operation, high output, 400 kg crude oil per hour can be filtered, the effect is superior to all other centrifugal oil filters, is the advanced technology equipment in oil filtering industry. Because of the automatic separation of oil residue, it can be said that all the problems of oil treatment can be solved by this machine, such as the sesame paste produced by stone milling in traditional process sesame oil, the oil extraction rate by this machine is much higher, and so on. In industry, the recovery and utilization of industrial waste oil, the filtration of hydraulic oil and so on.



Horizontal screw oil residue separator features:
1. Continuous work, no filter cloth, never stop to replace the filter media.
2. The production efficiency is high, and the crude oil produced by 1 ton of rapeseed can be treated every hour.
3. The operation is simple and convenient. Oil and residue are automatically removed without manual labor.
4. Excellent treatment effect, clear and bright oil, drying and shaping of oil residue.
Machine structure:

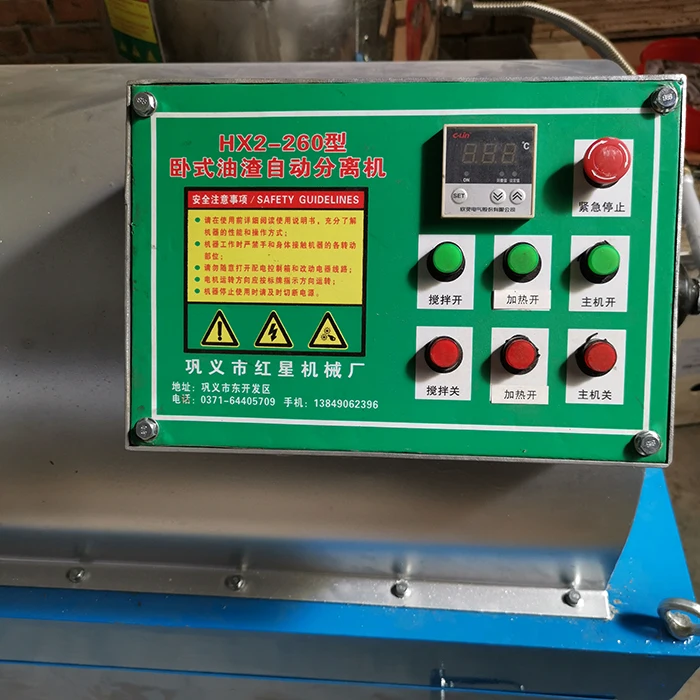

Horizontal screw centrifugal oil residue separator consists of dephosphorization system, horizontal screw settlement system, crude oil transportation system, transmission and lubrication system, electrical control, frame and so on.





Troubleshooting:
1. The liquid phase is not clear.
2. If the amount of treatment is too large, the amount of feed should be reduced.
3. The time of hydration dephosphorization should be prolonged and the proportion of hydration should be adjusted.
4. If the liquid temperature is too low, the temperature of the separating liquid should be increased.

Machine vibration is large:
1. It is normal for the machine to have moderate vibration when it reaches a certain speed or falls to a certain speed.
2. Bearing damage should be identified or replaced.
3. If the screw propeller is worn out, the screw propeller and shaft should be repaired or replaced.
4. Loosening of vibration-absorbing foot;
5. Machine vibration should be excluded with the idea of "easy first, difficult later", if it can not be excluded, contact the manufacturer in time.
