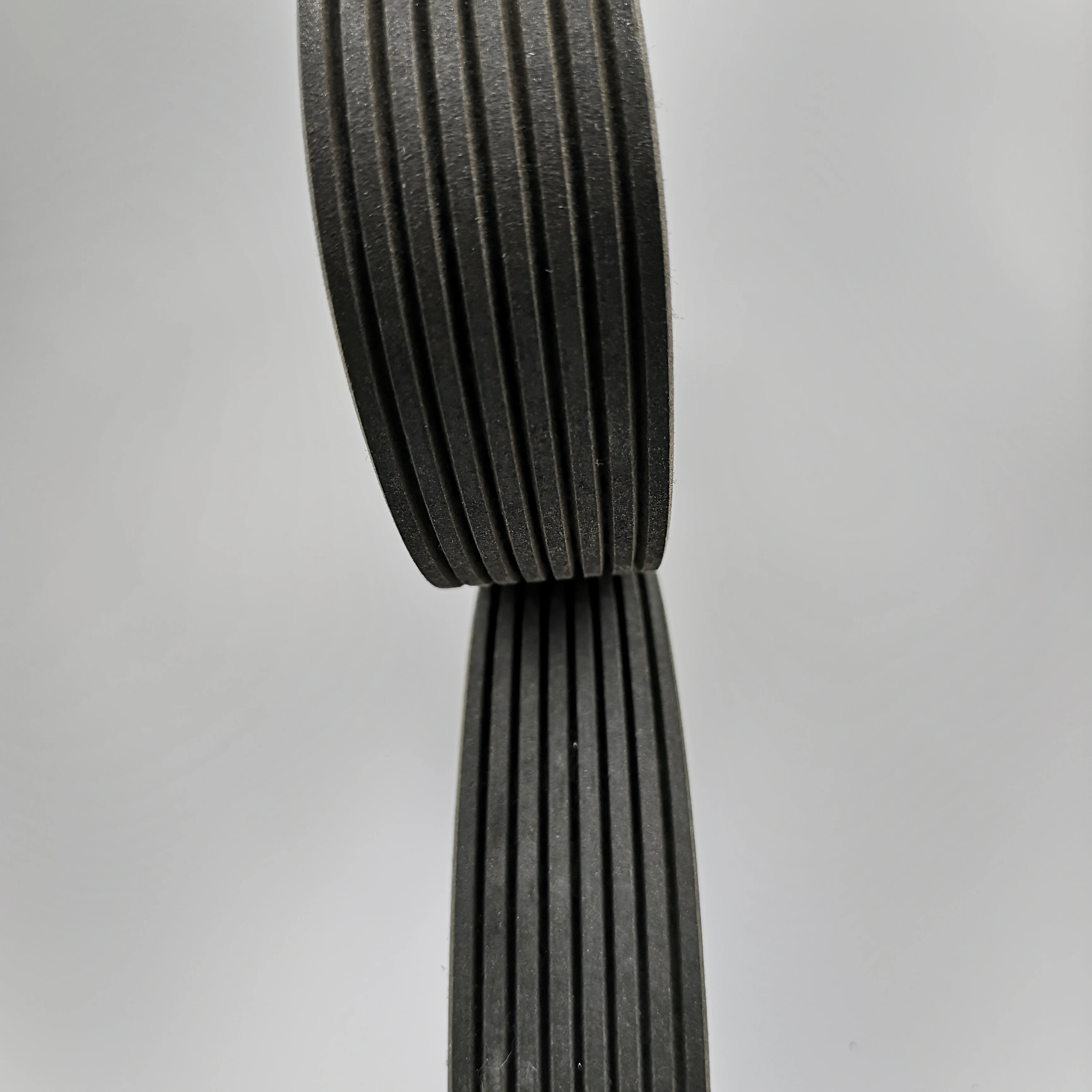

Ремни в рубчик, экскаватор, вентилятор двигателя, поли, V образные машины, резиновая трансмиссия, высокая мощность, модель Pk V ремень, защита от нагрева и масла
- Category: >>>
- Supplier: Zhejiang Sihai New Materials Co. Ltd.
Share on (62240822784):
Product Overview
Description
WRAPPED BANDO BELT FEATURES:
1. High quality
2.Excellent heat and oil resistance
3.Excellent abrasion resistance
4.long life
5.have the complete mould of every size(A,B,D,C,O(M)/Z,SPA,SPB,SPC.3V.5V.8V.AA,BB,CC,and Banded belt and agricultural belt).
1. High quality
2.Excellent heat and oil resistance
3.Excellent abrasion resistance
4.long life
5.have the complete mould of every size(A,B,D,C,O(M)/Z,SPA,SPB,SPC.3V.5V.8V.AA,BB,CC,and Banded belt and agricultural belt).
Production Type | Top Width | Pitch Width | Height | Angle |
O(Z) | 10 | 8.5 | 6 | 40° |
A | 13 | 11.0 | 8 | 40° |
B | 17 | 14.0 | 11 | 40° |
C | 22 | 19.0 | 14 | 40° |
D | 32 | 27.0 | 19 | 40° |
E | 38 | 32.0 | 23 | 40° |
Production Type | Top Width | Height | Angle |
HAA | 13 | 6 | 40° |
HBB | 17 | 8 | 40° |
HCC | 22 | 11 | 40° |
Production Type | Top Width | Height | Angle |
AJ | 13.6 | 10 | 40° |
BJ | 17.0 | 13 | 40° |
CJ | 22.4 | 16 | 40° |
DJ | 32.8 | 21.5 | 40° |
Physcial Characters Of Common V-belt (wrapped)GB/T1171-2006
Type | Tensile-Strength KN ≥ | Reference Force Extension %≤ | Adhesive Strength Of The Cord (KN/m)≥ | Adhesive Strength Between Cloth And Top Rubber(KN/m)≥ | |
Z | 2.0 | 13.0 | - | ||
A | 3.0 | 17.0 | |||
B | 5.0 | 21.0 | 2.0 | ||
C | 9.0 | 31.0 | |||
D | 15.0 | 31.0 | |||
E | 20.0 | 31.0 | |||
