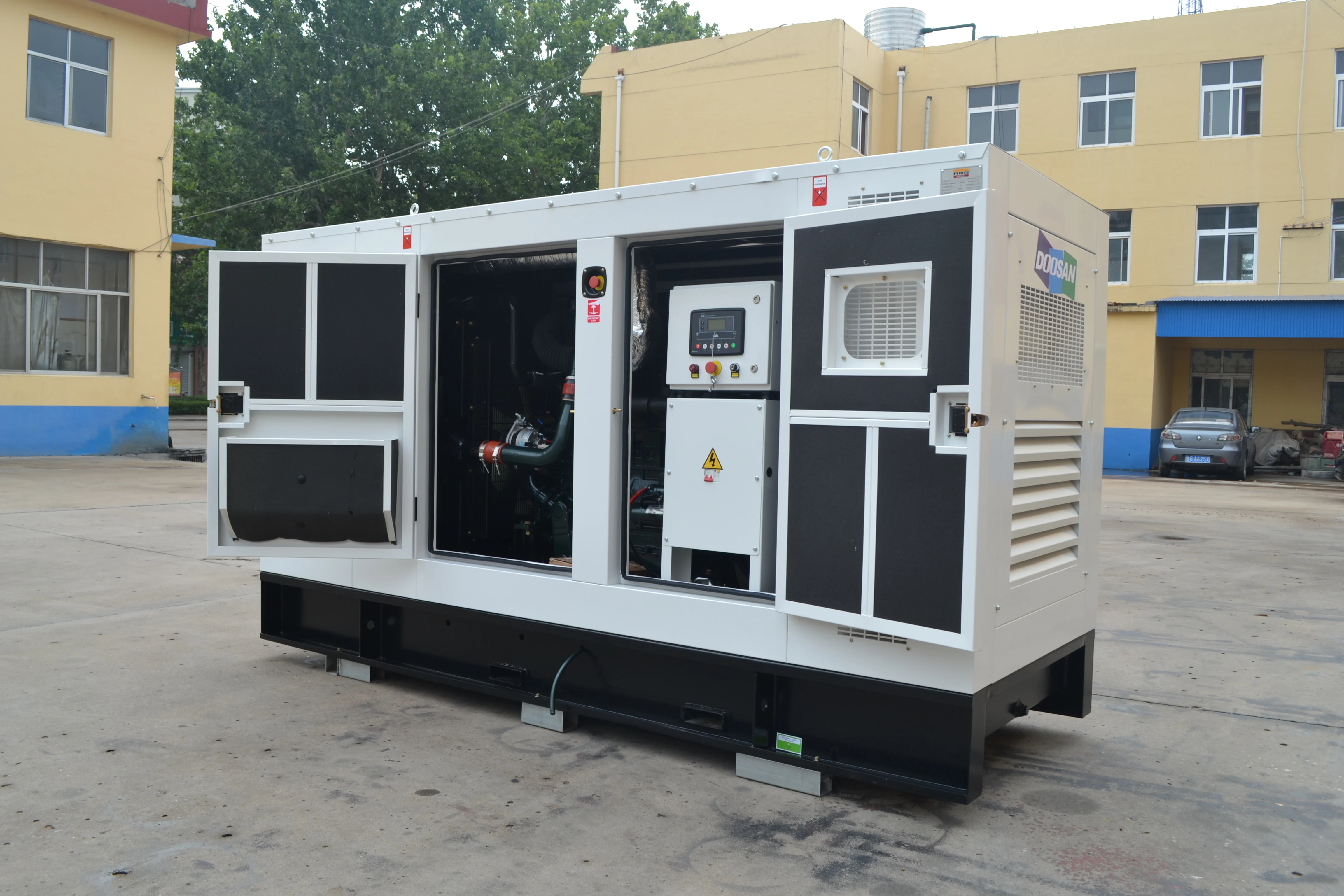

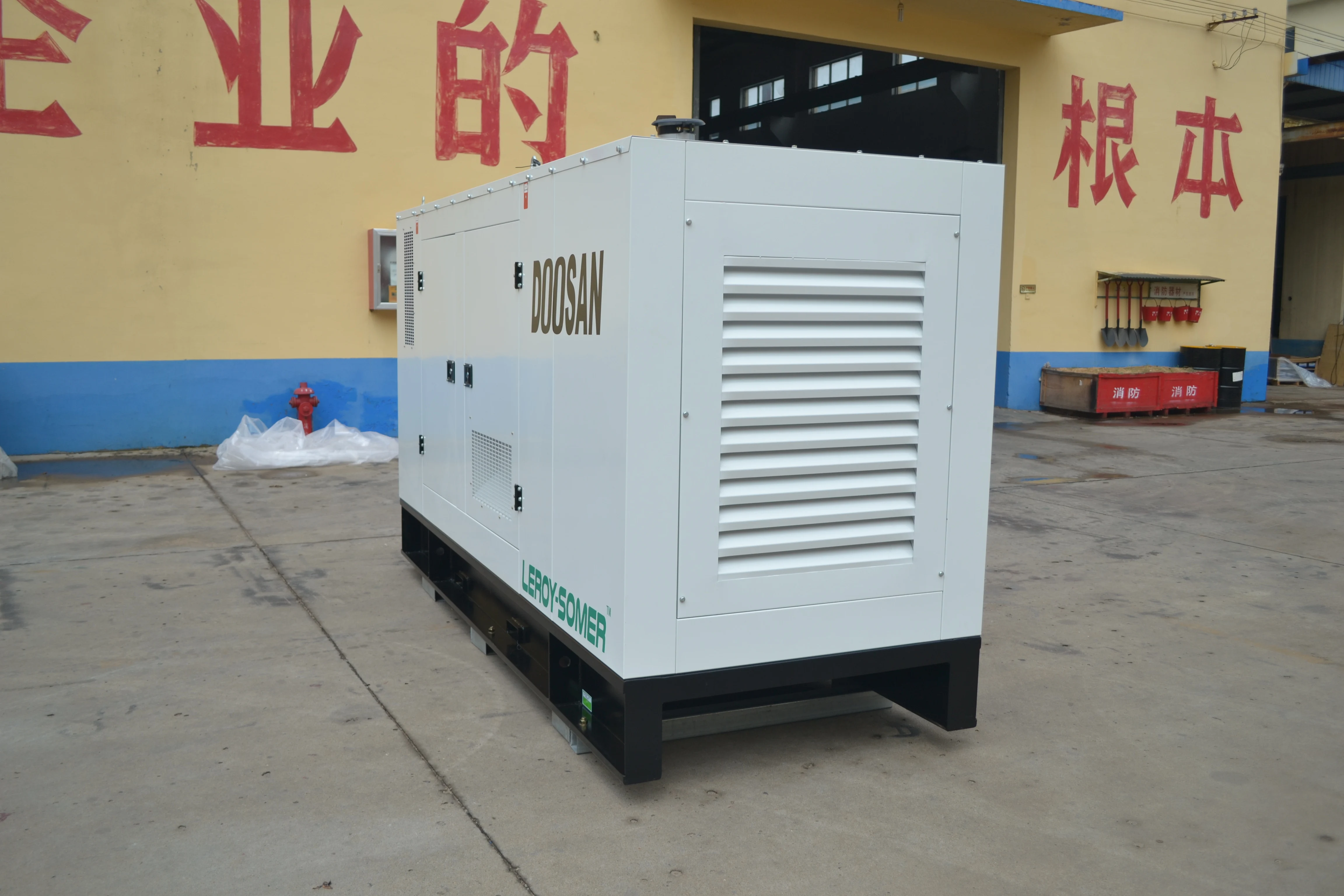

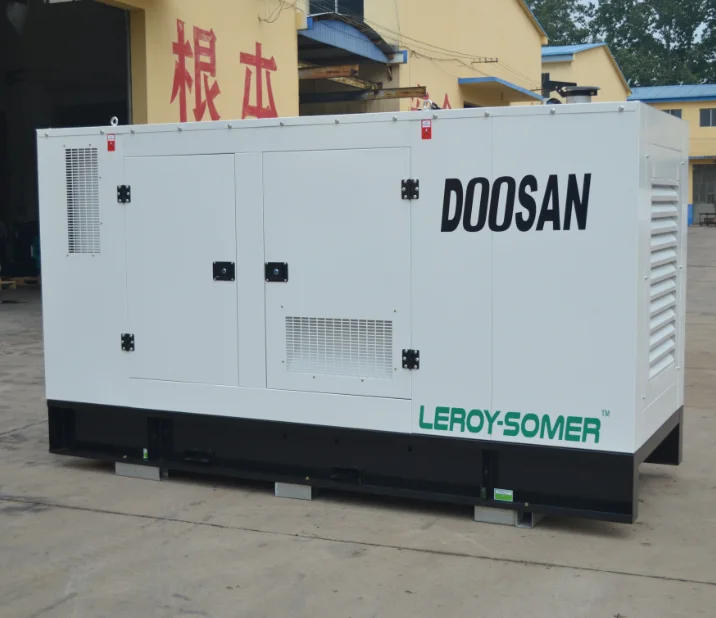

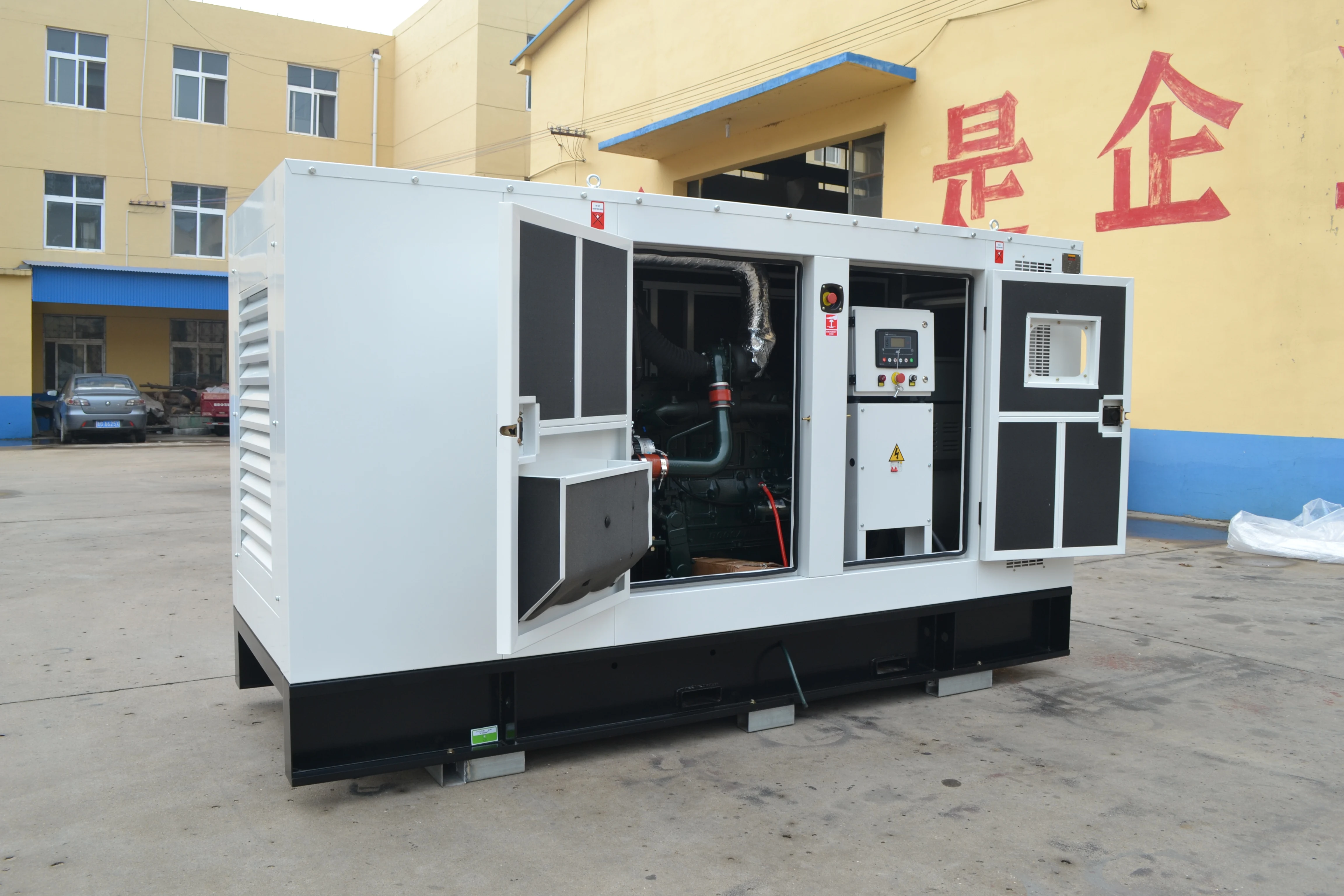

200kW standby diesel Generator Set POWERED by DOOSAN engine

Share on (62240889707):


Price:

Quantity:


Product Overview

Description






Product Description










STANDBY DIESEL GENERATOR SET SPECIFICATION





*Powered by weifang engines


*Radiator 40°C max, fans are driven by belt, with safety guard


*12//24V DC start motor and storage battery


*Brushless, self-excited, IP22/23, insulation H alternator


*Absorber to reduce vibration


*Dry type air filter, fuel filter, oil filter


*Main line circuit breaker


*Control system: Key start control panel as standard, digital auto start or ATS system is optional


*8 hours operation base fuel tank


*High efficient muffler to reduce noise


*Ripple flex exhaust pipe, exhaust siphon and flange etc.


*Genset type: open type or soundproof/silent type, or trailer type


* Maintenance and operation manual, quality certificate, etc.


 *Rigorous testing must be done before delivery, including 50% load, 75%load, 100%load, 110%


and all protection function(over speed stop, high water temperature, low oil pressure, battery


charging fail, emergency stop)


*Certificate: ISO9001:2000, CE (ESC/070119), BV













































































Rated output



200kW (250KVA)



Prepare output



220kW (275KVA)



Frequency



50/60HZ



Speed



1500/1800rpm



Voltage



230/400V, 120/240V



Power factor



0.8



Connection method



3 phase 4 wire, 1 phase 3 wire



Fuel consumption



Less than 258g/kw.h



Engine



P086TI



Engine type



Multi cylinders, water cooled



Alternator



Stamford, Marathon



Alternator type



Brushless self excitation



Start method



Key start, auto start



Fuel tank



run 8 hours



Genset type



Open type, silent/soundproof, or automation type

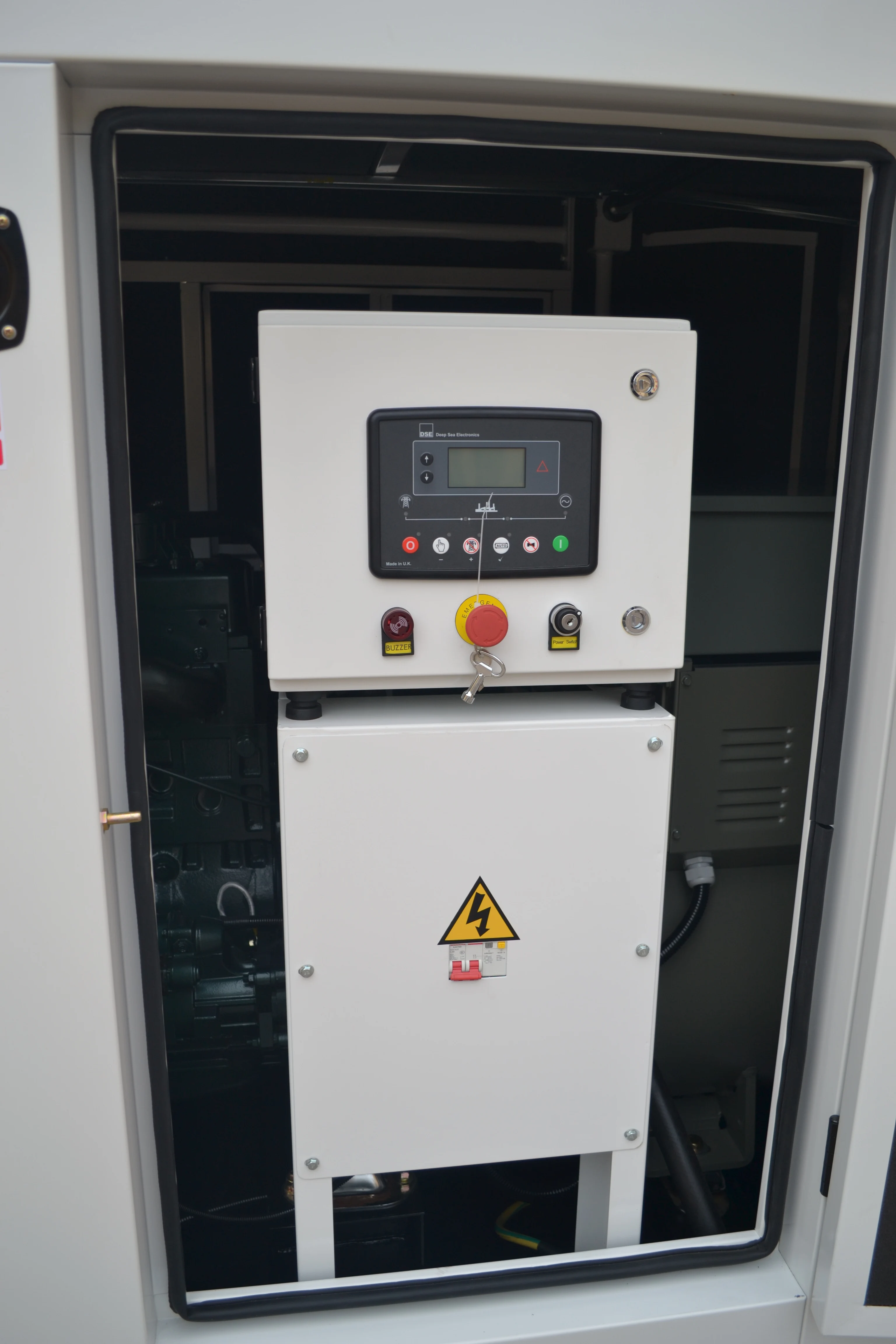

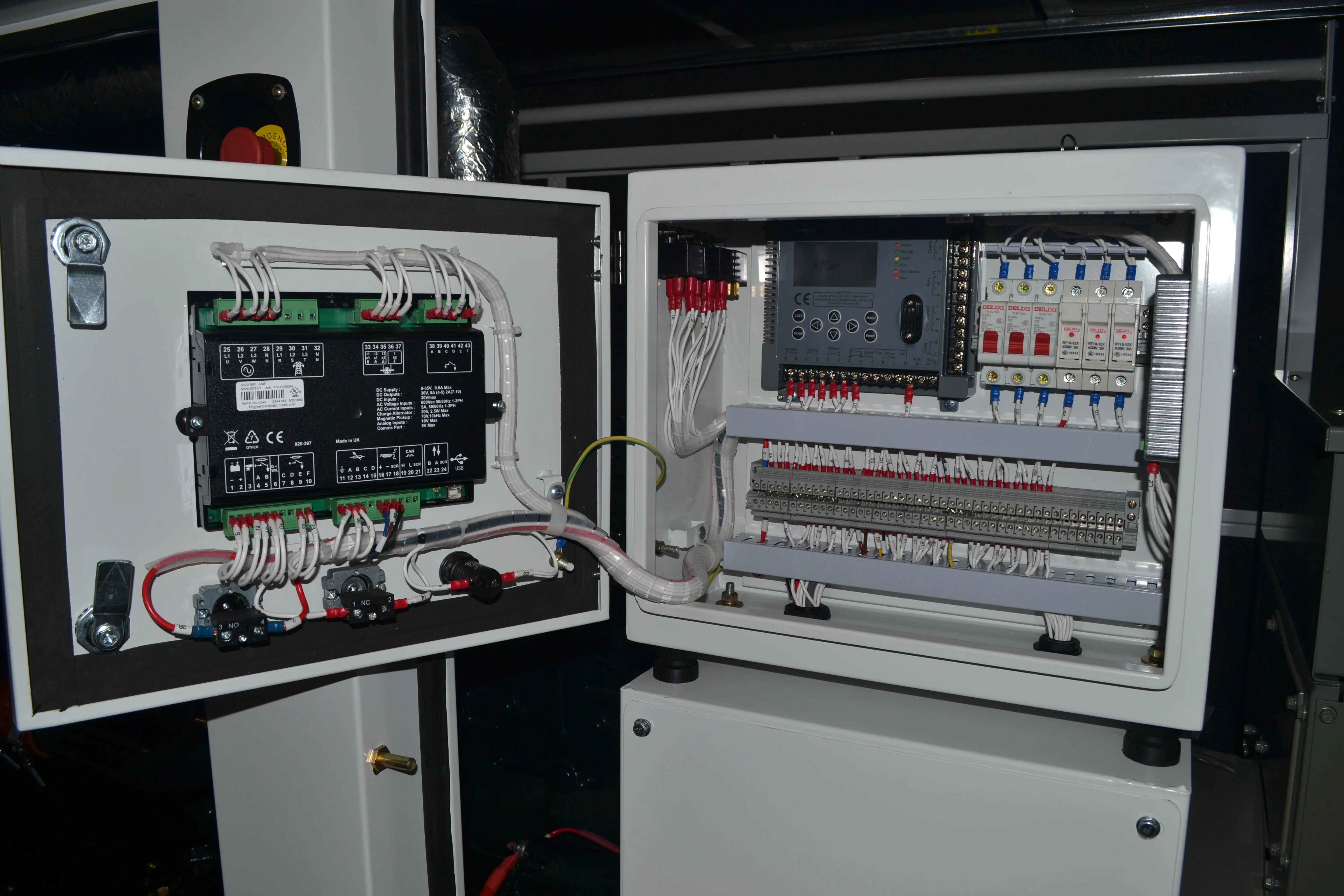

Control system



a)      automatic alarm system: the unit has the acoustic-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current


b)      Operation display:


 Unit voltage, tri-phase load current and frequency display


 Water temperature, oil pressure display


 Fuel level, fuel temperature display


 Audible and visual alarm lamps and buzzers



Package



In plywood case












STANDBY DIESEL GENERATOR SET PRODUCTION LINE


about us

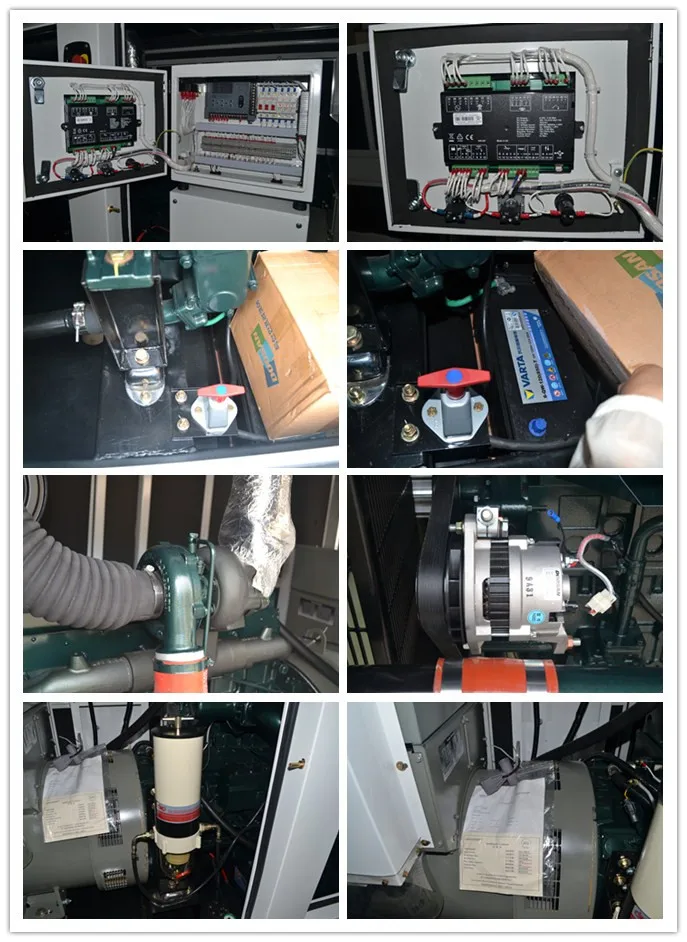

STANDBY DIESEL GENERATOR SET SHOW
