Automatic dispenser desktop pick and place machine TH 206M
- Category: >>>
- Supplier: Cixi Tianhao Electric Technic Co. Ltd.
Share on (62241106192):
Product Overview
Description
Product Description

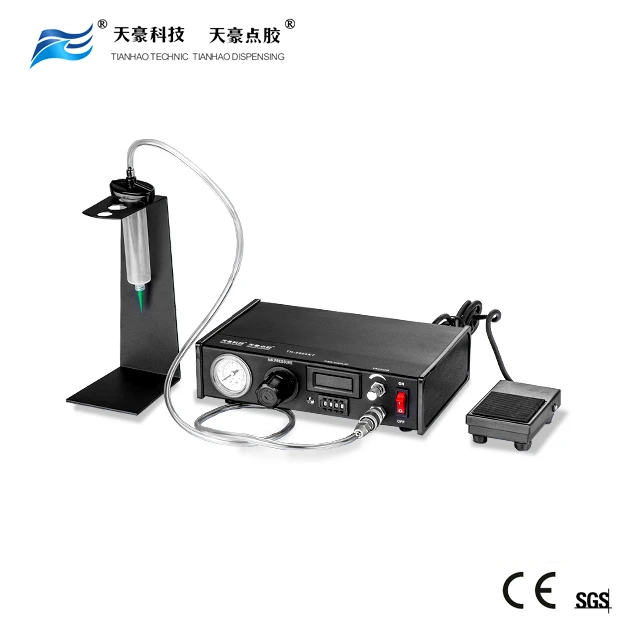

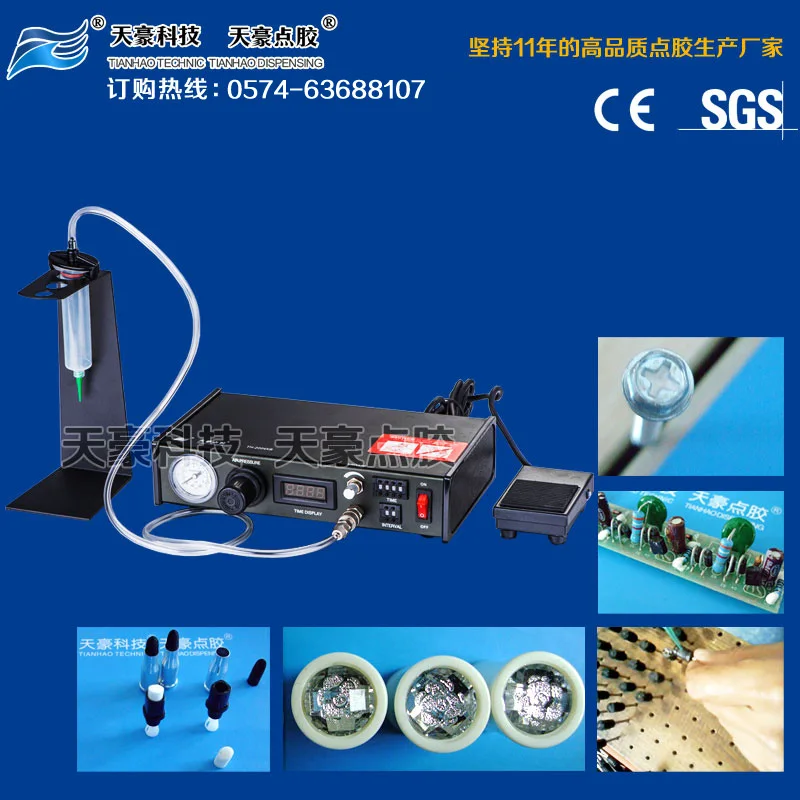

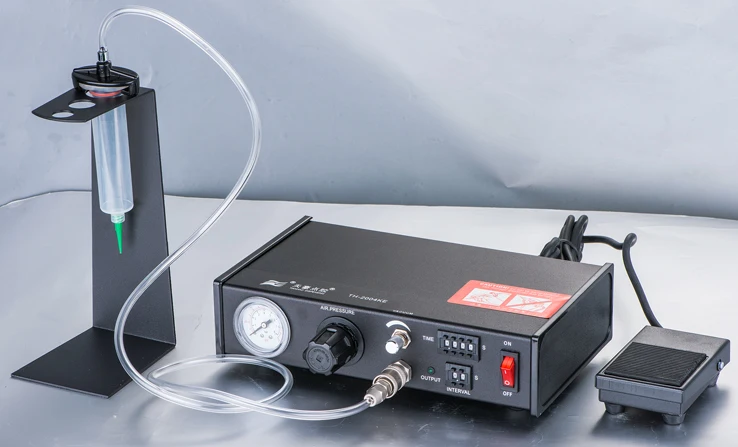

Automatic dispenser desktop pick and place machine TH-206M
Product introduction
Automatic Fluid Dispenser with Pick and Place can Dispensing glue on surface on small product,Vacuum suction pen according to the size of components with the corresponding diameter of the nozzle, the replacement is simple and convenient.
Function
.Automatic Fluid Dispenser with Pick and Place can Dispensing glue on surface on small product,Vacuum suction pen according to the size of components with the corresponding diameter of the nozzle, the replacement is simple and convenient.
Liquid Materials
adhesive, glue, silicone, RTV, cyanoacrylate, grease, anaerobic, and UV cure resins
Features
1.Feed system: syringe dispensing.
2.Vacuum suction pen with sucker
3.QUOTE USA high-speed precision solenoid valve MAC.Vacuum control keeps thin fluids from dripping.
4.The digital dispenser has three operating modes (Timed or steady, interval operation).
2.Vacuum suction pen with sucker
3.QUOTE USA high-speed precision solenoid valve MAC.Vacuum control keeps thin fluids from dripping.
4.The digital dispenser has three operating modes (Timed or steady, interval operation).
service Free
Help you seek the glue.
Free offer trial video for your sample.
Free training with machine.
Free offer accessories dispensing kit.
Save cost
One machine instead of three or four staff, reduce the
management cost, also can work for 24 hours.
Help your business
You can bring customers to visit your workshop,the equipment to produce customer
satisfaction products,then take good business for you
Specification
ITEM | TH-206M |
Standard | CE Approved |
Control: | E-pneumatic |
Operating Model | Manual, Timer,cycles |
Time control | high pulse analog circuit |
Vacuum function | Leak-proof vacuum adjusting organ |
Control way | Foot Pedal, Finger Switch |
Dispensing time | 0.005 -99.99 seconds |
Repeatability | +/-0.05% |
Frequency | 600 times/minute |
Input Air pressure | 1-7 bar (100 psi) maximum (1bar =1.01972kg/cm² =14.5038psi) |
Air output: | 0.1bar-0.7bar |
Input voltage | 110/220VAC |
Output voltage | 24VDC |
Power | 15W |
Temperature: | 5°C to 45°C (41°F-113°F) |
Humidity | 85% RH at 30°C non-condensing |
size | 25.60x21.00x7.00cm |
Weight | 3KG |
More Product
Desktop robotic hot glue dispenser dispensing robot
manual dispensing machine for epoxy resin
silicone dispenser dispensing machine system
Robotic Dispensing Machine Glue Dispenser Robot With Vison Systems.
xyz axis dispenser robot for Adhesive,Adhesive Glue,Epoxy Glue For Pcb.
Desktop dispensing robots,glue liquid dispensing machine TH-2004D-300R.
Company Information
Company Name: | |
ADD: | NO.789 Huchong Road cixi city zhejing china |
Factory established time: | Augest.8.2001 |
Time of exports trades: | Jan.1.2006 |
Export right: | Have oneself right of import and export offer certificate of origin |
Certifications
Exhibition
Packing & Delivery
Packaging | ||
Packaging Details | The normal package is carton(Size: L*W*H). If container is too tigher,we will use pe film for packing or wooden box pack it according to customers special request. | |
