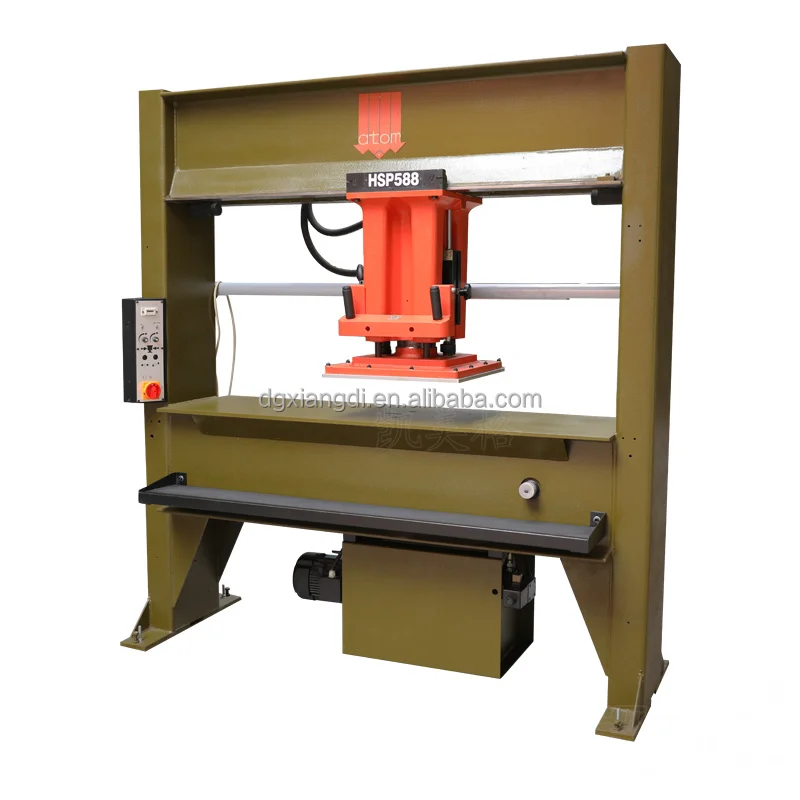

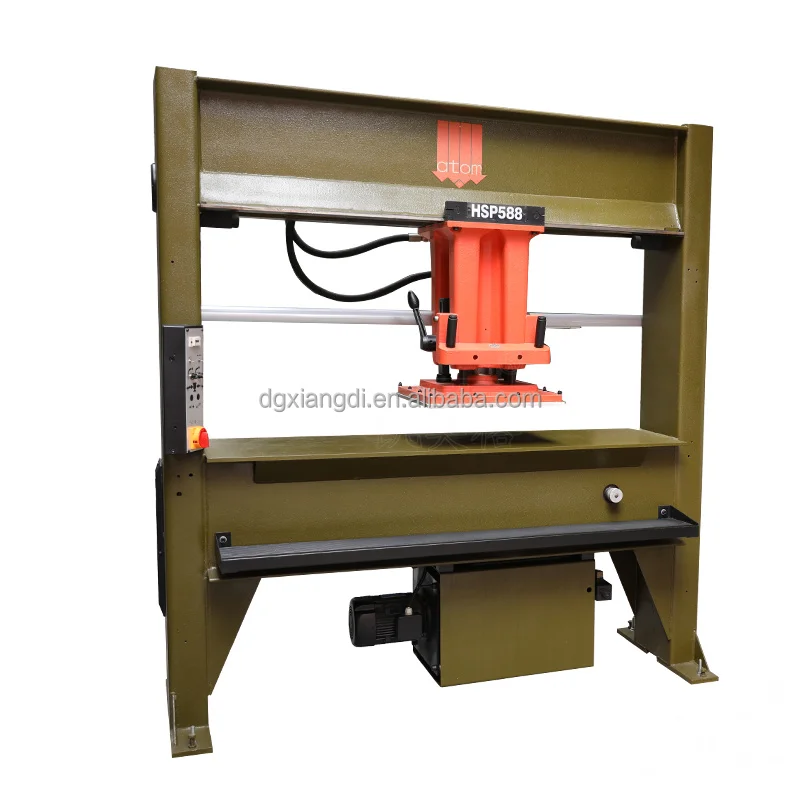

Renew Atom HSP588 High Traveling Head Cutting Machine for Leather Shoe Making
- Category: Other Shoemaking Machines >>>
- Supplier: Dongguan Xiangdi Machinery Co. Ltd.
Share on (62241353598):
Product Overview
Description
Product Description
This hydraulic cutting presses with movable trolley 588-series are the most performing cutting presses available in the market.Their main peculiar features are:exceptional trolley displacement speed,low energy consumption,high reliability and cutting quality.The wide range of dimensions and configurations makes them suitable for any production need in a great variety of industries and applications.We are a professional team who refurbish these machines for more than 10 years.We have been recognized by our customers from all over the world.You are welcome to send us your inquiry.
Features
SYNCHRONIZED CONTROLS:The synchronized controls and the protection barrier ensure maximum safety to the operators and great accuracy both in trolley displacement and in cutting.
DYNAMIC BREAKING SYSTEM:The exclusive and powerful dynamic breaking system stops the trolley in a very short time, avoiding wear and tear of the motor gear box unit, ordinary maintenance and granting maximum reliability.
FEEDING SYSTEMS:To optimize productivity, any 588-series model can be equipped with feeding systems for materials in roll, with manual as well as automatic opening.

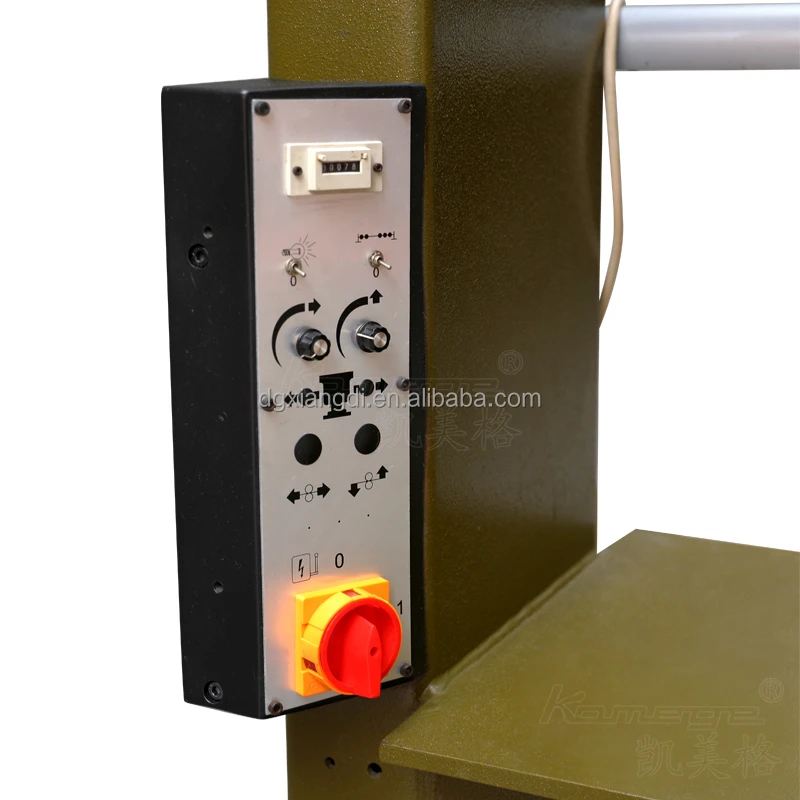

PROGRAMMABLE CUT COUNTING DEVICE:Every machine is available with an optional cut-counter, to control the exact number of cut pieces or to plan the automatic stop of the cutting session when the programmed quantity is reached.
Features
SYNCHRONIZED CONTROLS:The synchronized controls and the protection barrier ensure maximum safety to the operators and great accuracy both in trolley displacement and in cutting.
DYNAMIC BREAKING SYSTEM:The exclusive and powerful dynamic breaking system stops the trolley in a very short time, avoiding wear and tear of the motor gear box unit, ordinary maintenance and granting maximum reliability.
FEEDING SYSTEMS:To optimize productivity, any 588-series model can be equipped with feeding systems for materials in roll, with manual as well as automatic opening.
PROGRAMMABLE CUT COUNTING DEVICE:Every machine is available with an optional cut-counter, to control the exact number of cut pieces or to plan the automatic stop of the cutting session when the programmed quantity is reached.
Technical data | ||
Model | HSP588 | |
Manufacturer year | 2010 | |
Cutting table size(mm) | 1600*500 | |
Head size(mm) | 500*500 | |
Max cutting force(ton) | 25 | |
Stroke(mm) | 5-100 | |
Power(kw) | 1.5 | |
Net weight(kg) | 1350 | |
Dimensions(Length,width,height)mm | 1950*750*2050 | |
Packing dimensions(Length,width,height)mm | 2030*760*2230 | |
